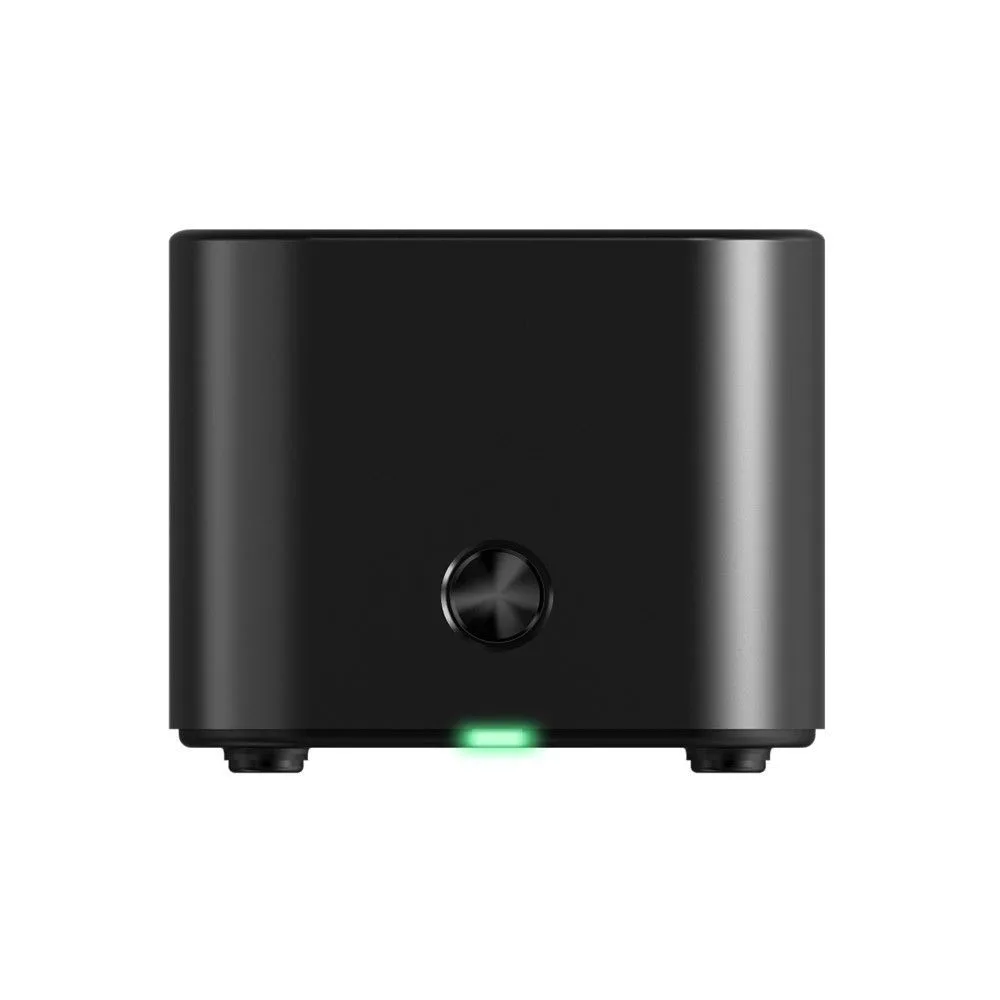

Totolink System Wifi X18 AX1800 Wifi 6

Totolink System Wifi X18 AX1800 Wifi 6

Model:

X18

Description:

System Wifi AX1800, Wi-Fi 6, Dual Band, MU-MIMO, 3xRJ45 1000Mb/s, WPA3, 2-pak

Type: xDSL
Network architecture: GigabitEthernet

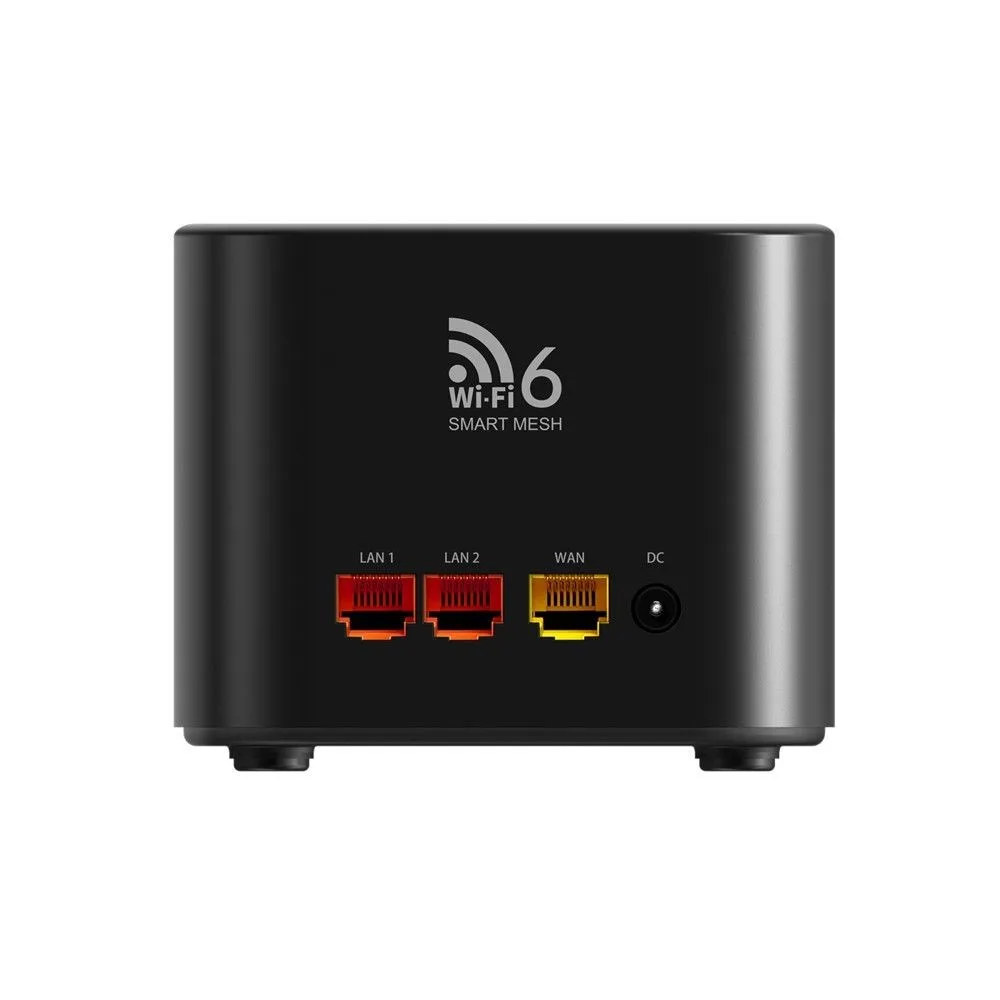

I/O ports: 2 x 10/100/1000 Mbit/s
I/O ports: 1 x WAN (RJ-45)
Standards: 802.11b
Standards: 802.11s
Standards: 802.11g
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11ax
Standards: 802.11a
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Number of antennas: 2
Antenna: Built-in
Security:

• WPA2/WPA Mixed
• WPA3
• Parental control
• MAC Filtering
• IP/Port Filtering
• URL Filtering

Management, monitoring, configuration:

Homepage:

• Quick setup
• Basic setup
• Advanced setup
• Logout – Reboot
• Language Auto



Mesh:

• Mesh network
• Mesh topology
• Roaming
• Clear default pairing



Network:

• WAN settings
• LAN settings
• IP/MAC Binding
• DDNS settings
• IPTV settings – IPv6
• WAN type: Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP



QoS:

• Up/down speed control on WAN
• Bandwidth control based on IP address



NAT:

• Virtual server (port forwarding)
• DMZ
• VPN passthrough



Tools:

• Firmware update
• Time configuration
• Remote management
• Password settings
• Restart schedule
• System log

Special functions:
Power supply:

12V DC/1A

Software:
System Requirements:
Accessories included:
Color: Black
Dimensions:

Unit: 105 x 105 x 87 mm

Environment requirements:

• Operating temperature: 0~50 C
• Storage temperature: -40~70 C
• Operating humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing

Other features:

• Mesh/Reset button

Data rate:

• 2.4GHz: Up to 574Mbps (2*2 40MHz)
• 5GHz: Up to 1201Mbps (2*2 80MHz)

Designation:
