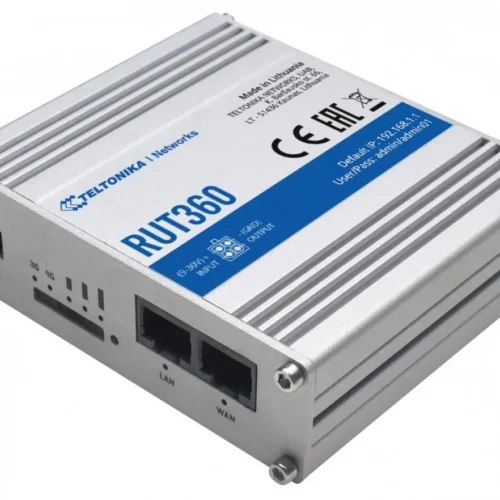

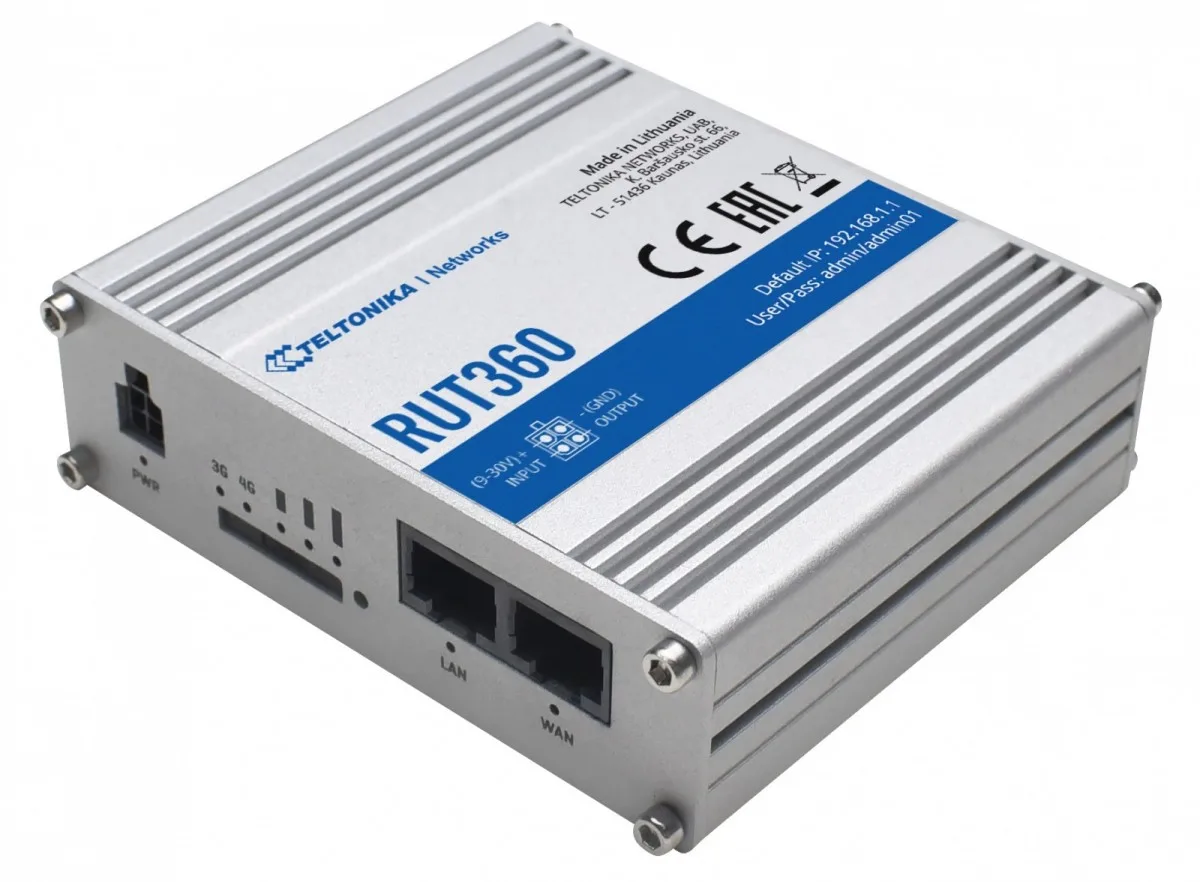

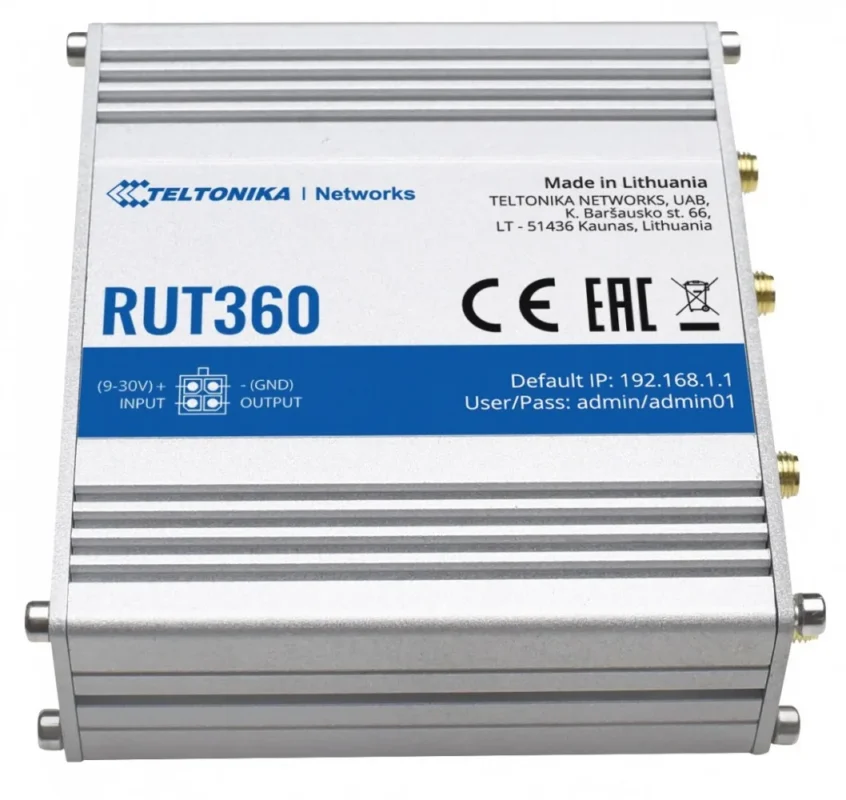

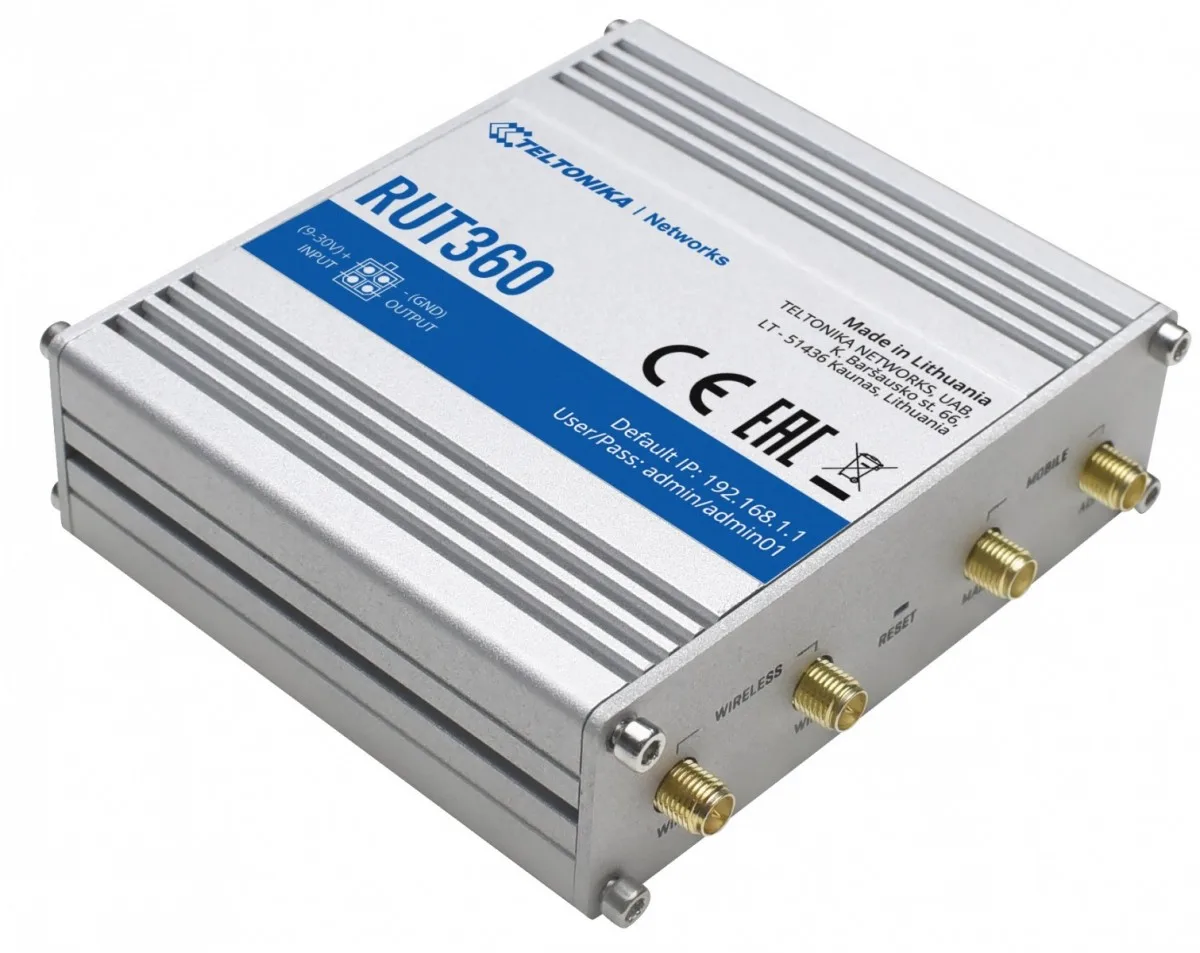

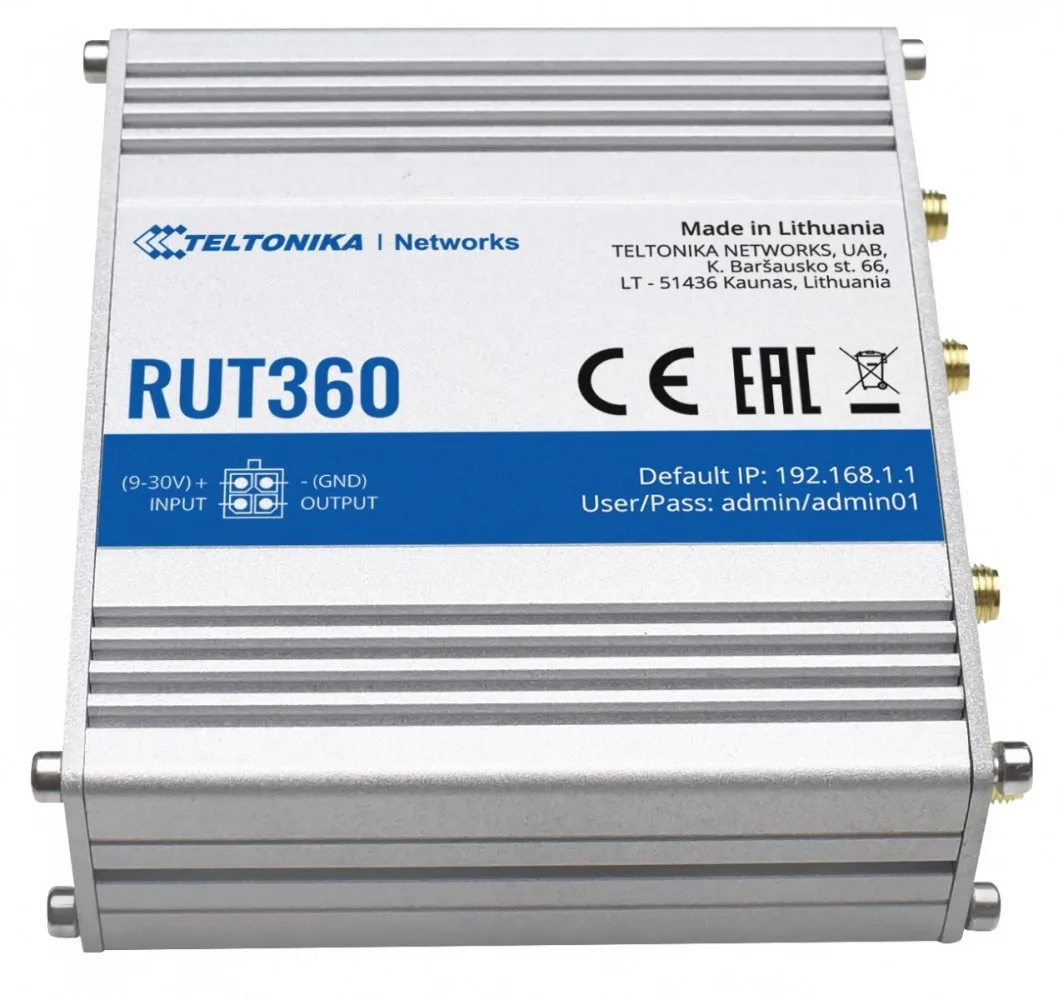

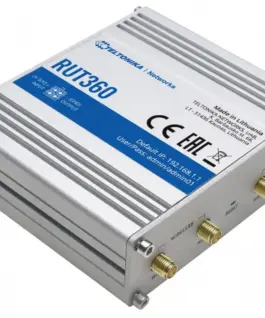

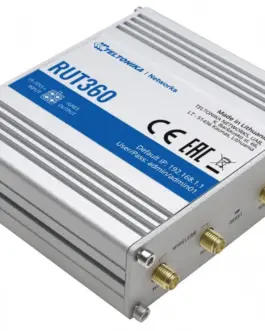

TELTONIKA Router LTE RUT360 (Cat 6), 3G, WiFi, Ethernet

TELTONIKA Router LTE RUT360 (Cat 6), 3G, WiFi, Ethernet

Model:

RUT360

Description:

RUT360 router

RUT360 is the updated version of our all-time bestseller RUT240. This compact industrial cellular router offers the ability to connect to the Internet using cellular, Wi-Fi and wired networks.

RUT360 is equipped with two Ethernet interfaces, 802.11 b/g/n WiFi and a 4G LTE Cat 6 cellular module, offering data transmission speeds of up to 300 Mbps.

Unique programming, remote monitoring and security features make RUT360 ideal for IoT and M2M applications where secure and reliable connectivity is a must. Media aggregation functionality makes this compact device irreplaceable in areas or applications where cellular data speeds are limited.

Type: GSM 3G/4G
Data transmission: UMTS
Data transmission: LTE
UMTS network: 1800 MHz
UMTS network: 2100 MHz
UMTS network: 850 MHz
UMTS network: 900 MHz
LTE network: 2500 MHz
LTE network: 2100 MHz
LTE network: 2300 MHz
LTE network: 700 MHz
LTE network: 800 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 1500 MHz
LTE network: 2600 MHz
LTE network: 1800 MHz
Aero2 support: No
Standards: 802.11n
Standards: 802.11g
Standards: 802.3u
Standards: 802.3
Standards: 802.11e
Standards: 802.11b
Operating frequency: 2,4 GHz

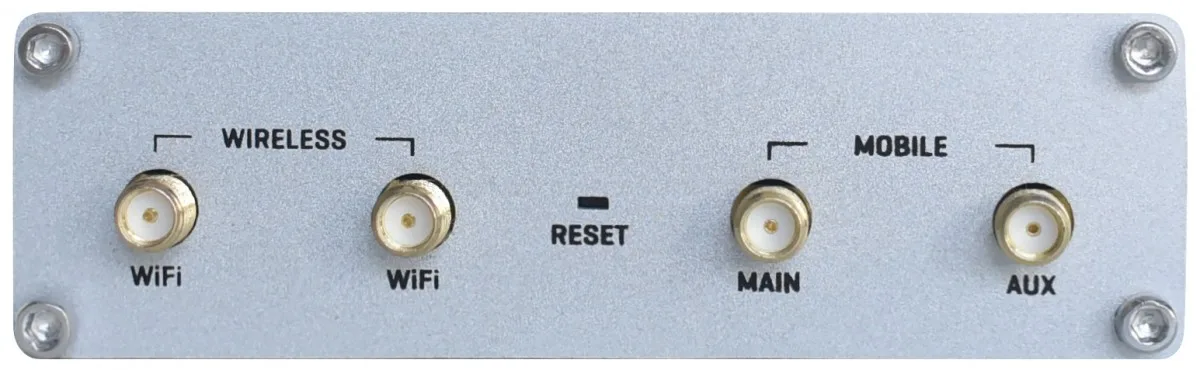

Number of antennas: Four connectors
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Tag based VLAN separation
• Mobile quota control: Custom data limits for both SIM cards
• WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration:

• PDN: Possibility to use different PDNs for multiple network accesses
• Network features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsc, VLAN, Load balancing, Mobile quota control, WEB Filter, Network Backup, Auto Failover
• Connection monitoring: Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection
• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Saving settings: Update FW without losing current configuration
• Monitoring and management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

Special functions:
Card reader: None

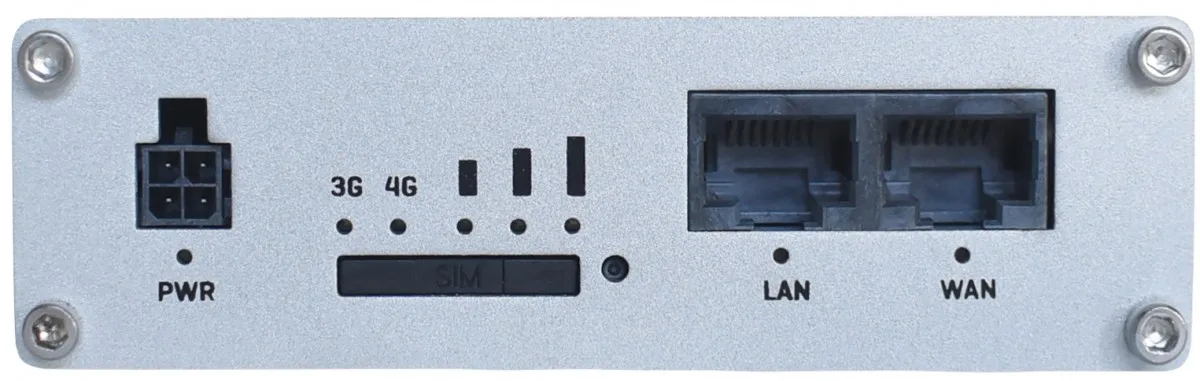

I/O ports: 1 x 10/100 Mbit/s
I/O ports: 1 x SIM card slot
I/O ports: 1 x 10/100 Mbit/s WAN
SIM card: Mini
Power supply:

9-30 VDC, złącze  4 pin DC

Software:

RutOS (OpenWrt based on Linux OS)

Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40 C to 75 C
• Operating humidity: 10% to 90% non-condensing

Accessories included:

• RUT360 router
• 18W power supply
• 2 x LTE antenna (swivel, SMA male)
• 2 x WiFi antenna (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• Quick Start Guide
• RMS Flyer leaflet

Color: Aluminium
Weight: 247 gram
Dimensions:

100 x 30 x 85 mm

Other features:

• Network support: Mobile 4G (LTE) – Cat 6 DL, DC-HSDPA, HSUPA, WCDMA
• CPU: Qualcomm MIPS 24Kc, 650MHz
• Memory: 128 MB RAM (DDR2), 16 MB, SPI Flash (optional up to 256 MB)

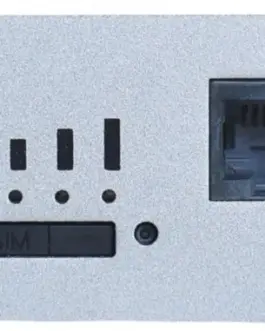

• Status LED: 2 x connection type, 3 x signal strength, 2 x LAN status, power
• Housing: Aluminum
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP
