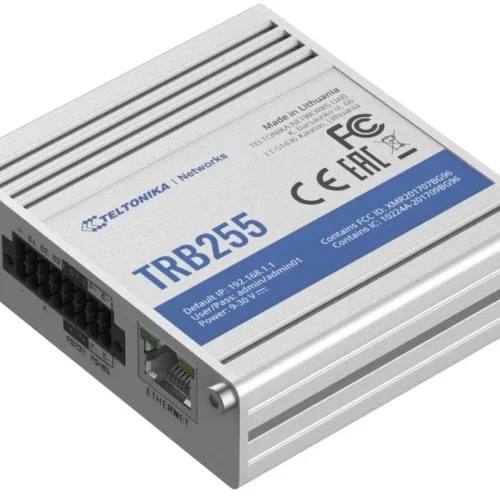

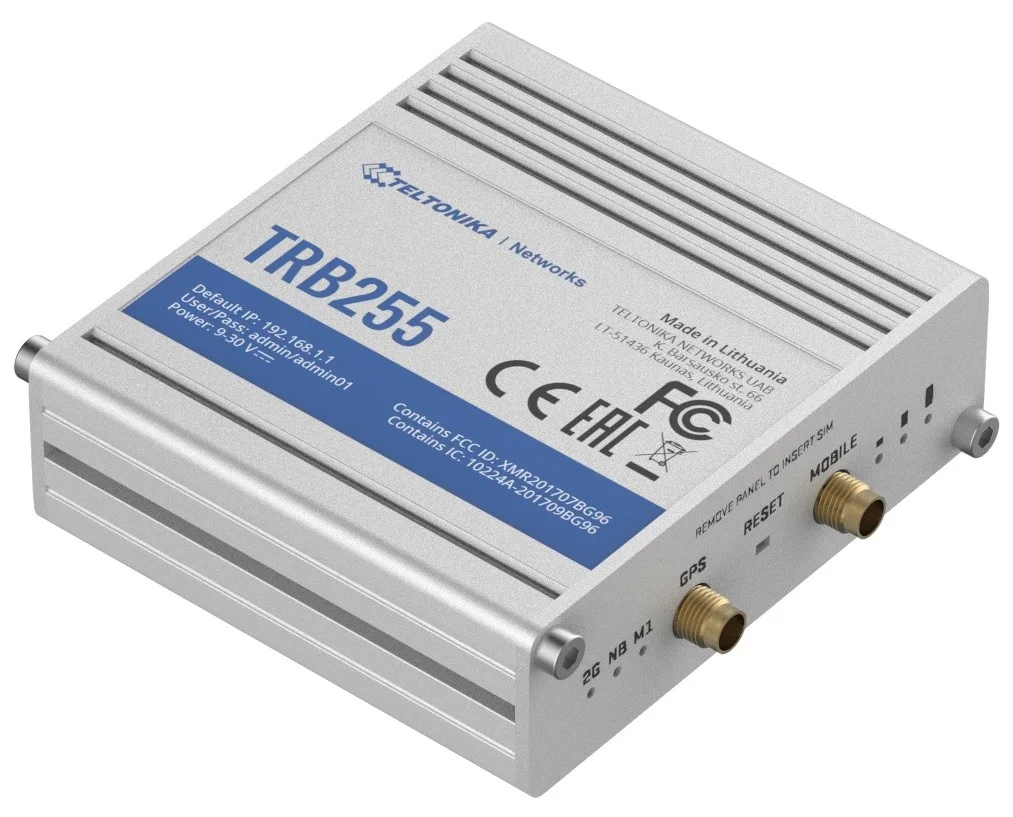

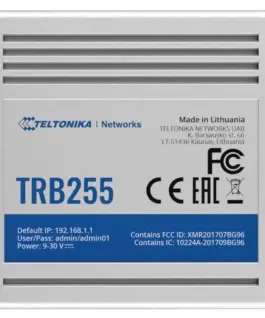

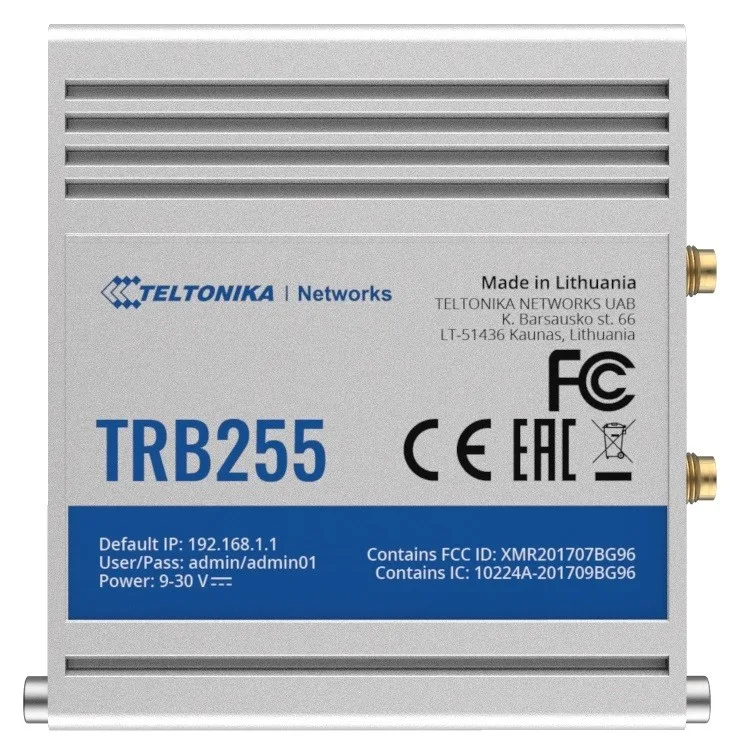

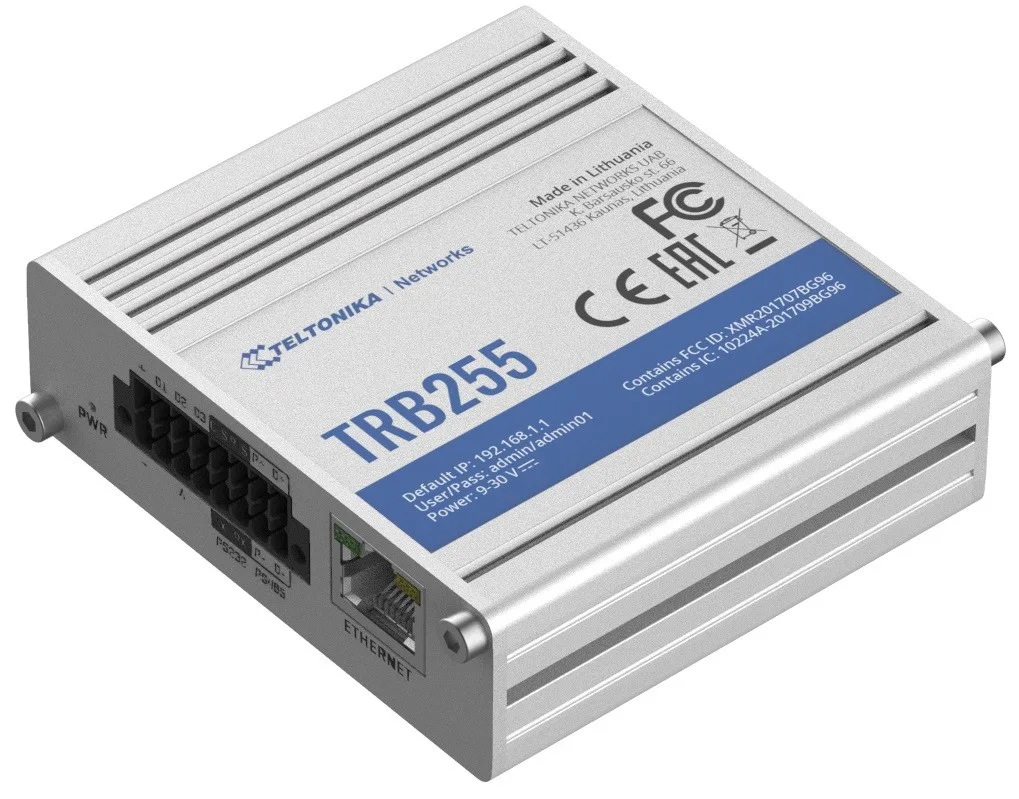

TELTONIKA Gateway LTE TRB255 (Cat M1/NB), 2G, Ethernet

TELTONIKA Gateway LTE TRB255 (Cat M1/NB), 2G, Ethernet

Model:

TRB255

Description:

TRB255 gate

TRB255 is able to connect modern and old industrial devices into one whole via RS232, RS485 and Ethernet connections.

This industrial LTE Cat M1 and NB-IoT network interface is backward compatible with EGPRS (2G). You can still use it on a 2G network, but disconnecting it will allow you to easily switch to LPWAN connectivity. Supports 4 GNSS constellations.

TRB255 offers a wide range of industrial and networking features to choose from: Modbus, SMS control, firewall, OpenVPN and more.

This product works great with the Teltonika Networks remote control system (RMS).

Type: GSM 3G/4G
Data transmission: GPRS
Data transmission: LTE
GSM network: 900 MHz
GSM network: 1800 MHz
GSM network: 850 MHz
GSM network: 1900 MHz
LTE network: 2100 MHz
LTE network: 700 MHz
LTE network: 1700 MHz
LTE network: 1800 MHz
LTE network: 800 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 1900 MHz
Aero2 support: No
Standards: 802.11e
Standards: 802.3
Standards: 802.3u
Number of antennas: Two connectors
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN (planned): Tag based VLAN separation
• Mobile quota control: Custom data limits for both SIM cards
• WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Management, monitoring, configuration:

• Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
• GNSS: NMEA forwarding, AVL, Geofencing
• Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
• Serial: Console, Over IP, Modem, NTRIP, Modbus
• Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup

Special functions:
Card reader: None
I/O ports: 2 x SIM card slot
I/O ports: 1 x 10/100 Mbit/s

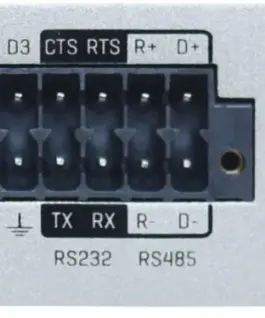

I/O ports: 1 x Console port (RS-232)
I/O ports: 1 x RS-485
SIM card: Mini
Power supply:

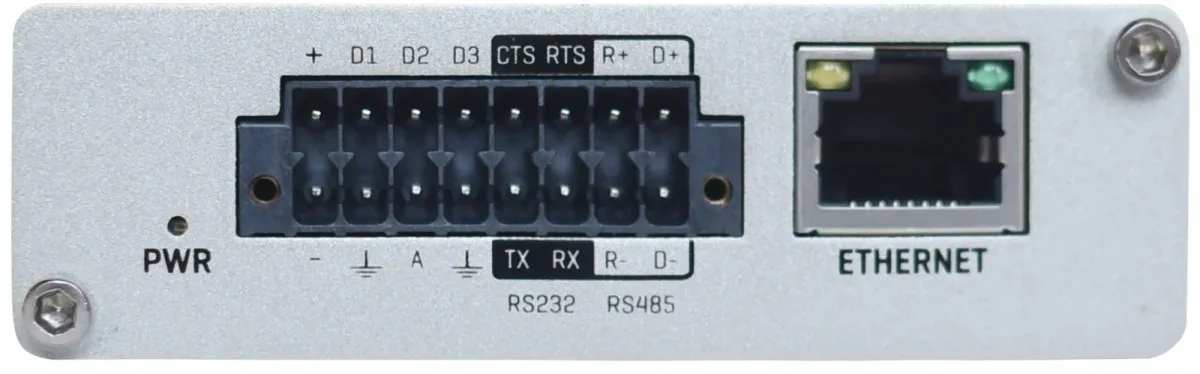

16 pin terminal, 9-30 VDC

Software:

RutOS

Certificates:
System Requirements:
Environment requirements:

• Operating temperature range: -40 °C to 75 °C
• Humidity range: 10-90% non-condensing

Accessories included:

• TRB255
• 9W power supply
• Cellular antenna, rotatable, 1 piece (SMA male)
• GNSS antenna 1x (self-adhesive, SMA male, 3m cable)
• 16 pin connector (terminal block)
• Assembly key
• Ethernet cable (1.5 m)
• Quick start guide
• RMS leaflet

Color: Aluminium
Weight: 165 kilogram
Dimensions:

83 x 25 x 74 mm

Other features:

• Network support: 4G/LTE (Cat M1), NB-IoT, 2G
• CPU: Qualcomm, MIPS 24Kc, 650 MHz
• Memory: Memory 16 MB Flash, 64 MB RAM

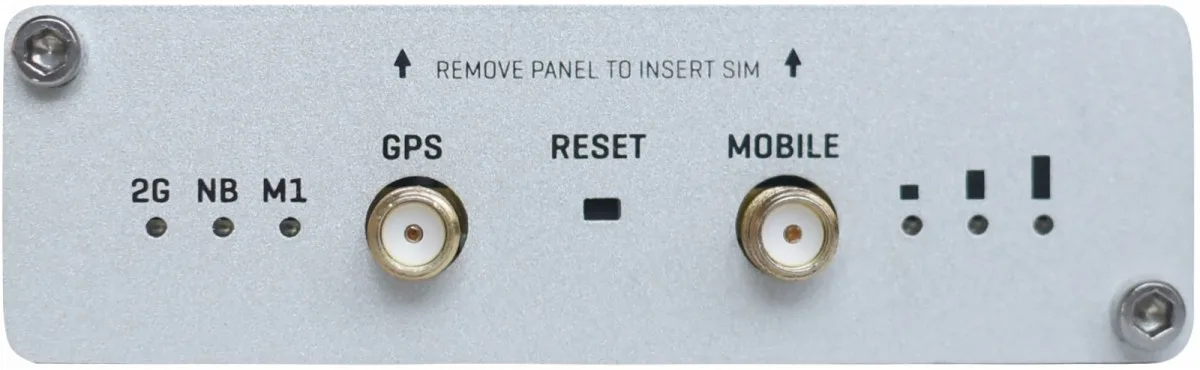

• Antenna connectors: 1 x SMA (cellular), 1 x SMA (GNSS)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Status LED: 3 x network type, 3 x signal strength, 2 x Ethernet, power
• Housing: Aluminum with DIN mounting option
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP
