TELTONIKA Gateway LTE TRB145 (Cat 1), 3G, 2G, USB, RS485

TELTONIKA Gateway LTE TRB145 (Cat 1), 3G, 2G, USB, RS485

Model:

TRB145

Description:

TRB145 gateway

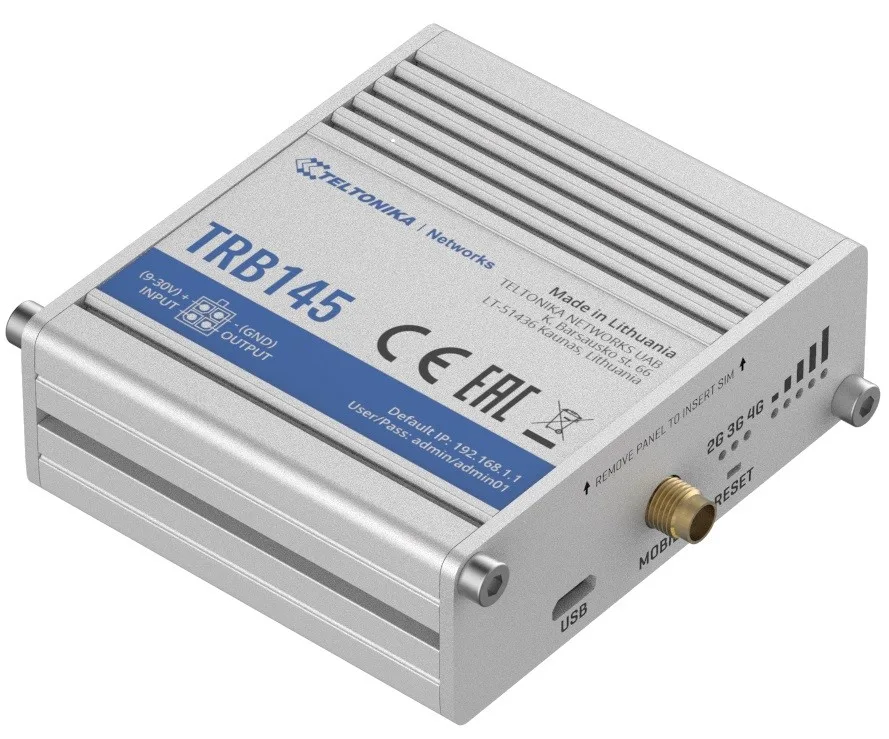

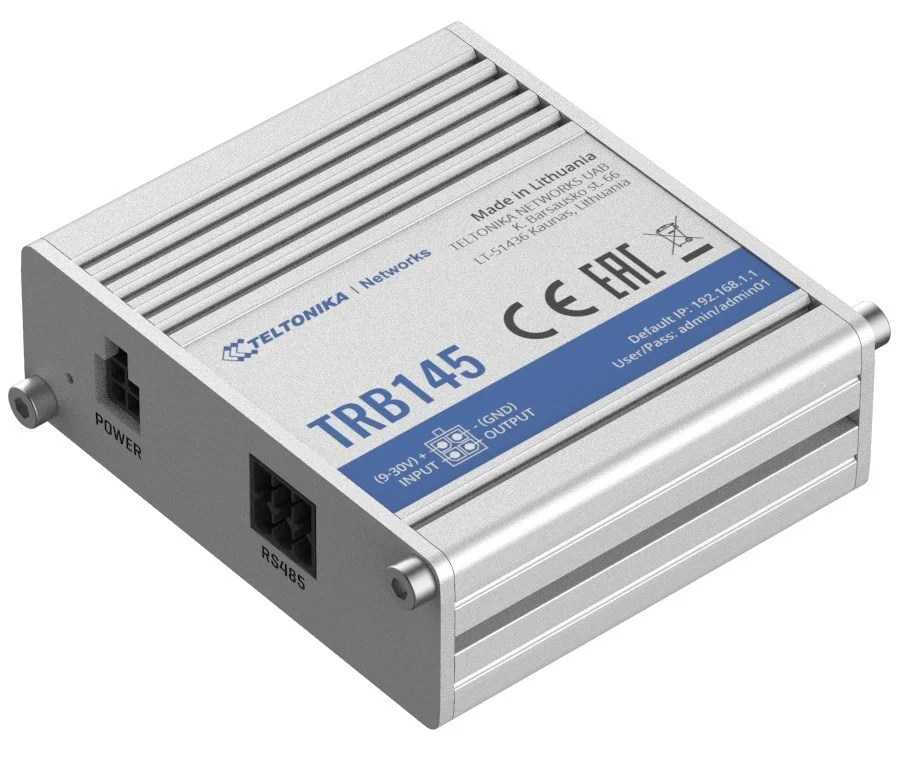

The TRB145 is a very small, lightweight, industrial LTE Cat 1 network interface with RS485 interface.

Thanks to its compact structure and easy installation, this device is perfect for solutions where one device needs to be remotely controlled via the RS485 interface.

Like other TRB products, TRB145 is intended for industrial use. It has many security features: SMS management, firewall, Open VPN, IPsec, Teltonika Networks remote management system (RMS) and FOTA support.

Type: GSM 3G/4G
Data transmission: LTE
Data transmission: UMTS
Data transmission: GPRS
GSM network: 1900 MHz
GSM network: 900 MHz
UMTS network: 2100 MHz
UMTS network: 900 MHz
LTE network: 900 MHz
LTE network: 700 MHz
LTE network: 2500 MHz
LTE network: 2100 MHz
LTE network: 1800 MHz
LTE network: 800 MHz
Aero2 support: No
Number of antennas: One connector
Antenna: Detachable external
Antenna gain: 2 dBi
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI, NAT, NAT-T
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Management, monitoring, configuration:

• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
• Serial: Console, Over IP, Modem, NTRIP, Modbus

Special functions:
Card reader: None
I/O ports: 1 x SIM card slot
I/O ports: 1 x micro USB

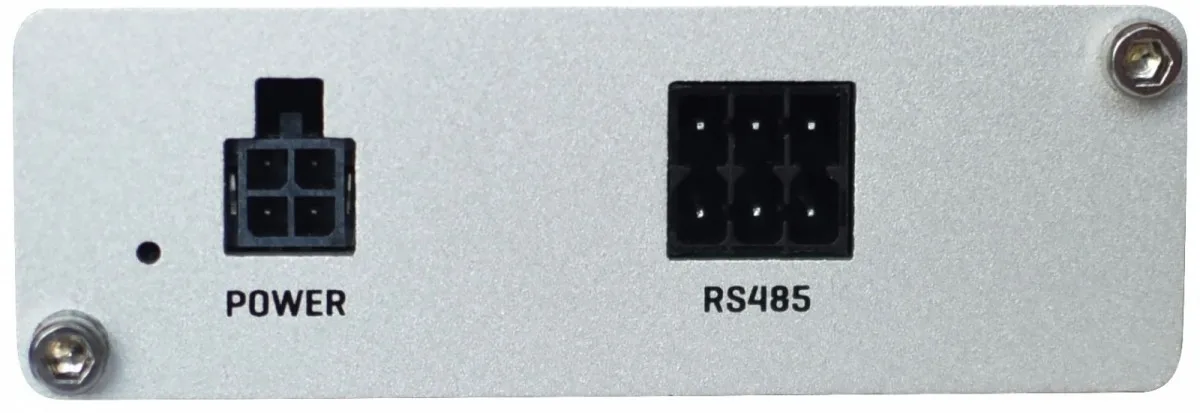

I/O ports: 1 x RS-485
SIM card: Mini
Power supply:

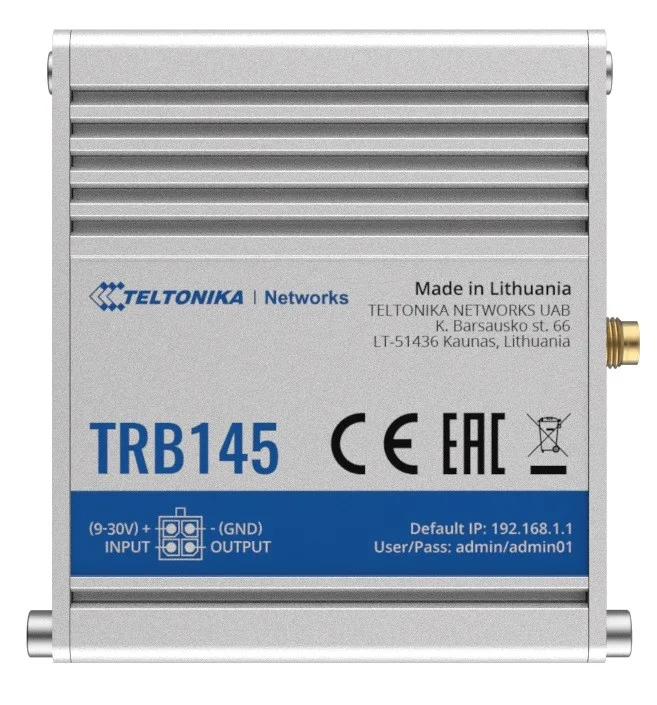

4 pin connector, 9-30 VDC

Software:

RutOS

Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40° C to 75° C
• Operating humidity: 10-90% non-condensing

Accessories included:

• TRB145
• EU power supply
• LTE antenna (magnetic mounting, SMA male, 3 m cable)
• Micro-USB cable (0.8 m)
• Assembly key
• RS485 connector
• Quick start guide

Color: Aluminium
Weight: 130 gram
Dimensions:

75 x 25 x 65 mm

Other features:

• Network support: 4G/LTE (Cat 1), 3G, 2G
• CPU: Qualcomm, ARM Cortex A7, 1.2 GHz
• Memory: 512 MB Flash (70 MB free), 128 MB RAM (50 MB free)

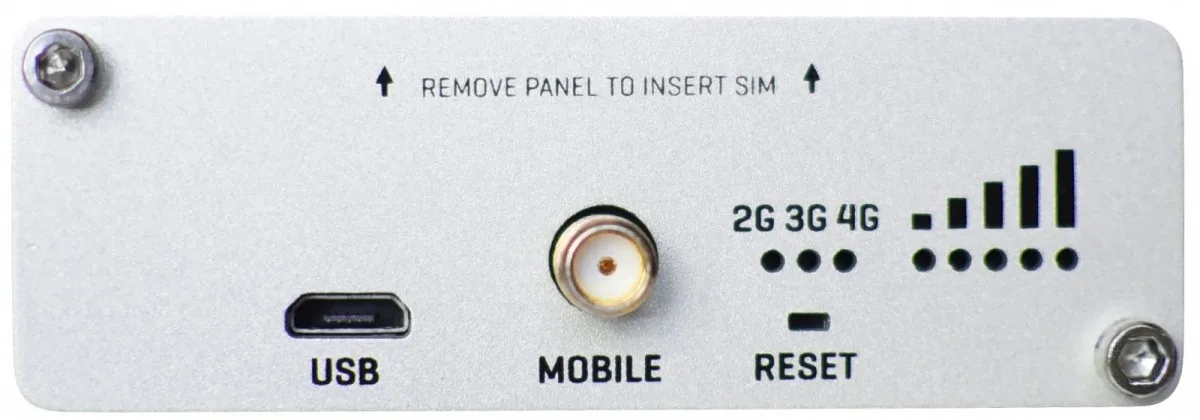

• Status LED: 3x network type, 5x signal strength, 1x power
• Housing: Aluminum with the option of mounting on a DIN rail
• Degree of protection: IP30
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
