Description:

Life Battery System 48-100 power bank for ON/OFF-GRID inverters 16x100AH LIFEPO4.

The PowerWalker LiFe Battery System 48-100 Battery Module is a modular and scalable lithium-ion battery pack suitable for all our solar inverters. This power bank is compact for its capabilities (ESS) and can be charged at high speed. It is designed for 6000-8000 charging cycles making it ideal for long-term projects. Lithium-ion technology guarantees safety and reliability. The back-up time works linearly, so you get what you get!

ESS together with our solar inverters will act as a centralized power solution that helps:

  • Store solar energy in batteries,
  • Save money by using the stored energy for your own needs (at night), and
  • Use it as a backup power source in case of grid failure.
  • Extend the functionality of all PowerWalker solar solutions – one energy bank for all inverters!

Product features:

  • Compact size and light weight! Module with a nominal power of 5.12 kWh!

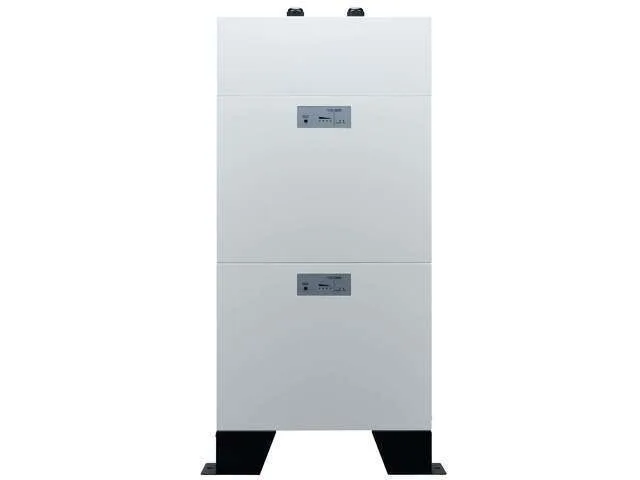

  • Modular design allows easy future expansion up to 10 units!
  • Fast charging (lithium-ion technology)
  • 6000-8000 charging cycles, that’s about 12-15 years of product lifetime
  • Works with all our solar inverters, one ESS for all!
  • Long holding time (lithium-ion technology)
  • 50% higher discharge capacity, up to 150A
  • Peak discharge capacity of 192A (1 min.).
  • Compatibility with selected 48V inverters / UPS with powerful chargers, heat pumps thanks to additional BMS card 10131017

Battery system can be discharged with a maximum current of 150A. Above 150A, it is required to use PDU model 10133017 for LiFe Battery System.

Charging current: 100A maximum (20-30A recommended).

Discharge efficiency (DC to AC): 90%

Battery life:

  • 8,000 cycles for 60% depth of discharge (DOD) at 1C discharge current and 0.2C charge current with >50% capacity compared to original capacity.
  • 2000 cycles for 90% DOD depth of discharge at 1C discharge current and 0.2C charging current with >80% capacity compared to original capacity.

Type: Battery module
No. of batteries: 16
Voltage: 3.2 Volt
Battery capacity: 100 Ah
Environment requirements:

  • Recommended ambient temperature: 0 – 40 °C
  • Recommended ambient humidity: 5 – 95%

Accessories included:

  • Battery connector
  • Set of mounting elements
  • RJ-11 connector for communication with the inverter
  • Set of screws
  • RJ-45 cable
  • RJ-11 cable
  • User manual

Color: White
Dimensions:

420 x 540 x 185 mm



Weight: 59.5 kilogram
Other features:

  • Battery string voltage: 51.2V
  • Nominal capacity of the power bank: 5.12 kWh

Designation:

2,852.92 лв. с ДДС

Код: 10134063 Категория: Етикет:

Време на доставка: 30 дни
Времето за доставка не е определено

Налично за предварителни продажби

PowerWalker Life Battery System 1013406 energy bank

Description:

Life Battery System 48-100 power bank for ON/OFF-GRID inverters 16x100AH LIFEPO4.

The PowerWalker LiFe Battery System 48-100 Battery Module is a modular and scalable lithium-ion battery pack suitable for all our solar inverters. This power bank is compact for its capabilities (ESS) and can be charged at high speed. It is designed for 6000-8000 charging cycles making it ideal for long-term projects. Lithium-ion technology guarantees safety and reliability. The back-up time works linearly, so you get what you get!

ESS together with our solar inverters will act as a centralized power solution that helps:

  • Store solar energy in batteries,
  • Save money by using the stored energy for your own needs (at night), and
  • Use it as a backup power source in case of grid failure.
  • Extend the functionality of all PowerWalker solar solutions – one energy bank for all inverters!

Product features:

  • Compact size and light weight! Module with a nominal power of 5.12 kWh!
  • Modular design allows easy future expansion up to 10 units!
  • Fast charging (lithium-ion technology)
  • 6000-8000 charging cycles, that’s about 12-15 years of product lifetime
  • Works with all our solar inverters, one ESS for all!
  • Long holding time (lithium-ion technology)
  • 50% higher discharge capacity, up to 150A
  • Peak discharge capacity of 192A (1 min.).
  • Compatibility with selected 48V inverters / UPS with powerful chargers, heat pumps thanks to additional BMS card 10131017

Battery system can be discharged with a maximum current of 150A. Above 150A, it is required to use PDU model 10133017 for LiFe Battery System.

Charging current: 100A maximum (20-30A recommended).

Discharge efficiency (DC to AC): 90%

Battery life:

  • 8,000 cycles for 60% depth of discharge (DOD) at 1C discharge current and 0.2C charge current with >50% capacity compared to original capacity.
  • 2000 cycles for 90% DOD depth of discharge at 1C discharge current and 0.2C charging current with >80% capacity compared to original capacity.
