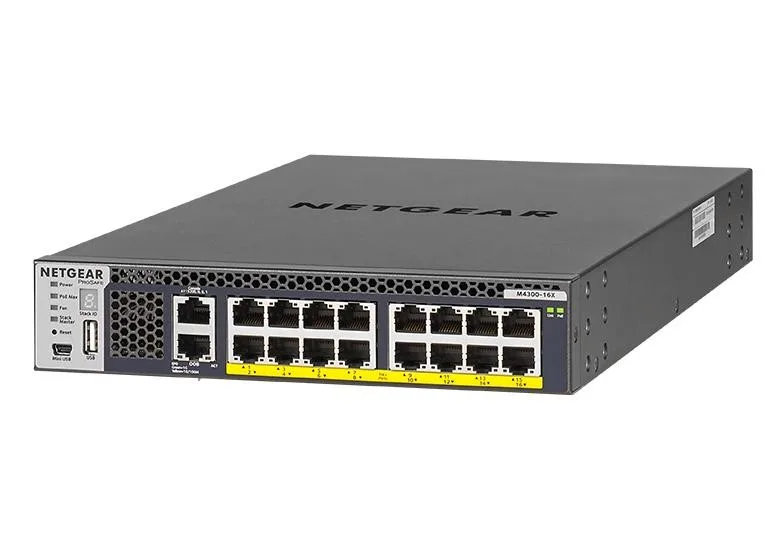

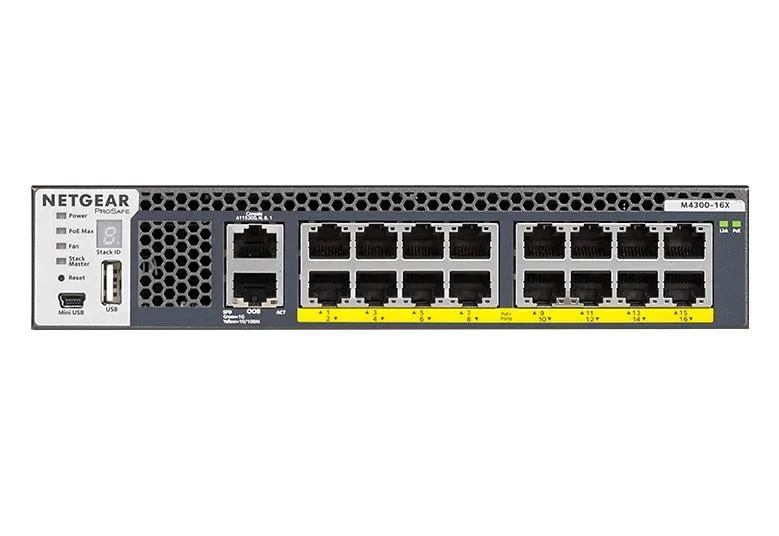

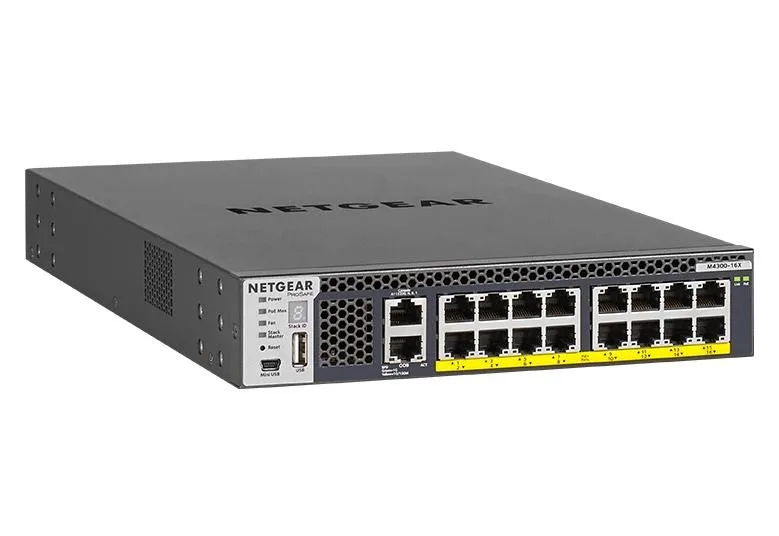

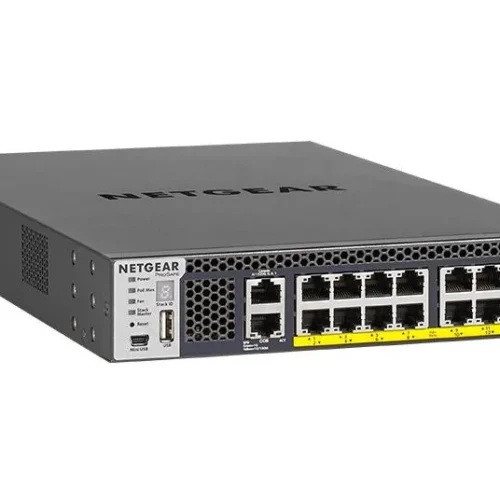

Netgear Switch XSM4316PA 16x10GE PoE+ 299W

Netgear Switch XSM4316PA 16x10GE PoE+ 299W

Description:

M4300 – 16X 16 Port Multi-Gig, PoE+ Managed Switch (299W)

Half-width managed switch with 16X 10G / MULTIGIG I budget PoE+ 299W ports – IT Core and AV-over-IP

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with seamless failover across the stack

Multi-Resiliency

Cascading and distributed link aggregation allow for zero downtime and load balancing capabilities.

PVST+ interoperability

By VLAN opinion tree and by fast VLAN opinion tree (PVSTP/PVRSTP).

Link dependency

Enables or disables ports based on the link status of different ports.

Advanced IPv4/IPv6 security

Malicious code detection, DHCP tracking, protection against source IP attacks and mitigation of DoS attacks.

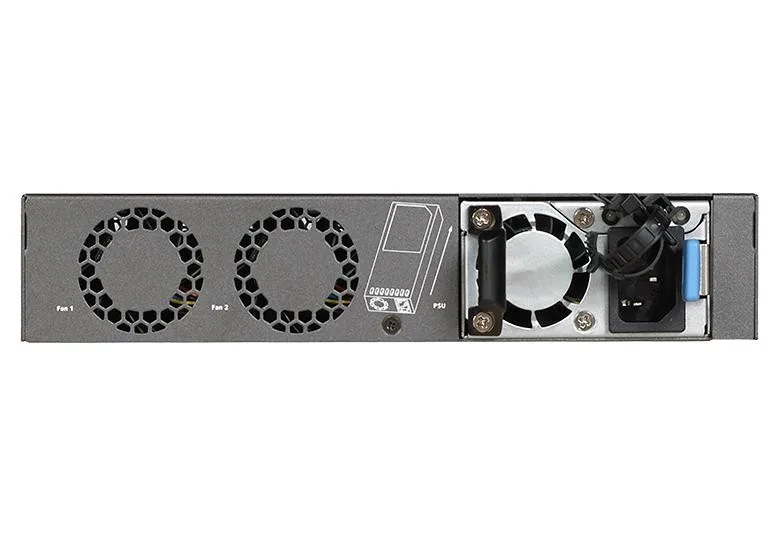

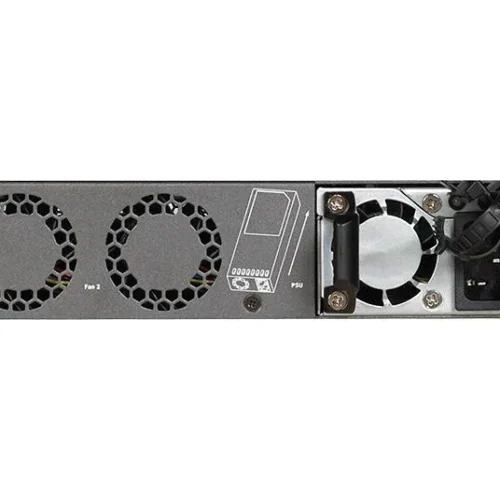

299 W power supply

Supplied with a 299 w APS299W power supply. Optional 600-watt power supply APS600W.

Touchless AV-over-IP

• Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready).
• Pre-configured for group broadcast/IGMP functionality

No Delay

Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus

Prevent network flooding with easy implementation of Layer 2 Multicast mustiemission

Dedicated design

ProAV Design Services for design and installation of ProAV AV networks

Half-Width ToR

Combine 2 half-width models in one place in a server rack for a redundant rack top

Simple graphical user interface

Full web console (GUI) functionality for IT administrators who prefer an intuitive graphical interface

Flexibility and performance

Spine and leaf topologies offer many options for server rooms, collapsed cores or at the edge of growing networks.

Merging and stacking

Stack between 10/40 gigabit and 1 gigabit models using any 10G/40G port, with any media type (RJ45 cables, SFP+, DAC). Vertical, horizontal, manage as one unit.

Room for growth

With PoE+ technology, plug-and-play port expansion, and the ability to replace without shutting down the system, you can expand at any time.

Industry standard

SNMP, RMON, MIB, LLDP, AAA, 1-step transparent sFlow clock impletion, RSPAN and PTPv2 (select M4300 models)

Full PoE+ support

All (16) 10G/Multi-GIG ports provide 30 in PoE+ power (199W Budget).

Switch class: Managed
Application: Medium and large companies
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10Gb ports: 16
Number of PoE+ ports: 16
Console port: Yes
Forwarding mode: Store-and-forward
Throughput: 320 Gigabity na sek.
Forwarding rate: 357 Mpps
Packet buffer: 16 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
Stackability: Yes
Number of VLAN groups: 4000
VLAN:

• Static
• Dynamic
• Voice
• MAC
• GVRP/ GMRP
• Double VLAN mode
• Private VLANs

Supported protocols and standards:
QoS:

• Auto-VoIP

Access Lists:

• L2 MAC, L3 IP and L4 Port ACLs
• Ingress
• Egress
• 802.3ad (LAG) for ACL assignment
• Binding ACLs to VLANs
• ACL Logging
• Support for IPv6 fields

DiffServ QoS:

• Edge Node applicability
• Interior Node applicability
• 802.3ad (LAG) for service interface
• Support for IPv6 fields
• Ingress/Egress

IEEE 802.1p COS:

• 802.3ad (LAG) for COS configuration
• WRED (Weighted Deficit Round Robin)
• Strict Priority queue technology

Single Rate Policing:

• Committed Information Rate
• Committed Burst Size
• Excessive Burst Size
• DiffServ feature applied to class maps

iSCSI Flow Acceleration:

• Dot1p Marking
• IP DSCP Marking

Security:

• Broadcast, Unicast, Multicast DoS Protection
• Denial of Service Protection (control plane)
• Denial of Service Protection (data plane)
• DoS Attacks Protection
• CPU Rate Limiting
• ICMP throttling

Management, monitoring, configuration:

• Management ACL (MACAL), Max Rule 63
• Out of band Management
• Radius accounting
• TACACS+
• Malicious Code Detection

L2 features:

• IEEE 802.1Q VLAN Tagging 802.1Q-1998 Up to 4,093 VLANs – 802.1Q Tagging
• Protocol Based VLANs: IP subnet, ARP, IPX
• Subnet based VLANs
• MAC based VLANs
• Voice VLAN
• Private Edge VLAN
• IEEE 802.1x
• Guest VLAN
• RADIUS based VLAN assignment via .1x
• RADIUS based Filter ID assignment via .1x
• MAC-based .1x
• Unauthenticated VLAN
• Double VLAN Tagging
• Enabling dvlan-tunnel makes interface
• Global ethertype (TPID)
• Interface ethertype (TPID)
• Customer ID using PVID
• GARP with GVRP/GMRP
• Multiple Registration Protocol (MRP)
• Multicast VLAN Registration Protocol (MVRP)
• MVR (Multicast VLAN registration)

L3 features:

• Static Routing / ECMP Static Routing
• Multiple next hops to a given destination
• Load sharing, Redundancy
• Default routes
• Static Reject routes
• Port Based Routing
• VLAN Routing
• 802.3ad (LAG) for router ports
• VRRP
• Pingable VRRP interface
• VRRP Route/Interface Tracking
• Loopback Interfaces
• Tunnel interfaces Pv4 / IPv6
• Configured 6to4 tunnels
• Automatic 6to4 tunnels
• 6to4 Border Router
• RIP Pv4
• RIPv1/RIPv2
• Route Redistribution
• OSPFv2 RFC 2328 including older RFC 1583 support
• OSPFv3
• OSPF Not-So-Stubby Area (NSSA) Option
• Forwarding of OSPF Opaque LSAs
• Passive interface feature
• Static Area Range Costs feature
• OSPF Equal Cost Multipath (ECMP)
• Dynamically learned ECMP routes
• Statically learned ECMP routes
• OSPF Max Metric feature
• Automatic Exiting of Stub Router Mode feature
• Static Area Range Costs feature
• OSPF LCA Pacing feature
• OSPF Flood Blocking feature
• OSPF Transit-Only Network Hiding
• IP Multinetting
• ICMP throttling
• Router Discovery Protocol
• DNS Client IPv4/IPv6
• IP Helper
• Max IP Helper entries 512
• IP Event Dampening IPv4/IPv6
• Proxy ARP IPv4/IPv
• ICMP redirect detection in hardware
• Policy Based Routing (PBR)
• Based on the size of the packet
• Based on the Protocol of the payload (Protocol ID
• field)
• Based on Source MAC address
• Based on Source or Destination IP address
• Based on VLAN tag
• Based on Priority(802.1P priority)

Other functions:
Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 299 Watt
Mean time between failures (MTBF): 192.898 Hour
Environment requirements:

• Ambient temperature during operation: 0° – 50°C
• Ambient humidity during operation: 90% relative humidity, non-condensing
• Storage temperature: – 20° – 70°C
• Storage humidity: 95% relative humidity, non-condensing

Certificates:

• CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014,
• Class A, EN 61000-3-3:2013, EN 55024:2010
• VCCI : VCCI-CISPR 32:2016, Class A
• RCM: AS/NZS CISPR 32:2013 Class A
• CCC: GB4943.1-2011, YD/T993-1998, GB/T9254-2008 (Class A)
• FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014
• ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
• BSMI: CNS 13438 Class A
• CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
• UL listed (UL 1950)/cUL IEC 950/EN 60950
• CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• RCM (AS/NZS) 60950.1:2015
• CCC (China Compulsory Certificate): GB4943.1-2011, YD/T993-1998, GB/T9254-2008 (Class A)
• BSMI: CNS 14336-1

Accessories included:

• Power cables
• RJ45 console serial cable with straight wiring to DB9
• Mini-USB console cable
• Rubber plugs for SFP+ sockets
• Rubber pads for mounting on the countertop
• Installation Guide
• CD with manual and software

Power supply:
Dimensions:

21.2 x 4.4 x 34.5 cm

Weight: 3.22 kilogram
Other features:

Total PoE+ budget: 199 W

Management options:

• Ethernet: 1G out-of-band port
• Console: RJ45 RSRS
• Console: Mini-USB
• USB mass storage
