Maclean Handle for TV or monitor 13-65 MC-743 30kg

Maclean Handle for TV or monitor 13-65 MC-743 30kg

Description:

Handle for TV or monitor 13-65 “Maclean MC-743 30kg

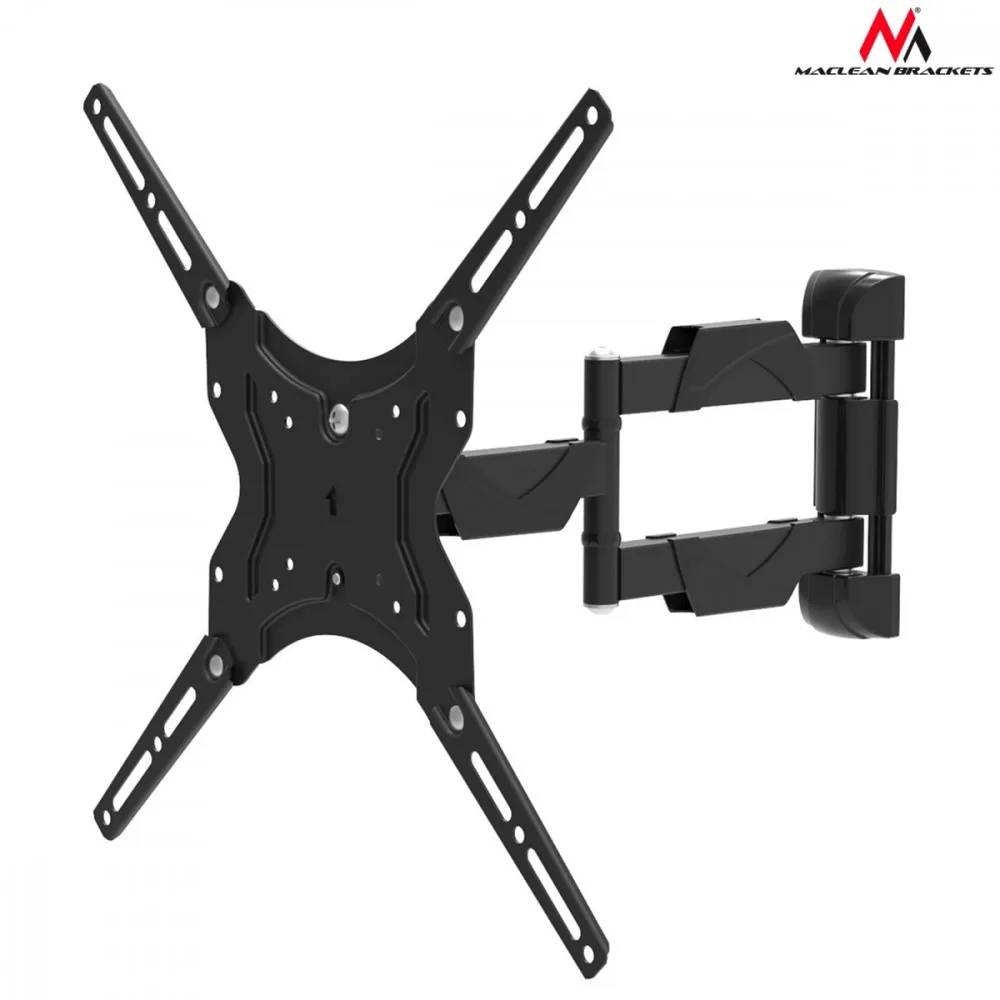

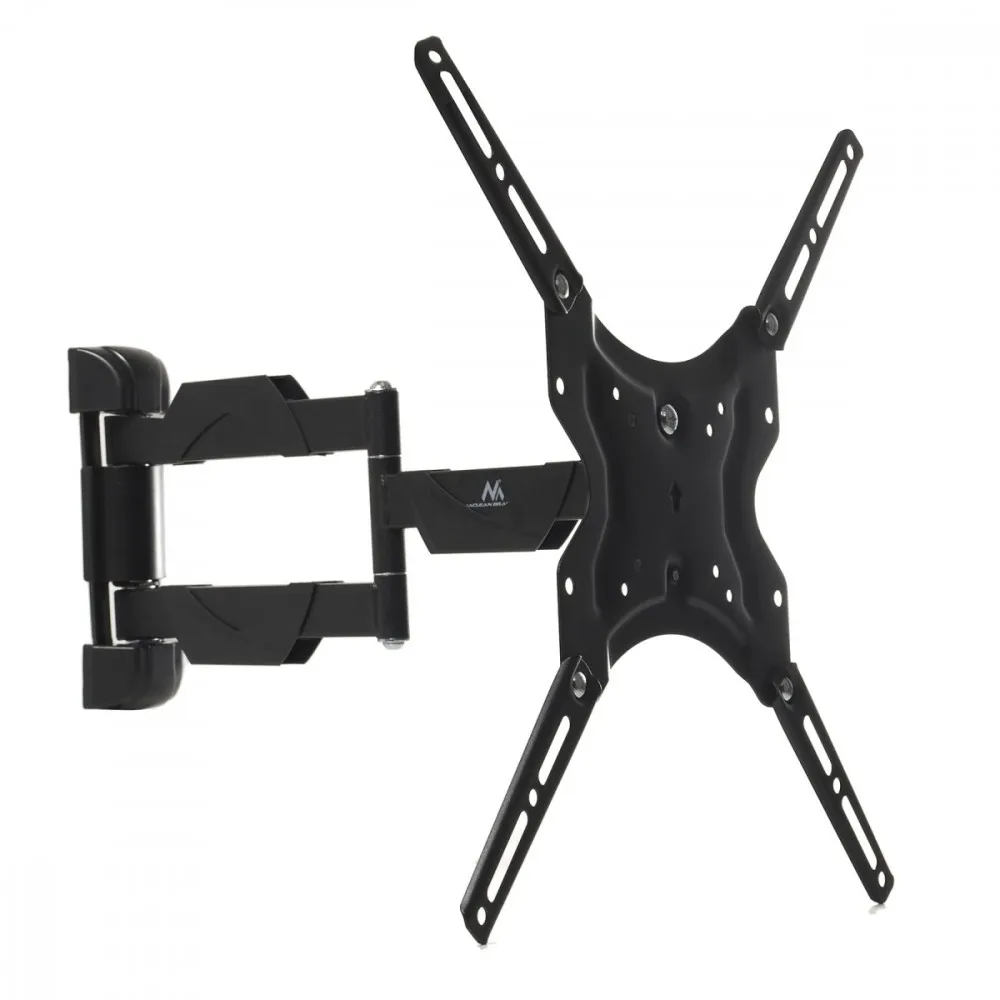

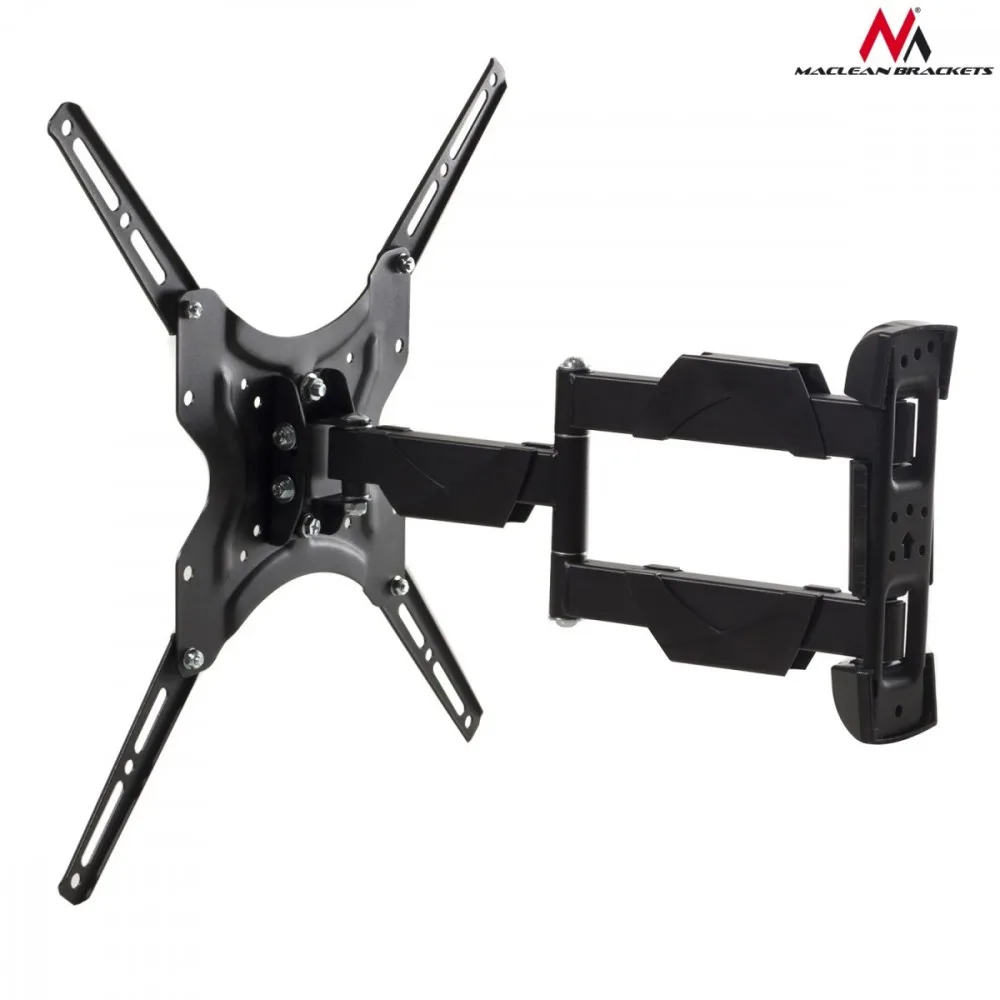

The universal wall mount is designed for mounting LCD, LED and plasma TVs and monitors of up to 30kg and diagonal screens of 13 “to 50”. LCD, PLAZMA compatible: Sony, LG, Samsung, Philips, Sharp, Panasonic, Toshiba, Grundig, Pioneer, JVC, Benq, Sanyo, NEC, Hyundai, Hitachi.

VESA compliance
The specified screen size is only a suggestion. A larger TV can be mounted on the handle when it is not exceeding the maximum weight and is within the specified VESA standard. For the bracket, we can easily attach a VESA screen: 75×75, 100×100, 200×100, 200×200, 300×300, 300×400, 400×400.

Complete set

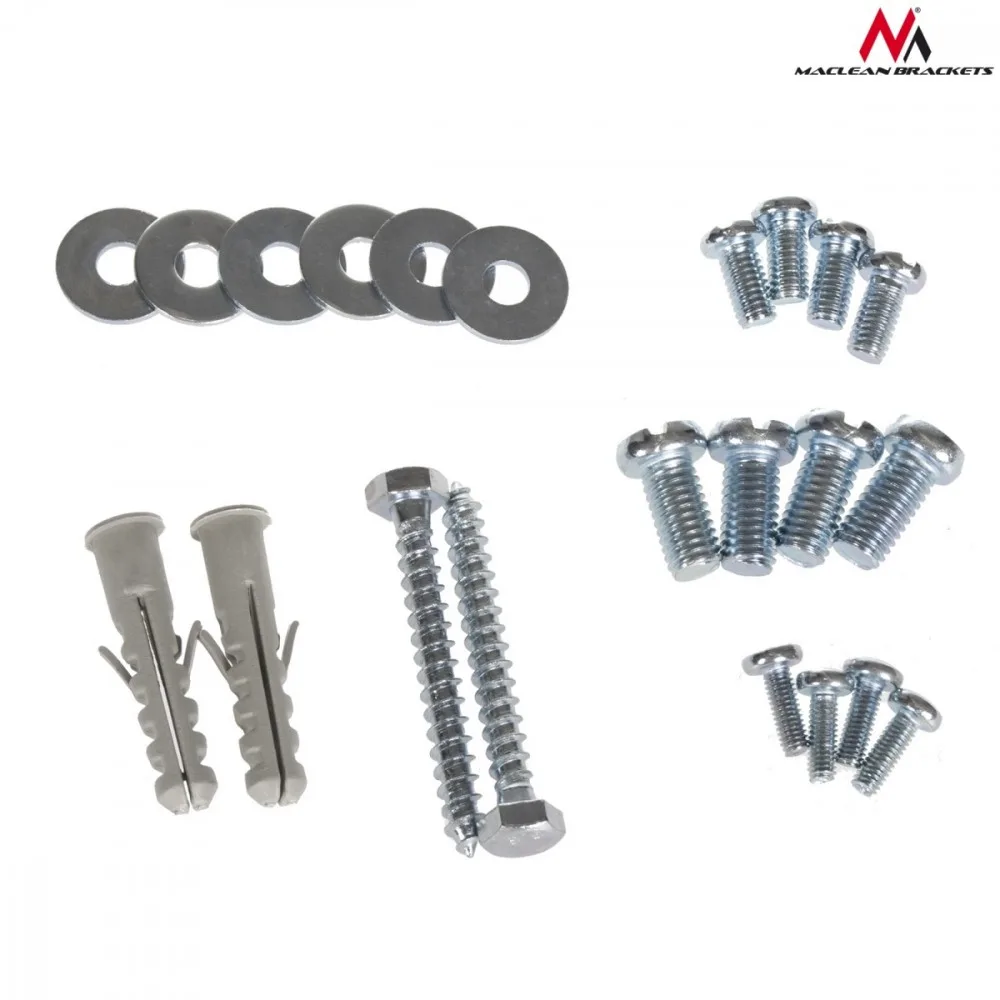

Includes a set of screws to mount the handle to the wall and the TV to the handle. Manual Instructions

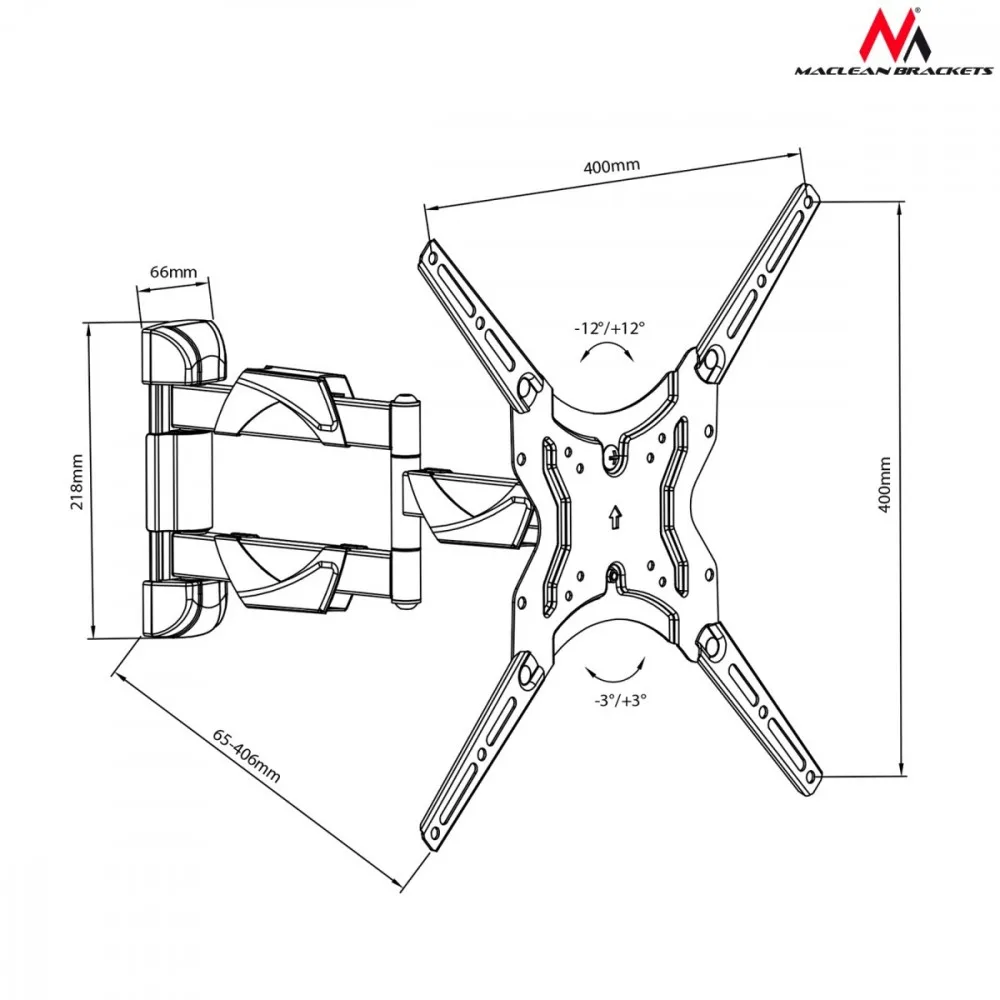

Technical Specifications:
– Maximum load: up to 30 kg
– Adjustable tilt: + 12 ° to -12 °
– Minimum / Maximum horizontal spacing: 75/400 mm
– Minimum / Maximum vertical spacing: 75/400 mm
– Adjustable distance from the wall: 65 – 406 mm
– Robust metal construction, very easy to assemble
– High quality
– Powder coating black
– Designed for TVs 13 “- 65” (or larger if their weight does not exceed 25kg and VESA complies with the grip)
– The set of mounting screws for the wall and the installation of the TV is included
– VESA: 75×75, 100×100, 200×100, 200×200, 300×300, 300×400, 400×400
– Warranty: 2 years

Usage: TV
Type: Wall
Screen size (min): 13 Cal
Screen size (max): 65 Cal
VESA: 300 x 400
VESA: 100 x 100
VESA: 200 x 100
VESA: 200 x 200
VESA: 200 x 300
VESA: 300 x 300
VESA: 75 x 75
VESA: 400 x 400
Load (max): 30 kilogram
Vertical adjustment: 12 Degrees
Range adjustment: Yes
Range (min): 65 Millimetre
Range (max): 406 Millimetre
Corner mount: No
Accessories included:
Color: Black
Dimensions:
Other features:
Designation:
