Lanberg Switch ILGE-4P-2S-90 Light Industrial POE 1XBT 3XAT 2XSFP DIN Gigabit Ethernet

Lanberg Switch ILGE-4P-2S-90 Light Industrial POE 1XBT 3XAT 2XSFP DIN Gigabit Ethernet

Описание:

SWITCH LANBERG LIGHT INDUSTRIALPOE 1XBT 3XAT 2XSFP DIN UNMANAGMENT GIGABIT ETHERNET

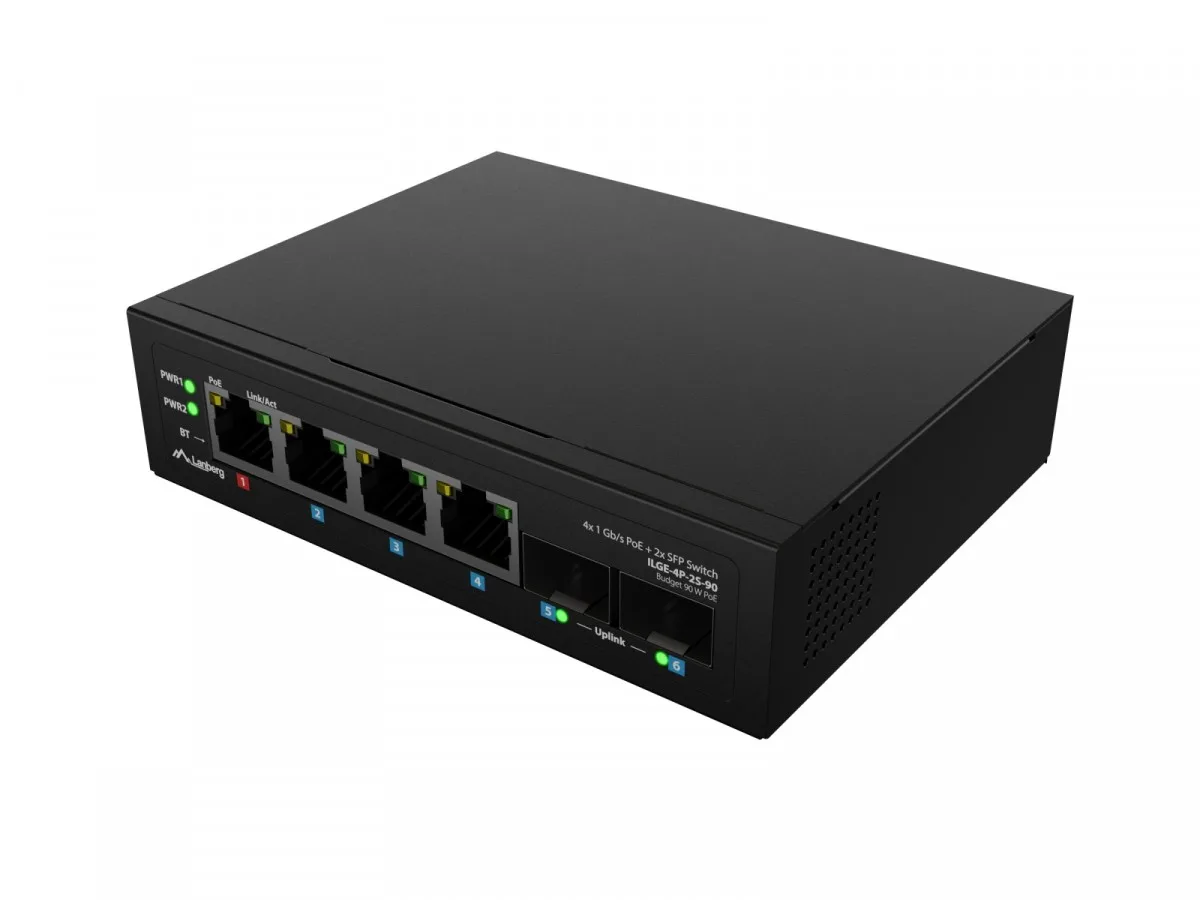

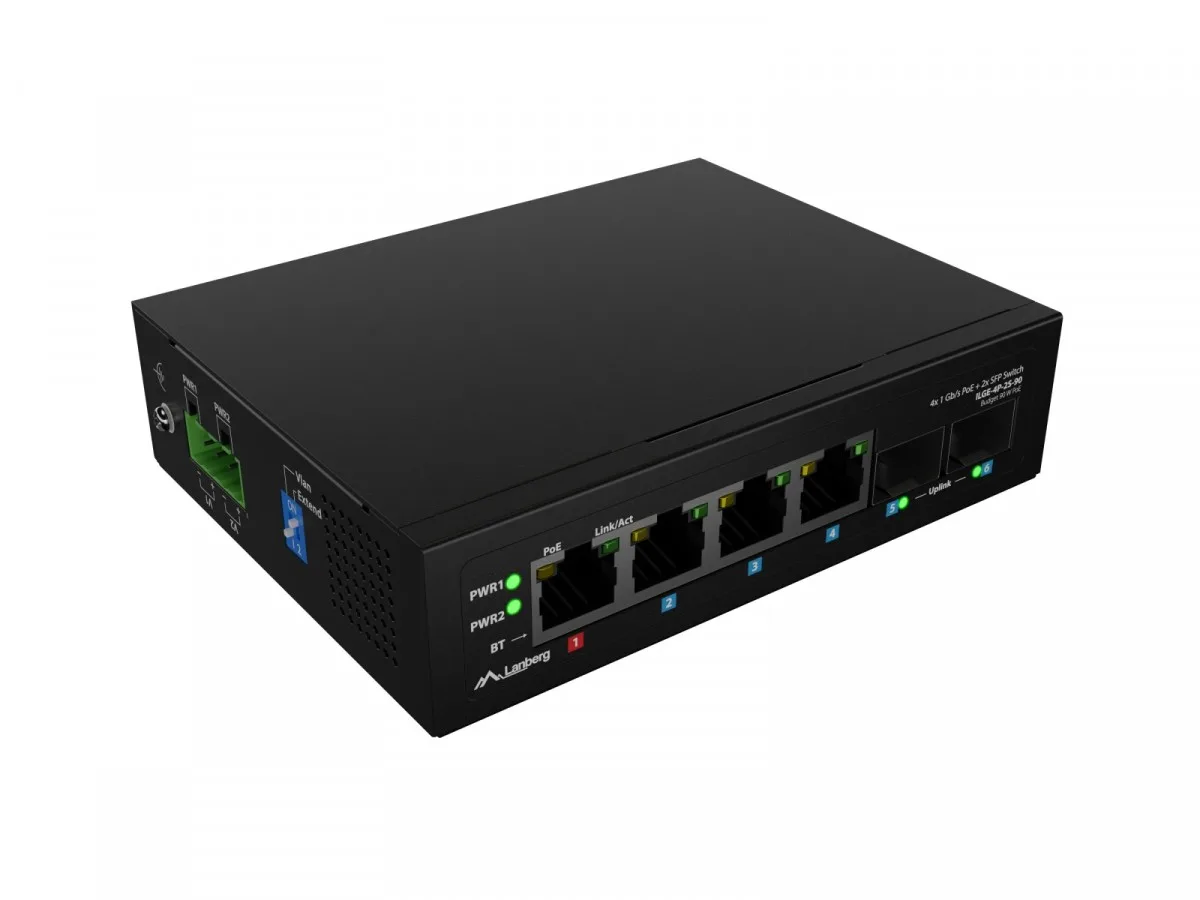

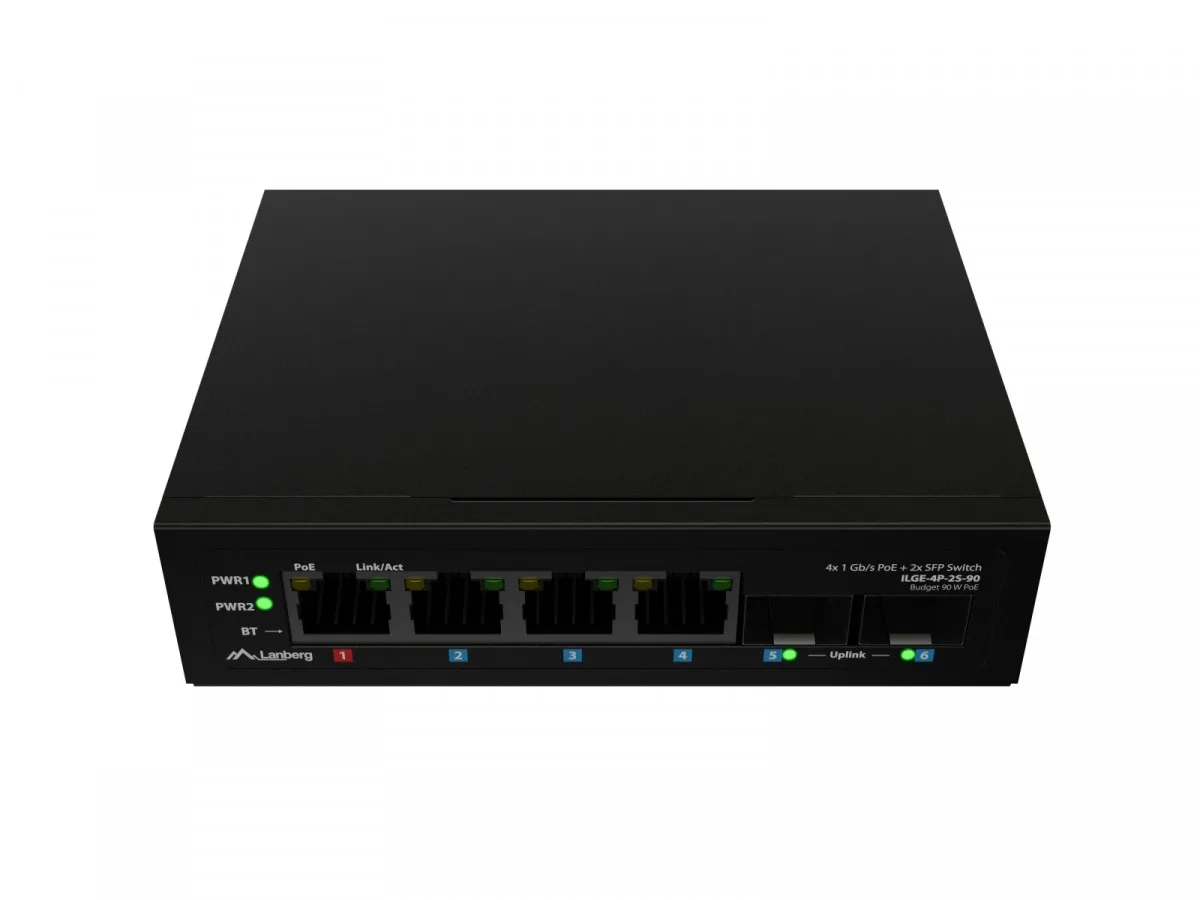

Lightweight unmanaged industrial switch Lanberg ILGE-4P-2S-90

Industrial switches are an indispensable active device in any network structure – from automation and SCADA systems, through cable television networks, to distributed IoT installations and monitoring. The Lanberg series of lightweight industrial switches has been designed for demanding working environments: metal housing, passive cooling, and operating parameters allow for stable operation in a wide range of ambient temperatures. The key advantages of this line include high PoE power (PoE+ / PoE++), redundant захранващ блок (possibility of connecting 2 power sources), DIN rail mounting, VLAN and EXTEND functions, automatic MDI/MDI-X, flow control, intelligent PoE port disconnection function, and MAC auto-learning.

In practice, this network switch is designed for distributed infrastructure: industry, street lighting infrastructure, outdoor CCTV monitoring, alarm systems, and indoor and outdoor installations where both Ethernet data transmission and PoE захранващ блок to end devices (cameras, recorders, access points, controllers, sensors) are important – often with higher power consumption.

NOTE: The device захранващ блок is included in the product set.

Industrial switch ILGE-4P-2S-90 with a rich selection of ports
This switch is equipped with ports designed for industrial applications and fiber uplinks:

• 4 × RJ45 Ethernet PoE ports for end devices (PoE switch), supporting IEEE 802.3af / 802.3at (PoE / PoE+) and 802.3bt (PoE++) – including PoE++ BT up to 90 W on a dedicated port to power more demanding devices.
• 2 × SFP slots (1000BASE-X) as uplink – dedicated to traffic exchange between network segments and for building longer-distance connections (optical parameters depend on the selected SFP module).

Lanberg Gigabit Ethernet switches with PoE++ technology
PoE, PoE+ and PoE++ technology makes it possible to deliver both data and power to devices using a single Ethernet cable, without additional electrical infrastructure at the camera or access point. IEEE 802.3af provides up to 15.4 W per port, IEEE 802.3at (PoE+) increases this to 30 W, and IEEE 802.3bt (PoE++ / 4PPoE Тип 4) can deliver up to 90 W per port – enabling power for 4K cameras with heaters, IR illuminators, or higher-draw automation equipment.

Depending on the model variant, the series offers a total PoE power budget of 90 W or 120 W, which simplifies planning of overall PoE power delivery while keeping safe reserves for stable 24/7 operation.

VLAN and EXTEND functions
VLAN is used as a practical way to separate traffic/ports (e.g., isolating cameras from each other while maintaining communication with an NVR/router via the uplink). It helps reduce broadcast „spill-over“ and improves security in distributed installations.

EXTEND mode was introduced for deployments where you need to ensure operation over a longer run at the cost of speed. In Extend mode you can reach up to 250 m on a single cable run, typically by limiting the port speed to around 10 Mb/s ideal for surveillance where distance is more important than maximum throughput.

An unmanaged switch that knows how to disconnect devices
If a temporary power spike occurs (e.g., when IR illuminators/heaters start up) and the available PoE power budget is exceeded, the switch will disconnect ports in a controlled way: it cuts off the highest-numbered PoE port first, then the next ones until the system returns to a safe power limit. This lets you plan priorities in advance – the most critical devices stay online first.

Intelligent switches with SFP module support
Lanbergs lightweight industrial switches support different fiber Типs thanks to SFP slots. Optical transmission parameters (range, fiber Тип, wavelength) depend on the selected module, giving you flexibility when choosing an uplink to a cabinet, pole, or another node. The device also supports automatic MDI/MDI-X, so crossover cables are not required, and the Ethernet port automatically negotiates speed and transmission mode.

Unmanaged PoE switch with redundant power input
Redundant power input means a dual power feed to the switch (two independent power paths). If one source fails, the device automatically switches to the other – without user intervention and without interrupting operation of critical PoE ports. Its a simple but highly effective way to increase network stability in industrial and outdoor environments.

Easy installation in 19″ racks and on a DIN rail
This is a Plug & Play unmanaged switch – connect power and cables, and the device configures the link parameters automatically. MDI/MDI-X auto-detection recognizes the cable Тип, eliminating the need for crossover wiring. In IP surveillance systems, reliable packet forwarding is crucial – store-and-forward switching with CRC checking helps reduce propagation of corrupted frames.

A major advantage is DIN-rail mounting, making it easy to install the device in automation cabinets, and when needed – also in rack environments (e.g., on a shelf or using integration accessories such as rack mounting ears). This provides flexibility for installation both inside and outside RACK cabinets.

Metal enclosure for durability and wide operating temperature range
A sturdy metal enclosure increases mechanical resistance, and passive cooling supports reliability in continuous operation. The recommended ambient operating temperature is -25 to 65°C, with 10-90% humidity. While the enclosure itself is not water- or dust-tight, installed inside an appropriate outdoor/industrial housing it will perform very well in demanding environments: industrial halls, production plants, surveillance nodes, and outdoor cabinets. Additional protection includes 6 kV surge protection, particularly valuable in outdoor deployments.

EAN: 5901969447361
