Description:

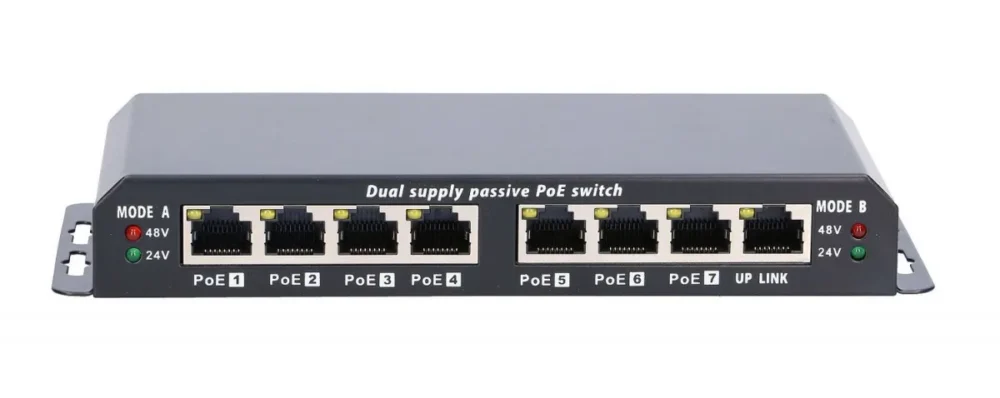

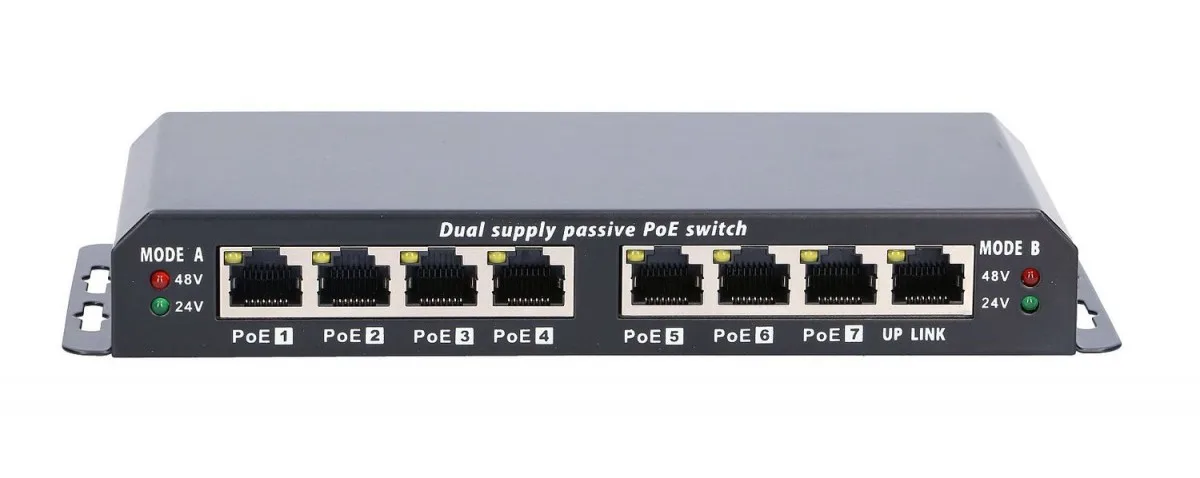

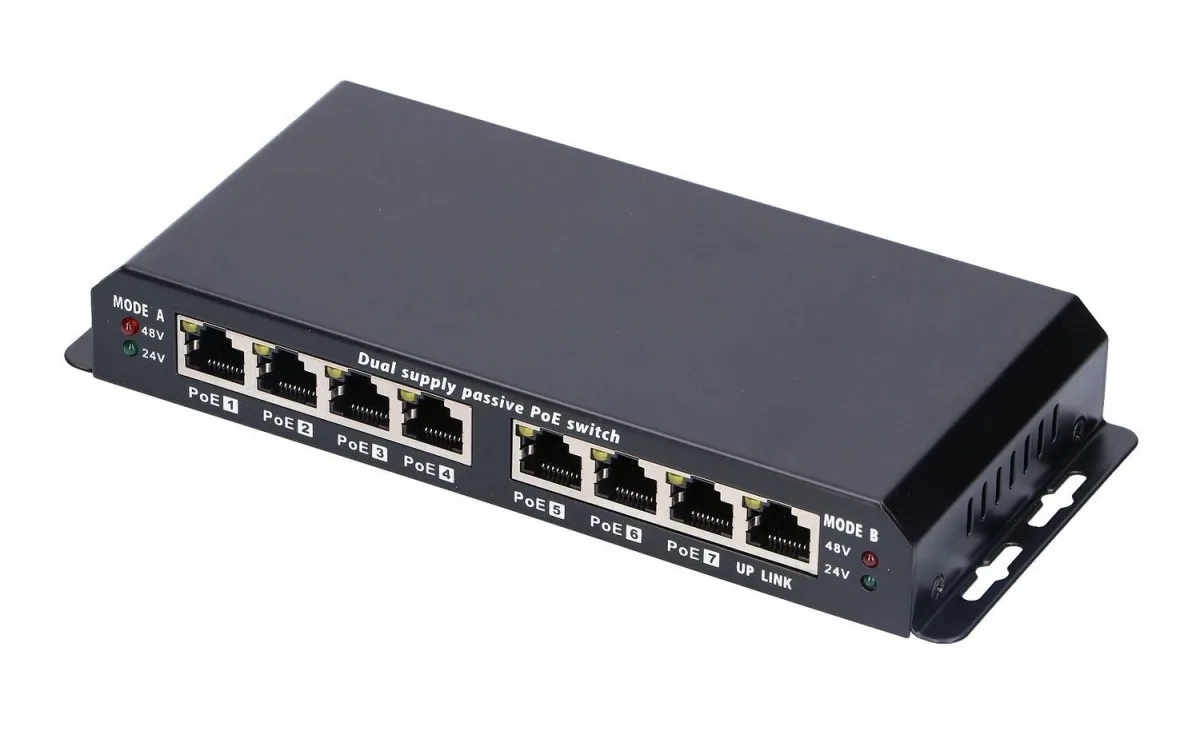

EXTRALINK POE SWITCH 8-7 PORT 24V 90W POWER SUPPLY
is a switch combining high performance, 8 10/100 Mbps ports including 7 PoE ports. PoE switch uses an external power supply from 18V to 57V. The device is designed for use in the home and small business. It is a cost-effective solution for environments where the power supply is not available or too expensive to install

Features:

• 8 ports with 10 / 100Mbps bandwidth
• Available power options:
• 18V, 24V, 48V, 56V
• 30W, 60W, 120W
• Input 100 to 240 V AC
• PoE outputs can work in two modes:
• Mode A data and power supply on 1/2 (-) and 3/6 (+) pins
• Mode B power supply on 4/5 (+) and 7/8 (-) pins and data on 1/2 and 3/6 pins
• Dual PTC fuses on each PoE output port
• One 650mA fuse per port in A mode
• One 1000mA fuse per port in B mode
• Input power supply mode A, B with LED
• The LED indicates operation of 18/24 V or 48 / 56V
• Maximum input current to 2.5 A mode

Switch class: Unmanaged
Application: Home and small office
Switch layer: L2
Network architecture: FastEthernet
Number of 10/100 Mbps ports: 8
Number of PoE ports (PoE & PoE+): 7
Console port: No
Throughput: 1.2 Gigabity na sek.
MAC address table size: 2048
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:
QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : External
Power consumption: 90 Watt

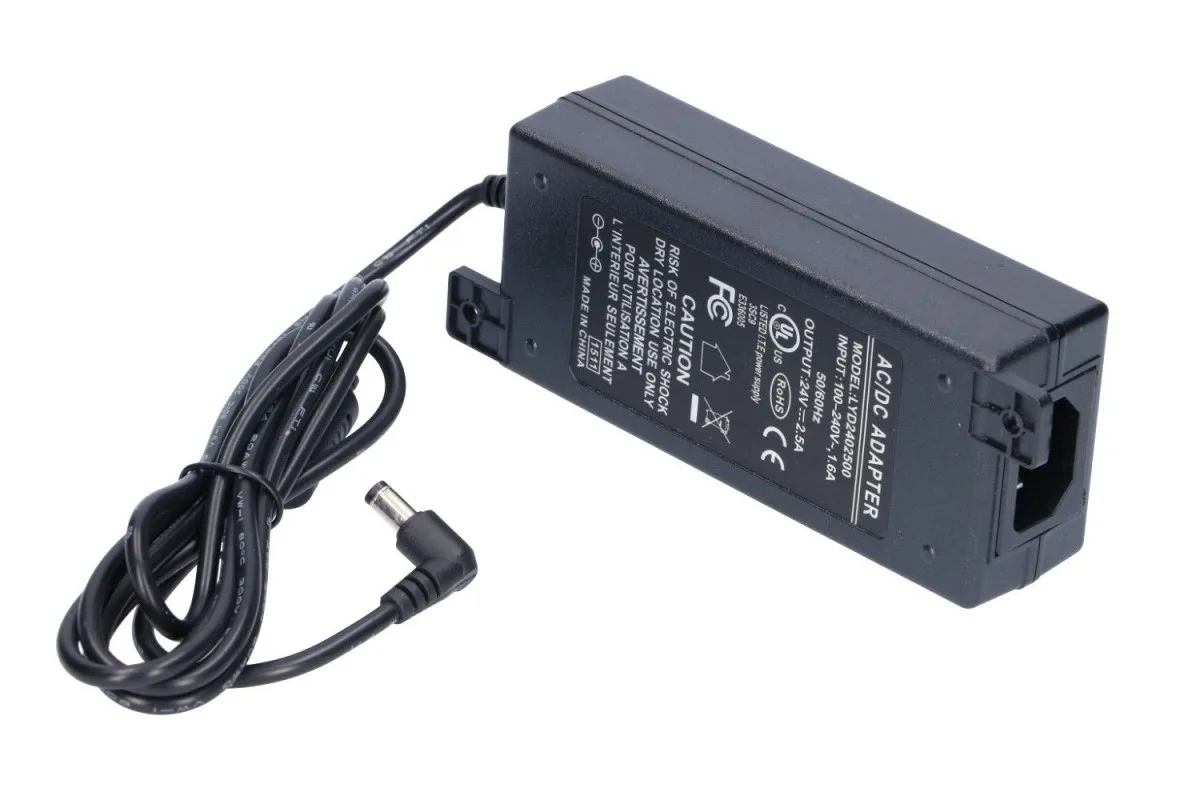

Accessories included:

Power Supply

Power supply:

100-240 V AC 50/60 Hz

Dimensions:

192 x 82 x 27 mm

Weight: 0.5 kilogram
Environment requirements:
Other features:
Designation:
