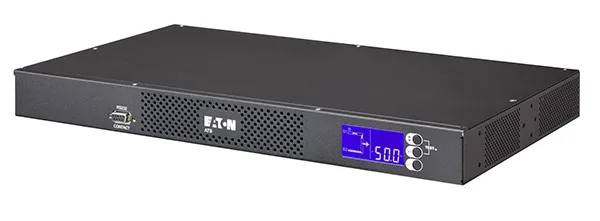

Eaton EATS16 Network power switch ATS 16

Eaton EATS16 Network power switch ATS 16

Description:

EATON ATS 16

Eaton ATS offers an inexpensive solution for customers wishing to add redundant power to network devices such as switches and routers. The automatic power switch will provide power from 2 different sources. If one power source fails, the backup source will be connected uninterrupted to the connected equipment. Eaton ATS can be connected to multiple devices while saving on the cost of using expensive redundant power supplies.

Main features:
– Provides redundancy for IT equipment
– An alternative to expensive redundant input power supplies
– Compact 1U rack housing
– Unbreakable switching from one power source to another
– LCD display – reading measurements and basic configuration settings

Number of phases input: 1 (230V)
No. of batteries: 0
Hold-up time (maks): 8 millisecond
Chassis type: Rack
Special functions:

LCD user interface

Software:

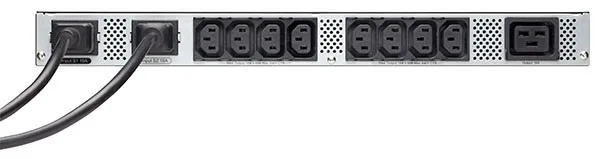

Input power ports: IEC-C20
Output power ports: 8 x IEC-C13
Output power ports: 1 x IEC-C19
Connectors: RS-232 (COM)
Environment requirements:

– Operating temperature: 0 – 40 degrees Celsius
– Storage temperature: -25 to 55 degrees C
– ambient humidity: 20 – 85%
– Storage environment humidity: 0 – 90%
– Height: up to 2000 m n.p.m.

Accessories included:
Color: Black
Dimensions:

43 x 430 x 250 mm

Weight: 3.3 kilogram
Other features:
Designation:
