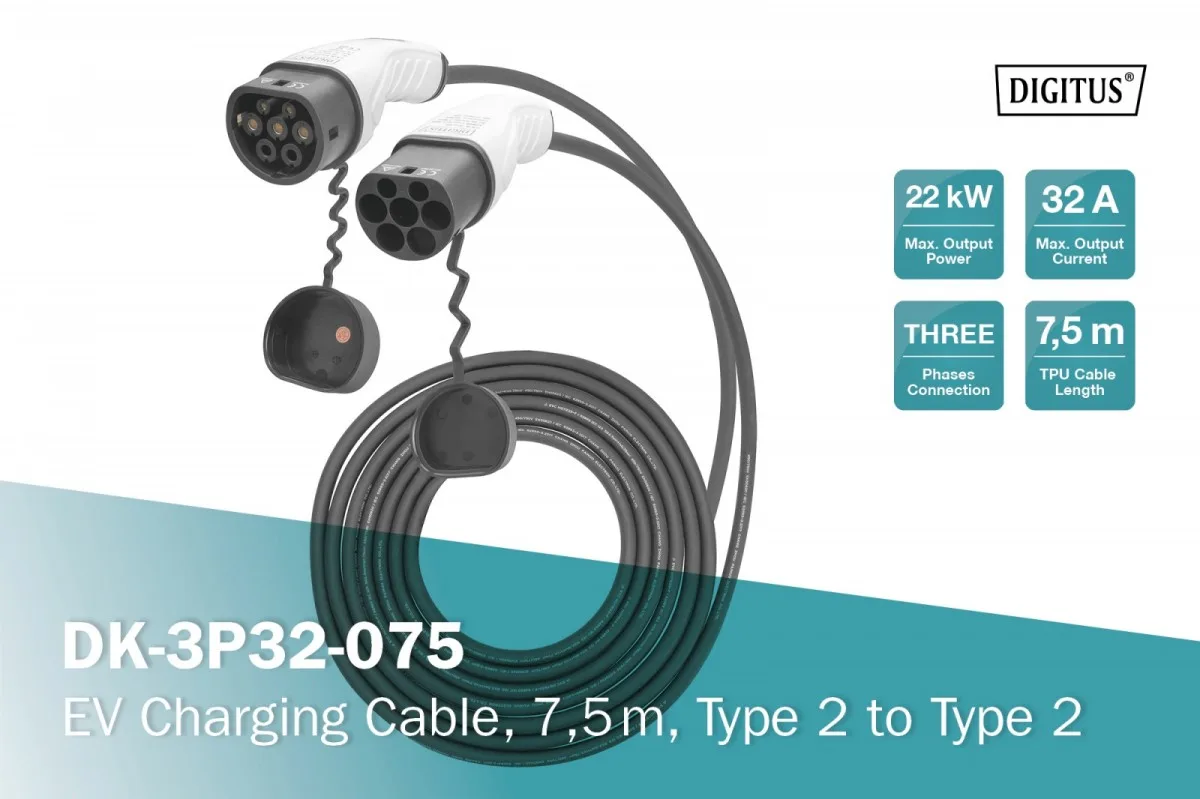

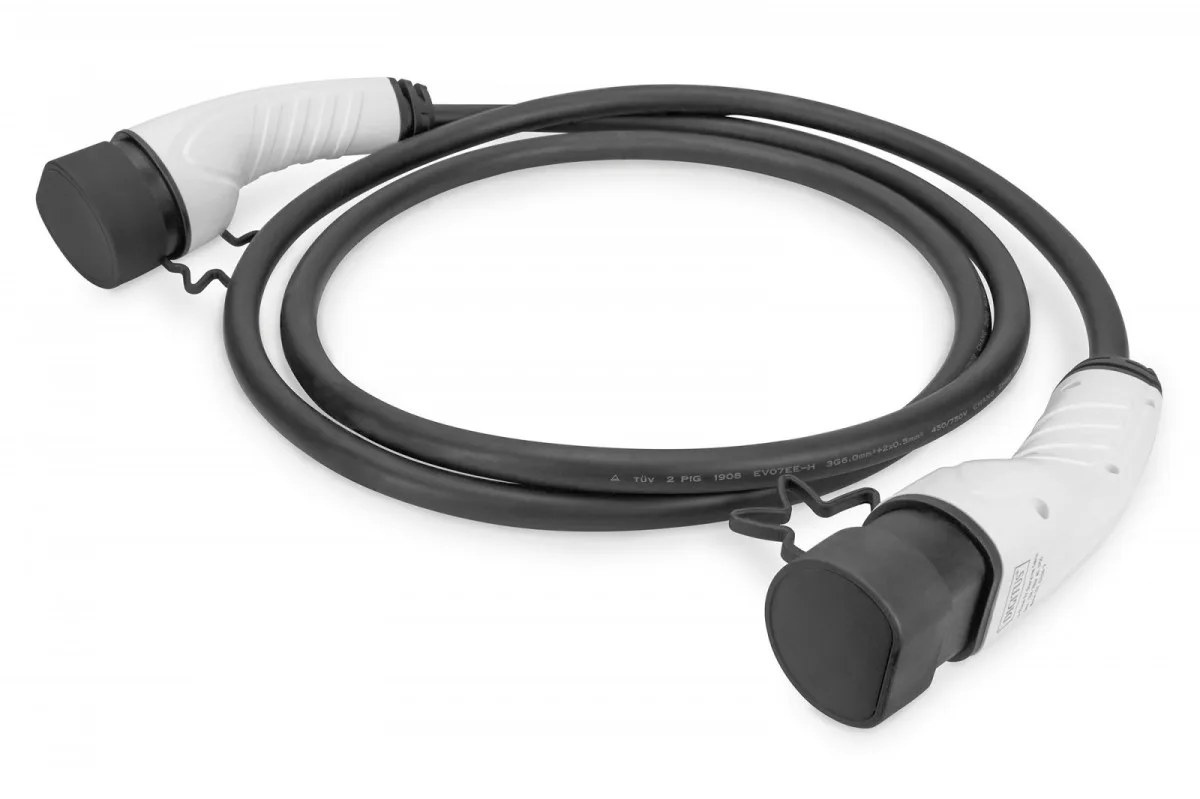

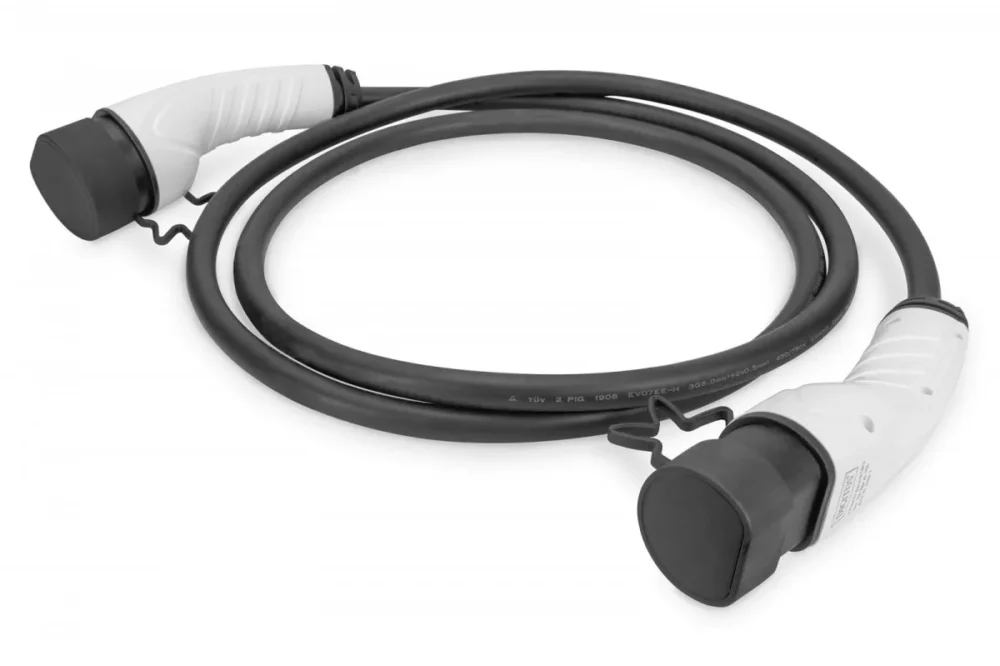

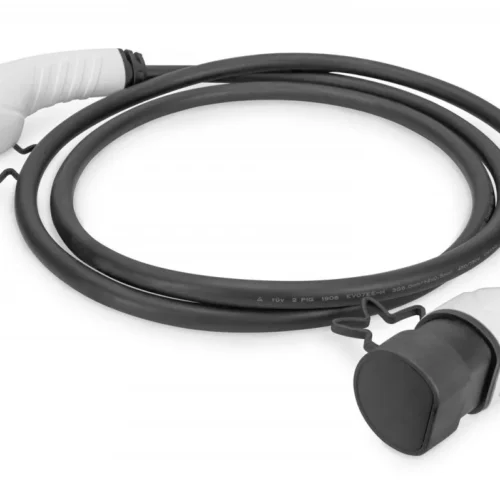

Digitus EV кабел за зареждане DK-3P32-075

Digitus EV кабел за зареждане DK-3P32-075

Description:

EV type 2 to type 2 cable, IP55 rated, 3-phase, up to 32 A

The Digitus in-car charging cable makes it easy to connect any vehicle with a Type 2 plug to public charging stations or to wallbox chargers with a charging socket. The Type 2 charging cables are certified according to EN 62196-1:2014, EN 62196-2:2017 and IP55 protection.

• Type 2 to type 2 charging cable
• Rated voltage: 415 V
• Rated power: 22 kW
• Rated current: 32 A
• Number of phases: 3 phases
• Sheath: TPE plastic
• Flammability class: UL94 V-0
• IP protection class: IP55

Compatible with:
Power supply:
Color: Black
Color: White
Dimensions:
Accessories included:

• Quick Start Guide

Other features:

• Cable length: 7.5m
• Cable diameter: 5G6 mm2 + 2 x 0.5 mm2
• Outer diameter: 16.8mm +/- 0.5mm

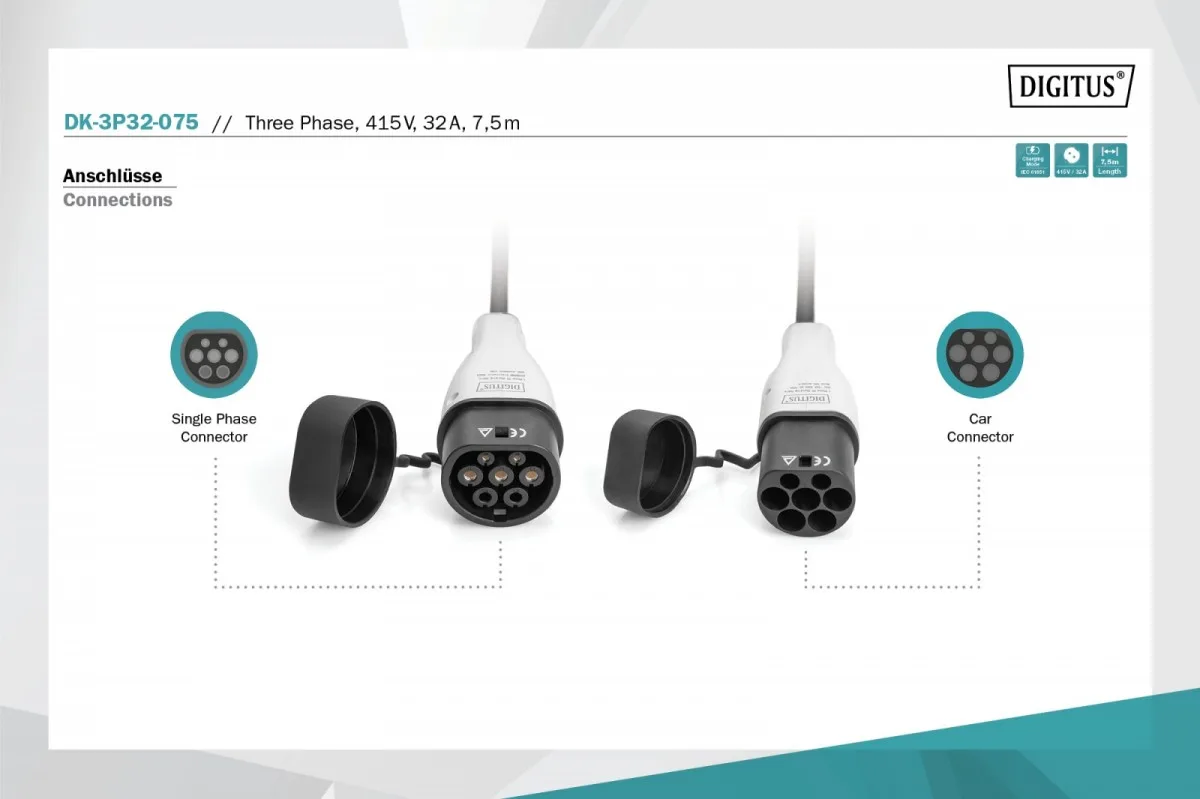

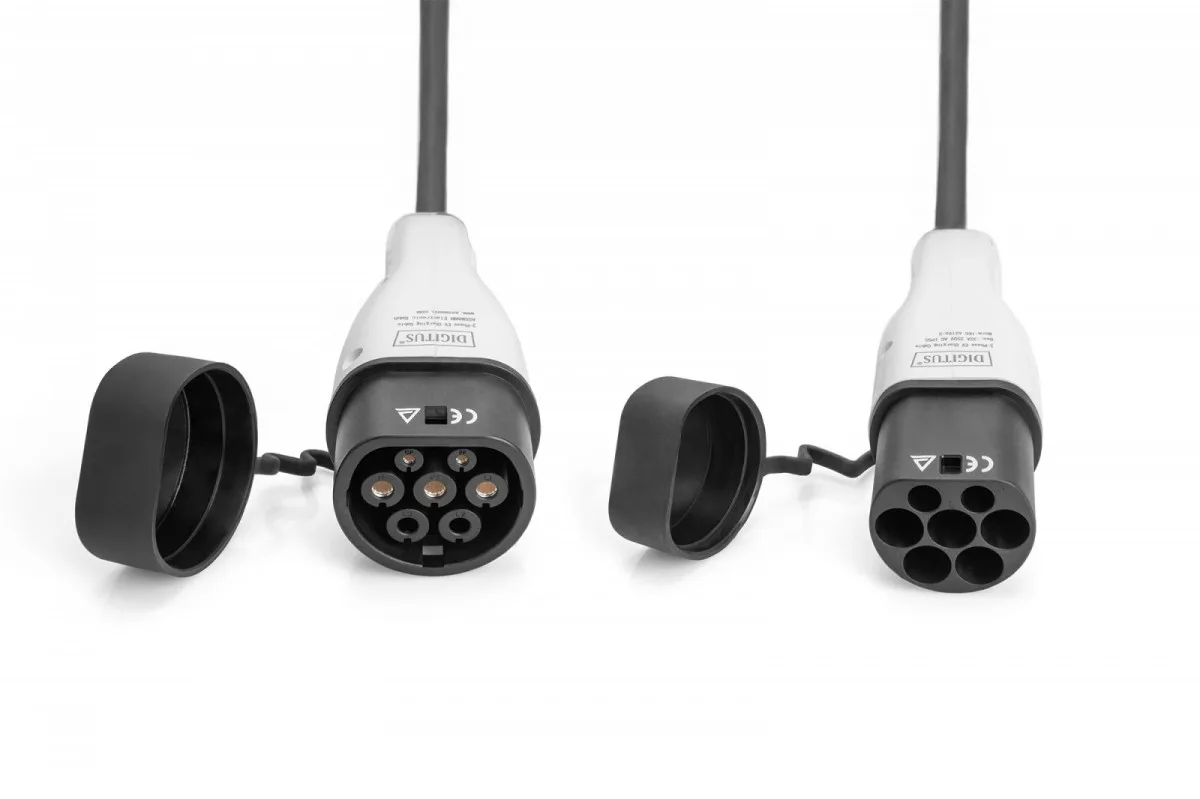

• Plug: EN 62196-2 type 2
• Transient resistance: 0.5 m ohm (max.)
• Insulation resistance: 1000 M ohm (min.) at 500 V DC power supply
• Voltage Resistance: 2000V
• Resistance coding: 220 ohms
• Terminal temperature rise: equal to or greater than 50K
• Standard: EN 62196-1:2014, EN 62196-2:2017
• Operating temperature: -30°C to +50°C
• Operating humidity: 5% to -95% (non-condensing)
