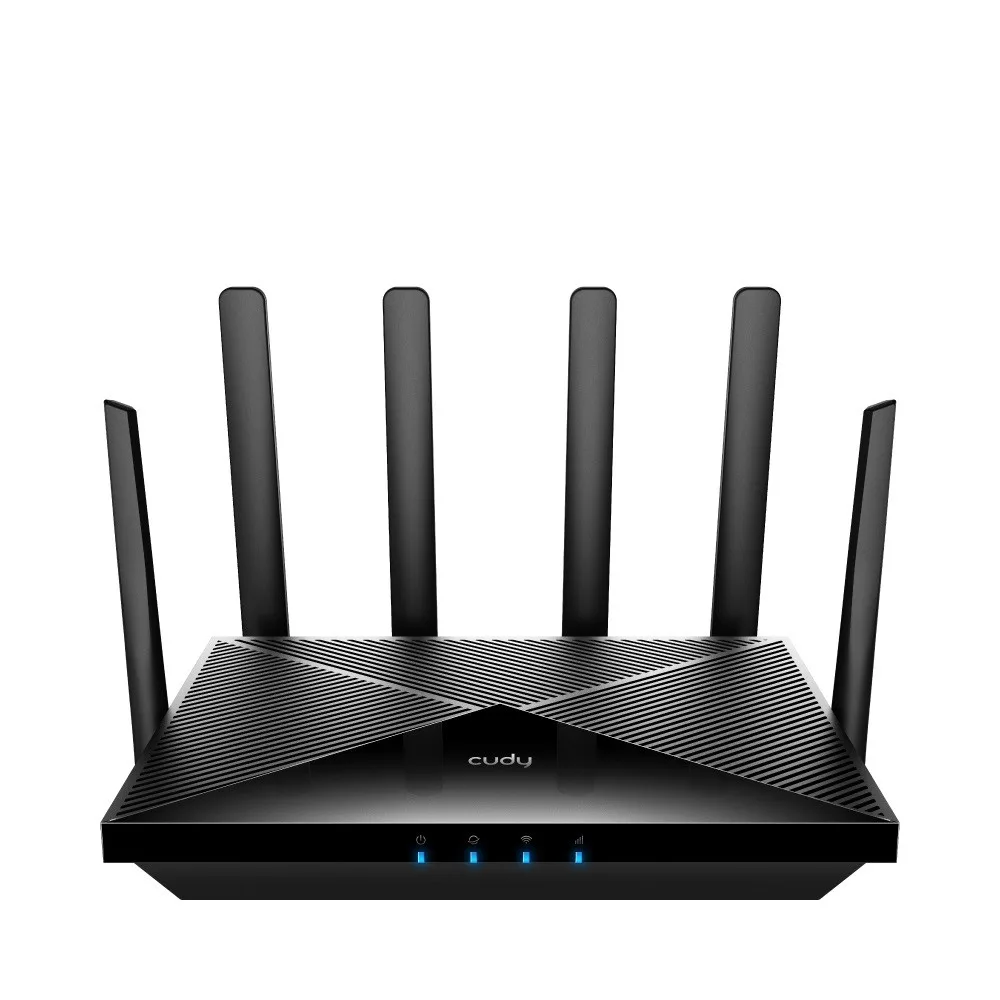

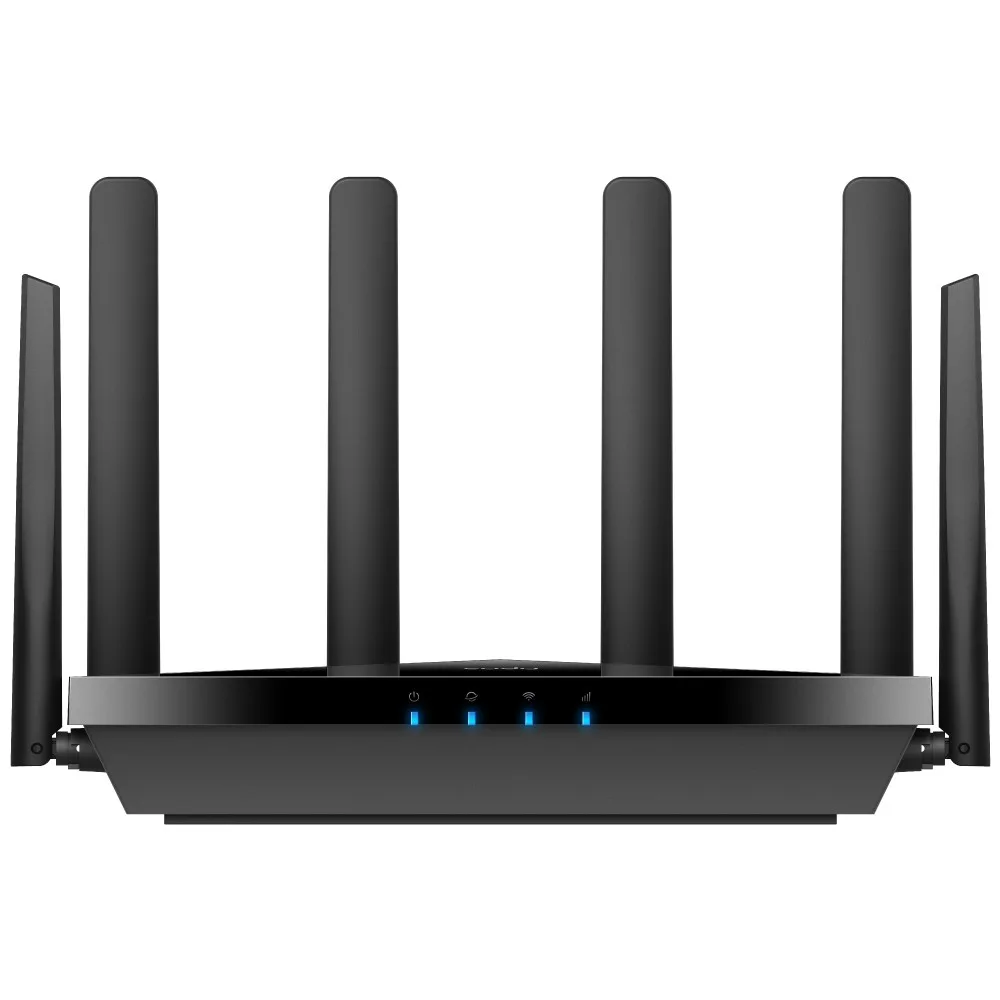

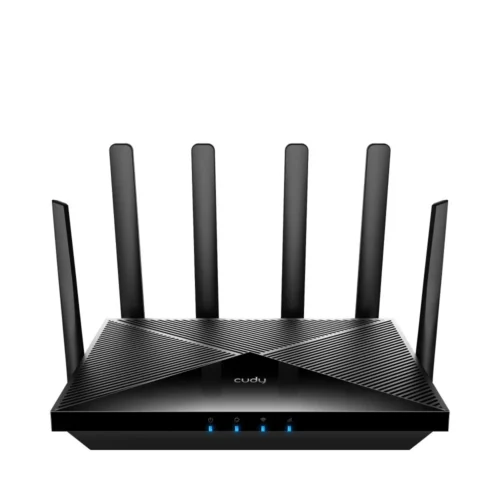

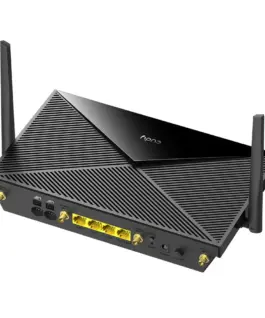

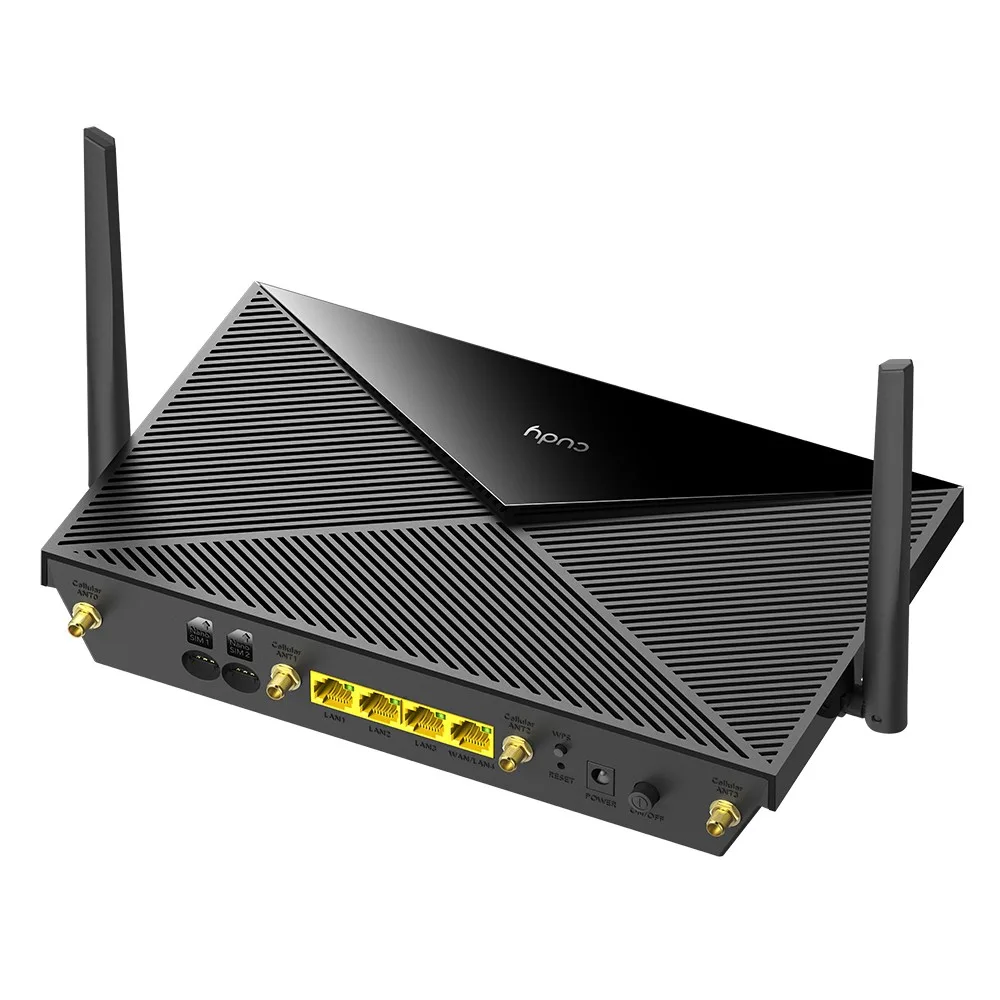

Cudy Router P5_EU Mesh Gigab AX3000 5G Dual SIM

Cudy Router P5_EU Mesh Gigab AX3000 5G Dual SIM

Model:

P5

Description:

P5 5G SA/NSA AX3000 WiFi 6 CPE

• 5G SA/NSA CPE (Sub-6)
• AX3000 dual-band Wi-Fi (2.4GHz & 5GHz)
• Qualcomm Chipset Inside
• Dual Nano SIM slots
• 4x Gigabit Ethernet (WAN Failover)
• 4 x Detachable Cellular Antenna
• 2 x Fixed WiFi antenna
• DNS over Cloudflare/NextDNS/Google
• PPTP/L2TP/OpenVPN/WireGuard/IPSec/ZeroTier

Type: GSM 3G/4G
Type: v
Data transmission: UMTS
Data transmission: LTE
Max download speed: 2.8 Gigabity na sek.
Max upload speed: 900 Megabity na sek.
Standards: IPv6
Standards: 802.11g
Standards: 802.11n
Standards: 802.11a
Standards: 802.11b
Standards: 802.11ac
Standards: 802.11ax
Standards: IPv4
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Number of antennas: 6
Antenna: Fixed external
Antenna: Detachable external
Security:
Special functions:

• DHCP: Server, Client List, Address Reservation
• NAT: Port Forwarding, Port Triggering, UPnP, DMZ
• Firewall: Mac Filter, IP Filter, Domain Filter
• DDNS: Compatible with 15 more DDNS providers
• VPN Sever & Client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
• DNS over TLS: Cloudflare/NextDNS/Google
• Schedule: Schedule Reboot /Wi-Fi Schedule
• IPv6: Relay, Dynamic(SLAAC/DHCPv6), Static (Fixed IP), Passthrough, MAP-E (Dual-stack), DS-Lite (Dual-stack)
• Quality of Service (QoS)
• IPTV / VLAN configuration
• TTL configuration
• Band Selection
• CWMP Protocol: TR069 / TR098 / TR111 / TR181

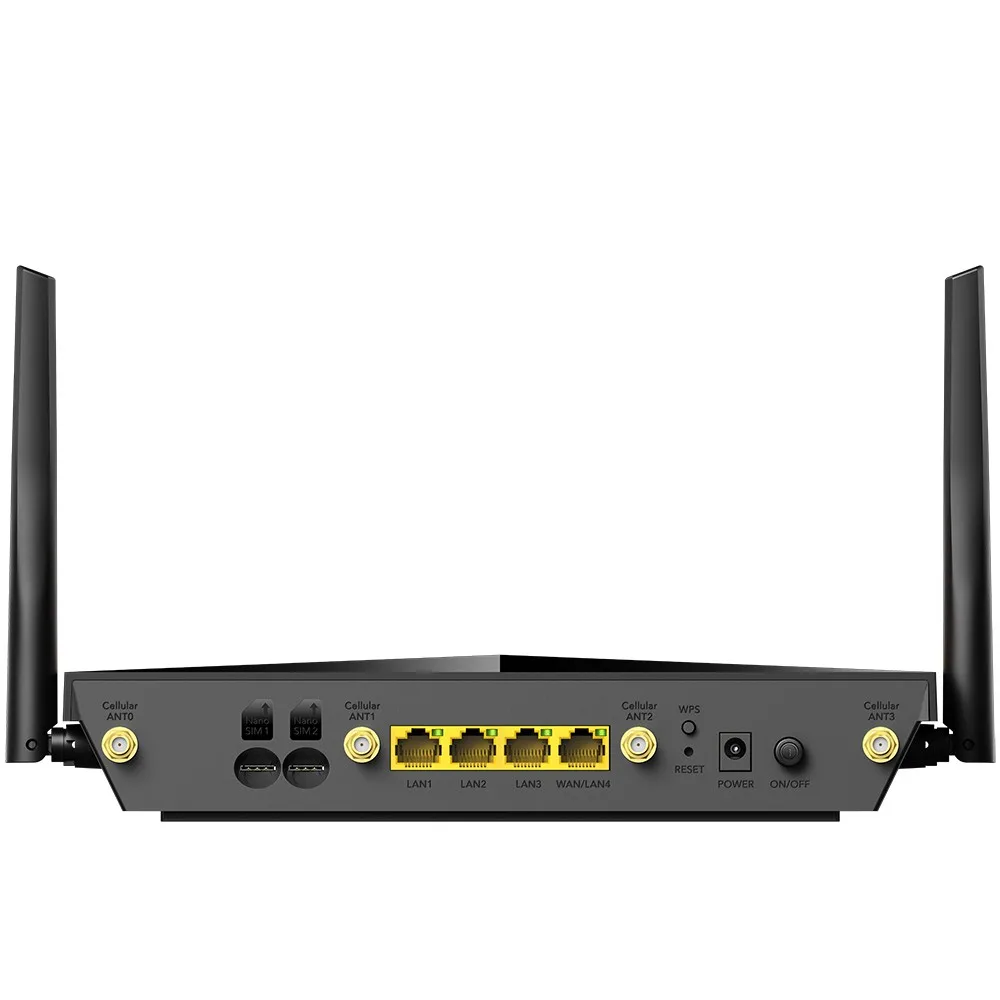

I/O ports: 3 x 10/100/1000 Mbit/s
I/O ports: 1 x 10/100/1000Base-T RJ-45 port (WAN)
I/O ports: 2 x SIM card slot
SIM card: Not applicable
Power supply:

• AC Adapter: Input: 90 ~ 260V, Output: 12V, 2.5A
• DC Input (12V-2.5A) Barrel Plug

Software:
Supported operating systems: Novell NetWare
Supported operating systems: Windows 10
Supported operating systems: Windows 98 SE
Supported operating systems: Windows NT
Supported operating systems: Windows 2000
Supported operating systems: Windows XP
Supported operating systems: Windows Vista
Supported operating systems: Windows 7
Supported operating systems: Windows 8
Supported operating systems: Windows 8.1
Supported operating systems: Mac OS
Supported operating systems: Unix
Supported operating systems: Linux
Supported operating systems: Windows 11
System Requirements:

Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser

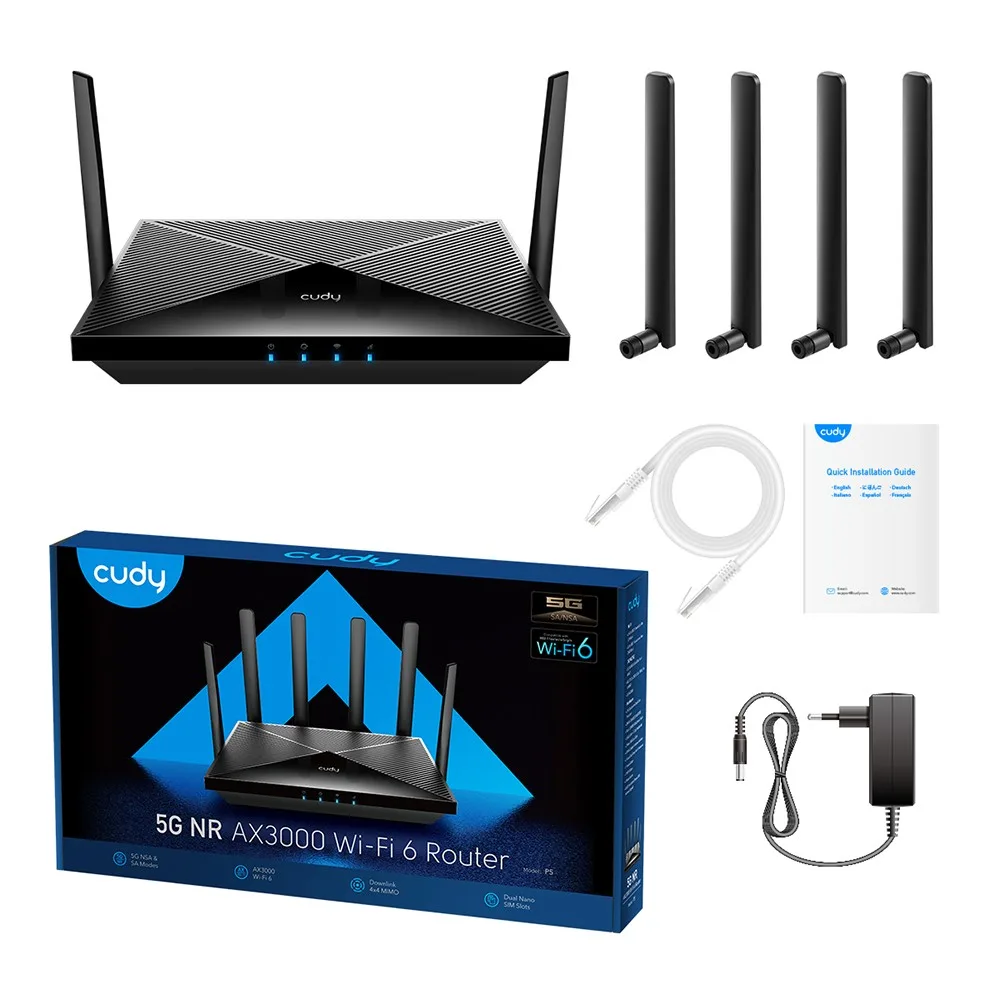

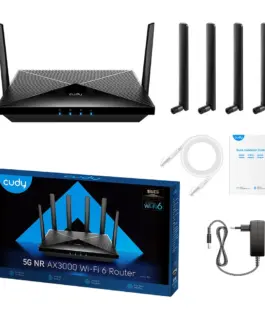

Accessories included:

• 5G WiFi6 Router
• Charger
• RJ45 ethernet cable
• Quick Installation Guide

Color: Black
Dimensions:

252.5 x 161 x 48.2 mm

Environment requirements:

• Operating temperature: from 0°C to +45°C
• Storage temperature: -40°C to +70°C
• Relative humidity: 5% to 95% non-condensing

Other features:

• CPU: Qualcomm IPQ5018 (Dual Core 1GHz)
• 5G: Quectel 5G Module (Qualcomm X62)
• DRAM: 256MB DDR3
• Flash: 128MB Nand
• WPS button
• reset button

Data transmission speed Wi-Fi network:

• 2.4GHz (802.11ax/n/g/b, MIMO 574Mbps)
• 5GHz (802.11ax/ac/n/a, MIMO 2402Mbps)

5G Module data transmission speed:

• 5G SA Sub-6: Max. 2.4Gbps(DL)/900Mbps(UL)
• 5G NSA Sub-6: Max. 2.8Gbps(DL)/550Mbps(UL)
• LTE-FDD: Max. 1.6Gbps(DL)/200Mbps(UL)
• WCDMA: Max. 42Mbps(DL)/5.76Mbps(UL)

Designation:
