Cudy LT15V Router Gigabit AX3000 4G LTE SIM vo

Cudy LT15V Router Gigabit AX3000 4G LTE SIM vo

Model:

LT15V

Description:

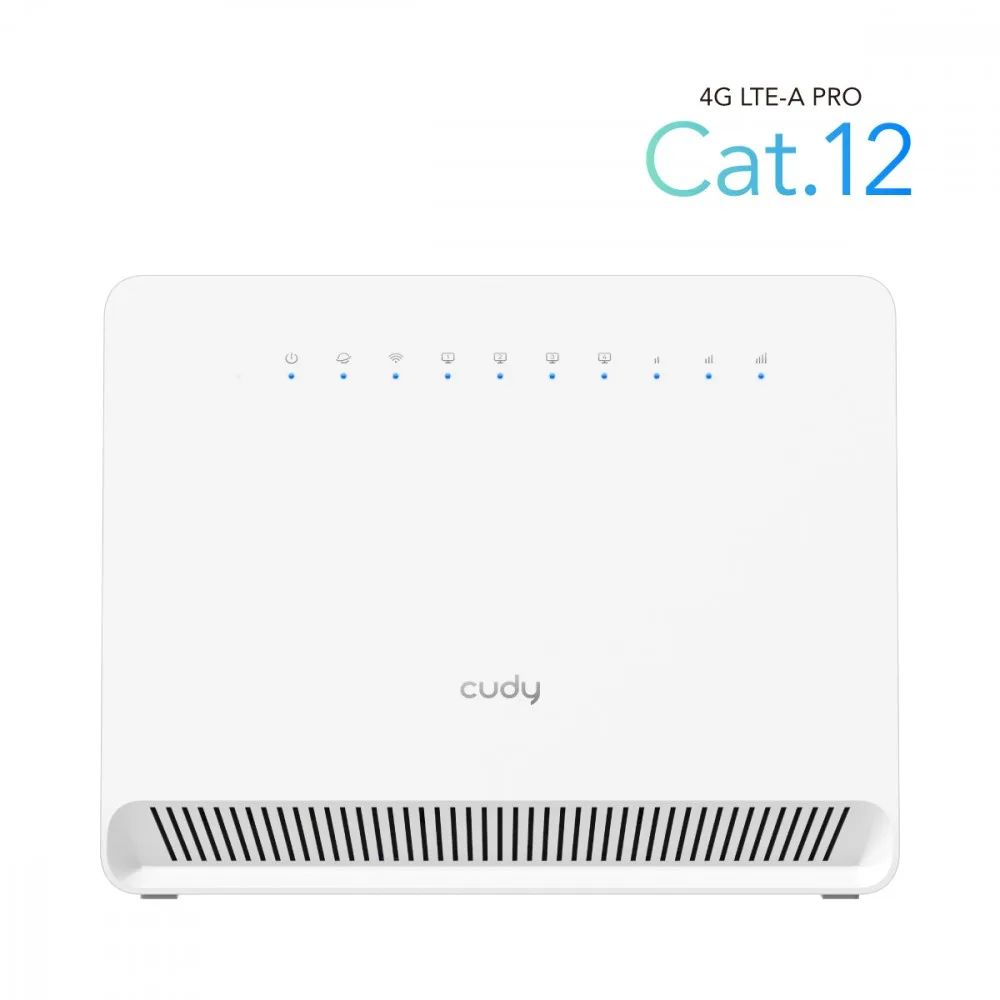

4G LTE Cat 12 AX3000 Gigabit Wi-Fi 6 Router with Voice, Model: LT15V

• 4G cat. Download speeds 12 to 600 Mbps
• Calls via VoIP or VoLTE
• Superfast AX3000 dual-band Wi-Fi card 6

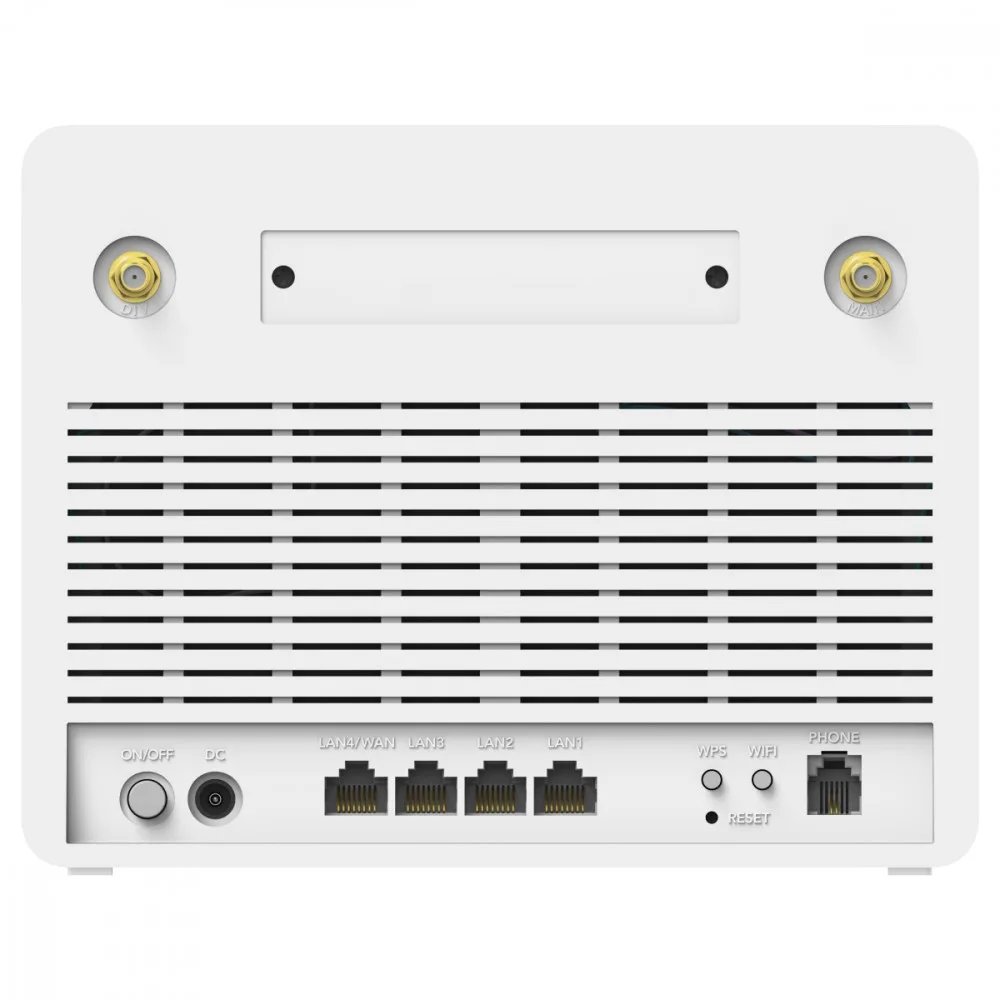

• 4× Gigabit Ethernet port + 1× RJ11 for VoLTE/VoIP
• 2× internal WiFi antennas + 4× internal 4G antennas
• 2× SMA connectors

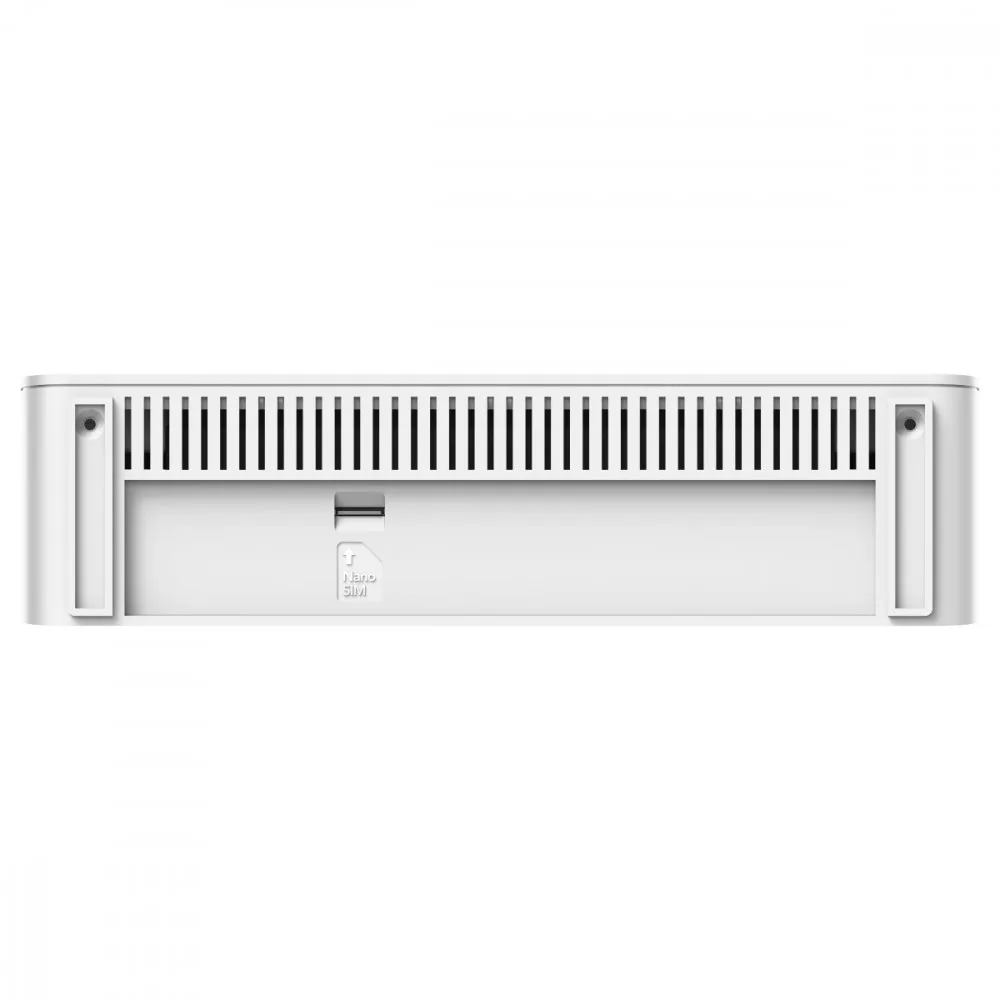

• Nano SIM card slot
• VPN Zerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTP
• Supports Cudy Mesh as the main Mesh node

Advanced Wi-Fi 6 for more devices

Featuring Wi-Fi 6 with the widest bandwidth of 160 MHz and 1024-QAM for wireless speeds of up to 3 Gbps, this router is over 2.5 times faster than the Wi-Fi AC 2×2 router, providing greater network throughput and greater responsiveness at intensive use.

Full gigabit ports

Provide a wired network with speeds of up to 1000 Mbps, providing a high-bandwidth backbone, especially for NAS servers and creative computers. The LAN/WAN port can be configured as a WAN port, connecting to another ISP and enabling WAN failover if a SIM card is also used.

• Online redundancy
• WAN/cellular backup provides solid network resiliency, making it suitable for surveillance and other scenarios where you’re always online.
• Strap lock
• 4G band lock allows the user to lock the operating frequency on one or more bands.
• TTL settings
• Support for manually setting TTL values as required by your ISP (e.g. Verizon, Visible). Supports setting IPv4 TTL and IPv6 HL values.
• DNS encryption
• Allow encryption of domain lookups, preventing eavesdropping and man-in-the-middle attack manipulation of DNS data.
• Plug and play
• Insert a Nano SIM card with an active subscription plan, turn on the router and enjoy Wi-Fi.
• Scheduling and filtering
• Set bedtimes and domain blacklists to regulate your children’s online behavior.
• VPN server and client
• ZeroTier/ WireGuard/ OpenVPN/ IPSec/ L2TP/ PPTP are available for unlimited VPN applications.
• Fast roaming
• It acts as the master node of Cudy a Mesh, enabling fast roaming when using other Cudy Mesh devices.

Type: GSM 3G/4G
Data transmission: UMTS
Data transmission: HSDPA
Data transmission: LTE
GSM network: 850 MHz
GSM network: 900 MHz
GSM network: 1800 MHz
GSM network: 1900 MHz
GSM network: 2100 MHz
UMTS network: 900 MHz
UMTS network: 2100 MHz
UMTS network: 1800 MHz
UMTS network: 850 MHz
LTE network: 3400 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
LTE network: 700 MHz
LTE network: 800 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 1500 MHz
LTE network: 2600 MHz
LTE network: 2500 MHz
Max download speed: 600 Megabajty na sek.
Max upload speed: 150 Megabajty na sek.
Aero2 support: No
Standards: IPv4
Standards: 802.11n
Standards: 802.11a
Standards: 802.11b
Standards: 802.11ac
Standards: 802.11ax
Standards: IPv6
Standards: 802.11g
Operating frequency: Not applicable
Operating frequency: 5 GHz
Operating frequency: 2,4 GHz
Number of antennas: 6
Antenna: Built-in
Security:

• WPA-PSK
• WPA2-PSK
• WPA3-SAE
• WPA-PSK/WPS2-PSK
• WPS2-PSK/WPA3-SAE

Management, monitoring, configuration:

VPN

• VPN Server and Client
• Options: Zerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTP

DNS

• Override All Clients’ DNS, Rebind Protection, DNS Over TLS, Manual DNS
• DNS over TLS
• Options: Cloudflare, Google, Quad9

Multi-Mode

• Router (4G/WAN), WISP (4G as Backup), WISP

Clients Management

• Internet Block, Internet/Wi-Fi Schedule, VPN Block, Device Rename

Network Management

• QoS, DDNS, WAN/LAN Switch,

Firewall

• SPI Firewall, DoS Protection, Block PING

NAT

• Port Forwarding, Port Triggering, UPnP, DMZ

TTL

• Extend, Spoof, Custom

IPv6

• Relay, Dynamic(SLAAC/DHCPv6), Staic (Fixed IP), Passthrough, MAP-E, DS-Lite

DHCP

• Server, Client List, Address Reservation

CWMP

• TR069, TR098, TR111, TR181, Support STUN

Special functions:

Cellular functions

• Volta
• VoIP
• by text message
• Band lock (band selection)
• TTL settings
• Mobile data statistics, data limit, SMS notification about usage
• WAN failover

Wi-Fi features

• DL/UL MU-MIMO
• DL/UL OFDMA
• Beamforming
• Transmit power adjustment

Card reader: None
Memory standard: Not applicable
I/O ports: 1 x WAN (RJ-45)
I/O ports: 1 x SIM card slot
I/O ports: 4 x 10/100/1000 Mbit/s
I/O ports: 1 x Serial port (RJ-11 )
SIM card: Nano
Power supply:

DC 12 V 1.5 A

Software:
Certificates:
Supported operating systems: Windows
Supported operating systems: Unix
Supported operating systems: Novell NetWare
Supported operating systems: Mac OS
Supported operating systems: Linux
System Requirements:
Environment requirements:

• Operating temperature: 0°C – 40°C
• Operating humidity: 10% – 90% non-condensing
• Storage temperature: -30°C – 70°C
• Storage humidity: 5% – 95%, non-condensing

Accessories included:

• 4G LTE router
• Charger
• RJ45 Ethernet cable
• quick installation guide

Color: White
Dimensions:

190 x 50 x 148.8 mm

Other features:
Designation:
