Corsair RS140 140mm Fan Single Pack

Corsair RS140 140mm Fan Single Pack

Description:

RS140
High-Performance PWM Fans with Daisy Chain

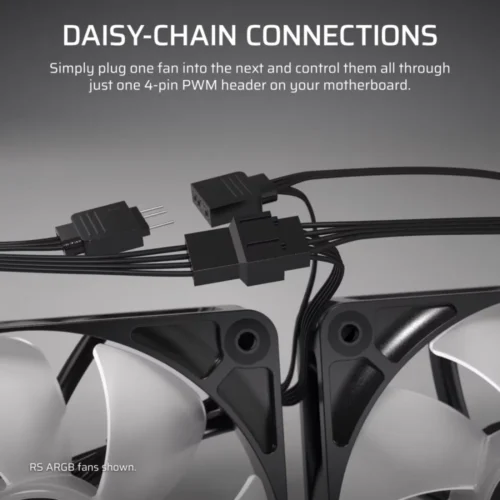

Direct Motherboard Connection
Skip fan hubs and unnecessary cables by daisy-chaining RS fans and controlling them all through a single 4-pin PWM connector on your motherboard.

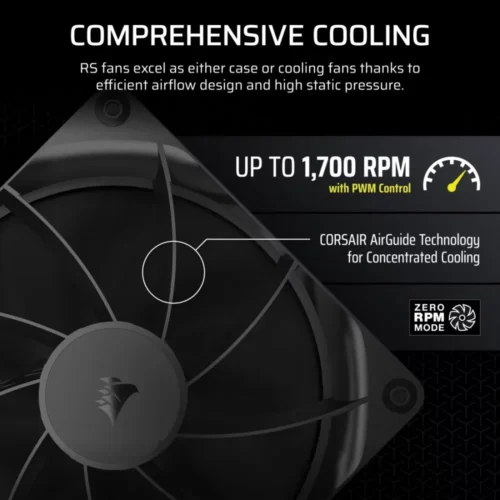

Airflow and Static Pressure
Improved fan performance depends on several key features, each of which improves how the fans deliver pressure and airflow to the heatsink or case. RS fans excel in both respects.

• Blade Shape
• Optimized rotation angle, blade shape, and edge curvature ensure maximum airflow efficiency.
• Fan Housing
• The fan housing allows for the use of blades with the largest possible radius within a given fan size. Corsair AIRGUIDE
• The stator blades are angled to direct the exhaust airflow and improve fin cooling and heat dissipation.

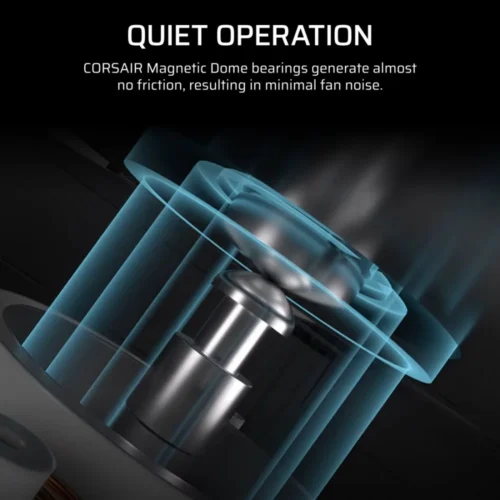

Magnetic Dome Bearing
The improved bearing minimizes friction and mechanical noise, providing a balance between strong airflow and low noise levels. Furthermore, reduced friction translates to a longer fan life.

Proven Cooling Performance
RS fans have undergone months of rigorous testing, ensuring excellent performance across the full PWM speed range, which can be controlled directly to the motherboard.

ZERO RPM Mode
PWM technology allows for precise fan speed control, ensuring they only spin at the desired speed and generate less noise. Zero RPM mode allows fans to be completely turned off under light load to eliminate noise.

Fan speed (max): 1700 rotations per minute
Fan speed (min): 330 rotations per minute
Air flow rates: 95.5
Illumination: No
Type of cooling: Active
Cooling technology: Air
Number of fans: 1
Fan: 14 cm
Connector type: 4-pin
Noise: 36 Decibel
Accessories included:

• RS140 fan
• 4 mounting screws

Dimensions:

140 x 25 mm

Weight: 0.293 kilogram
Other features:

• Power consumption 0.45 A
• PWM control
• Fan static pressure 0.11 – 3.46 mmH2O
