Description:

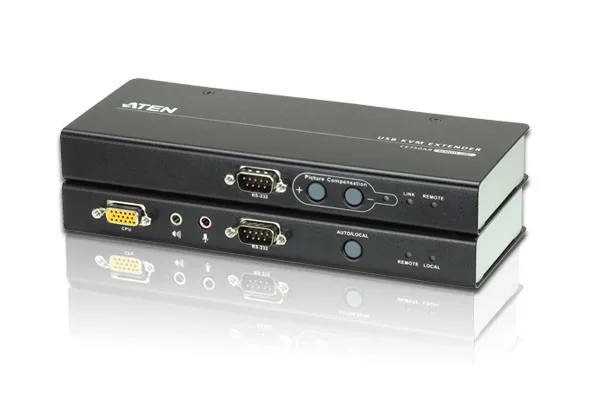

The CE750 is a USB based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).

Because it allows access to a computer system from a remote console, the CE750 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location ?away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example.

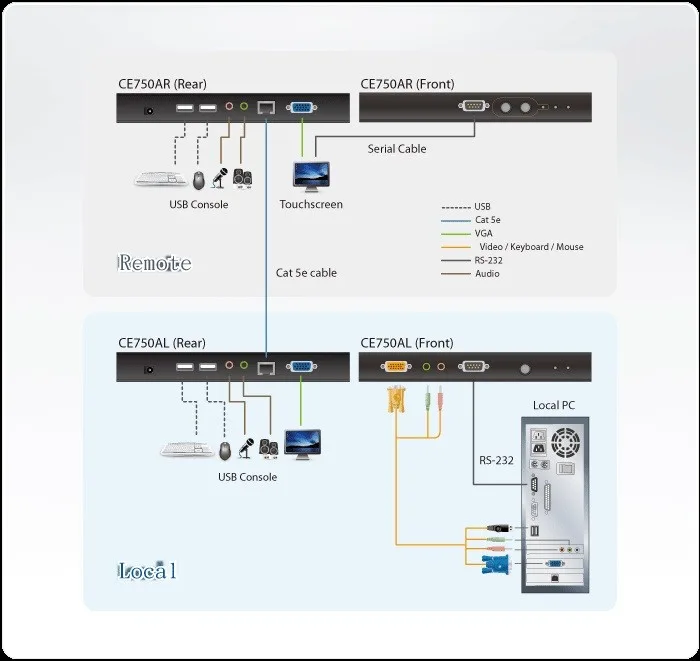

The CE750 improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)

Console Ports: 2x USB Type A Żeński
Console Ports: 1x Video D-Sub 15pin Female
Console Ports: 2x Audio 3,5mm minijack Female
PC connectors: 2x Audio 3,5mm minijack Female
PC connectors: 1 x RJ-45
Resolution: 1280 x 1024 (SXGA)
Supported operating systems: Linux
Supported operating systems: Windows
Supported operating systems: Mac OS
Accessories included:

• 1x USB KVM Extender (Local Unit)
• 1x USB KVM Extender (Remote Unit)
• 1x USB KVM Cable (1.8 m)
• 2x 0AD8-1605-24M1 Power Adapters
• 1x Mounting Kit
• 1x User Instructions

Dimensions:

Dimensions (L x W x H)

• 20.20 x 8.63 x 2.50 cm
• (7.95 x 3.4 x 0.98 inches)

Weight: 0.47 kilogram
Other features:

• Local and Remote Units connect at distances up to 200 m using Cat 5e cable
• Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Built-in ASIC for greater reliability and compatibility
• USB Keyboard and USB Mouse Ports
• RS-232 serial ports – allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)
• Supports stereo speakers and stereo microphone
• USB overcurrent detection and prevention
• Pushbutton operating mode selection (Local Unit only) -select between Local and Auto operating modes.
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV, Air voltage 15KV) and 2KV surge protection
• Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
• High resolution video – up to 1920 x 1200 @ 60 Hz (30m),1600 x 1200 @ 60Hz (150m),1280 x 1024 @ 60Hz (200m)
• Supports Wide Screen formats *
• Supports VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200) and multisync monitors, local monitor supports DDC, DDC2, DDC2B
• Hot pluggable
• Rack mountable
• Easy to install – no software required – connecting cables to the devices is all it takes
• Multiplatform support – Windows, Linux, FreeBSD

• * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
