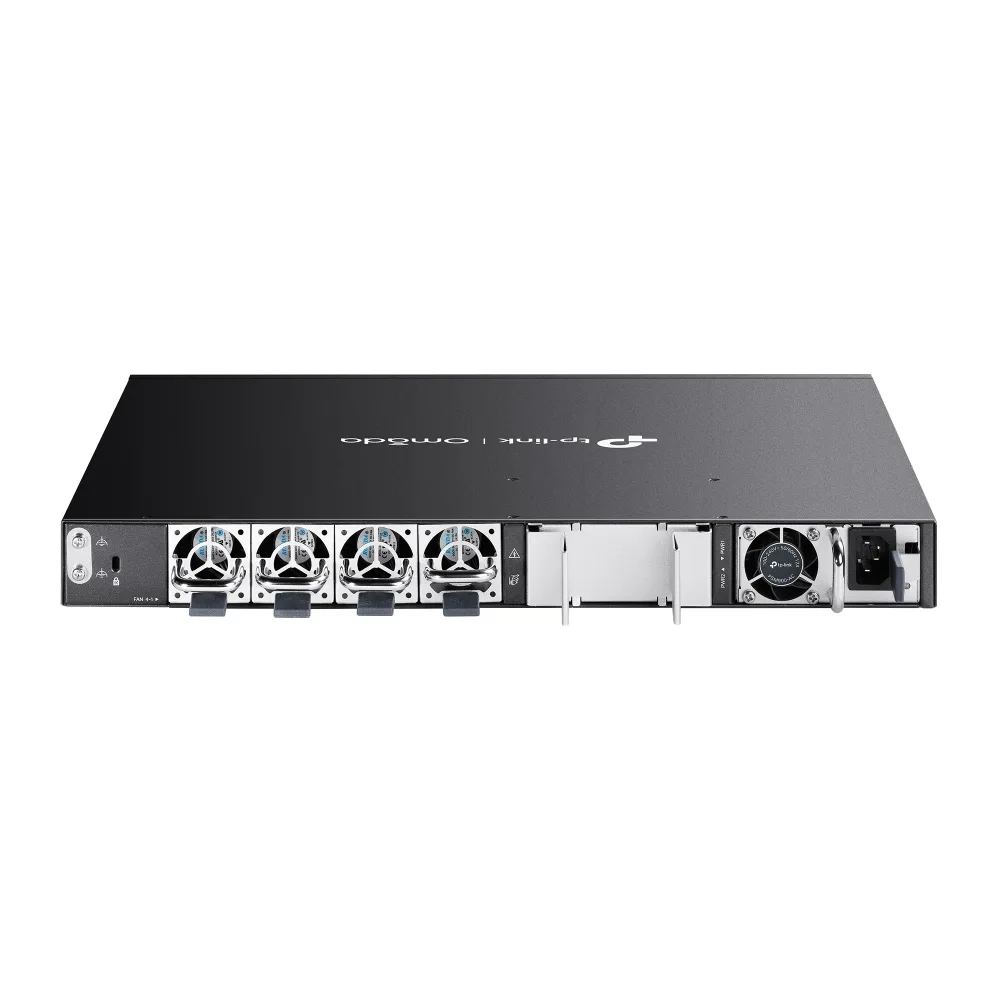

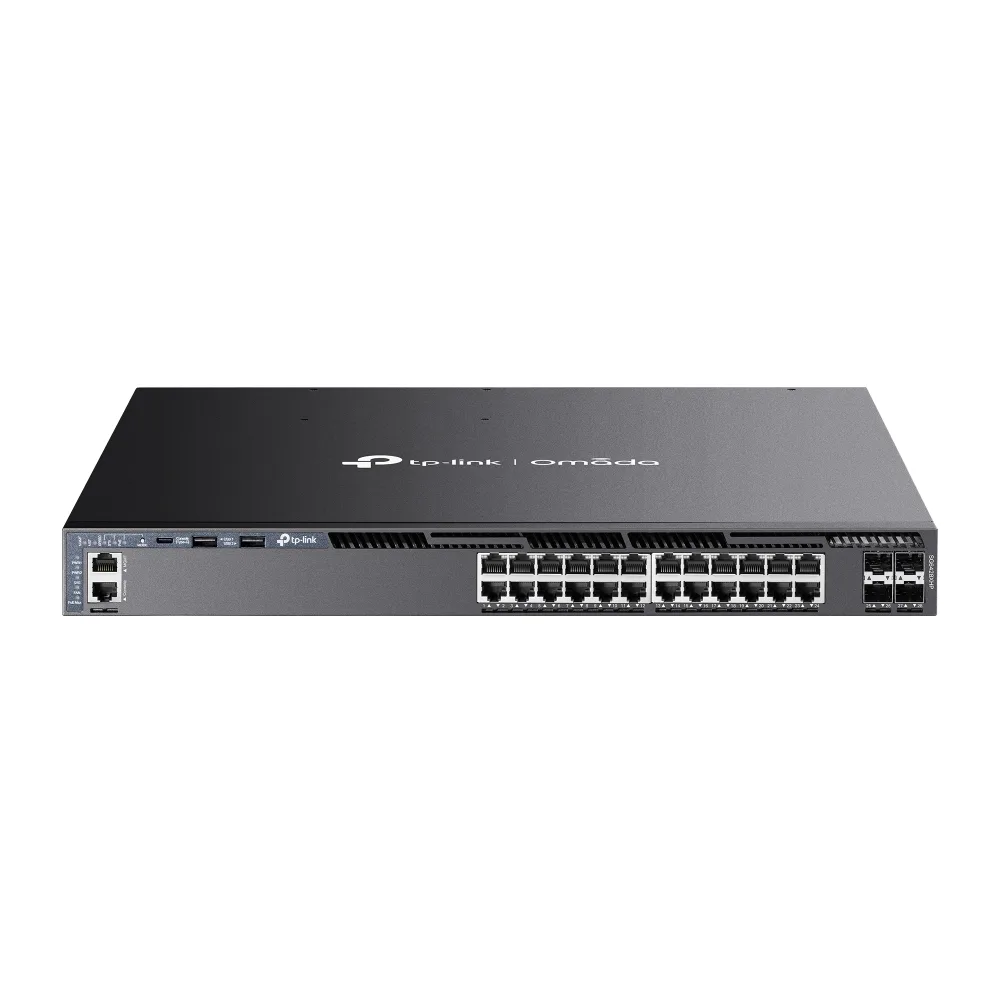

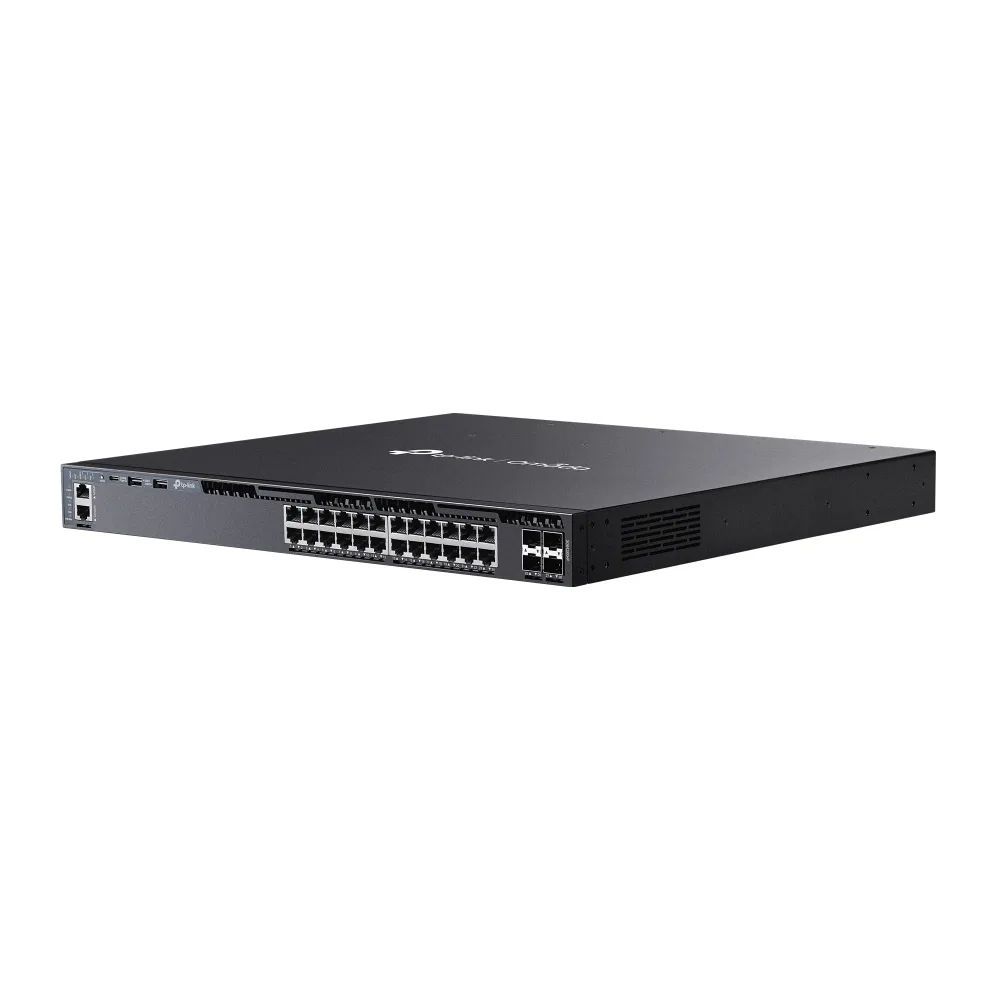

24-портов L3 управляем комутатор PoE+ с 4 10G слота TP-Link Omada SG6428XHP

24-портов L3 управляем комутатор PoE+ с 4 10G слота TP-Link Omada SG6428XHP
Интерфейс : 4× 10G SFP+ Slots
L3 Switching Features : Max 1,024, IPv6: Max 512
Quality of Service : Voice VLAN
+ Подарък : N
VLAN : Voice VLAN
L3 Switching Features : Relayed Interface
L2 Switching Features : 802.3x Flow Control
L3 Switching Features : VRRP: Version v2/v3, Max 64 groups
Гаранция : 60 месеца
L2 Switching Features : Multicast Filtering
L3 Switching Features : Dynamic ARP: 7,680 dynamic entries
Филтър Swich – PoE, SFP : PoE+
Експлоатационни качества : Table of MAC addresses 32 K
Експлоатационни качества : Stacking Number: 4
Експлоатационни качества : Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Експлоатационни качества : Packet Buffer Memory 3MB
Интерфейс : 1× USB Type-C Console Port
Ethernet портове : 4× 10G SFP+ Slots
Интерфейс : 2× USB 2.0 Ports
L2 Switching Features : MAC Address Table
L2 Switching Features : Multicast VLAN Registration (MVR)
Quality of Service : Class of Service
L2 Switching Features : Port-based and VLAN-based Loopback Detection
L3 Switching Features : IPv4: Max 256, IPv6: Max 256
L2 Switching Features : PIM-DM, PIM-SM (IPv4)
L2 Switching Features : ERPS
L2 Switching Features : RSPAN
VLAN : Multicast VLAN
L3 Switching Features : Relayed VLAN
L3 Switching Features : OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
Brand : TP-LINK
Ethernet портове : 1× RJ45 Management Port
L2 Switching Features : MLD Snooping
L2 Switching Features : Static Multicast IP
L2 Switching Features : L2 Multicast Table
Работна температура : -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
L3 Switching Features : RIP: Version v1/v2, Max 8,190
Quality of Service : User-Defined OUI
Софтуерни функции : L3 Features
L2 Switching Features : Supports 2,048 IGMP groups
L3 Switching Features : DHCP Server/Relay
VLAN : VLAN VPN (QinQ): Max 256 entries
VLAN : Max. 4K VLAN Groups
L2 Switching Features : Static Link Aggregation
Захранване : wo Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)
Quality of Service : Bandwidth Control
Вид на монтаж : Rackmount
Работна температура : -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
VLAN : VLAN VPN (QinQ)
VLAN : Management VLAN
L2 Switching Features : IGMP Snooping
L2 Switching Features : Spanning Tree Protocol
L3 Switching Features : Proxy ARP
L3 Switching Features : Max 1,000 Manual Binding Entries
L2 Switching Features : Multicast
Размери дълбочина : 380 mm
Влажност на съхранение : 10%~90% без кондензация
VLAN : Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN : MAC VLAN Entries: 200
Интерфейс : 1× RJ45 Management Port
Експлоатационни качества : Switching capacity 128 Gbps per Unit
Интерфейс : 24× 10/100/1000 Mbps PoE+ RJ45 Ports
Експлоатационни качества : Jumbo shot 9 KB
Ethernet портове : 24× 10/100/1000 Mbps PoE+ RJ45 Ports
Quality of Service : Smoother Performance
Размери ширина : 440 mm
Софтуерни функции : VLAN
VLAN : GVRP
Захранване : **Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Експлоатационни качества : Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
Критерии за валидност на гаранцията : Гаранционна карта/Сериен номер
L3 Switching Features : DHCP Server:
L2 Switching Features : Fast Leave
Работна влажност : 10%~90% без кондензация
Експлоатационни качества : Data packet transmission rate 95.2 Mpps
L3 Switching Features : IP Interfaces:
L3 Switching Features : Static ARP: 512 static entries
L3 Switching Features : Host Route Table: Max 6,100 entries
VLAN : Private VLAN
L3 Switching Features : Max 64 IP Pools
VLAN : 802.1q Tagged VLAN
Интерфейс : 1× RJ45 Console Port
L3 Switching Features : Static Routing
Ethernet портове : 1× RJ45 Console Port
L3 Switching Features : ECMP: 256 entries, max 32 ECMP Nexthops per Destination
Размери височина : 44 mm
Quality of Service : Action for Flows
Работна температура : -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
Наличност : Ограничена – под 10 бр.
Софтуерни функции : Advanced Features
Филтър Swich : 24 порта
Софтуерни функции : L2 and L2+ Features
Системни изисквания : Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Софтуерни функции : Quality of Service
Софтуерни функции : Security
