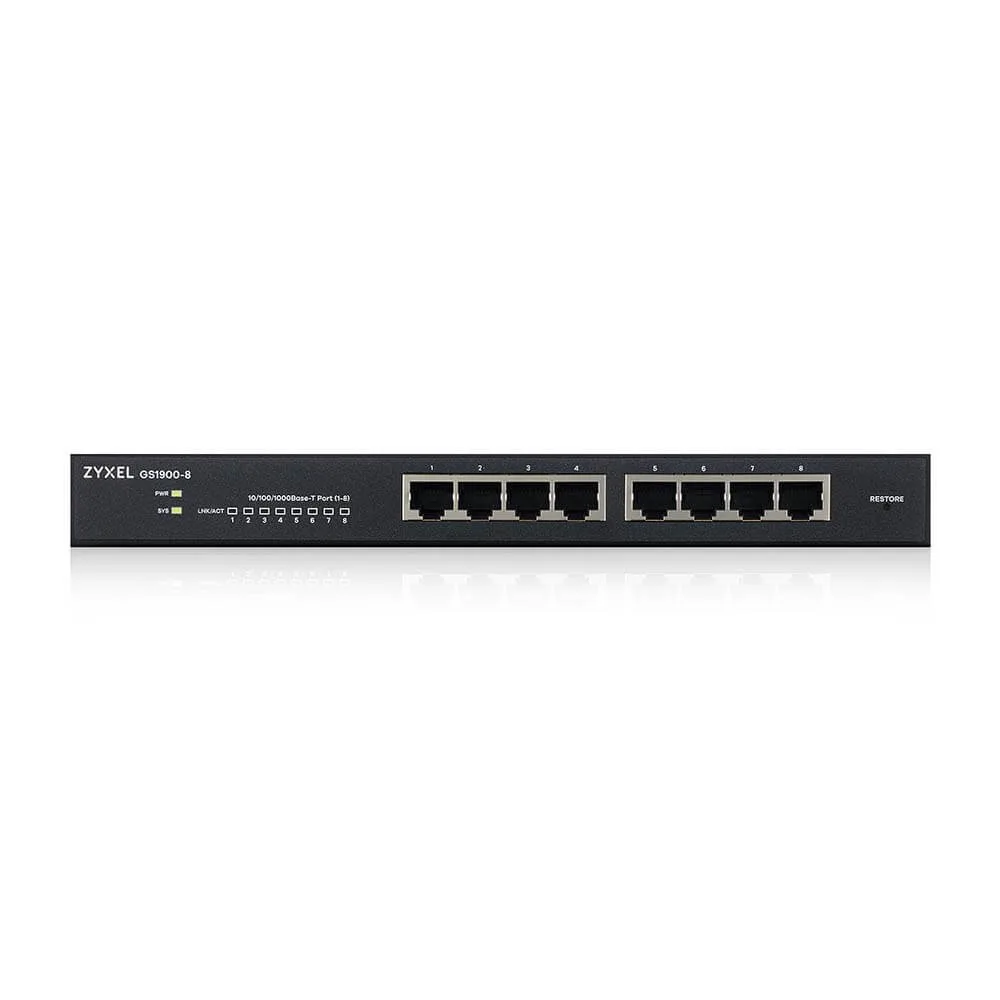

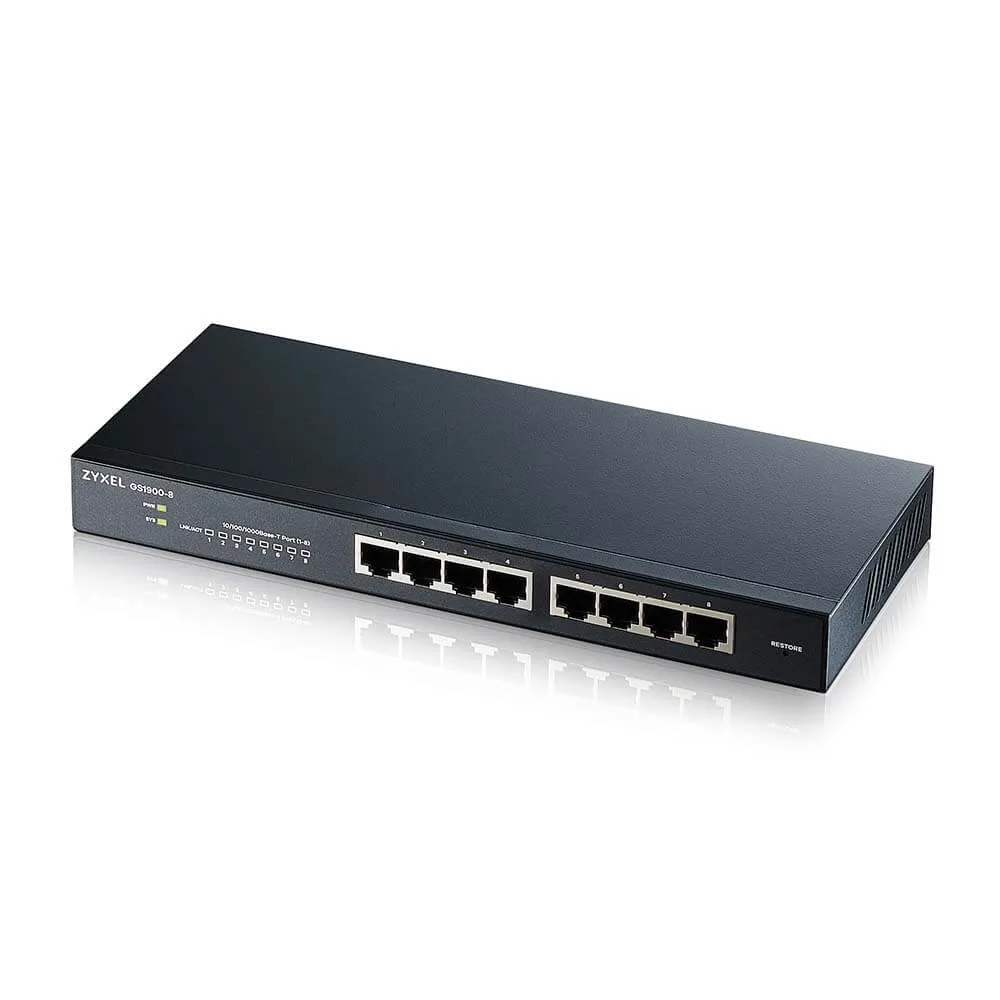

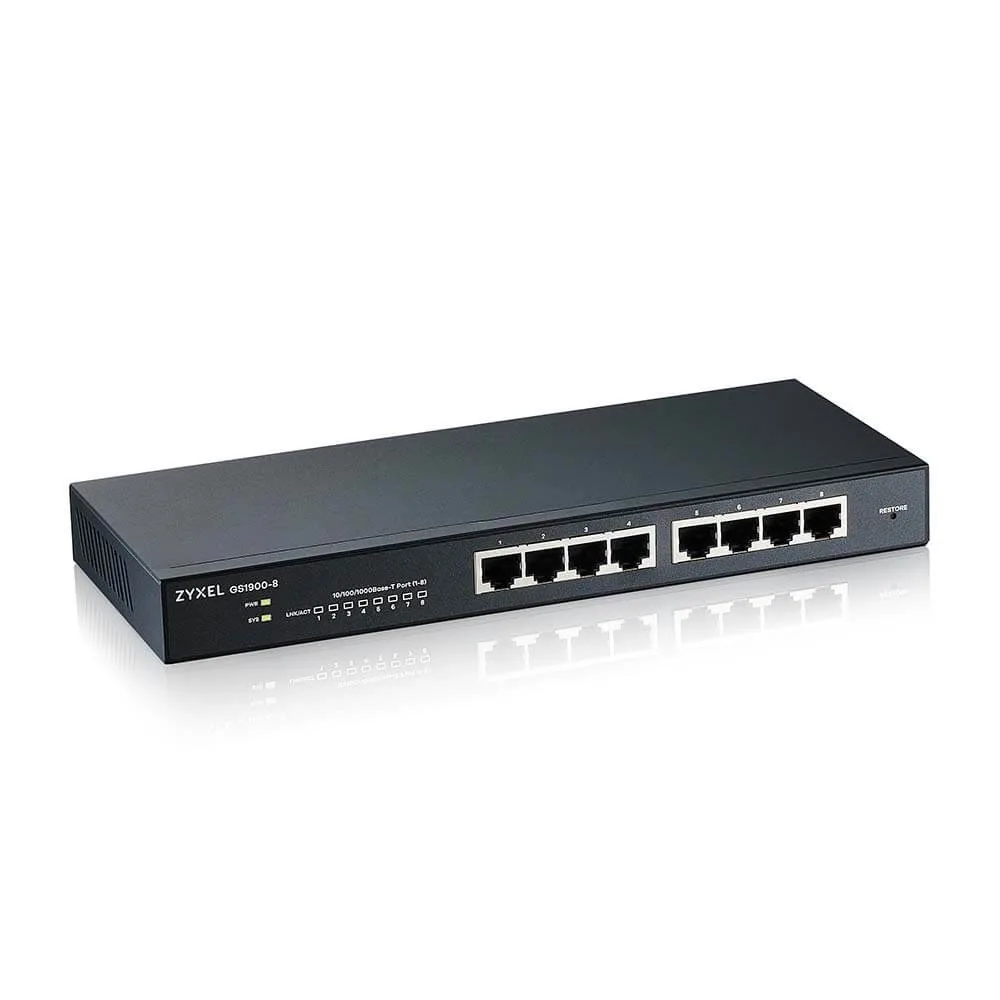

Zyxel ZyXEL GS-1900-8 switch 8x1GbE RJ-45

Zyxel ZyXEL GS-1900-8 switch 8x1GbE RJ-45

Description:

Almost silent operation

The GS1900 series includes both fanless models and models with built-in intelligent fans. The intelligent fan is designed to automatically adjust its speed based on the temperature of the device. You can barely hear the sound when the switch is working. It is perfect for your office environment.

Fast gigabit performance built for small and medium businesses

The GS1900 is a series of switches with full non-blocking throughput up to 1Gbps per port. The perfect upgrade for an unmanaged switch, it’s a great choice for small and medium businesses that want to run high-speed business network applications at full wired speed without blocking.

Easy and intuitive management

Smart Managed GS1900 Series Switch with web interface to easily manage advanced features such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS Prevention. In addition, a user-friendly wizard helps you quickly go through setup, configuration and even advanced settings.

Switch class: Managed
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 16 Megabajty na sek.
Forwarding rate: 11.9 Megabajty na sek.
Packet buffer: 525 Kilobajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:

• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Guest VLAN
• Voice VLAN
• Storm control
• IEEE 802.1p priority queues per port
• IEEE 802.1p Queuing method(SPQ/WRR)
• Input priority mapping
• Rate limiting per port(ingress/egress)
• IEEE 802.3x flow control

Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab (1000BASE-T) Ethernet
• IEEE 802.3x flow control
• IEEE 802.3az EEE support
• IEEE 802.1p CoS support
• IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure
• Store and forward
• Auto MDI/MID-X

QoS:

• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Guest VLAN
• Voice VLAN
• Storm control
• IEEE 802.1p priority queues per port
• IEEE 802.1p Queuing method(SPQ/WRR)
• Input priority mapping
• Rate limiting per port(ingress/egress)
• IEEE 802.3x flow control
• IEEE 802.1p class of service(SPQ, WRR)
• Port-based CoS
• IP TOS precedence

Security:

• IEEE 802.1x
• Port security
• Layer 2 MAC filtering
• Static MAC forwarding
• RADIUS
• TACACS+
• SSL
• Management VLAN
• CPU defense engine
• DoS prevention
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.3ad LACP
• Dual configuration files
• Dual images

Management, monitoring, configuration:

• IPv6 over Ethernet (RFC 2464)
• Dual-stack (RFC 4213)
• ICMPv6 (RFC 4884)
• Neighbor discovery (RFC 4861)
• Auto configuration
• Static IPv6 address and prefix length
• Static IPv6 default gateway
• IPv6 duplicate address detection
• SNMP v1, v2, v3
• RMON (1, 2, 3, 9)
• ICMP echo/echo reply
• Syslog
• IEEE 802.1AB LLDP
• IEEE 802.1AB LLDP-MED
• LLDP-Power via MDI
• Web interface
• Remote firmware upgrade by Web
• Configuration saving and retrieving
• Firmware upgrade via SNMP
• DHCP client
• Daylight saving
• NTP
• Port mirroring
• Scheduled PoE
• PoE default consumption mode
• Time range group for scheduled PoE

L2 features:

IGMP snooping (v1, v2, v3)

L3 features:
Other functions:

• RFC 1213 MIB II
• RFC 2819 RMON (group 1, 2, 3, 9)
• RFC 1215 generic traps
• RFC 1493 bridge
• Zyxel private common MIB

EMC

• CE, FCC, RCM, Class A
• BSMI CNS 13438

Safety

• LVD LVD EN 62368-1
• BSMI CNS 14336-1

RoHS compliant

Chassis type: Rack
Power consumption: 5 Watt
Accessories included:
Power supply:

Input 100 – 240V AC, 50/60Hz

Dimensions:

250 x 104 x 27 mm

Weight: 0.65 kilogram
Other features:
Designation:
