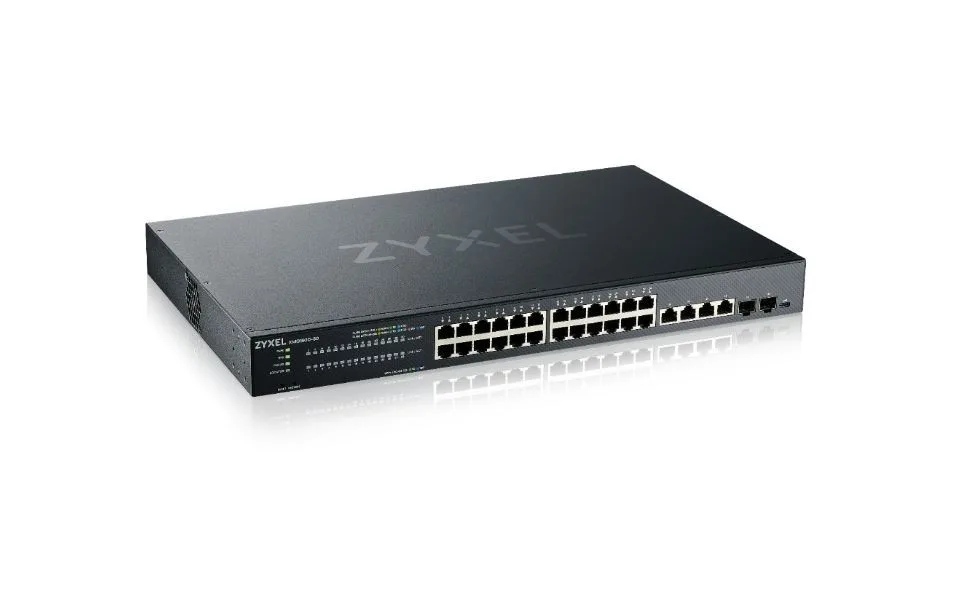

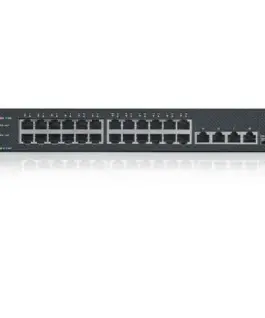

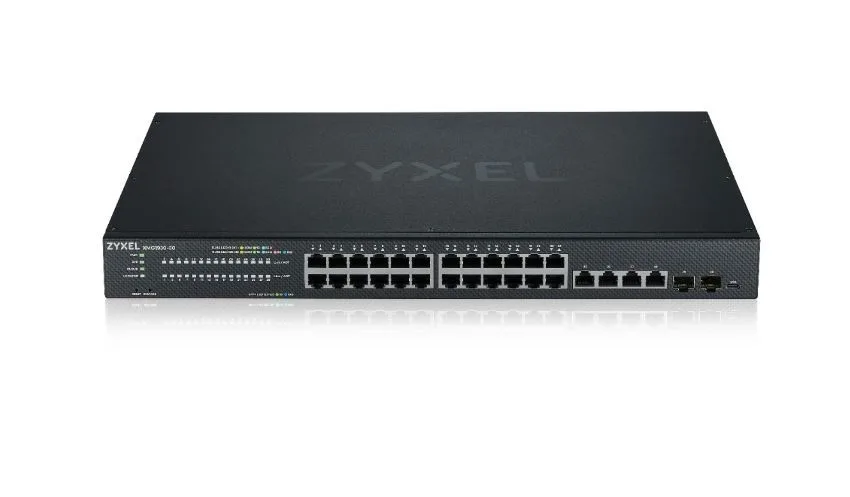

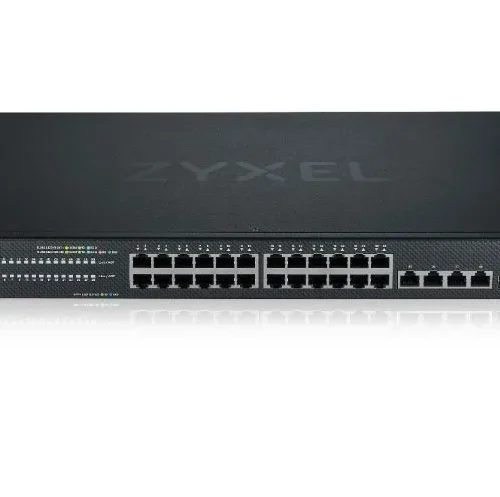

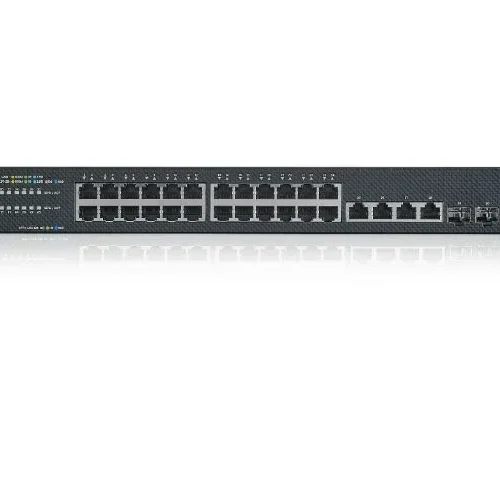

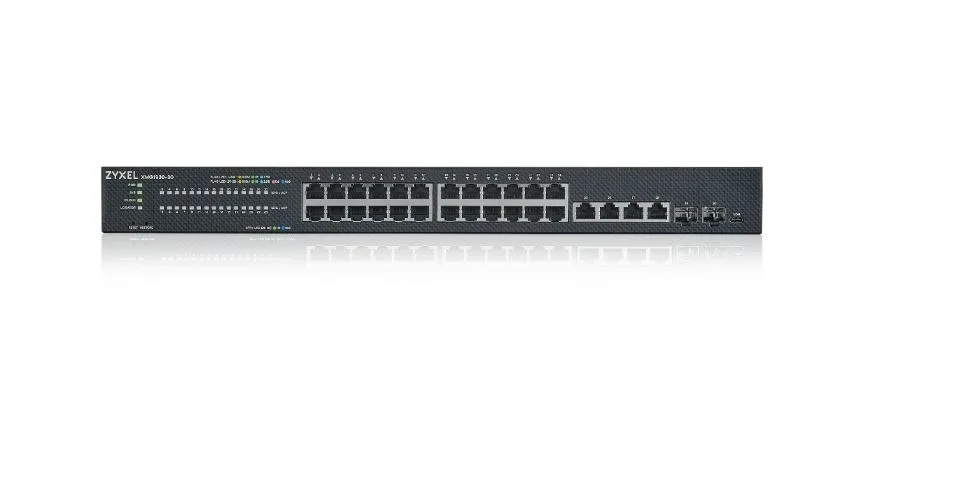

Zyxel Switch XMG1930-30, 24-port 2.5GbE Smart Managed Layer 2 Switch with 4 10GbE and 2 SFP+ Uplink

Zyxel Switch XMG1930-30, 24-port 2.5GbE Smart Managed Layer 2 Switch with 4 10GbE and 2 SFP+ Uplink

Description:

The XMG1930 Series is a family of Multi-Gigabit Lite-L3 Intelligent Managed Switches, including 2 models, with and without PoE options. In addition to their densely packed twenty-four 2.5G ports that act as a powerful switch to access updates from a standard Gigabit network, the switches also offer four Multi-Gigabit 10G ports to extend your network connection to WiFi 6/6E access points or 10G servers, along with two additional 10G fiber ports, providing expandability and resiliency. The PoE powered model, XMG1930-30HP, supports both PoE+ and PoE++ with a large power budget of 700W, offering great flexibility to deploy WiFi 6/6E and WiFi 7 access points, while the non-PoE model, the XMG1930-30, is ideal for high-speed ISPs to upgrade from traditional 1G/2.5G speeds to any user.

Switch class: SMART
Application: Medium and large companies
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: None
10/100/1000/2500 Mbps ports: 24
Number of 10Gb ports: 4
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 2
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 240 Gigabity na sek.
Forwarding rate: 178.5 Mpps
Packet buffer: 2 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 12 Kilobajt
Stackability: No
VLAN:

• Static VLANs/Dynamic VLANs 802.1Q: 1K/4K
• Support for VLAN IDs up to 4K
• Independent VLAN learning (IVL)
• Port-based VLAN
• Voice VLAN
• VLAN Trunking

Supported protocols and standards:

• IEEE 802.3z 1000BASE-X
• IEEE 802.3ab 1000BASE-T Ethernet
• IEEE 802.3an 10G BASE-T Ethernet
• IEEE 802.3bz 2.5GBASE-T/5GBASE-T
• IEEE 802.3ae 10 Gbit/s Ethernet over fiber
• IEEE 802.3af PoE
• IEEE 802.3at PoE plus
• IEEE 802.3bt (60 W) PoE over 4 pair
• IEEE 802.3x flow control
• IEEE 802.3ad LACP aggregation
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.1p Class of Service (CoS) prioritization
• IEEE 802.1X port authentication

QoS:
Security:

• 802.1X
• Port security
• MAC authentication
• Static MAC forwarding
• SSL
• Static ARP
• Guest VLAN
• PPPoE Option 82
• PPPoE IA
• CPU protection
• SHA2 HTTPS certificate
• Login authentication via RADIUS
• Authorization in RADIUS
• ACL packet filtering (IPv4/IPv6)

Management, monitoring, configuration:

• SNMP v1, v2c, v3
• SNMP trap group
• RMON (1, 2, 3, 9)
• Syslog (IPv4/v6)*
• IEEE 802.1AB LLDP
• IEEE 802.1AB LLDP-MED
• Custom default

L2 features:

• Limiting IGMP
• IGMP filtering
• Static multicast transmission

L3 features:
Other functions:
Chassis type: Rack
Fan : No
Power supply : External
Power consumption: 67.1 Watt
Mean time between failures (MTBF): 5322175.59 Hour
Environment requirements:
Certificates:

• LVD
• BSMI Safety
• EMC
• FCC Part 15 (Class A)
• CE (Class A)
• BSMI EMC
• RoHS

Accessories included:
Power supply:

100 – 240 V AC, 50/60 Hz

Dimensions:

441 x 270 x 44 mm

Weight: 3.81 kilogram
Other features:
Designation:
