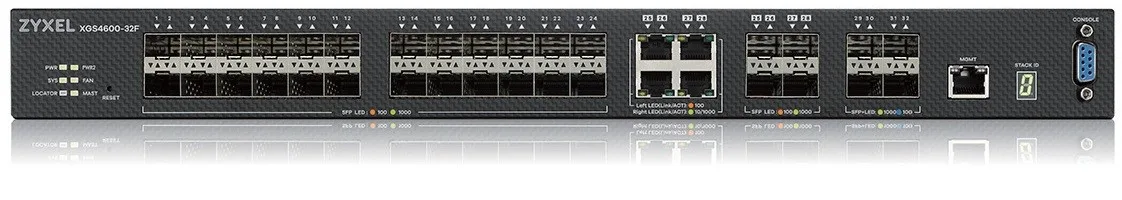

Zyxel Switch XGS4600-32F 24xSFP 4xGb/SFP 4x10Gb SFP+

Zyxel Switch XGS4600-32F 24xSFP 4xGb/SFP 4x10Gb SFP+

Description:
Switch class: Managed
Application: Medium and large companies
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10Gb ports: 4
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: 4
Number of SFP ports: 24
Number of SFP+ ports: 4
Number of QSFP+ ports: None
Console port: Yes
Forwarding mode: Store-and-forward
Throughput: 136 Gigabity na sek.
Forwarding rate: 101.1 Mpps
Packet buffer: 4 MegaBajt
MAC address table size: 32000
VLAN:
Supported protocols and standards:

– IEEE 802.3 10Base-T Ethernet
– IEEE 802.3u 100Base-Tx Ethernet
– IEEE 802.3ab 1000Base-T Ethernet
– IEEE 802.3z 1000 Base-X
– IEEE 802.3x flow control
– IEEE 802.3az EEE support
– IEEE 802.1p CoS support
– IEEE 802.1D Spanning Tree Protocol (STP)
– IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
– IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
– IEEE 802.1Q VLAN tagging
– IEEE 802.1X Port authentication
– IEEE 802.3ad LACP aggregation

QoS:

– Two Rate Three Color Marker (trTCM)
– CIR/PIR bandwidth control
– Port-based egress traffic shaping
– Broadcast storm control
– IEEE 802.1p with 8 priority queues per port
– WFR, WRR, SPQ scheduling algorithms
– DSCP/DSCP to 802.1p priority mapping
– IGMP/IGMP snooping v1, v2, v3
– IGMP throttling
– IGMP snooping fast leave
– IGMP snooping statistics
– Multicast VLAN Registration (MVR)
– Congestion control on all ports
– Selective Q-in-Q

Security:

– IEEE 802.1Q tag-based and port-based VLAN
– GVRP automatic VLAN member registration
– 1 K static VLANs and up to 4 K dynamic VLANs
– Full range 4 K PVID support
– Port-based VLAN and VLAN isolation
– IP classification VLAN
– VLAN counter
– VLAN search
– VLAN translation
– VLAN MAC limit
– Intrusion lock
– MAC freeze
– MAC search
– MAC filtering
– Port security
– Limited MAC number per port
– IP source guard
– Loop guard
– IP filtering
– TCP/UDP socket filtering
– BPDU transparency
– IEEE 802.1X port-based authentication
– Enhanced 802.1X compensation assignment over VLAN
– TACACS+
– Layer 2 protocol tunneling
– Guest VLAN

Management, monitoring, configuration:

– Zyxel iStacking&#8482,, up to 24 switches managed by a single IP address
– Physical stacking up to 4 switches
– Web-based management
– Telnet
– SSH
– SNMP v1, v2c, v3
– RS-232c local console
– IP management: static IP or DHCP-assigned IP
– Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
– Port mirroring: ingress/egress/both port mirroring
– IEEE 802.1AB LLDP
– Transceiver DDMI information (including MIB)
– sFlow

L2 features:
L3 features:
Other functions:
Chassis type: Rack
Power consumption: 47 Watt
Accessories included:
захранващ блок:

100 – 240 V AC, 50/60 Hz

Dimensions:

441 x 270 x 44 mm

Weight: 3.96 kilogram
Other features:
Designation:
