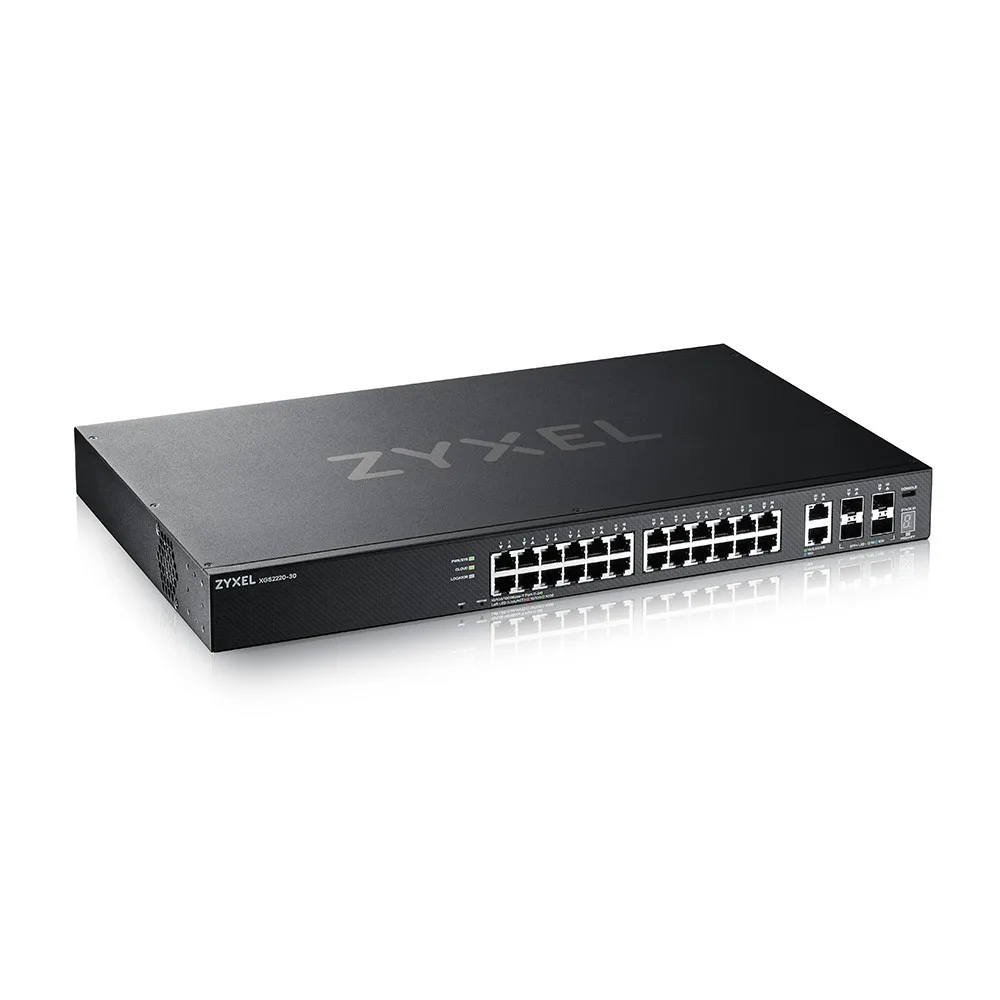

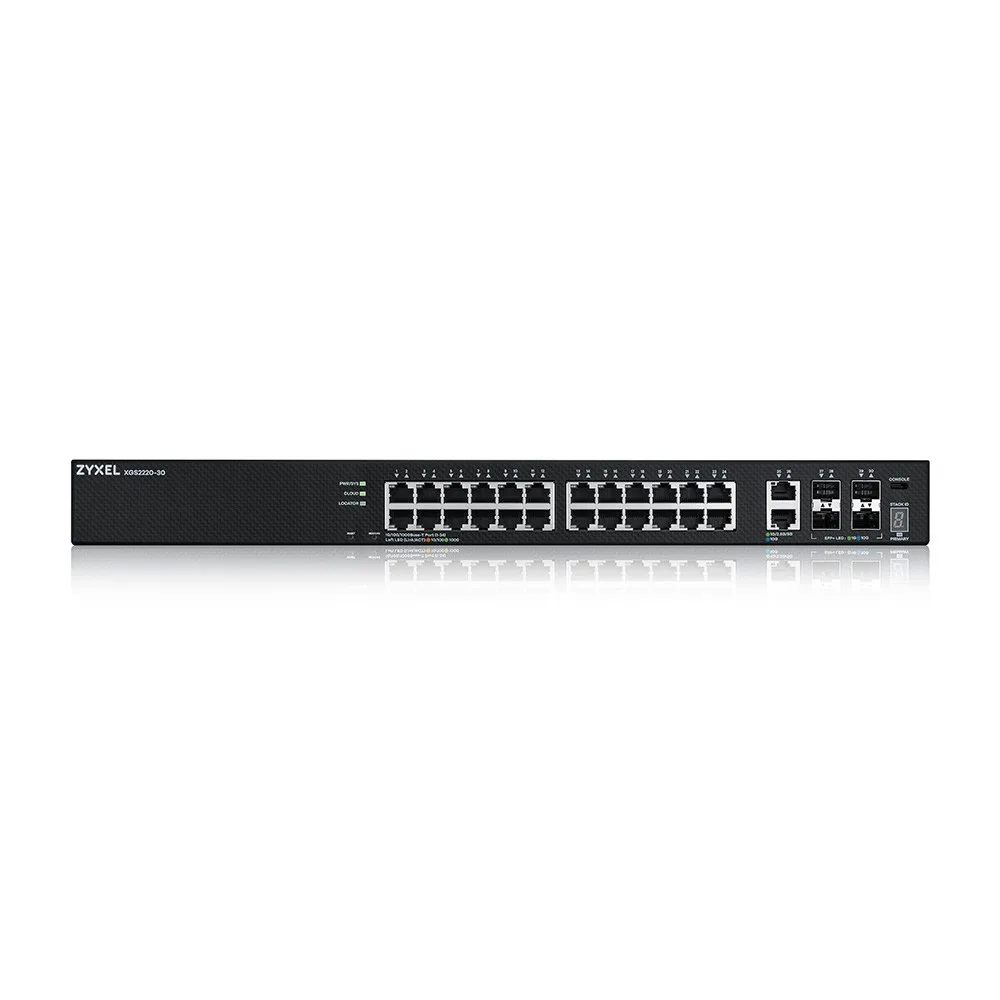

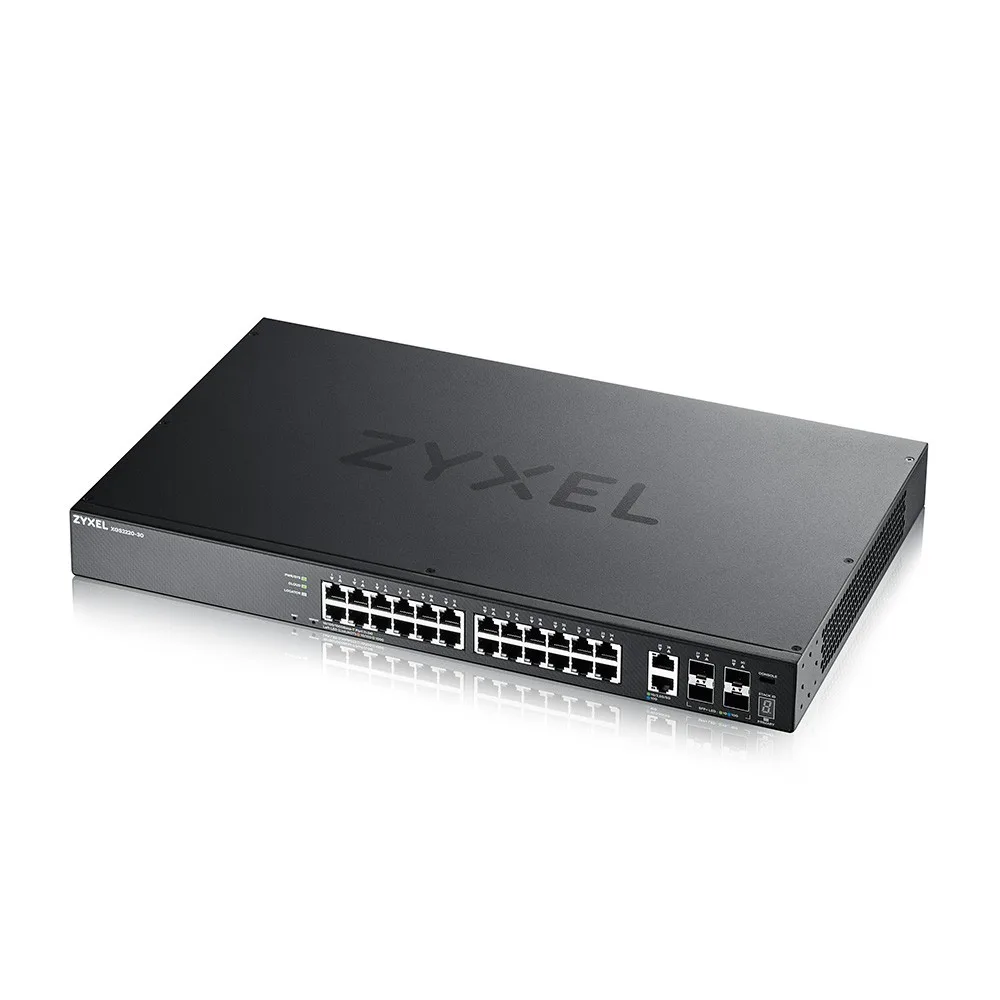

Zyxel Switch XGS2220-30-EU0101F 24x1G RJ45 2x10mG RJ45, 4x10G SFP+ Uplink

Zyxel Switch XGS2220-30-EU0101F 24x1G RJ45 2x10mG RJ45, 4x10G SFP+ Uplink

Description:

Nebula Powerful Managed Switch for Business Networks

Nebula Cloud Managed Layer 3 Switch for Enterprises
The XGS2220 Series is a family of Layer 3 access switches that consists of six models, including PoE, Non PoE, and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access, PoE models provide flexible options with larger PoE budgets and a mix of 60W and 30W ports to power devices such as the latest WiFi 6/6E wireless access points, the Fiber model aims to achieve business connectivity for high fiber port density requirements.

Flexible 10G Solution for Converged Network Applications
In addition to four 10G SFP+ uplinks, the XGS2220 Series features two additional 10G Multi-Gig RJ 45 ports that provide flexibility in connecting servers, network storage, or other high-speed network devices. Business can run smoothly with better expandability and a solid network infrastructure.

Multiple Power Budget Options
The PoE models are equipped with 10 PoE++ (IEEE 802.3bt) ports delivering up to 60W per port and 16-40 PoE+ (IEEE 802.3at) ports delivering up to 30W per port to meet various applications including the latest generation of wireless APs.

Within the series, 3 PoE models 30HP, 54HP and 54FP can offer larger power budgets of 400W, 600W and 960W respectively, providing the flexibility to power a full range of PoE devices in applications such as VoIP, surveillance, high-density AV applications and Zyxels extensive WiFi 6/6E AP portfolio.

Nebula, manage it your way!
NebulaFlex Pro support allows for easy management mode switching between standalone management and intuitive Nebula cloud management mode with included 1 YEAR Pro Pack. Nebula provides both an intuitive web interface and mobile app to provide a streamlined network installation and management experience, without additional software or hardware controller costs.

Dedicated Networked AV Mode
The XGS2220 Series includes a customized Networked AV mode when used in standalone mode. The switch interfaces simplify AVoIP installation with an intuitive wizard that prompts high-level requirements for this type of network infrastructure, using AI intelligence, the switch is then able to remove the complexity, applying all the necessary details to configure a professional AVoIP deployment in minutes.

Once deployed in Networked AV mode, the switch provides a dedicated dashboard for quick access to key AV network elements such as IGMP and IP information, as well as quick access to configuration features often associated with AVoIP deployments.

Switch class: Managed
Application: Medium and large companies
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 24
Number of 10Gb ports: 2
Number of SFP+ ports: 4
Console port: No
Forwarding mode: Store-and-forward
Throughput: 168 Gigabajty na sek.
Forwarding rate: 125 Mpps
Packet buffer: 2 MegaBajt
MAC address table size: 32000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:
Supported protocols and standards:
QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:

• L3 Forwarding Table
• Max 1K IPv4 entries
• Max 512 IPv6 entries
• Routing Table 64
• IP Interface 32
• Flash/RAM (MB) 64 MB/1 GB

Chassis type: Rack
Fan : No
Power supply : Internal
Power consumption: 37.62 Watt
Mean time between failures (MTBF): 520185 Hour
Environment requirements:

• Operating Temperature: -20°C to 50°C
• Humidity: 10% to 95% (non-condensing)
• Storage Temperature: -40°C to 70°C
• Storage Humidity: 10% to 90% (non-condensing)

Certificates:
Accessories included:

• Power Cable
• Rack Mount Kit

Power supply:

100 – 240 V AC, 50/60 Hz

Dimensions:

441 x 270 x 44 mm

Weight: 3.4 kilogram
Other features:

• Heat Dissipation (BTU/hr) 128.28
• Acoustic Noise @ 25°C (min/max, dBA) 27.19/47.88
• Ethernet Port Surge Protection 2 KV
• Power Supply Surge Protection Line-GND: 2 KV, Line-Line: 1 KV
• Ethernet Port ESD Protection (Air/Contact) 8 KV/6 KV
