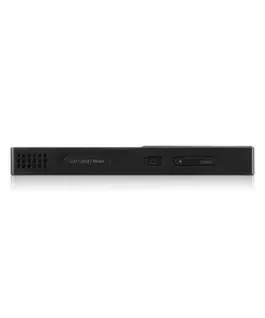

Zyxel Portable Router NR2301-EU01V1F NR2301

Zyxel Portable Router NR2301-EU01V1F NR2301

Model:

NR2301-EU01V1F

Description:

Portable 5G Router NR

The Zyxel NR2301 is a state-of-the-art portable 5G NR router that is 3GPP Release 16 compliant for seamless compatibility with 4G networks. Offering high-speed broadband service via Wi-Fi 6, it provides enhanced network security and supports up to 32 connected devices. With a compact design, your subscribers can stay connected anywhere while enjoying unmatched connectivity and convenience.



• 5G NR, DL 3.4 Gbps
• NSA & SA modes
• WiFi 6 Dual-band AX1800
• Nano-SIM card
• USB 3.1 type C gen 2
• 2.4 LCD Display
• 4500 mAh Li-ion battery
• PHOTO
• Zyxel mobile app



Lightning-fast 5G connectivity wherever you are

The NR2301 offers 5G NR DL speeds up to 3.4 Gbps and 4G LTE DL speeds up to 1.6 Gbps, which increases Internet speeds and reduces network latency. Wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services.

Wi-Fi 6 technology for excellent performance and range

The NR2301 supports Wi-Fi 6 (11ax), offering speeds of up to 1.8 Gbps with 2×2 UL/DL MU-MIMO. With MU-MIMO uplink, orthogonal frequency division multiple access (OFDMA) and beamforming technologies, the NR2301 delivers the highest speed for multi-stream data access and optimal Wi-Fi performance without dead zones.

Easy network setup and management with Zyxel Air

The NR2301 comes with the Zyxel Air subscriber app. Zyxel Air’s intuitive user interface provides your customers with the assistance they need from device setup to routine management, minimizing service calls and increasing user satisfaction.

Remote firmware update

Firmware Over-the-Air (FOTA) enables remote firmware updates and troubleshooting via operator-triggered events.

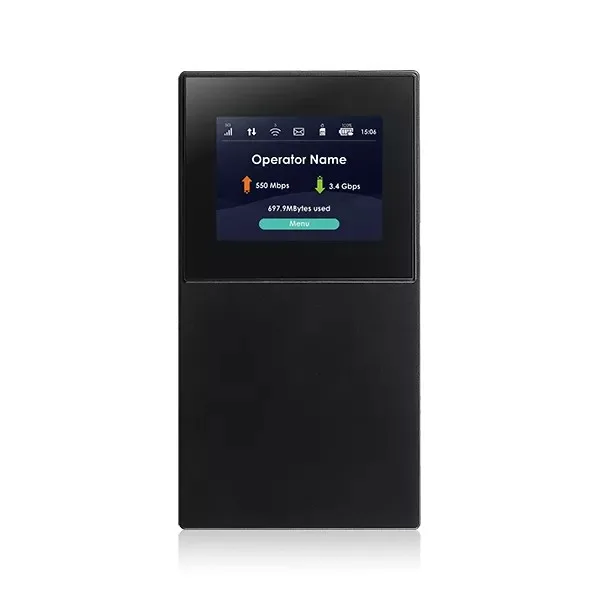

Intuitive LCD display design

Equipped with an intuitive 2.4-inch color TFT LCD display, the NR2301 makes it easy to manage your devices with just a few taps. Quickly check your data usage, battery life, signal strength, download/upload speed and more. Plus, you can stay connected on your desktop or laptop thanks to the integrated USB port for seamless internet access.

Type: GSM 3G/4G
Type: v
Standards: 802.11ax
Security:
Management, monitoring, configuration:
Special functions:

• 3GPP Release 16 5G NR, up to 2.0Gbps/650Mbps* (DL/UL) with NSA and SA mode support
• Wi-Fi 6 (11ax) 2×2+2×2 DBDC for excellent performance and range
• USB 3.1 Type C fast charging
• Up to 10 hours of working time with 2.4 inch LCD screen.

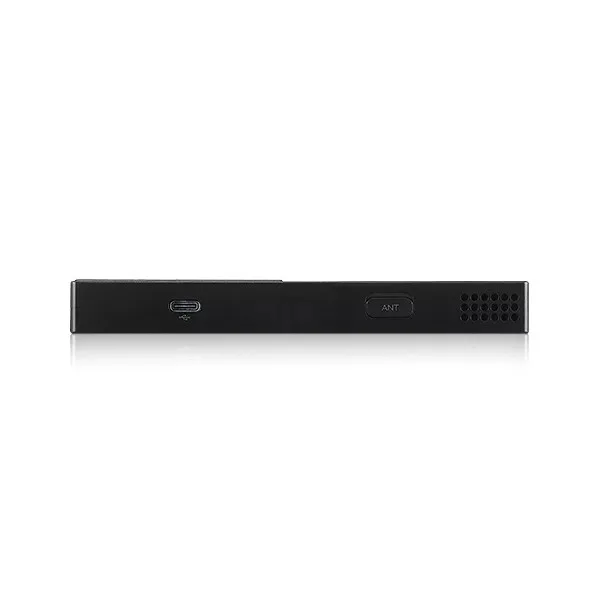

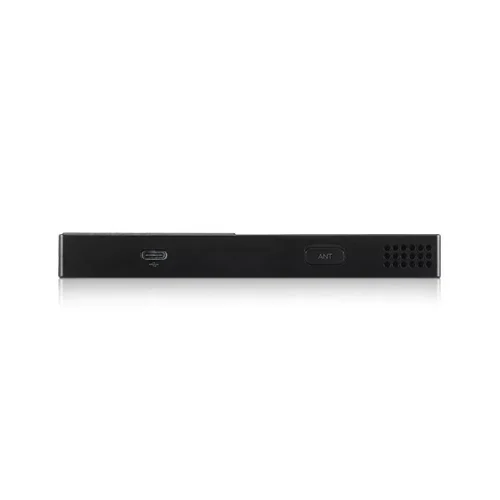

• Two CRC9 external antenna connectors

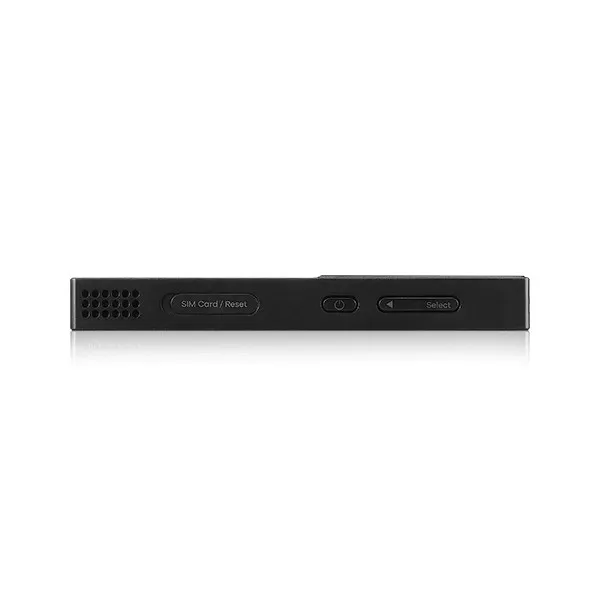

I/O ports: 1 x SIM card slot
I/O ports: 1 x USB 3.1 Type C
SIM card: Micro
Power supply:

DC input DC 9 V

Software:
Certificates:
System Requirements:
Environment requirements:
Accessories included:
Color: Black
Dimensions:
Other features:

• Battery capacity 5300 mAh
• Modulation (DL/UL) 256-QAM/256-QAM
• Number of users up to 32

5G NO

• Standard Rel. 16
• FDD n1, n3, n7, n8, n20, n28
• TDD n41, n77, n78

4G LTE

• FDD B1, B2, B3, B5, B7, B8, B20, B28
• TDD B38, B40, B41, B42, B43

DL CA

• 5G NR 2x CA
• 4G LTE 5x CA

UL CA

• 5G NR: 2x CA(SA mode)

MIMO

• 5G UL NO: 2×2 MIMO on n41/n77/n78
• 5G NR DL: 4×4 MIMO on n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n77/n78
• 4G LTE DL: 4×4 MIMO on B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43

Designation:
