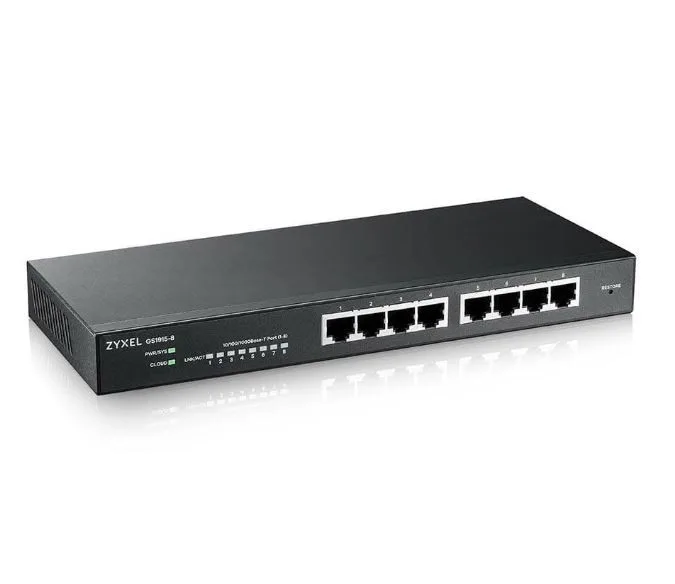

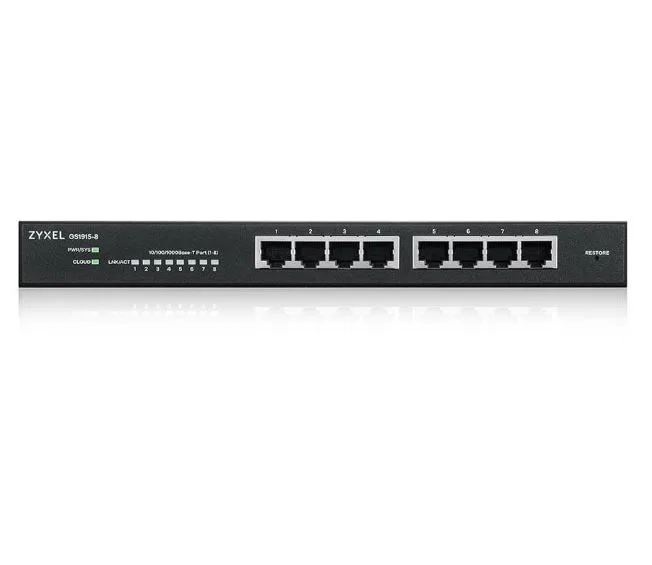

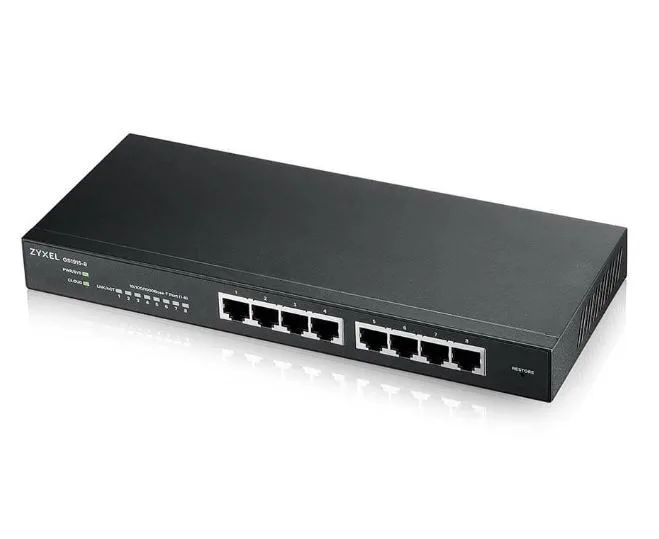

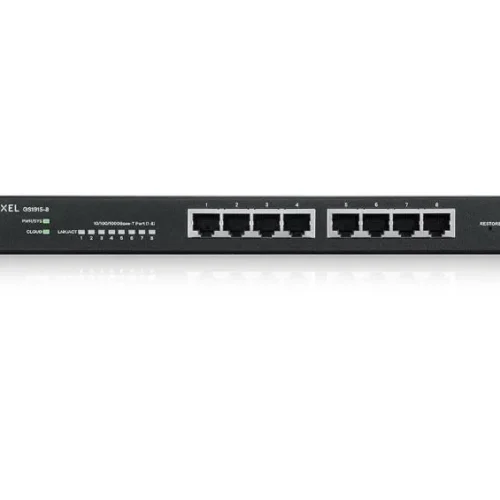

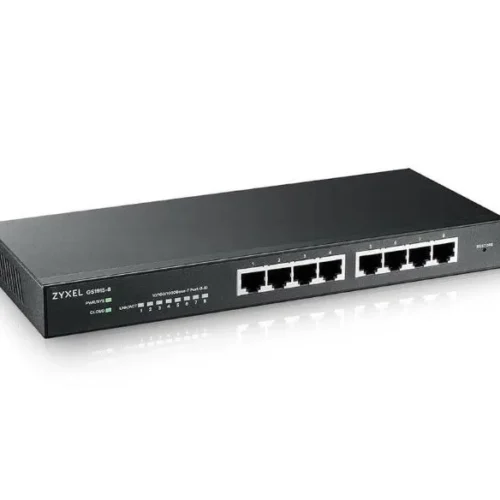

Zyxel Managed Switch GS1915-8 8port GbE Smart mode Switch NebulaFlex Cloud

Zyxel Managed Switch GS1915-8 8port GbE Smart mode Switch NebulaFlex Cloud

Description:

A series of compact and affordable cloud-based switches

The GS1915 series includes two 8-port switches, with or without PoE options. The PoE model GS1915-8EP supports a full 8 ports of PoE+. Both models are packed with useful features and excellent performance through plug-n-play functionality.

Nebula, intelligent cloud management.

The GS1915 series supports Nebula’s free cloud management. Nebula provides both an intuitive web interface and a mobile app to provide streamlined installation and network management, without additional software or hardware controller costs. Typical standalone mode is still available according to your preference.

Nebula ecosystem

Nebula supports a wide range of products, from switches, access points, security firewall to 5G/LTE mobile routers. Ensuring easy and unified network performance.

Easily power the devices in your network

The GS1915-8EP supports a 60W power budget, ideal for configuring several additional access points and cameras for home and small businesses. With the Nebula app, you can easily reset a faulty camera by turning it on and off, even when you are away from home.

Switch class: Managed
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 8
Console port: No
Throughput: 16 Megabity na sek.
Forwarding rate: 11.9 Megabity na sek.
Packet buffer: 525000 Kilobajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9000 Kilobajt
Stackability: No
VLAN:

• 802.1Q static VLANs: 256
• Port-based VLAN
• Voice VLAN
• MAC-based VLAN
• VLAN based on provider ID
• VLAN trunking
• Source/destination IP address LACP algorithm

Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab 1000BASE-T Ethernet
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3x flow control
• Supports IEEE 802.3az EEE/Green Ethernet
• Support for IEEE 802.1p CoS

QoS:

• 802.1p queuing methods: SPQ, WRR, WFQ
• Storm control: broadcast, multicast, unknown unicast (DLF)
• Rate limiting based on ports (incoming/outgoing)
• 802.3x flow control
• 802.1p Class of Service (support for SPQ, WFQ, SPQ/WFQ combinations)
• DiffServ (DSCP)

Security:

• Layer 2 MAC Address Filtering
• Static MAC forwarding
• SSH v2
• SSL
• Port isolation
• Port Security
• MAC Freezing
• CPU protection
• SHA2 HTTPS certification
• RADIUS login authentication
• RADIUS accounting
• Authentication over RADIUS
• Multiple RADIUS servers
• DHCP tracking

Management, monitoring, configuration:

• NMP v1, v2c, v3
• SNMP trap group
• RMON (1, 2, 3, 9)
• ICMP echo/echo response
• System log
• Display port usage
• IEEE 802.1AB LLDP
• IEEE 802.1AB LLDP-MED
• Custom default setting
• NebulaFlex support for cloud management
• IPv6 over Ethernet (RFC 2464)
• IPv6 addressing architecture (RFC 4291)
• Dual stack (RFC4213)
• ICMPv6 (RFC4884)
• Path MTU (RFC 1981)
• Minimum path MTU size 1280 (RFC 5905)
• Encapsulation for maximum PMTU size 1500
• Neighbour Detection (RFC4861)
• Self-management via web interface
• Cloud management via Nebula Control Center
• Configuration Wizard
• Management via Internet, SNMP
• Remote software update via FTP/Web
• Configuration saving and downloading
• DHCP client
• DHCP relay per VLAN
• Seasonal time change
• NTP (IPv4/IPv6)
• Port duplication
• PoE scheduling
• Default PoE consumption mode

L2 features:

• L2 multicast
• L2 static multicast forwarding
• IGMP tracing (v1, v2, v3)

L3 features:
Other functions:
Chassis type: Rack
Power supply : Internal
Power consumption: 4.7 Watt
Mean time between failures (MTBF): 11444461 Hour
Accessories included:

• Power supply
• Wall mounting kit

Power supply:

100 – 240 V AC, 50/60 Hz

Dimensions:

250 x 104 x 27 mm

Weight: 0.62 kilogram
Other features:
Designation:
