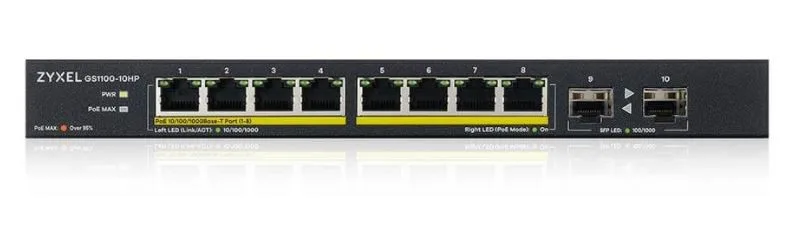

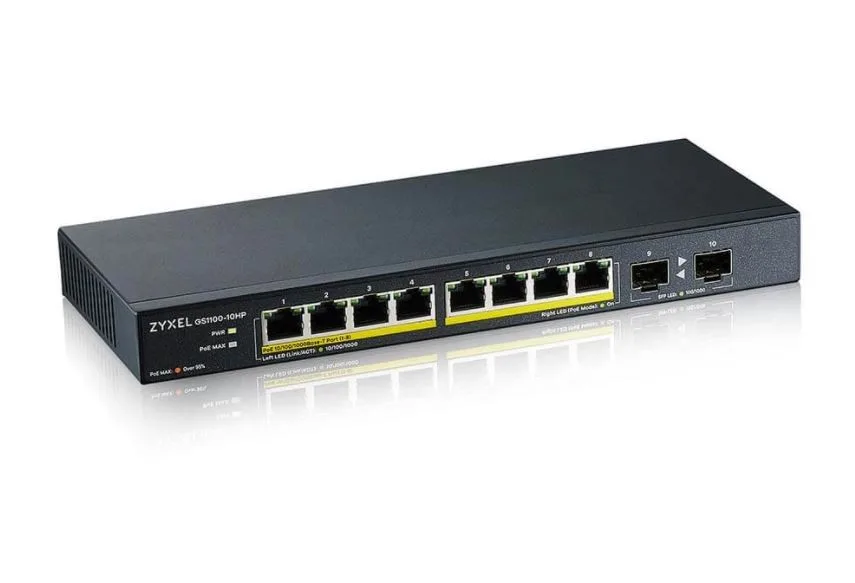

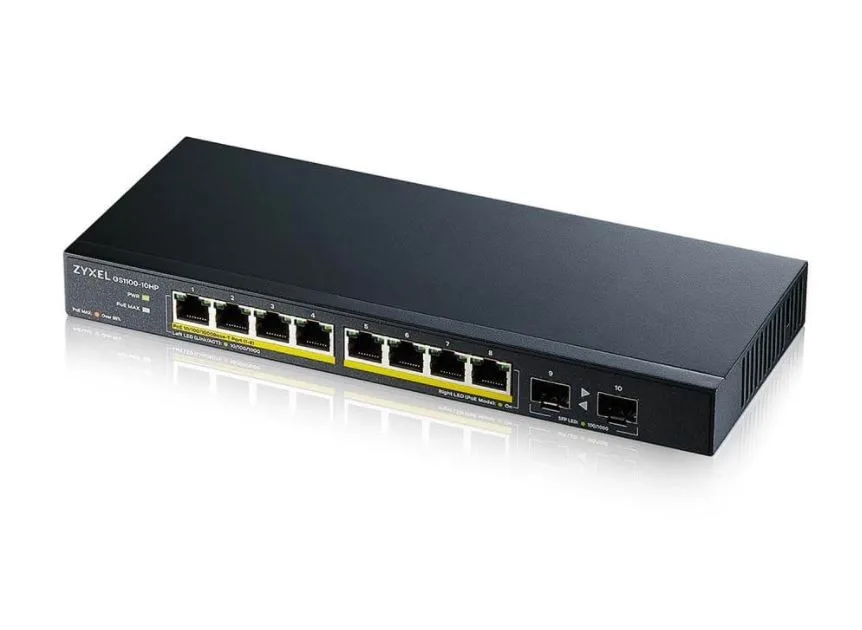

Zyxel GS1100-10HP-EU0102F 120W PoE 8xGigabit 2xFiber Uplilk Switch

Zyxel GS1100-10HP-EU0102F 120W PoE 8xGigabit 2xFiber Uplilk Switch

Description:

Whisper quiet operation

The fanless design of the GS1100 ensures quiet operation in small and quiet office environments. The GS1100-10HP PoE model features an external power supply that eliminates the need for an additional fan to cool the unit, making it ideal for quiet PoE applications.

Energy Saving

The GS1100 is equipped with energy-efficient Ethernet (IEEE 802. 3az) that automatically detects network traffic and dynamically adjusts power consumption. Zyxel’s green features also adjust power consumption by detecting link status and cable length and reducing operating costs.

PoE+ Support

The GS1100-10HP supports PoE+ (IEEE 802. 3at), which provides up to 30 watts per port and provides fully automatic support for compatible IP phones, video surveillance cameras or wireless access points.

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 8
Number of PoE ports (PoE & PoE+): 8
Number of SFP ports: 2
Console port: No
Forwarding mode: Store-and-forward
Throughput: 20 Gigabity na sek.
Forwarding rate: 14.88 Mpps
Packet buffer: 256 Kilobajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9000 Kilobajt
VLAN:
Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab 1000BASE-T Ethernet
• IEEE 802.3az EEE support
• IEEE 802.3x flow control
• IEEE 802.3z 1000BASE-X
• IEEE 802.1p CoS
• IEEE 802.3af PoE (GS1100-10HP)
• IEEE 802.3at PoE+ (GS1100-10HP)

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : External
Power consumption: 156.1 Watt
Mean time between failures (MTBF): 1000070 Hour
Accessories included:

• Power Supply
• Power cable
• Wall mounting kit

Power supply:

100 – 240 V AC, 50/60 Hz

Dimensions:

250 x 104 x 27 mm

Weight: 0.73 kilogram
Other features:
Designation:
