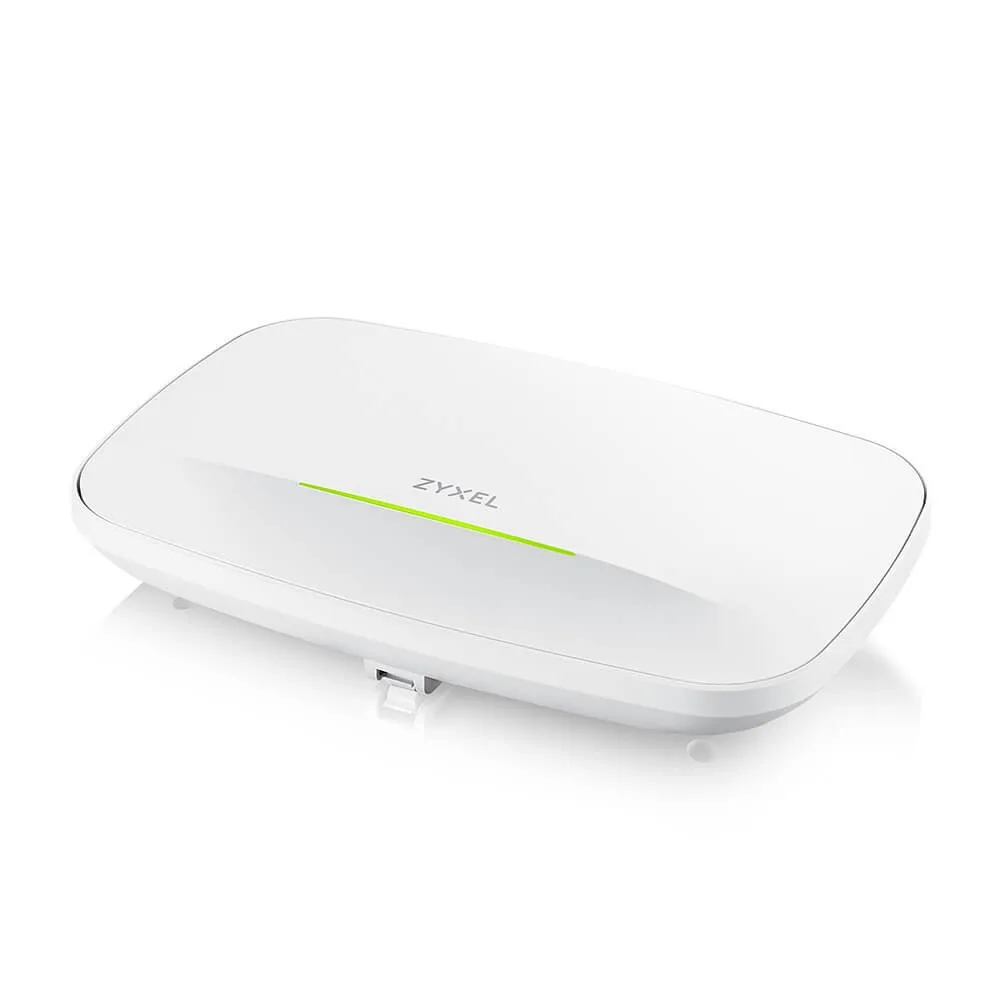

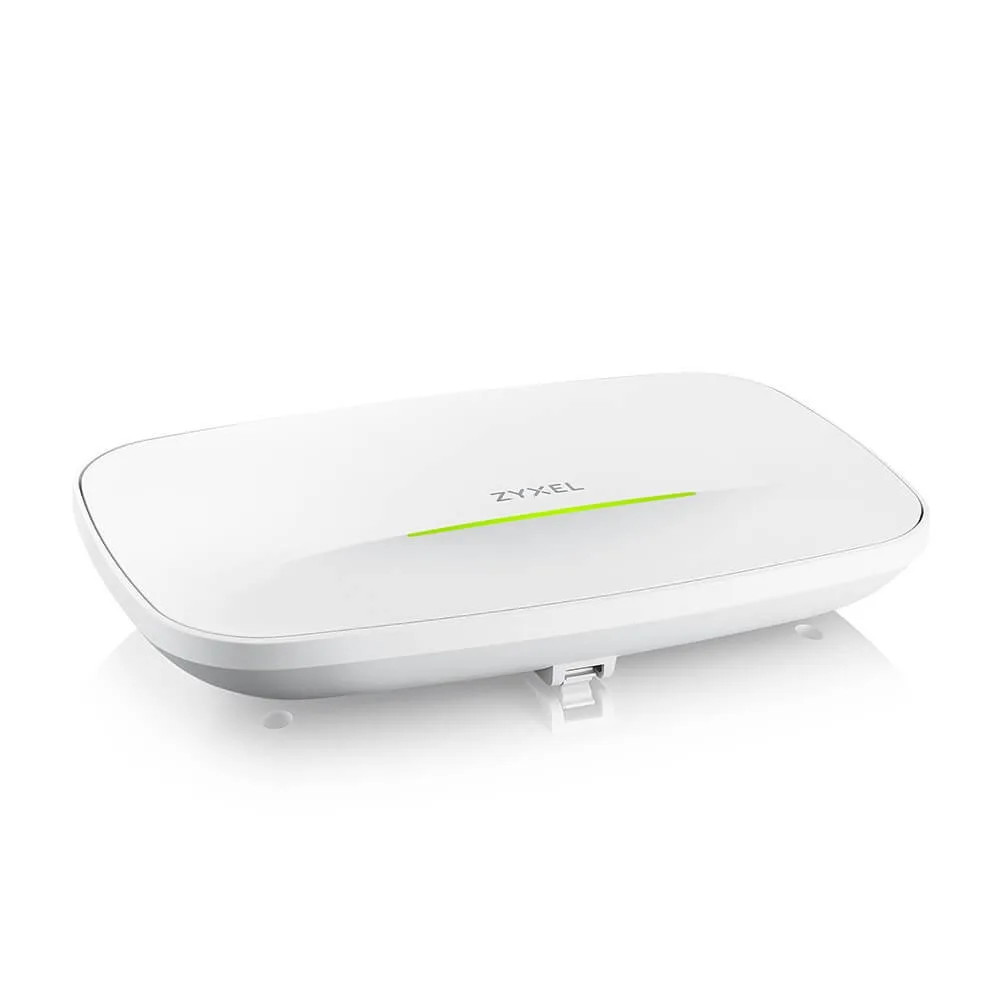

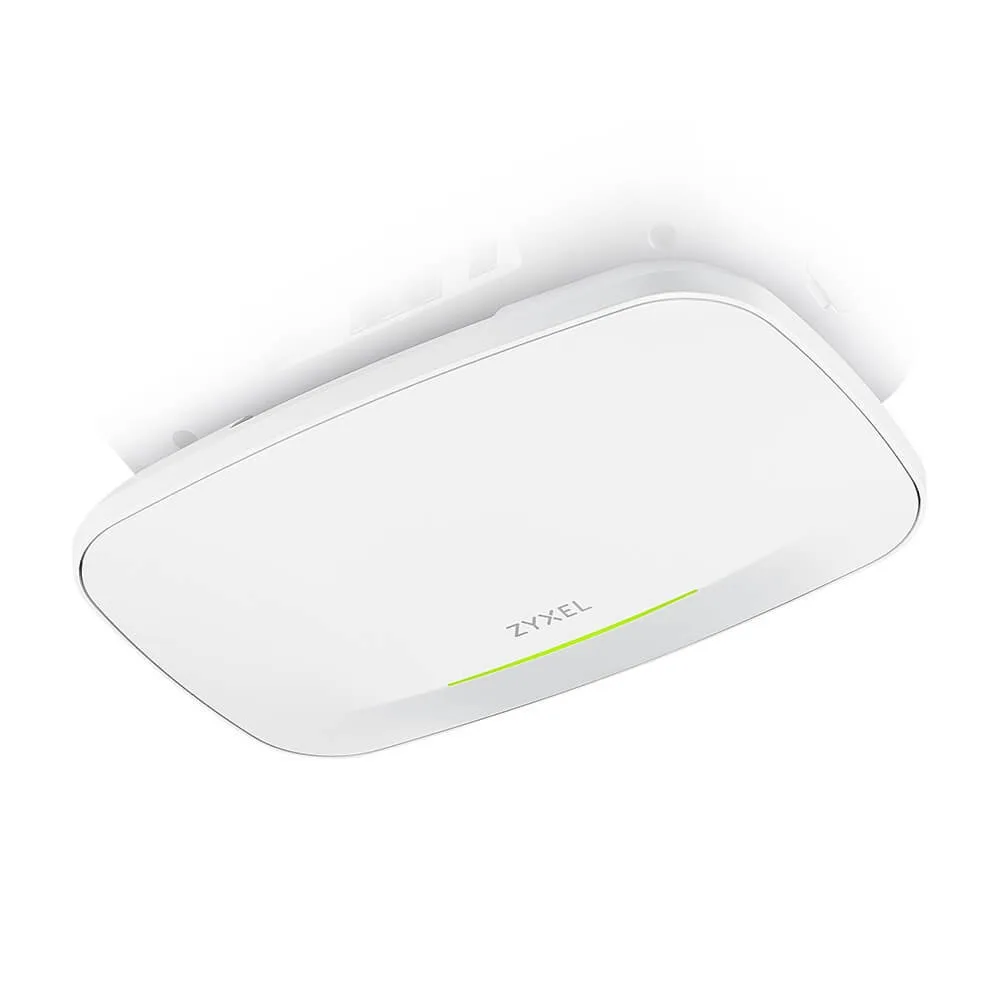

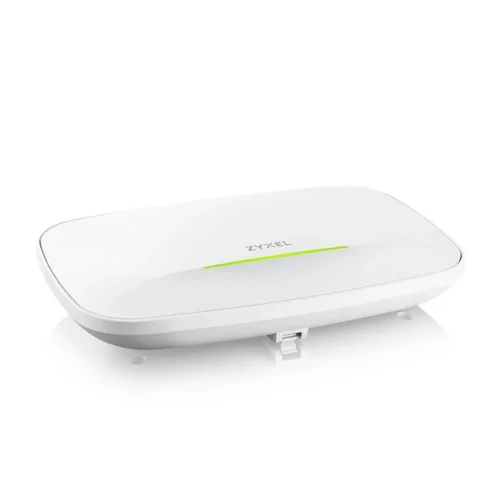

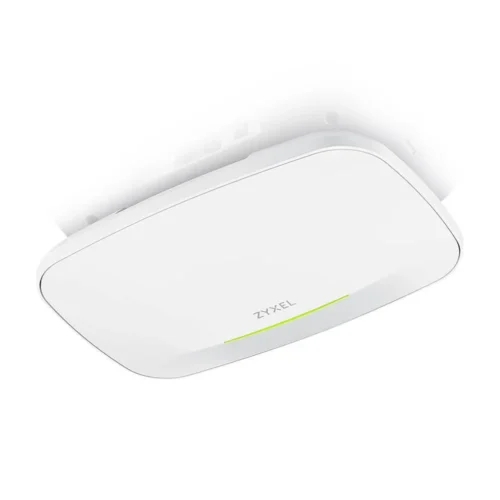

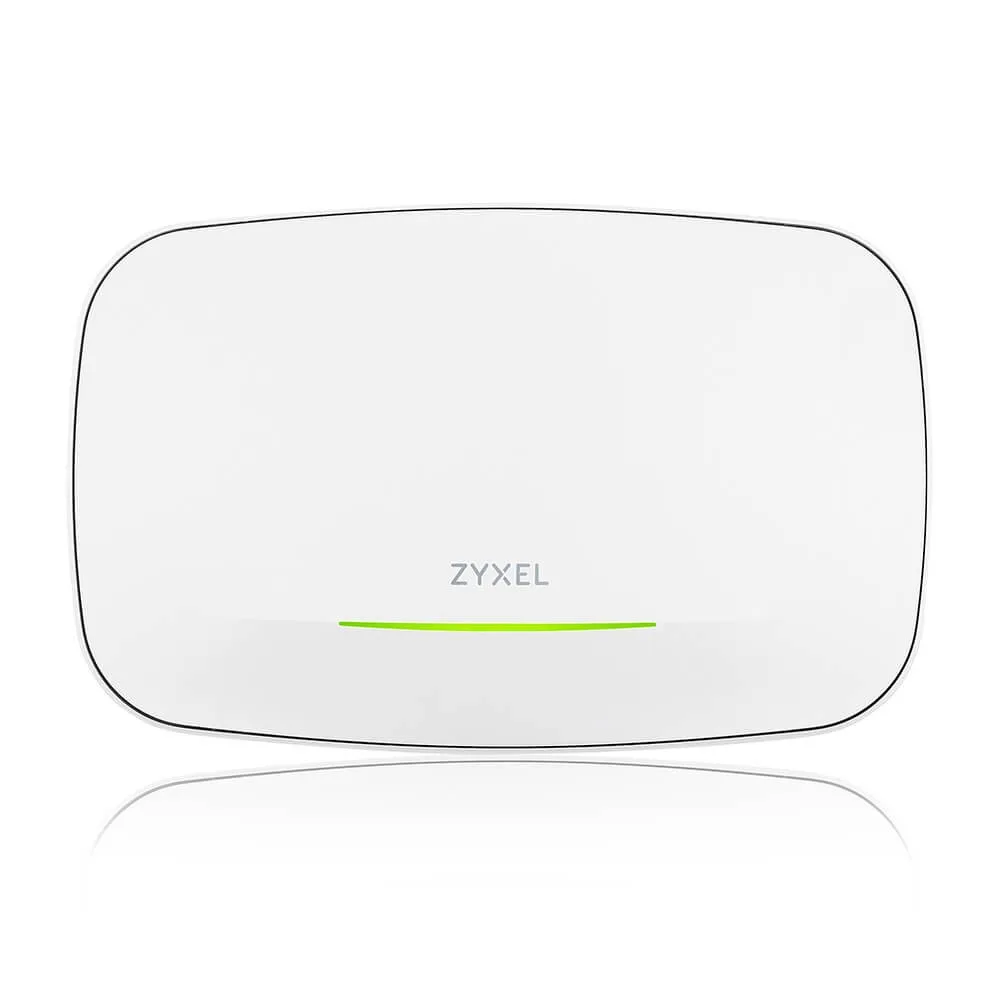

Zyxel Access Point NWA130BE-EU0101F

Zyxel Access Point NWA130BE-EU0101F

Description:

Unleash the Power of Wi-Fi 7 in the Modern Workplace

Designed specifically for the modern workplace, the NWA130BE is equipped with a Qualcomm quad-core processor to deliver blazing-fast Wi-Fi 7 speeds of up to 11 Gbps and noticeable performance gains.

Coupled with Zyxel Nebulas comprehensive suite of management and security innovations, it delivers robust connectivity and reliability that meets the enterprise-class demands of todays modern workplace.

Blazing-fast Tri-Radio WiFi 7 (802.11be) AP

The BE11000 Tri-Radio AP (2×2 in 2.4, 5, and 6 GHz) delivers blazing-fast Wi-Fi 7 speeds of up to 11 Gbps and lower latency for real-time response.

2.5G Ports the Right and Cost-Effective Fit

The 2 x 2.5G Ethernet ports are the right and cost-effective solution, not only providing users with an easy upgrade to enjoy Wi-Fi 7 performance, but also enabling seamless integration with existing infrastructure without the need for costly re-wiring.

Rectangular Design for Optimal SNR

4K QAM (MCS-13) requires high signal-to-noise ratio (SNR). The rectangular design provides excellent antenna isolation, surpassing the effectiveness of circular designs.

As designed by RF First.

The advanced RF filter design eliminates interference between 5 GHz and 6 GHz bands, while the built-in 4G/5G interference filter enables seamless interoperability with 4G/5G cellular networks and minimizes interference, all to ensure a smooth, interruption-free Wi-Fi experience.

Flexible management to suit diverse requirements

NebulaFlex allows users to switch between standalone and intuitive Nebula cloud-managed modes as needed.

Network architecture: GigabitEthernet

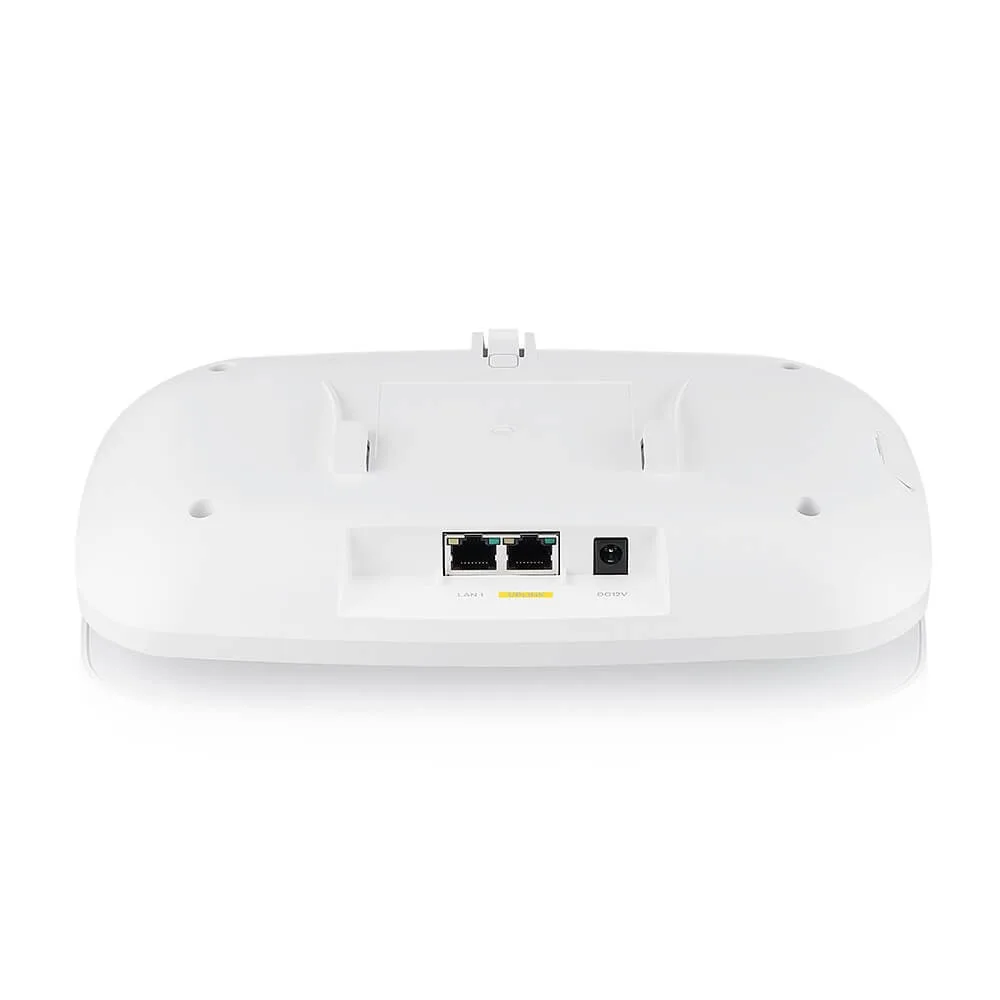

I/O ports: 2 x 10/100/1000/2500 RJ-45 port
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Operating frequency: 6 GHz
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11ax
Standards: 802.11a
Standards: 802.11b
Standards: 802.11be
Standards: 802.11g
Number of antennas: 6
Antenna: Built-in
Antenna gain: 4 dBi
Security:

Encryption

• WEP
• WPA
• WPA2-PSK
• WPA3

Authentication

• WPA
• WPA2-Enterprise
• EAP
• IEEE 802.1X
• RADIUS Authentication

Access Management

• L2 Isolation
• MAC Filtering
• Rogue AP Detection

Management, monitoring, configuration:

Operation Mode

• Cloud Managed
• Standalone

ZON Utility

• Discover Zyxel Switches, APs, and Gateways
• Centralized and Batch Configurations:
• IP Configuration
• IP Address Renewal
• Device Reboot
• Device Locating
• Web GUI Access
• Firmware Upgrade
• Password Configuration

Web/CLI Interface

SNMP

Special functions:
Power supply:

• PoE (802.3at): power draw 24 W
• DC input : 12 VDC 2A

Software:
System Requirements:
Environment requirements:

Operational

• Temperature 0°C to 50°C
• Humidity 10% to 95% (non-condensing)

Storage

• Temperature -40°C to 70°C
• Humidity 10% to 90% (non-condensing)

Certificates:

Radio

• FCC Part 15C
• FCC Part 15E
• FCC Part 2.1091
• ETSI EN 300 328
• EN 301 893
• Draft EN 303 687
• EN 50385
• EN 50665
• EN IEC 62311,LP0002

EMC

• FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55032
• EN55035
• EN61000-3-2/-3
• EN60601-1-2
• BSMI CNS15936

Safety

• EN 62368-1
• IEC 62368-1
• BSMI CNS15598-1

Accessories included:
Color: White
Weight: 808 gram
Dimensions:

279.5 x 180.5 x 66 mm

Other features:
Designation:
