Description:

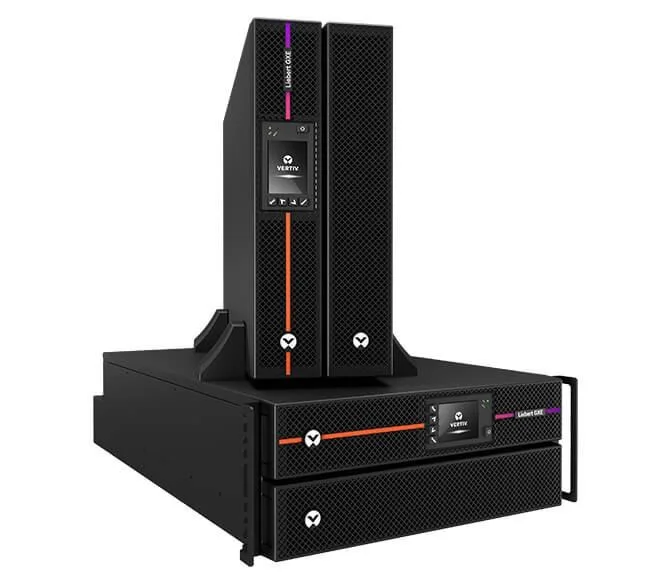

The Vertiv Liebert GXE UPS is a cost-effective and efficient online double-conversion solution that provides power protection and deployment and operational flexibility.

The unit output power factor (1.0) of the Liebert GXE single-phase UPS provides continuous and reliable power to a larger number of connected devices, protecting them from multiple AC mains disturbances thanks to online double conversion technology and input surge protection.

The high performance of the mains operation and eco mode of the economical UPS also provides energy and operating cost savings.

Available in 6 or 10 kVA power ratings, it provides the flexibility to be installed in both stand-alone and rack-mounted versions, along with mission-critical IT equipment for any application. In addition, the ability to expand with external battery enclosures provides scalable back-up time for applications requiring extended back-up time in the event of AC mains failure.

In addition to extended battery runtime, the unit is equipped with multiple monitoring options, making the compact UPS provide best-in-class power protection for equipment deployed at the network edge or at remote sites.

Apparent power: 10 kVA
Active power: 10000 Watt
UPS Architecture: on-line double conversion
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 230 Volt
Backup time (100% load): 3.5 Minute
Charging time: 3 Hour
Chassis type: Desktop
Chassis type: Rack
Filters / protection: No
Special functions:
Software:

Free Vertiv Power Assist software for local status and UPS shutdown management or VertivPower Insight for remote network management

Input power ports: Input terminal
Output power ports: Output terminals
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RJ-45 LAN
Environment requirements:

• Operating temperature (°C) 0 to 40°C
• Storage temperature (°C, without battery inside) -20°C to +70°C
• Relative humidity (operating, non-condensing) 5% to 95%
• Maximum operating altitude (m), not derated 2000
• Audible noise level (line mode) less than 58 dBA

Accessories included:

• Liebert GXE UPS
• Quick Installation Guide
• Safety instructions
• Adjustable 4-point rack mounting kit
• Rack mounting brackets/hardware
• USB type A-B cable (1.2 m)
• Stabiliser feet for free-standing configuration
• Free Vertiv Power Assist software for local status and UPS shutdown management or VertivPower Insight for remote network management

Color: Black
Dimensions:

430 x 700 x 217 mm

Weight: 80 kilogram
