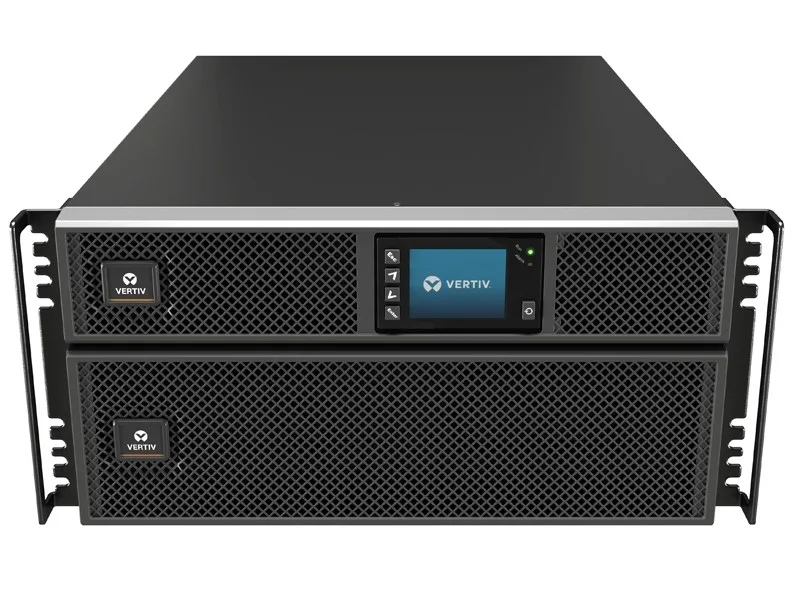

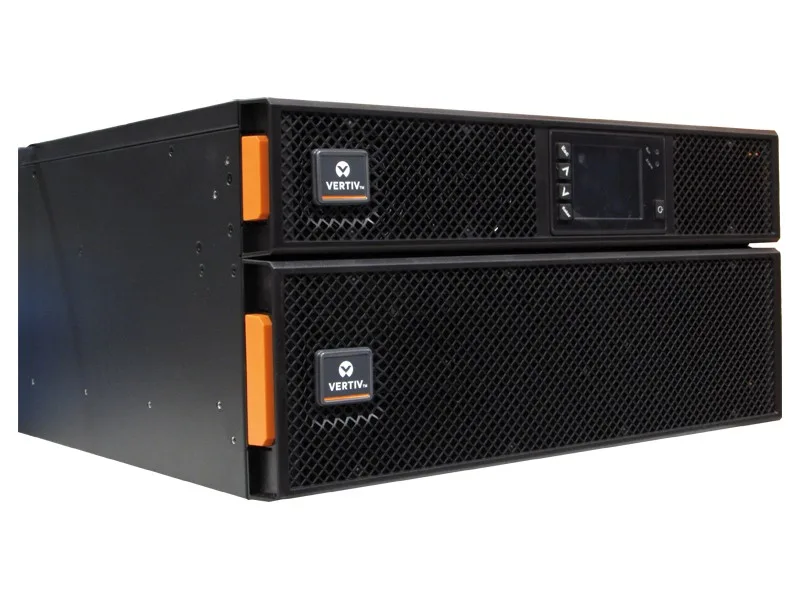

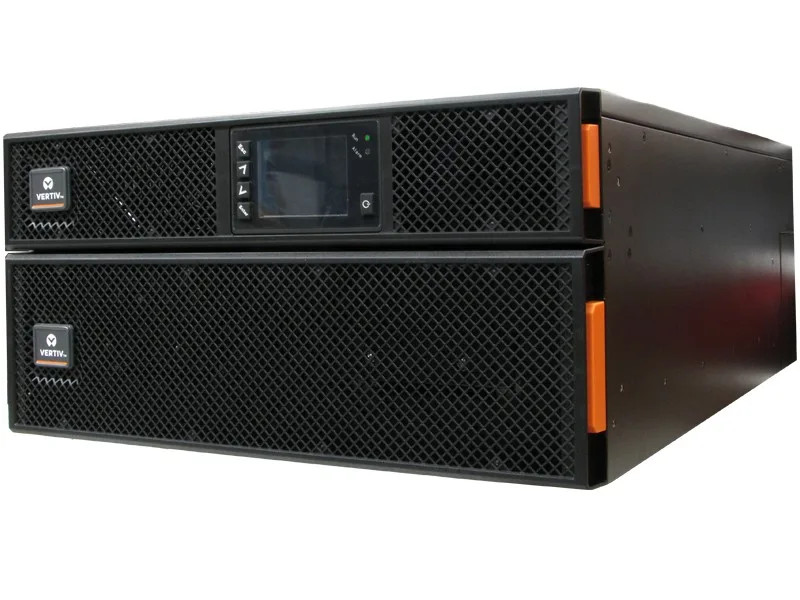

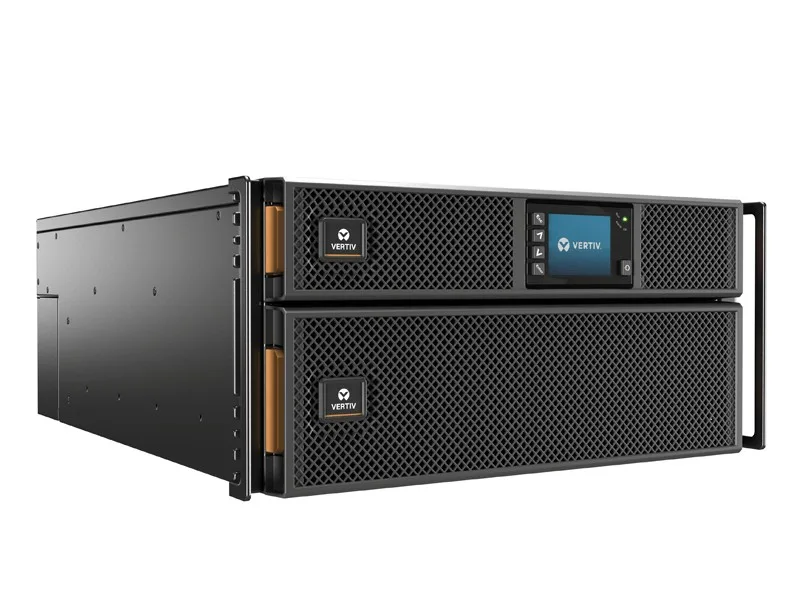

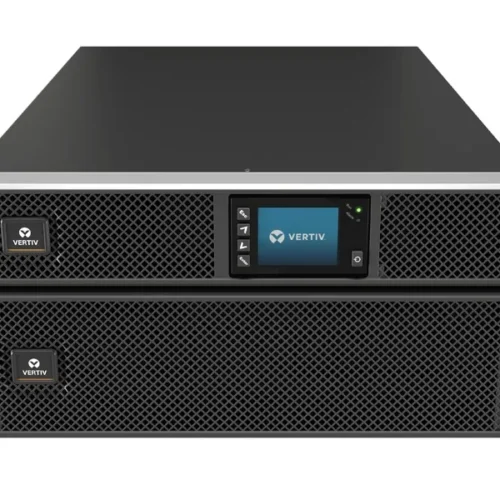

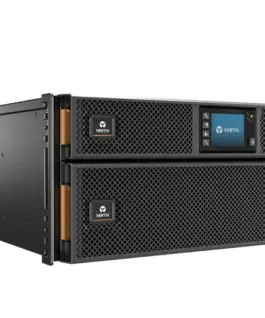

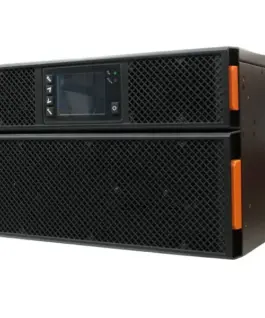

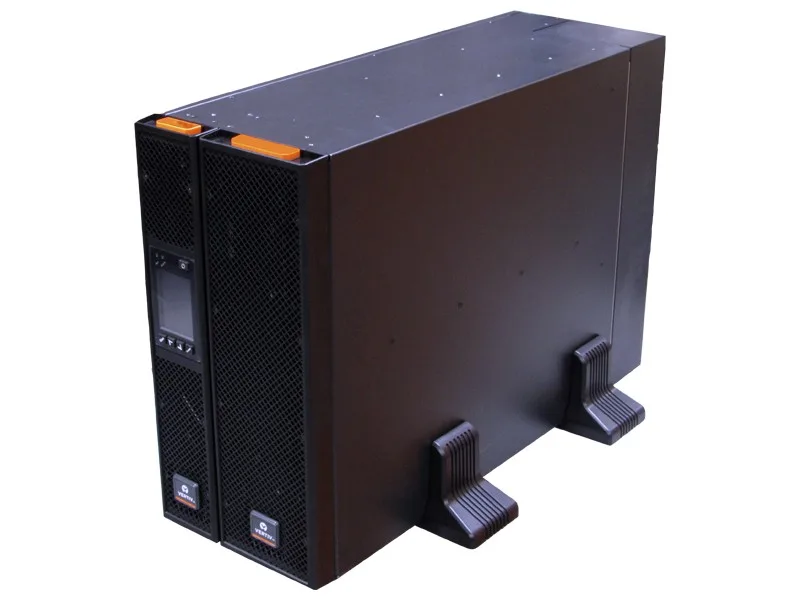

Vertiv UPS GXT5-5000IRT5UXLN 5000VA/5000W 230V Rack/Tower with rails and communication card

Vertiv UPS GXT5-5000IRT5UXLN 5000VA/5000W 230V Rack/Tower with rails and communication card

Description:

UPS GXT5-5000IRT5UXLN 5000VA/5000W 230V Rack/Tower UPS with rails and communication card

Liebert GXT5 is a compact and flexible online double conversion UPS offering high-class protection and continuous power conditioning. The power supply protects IT equipment against all types of interference caused by power failure, voltage drop, overvoltage or distortion.

Apparent power: 5 kVA
Active power: 5000 Watt
UPS Architecture: on-line double conversion
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
Voltage: 12 Volt
Battery capacity: 9 Ah
Charging time: 7 Hour
Chassis type: Rack

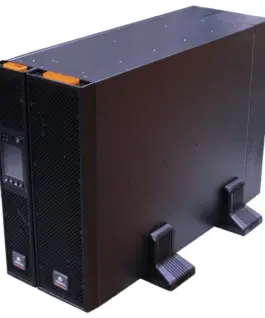

Chassis type: Tower
Filters / protection: Surge
Filters / protection: Voltage drop
Special functions:
Software:
Input power ports:
Output power ports: 6 x IEC-C13
Output power ports: 2 x IEC-C19
Output power ports: 1 x Terminal
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-485
Environment requirements:
Accessories included:

• Operating temperature: full power up to 40°C (up to 50°C with derating)
• Storage temperature: – 15 to + 40 °C
• Relative humidity 0 95%, non-condensing
• Operating altitude up to 3,000 m (9,842.5 ft) at 25°C (77°F) without derating
• Noise audible below 55 dBA

Color: Black
Dimensions:

217 x 430 x 630 mm

Weight: 70.8 kilogram
Other features:
Designation:
