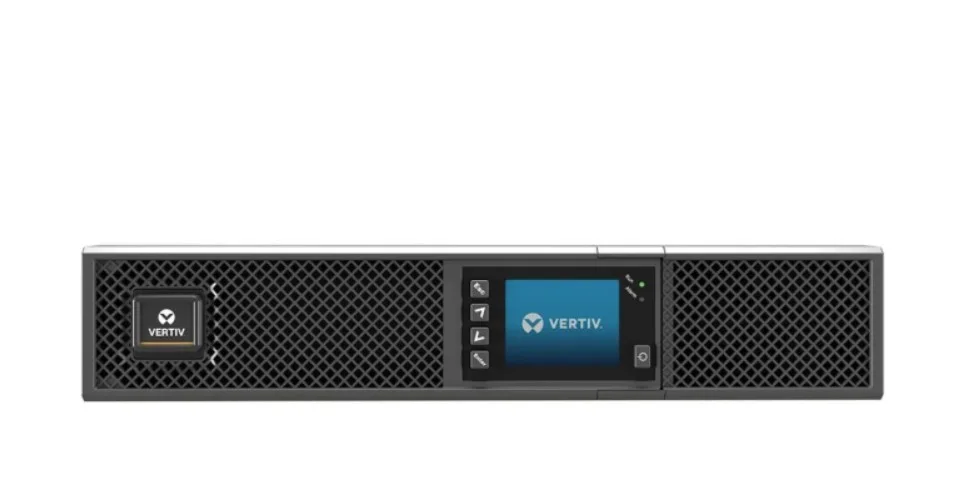

Vertiv UPS GXT5-10KIRT5UXLN with communication card and rack rails

Vertiv UPS GXT5-10KIRT5UXLN with communication card and rack rails

Description:

GXT5-10KIRT5UXLN UPS with Communication Card and Rack Rails

The new Vertiv Liebert GXT5 is an online double-conversion UPS offering high-end protection and continuous power conditioning in a compact and flexible design. The Liebert GXT5 is a highly efficient single-phase UPS designed to protect critical infrastructure in both centralized and edge network applications.

Apparent power: 10 kVA
Active power: 10000 Watt
UPS Architecture: on-line double conversion
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
Backup time (100% load): 2 Minute
Chassis type: Rack
Chassis type: Tower
Filters / protection: Surge
Special functions:

• Battery health information and battery replacement date prediction
• Remote management, updates, and configuration capabilities
• Automatic, built-in bypass and additional external maintenance bypass

Software:

Vertiv Power Insight

Input power ports: Input terminal
Output power ports: 4 x IEC-C19
Output power ports: 4 x IEC-C13
I/O connectors: 1 x USB (Type B)
Environment requirements:

• Operating temperature: 0 to 40°C (+32 to +104°C) (without derating)
• Storage temperature: -15 to 50°C+ (5 to +122°C)
• Relative humidity: 0% to 95% non-condensing

Accessories included:

• UPS (including factory-installed network card).
• Tower base and 4-post rack rail kit
• USB cable
• Quick start guide
• Safety manual
• Power Insight Management software (free download from Vertiv.com)

Color: Black
Dimensions:

217 x 430 x 630 mm

Weight: 74.5 kilogram
