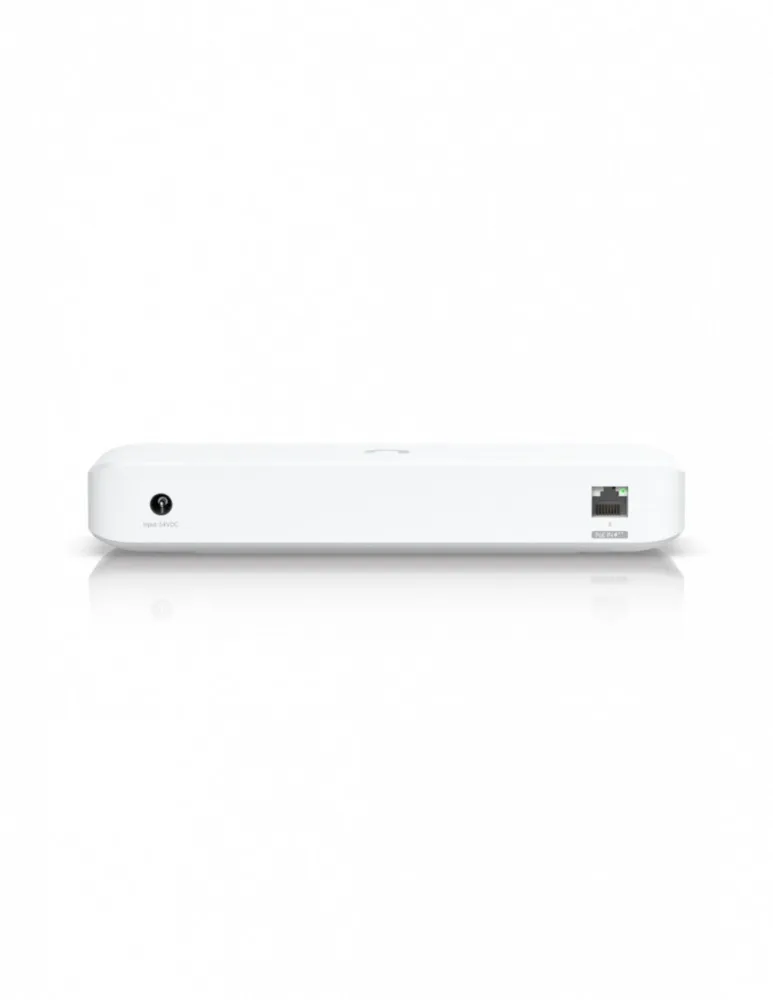

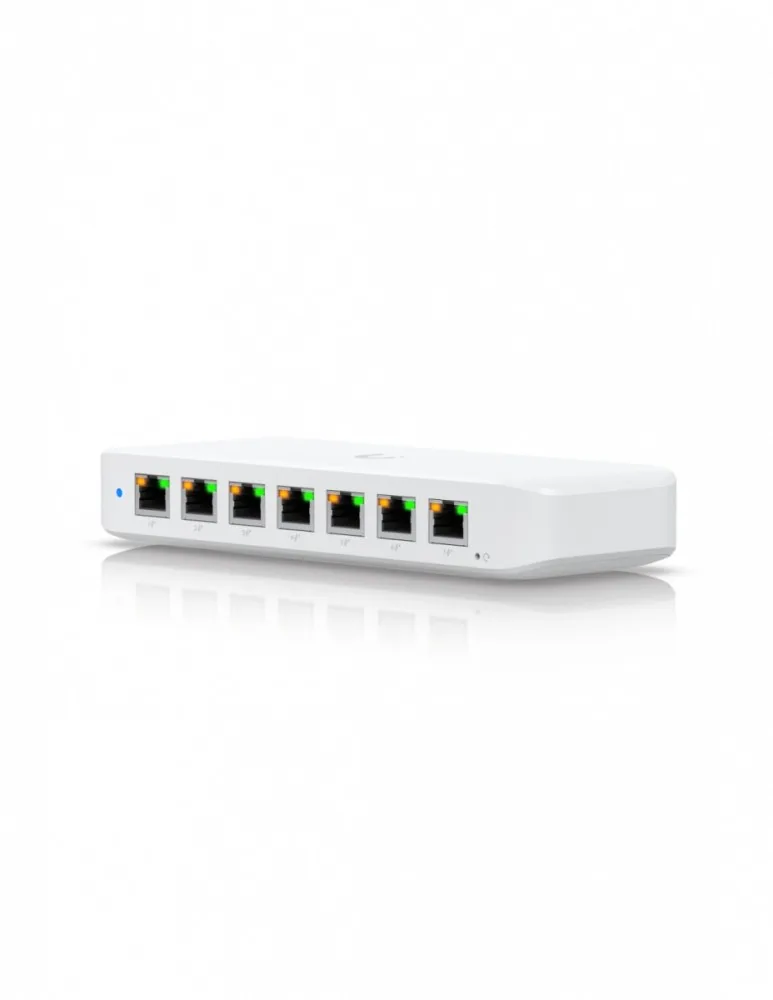

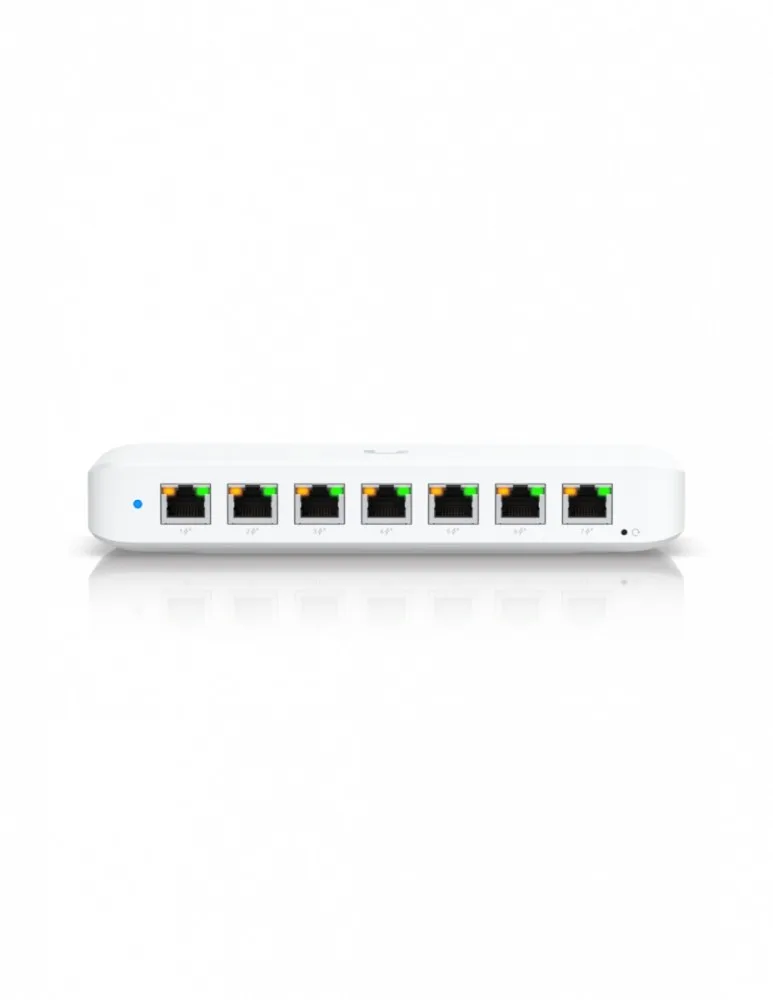

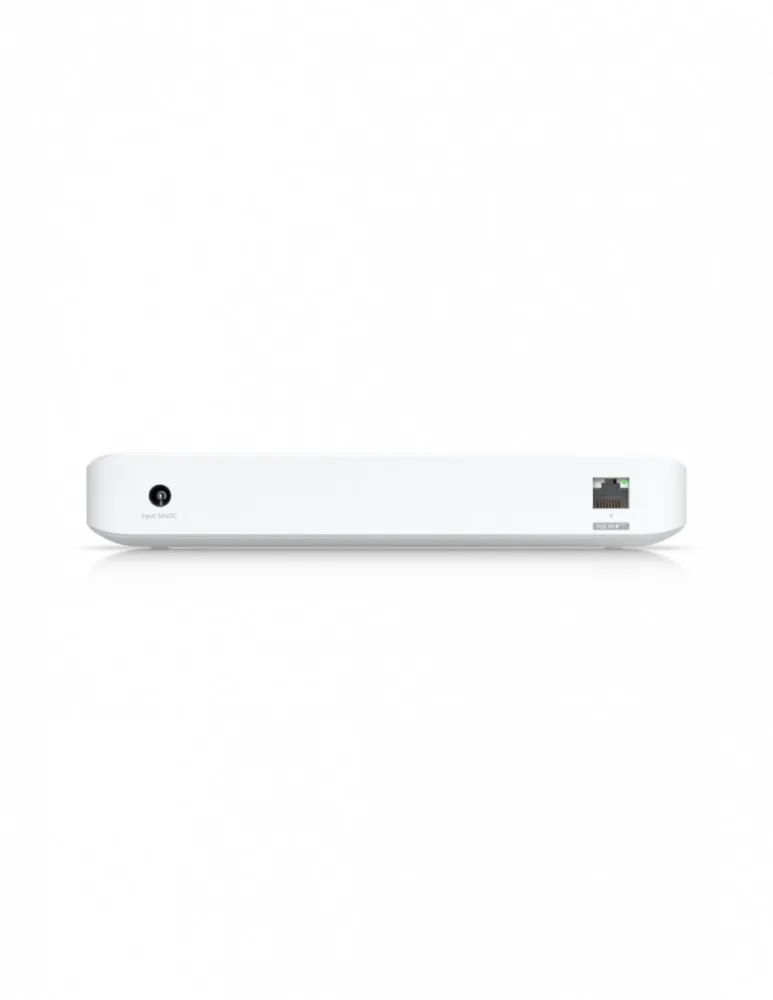

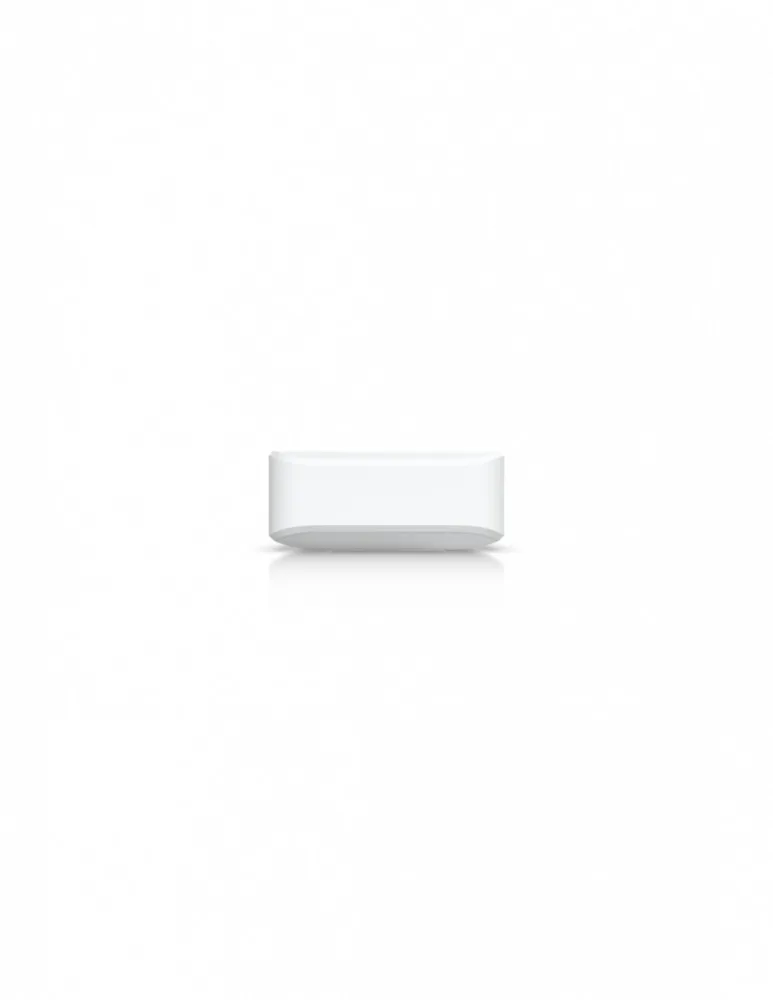

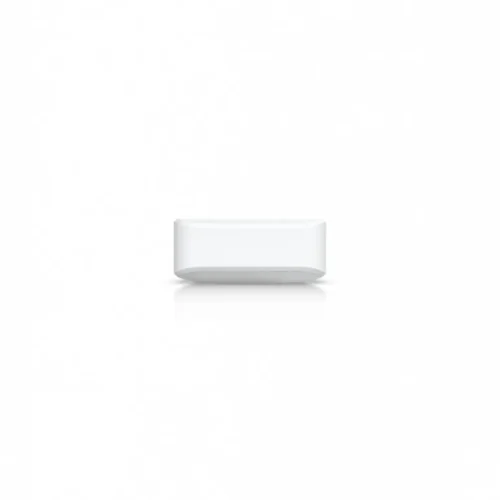

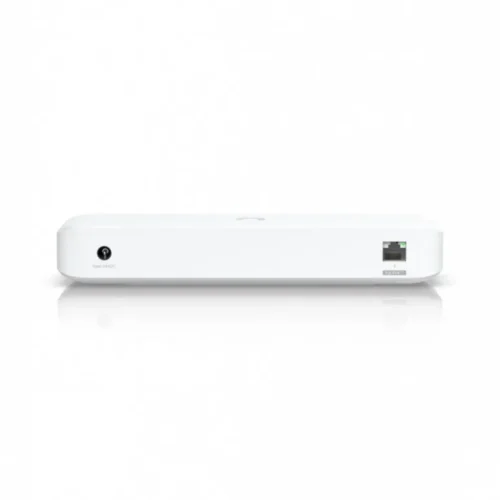

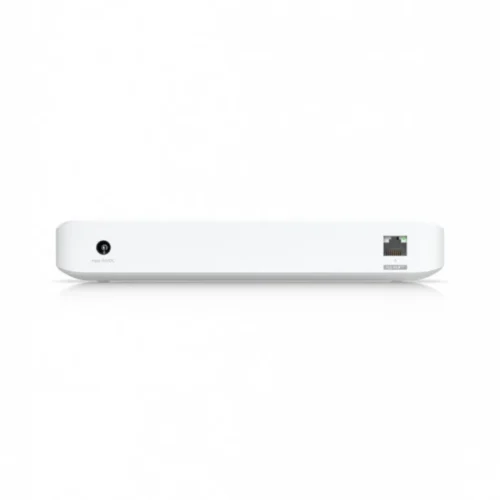

UBIQUITI Ubiquiti USW-Ultra Switch Ultra

UBIQUITI Ubiquiti USW-Ultra Switch Ultra

Description:

Ubiquiti USW-Ultra | PoE+, 42W, 8-Port, Layer 2
Ultra (USW-Ultra 42W) is a compact, 8-port GbE PoE Layer 2 switch offering versatile mounting options. It has 7 GbE PoE+ output ports and 1 GbE PoE++ input port. It provides 42W PoE with PoE++ input and 16W PoE with PoE+ input. PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.

Switch class: Managed
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 8
Number of PoE ports (PoE & PoE+): 7
Number of PoE++ ports: 1
Console port: No
Throughput: 8 Gigabity na sek.
Forwarding rate: 11.904 Mpps
Memory buffer: 16 GigaBajt
Support for Jumbo frames: Yes
VLAN:
Supported protocols and standards:
QoS:
Security:
Management, monitoring, configuration:
L2 features:

• Port Isolation
• Storm Control
• Port Mirroring
• Multicast/Broadcast Rate Limiting
• Flow Control
• Jumbo Frames
• Egress Rate Limit

L3 features:
Other functions:
Chassis type: Rack
Fan : No
Power supply : External
Power consumption: 9 Watt
Environment requirements:

• Operating ambient temperature PoE++ input: -30 to 60° C
• 60W AC adapter input: -20 to 45° C
• 210W AC adapter input: -20 to 60° C
• Operating ambient humidity 10 to 90% non-condensing

Certificates:

• CE
• FCC
• IC

Accessories included:
Power supply:

• (1) 54V, 3.9A power supply (not included)
• (1) 54V, 1.1A power supply (not included)
• PoE++ (pins 1, 2+, 3, 6- and 4, 5+, 7, 😎
• Supported voltage range 4457 V DC

Dimensions:

203 x 76 x 33 mm

Weight: 320 gram
Other features:

• Max Power Consumption 9W with PoE Input (No PoE Output)
• 8W with AC Adapter Input (No PoE Output)
• Total Available PoE Power PoE++ Input: 42W
• PoE+ Input: 16W
• 60W PoE Adapter Input: 42W
• 60W AC Adapter Input: 52W
• 210W AC Adapter Input: 202W
• Max PoE+ Power per Port via PSE 30W
• Factory Reset Button
• UniFi Network Version 8.0.28 and later

Designation:
