UBIQUITI Switch USW-Pro-Max-16-PoE

UBIQUITI Switch USW-Pro-Max-16-PoE

Description:

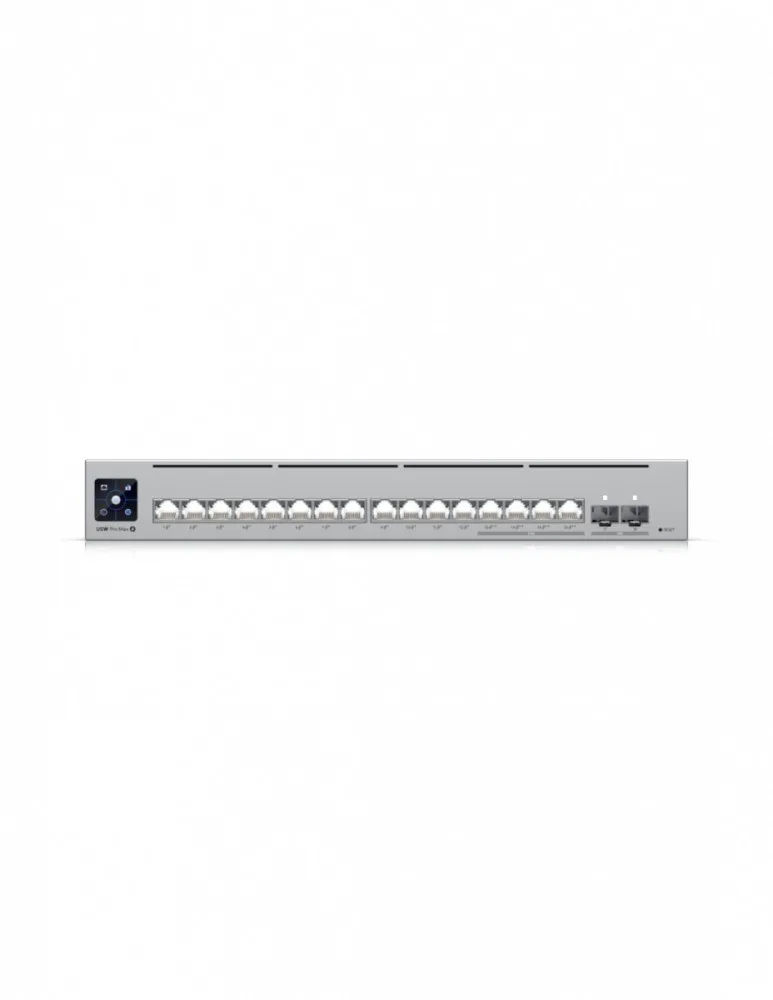

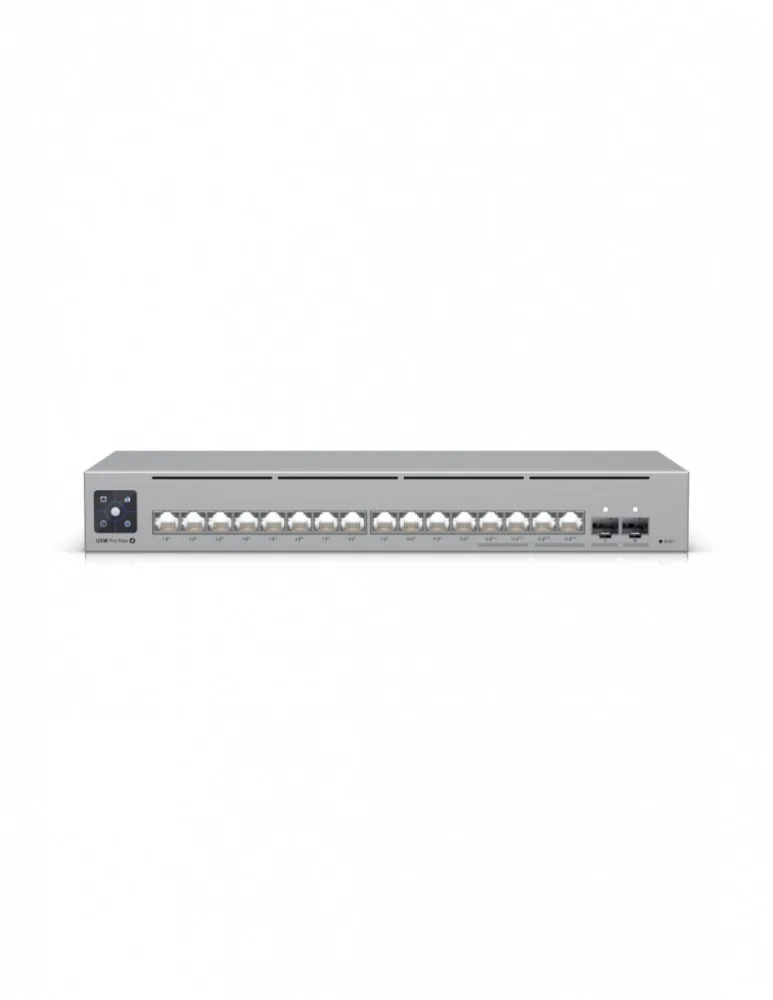

UBIQUITI USW-Pro-Max-16-PoE

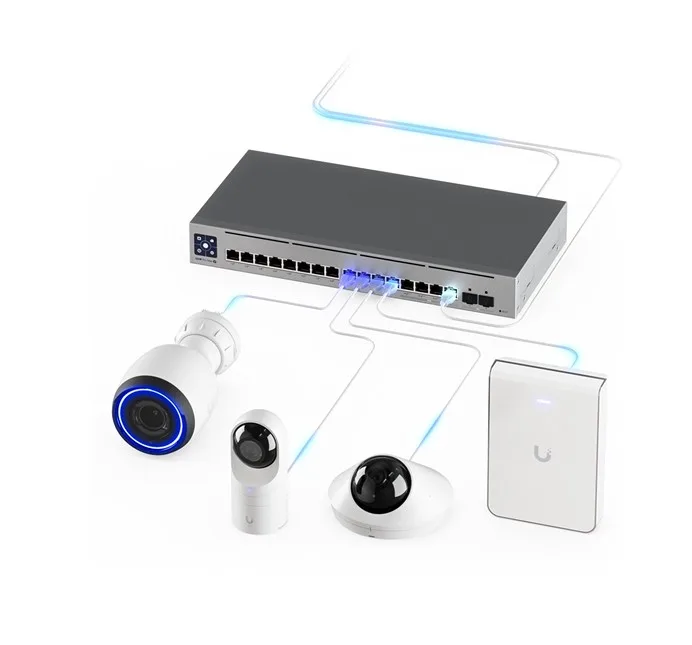

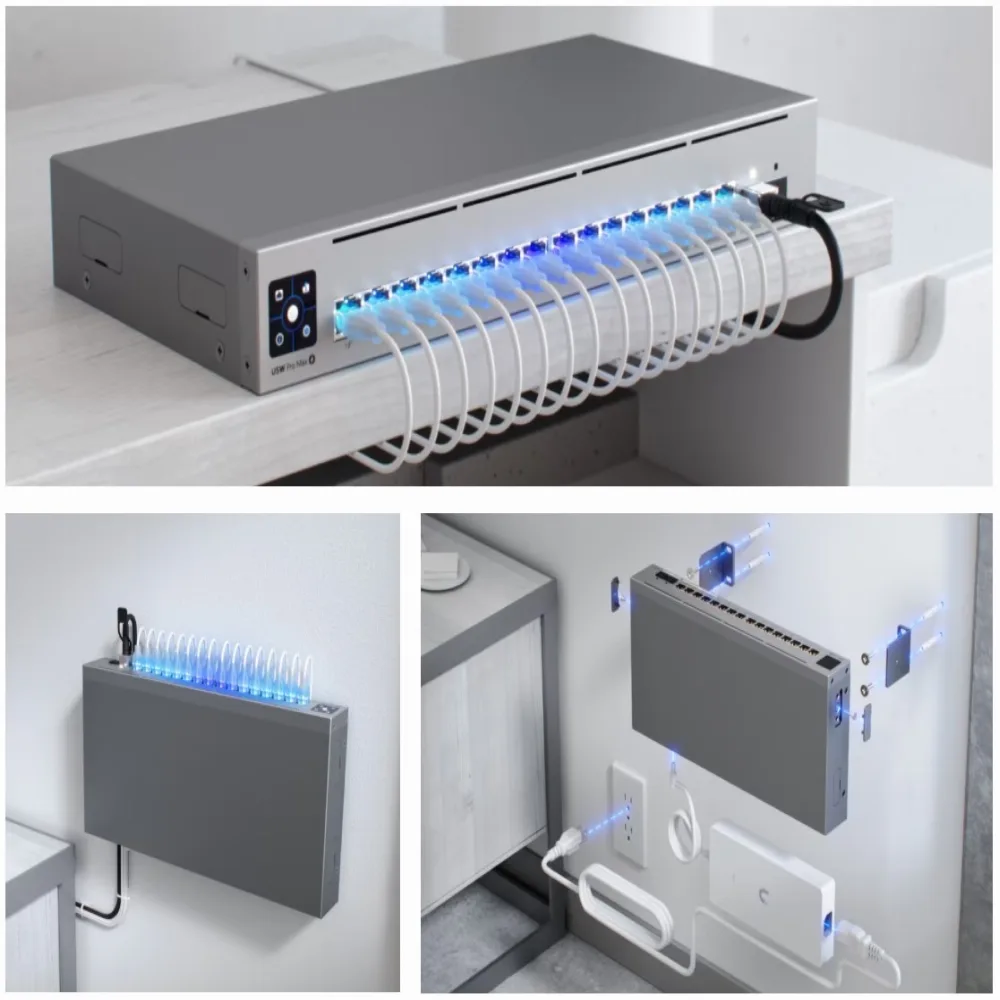

The USW-Pro-Max-16-PoE is an advanced 16-port Layer 3 switch with Etherlighting technology, supporting 2.5GbE and equipped with PoE++ outputs. Each port is equipped with Etherlighting illumination, making it easy to identify the port location, speed/link, and native VLAN. The switch offers four 2.5GbE PoE++ ports and twelve GbE PoE+ ports, with a total PoE power of 180W. Additionally, it has two 10G SFP ports for higher bandwidth requirements. Desktop, wall, or rack mount (requires additional rack mount accessories), and a quiet, fanless cooling system provide flexibility and reliability in various network environments.

Switch class: Managed
Application: Home and small office
Switch layer: L3
Network architecture: FastEthernet
10/100/1000/2500 Mbps ports: 16
Number of 10Gb ports: 2
Number of PoE+ ports: 12
Number of PoE++ ports: 4
Console port: No
Throughput: 84 Gigabity na sek.
Forwarding rate: 62.496 Mpps
Support for Jumbo frames: Yes
VLAN:
Supported protocols and standards:
QoS:
Security:
Management, monitoring, configuration:
L2 features:

• IGMP snooping
• STP / RSTP with priorities and port-level disable
• Port isolation
• Storm control
• Voice VLAN
• Port mirroring
• LACP port aggregation
• Multicast / broadcast rate limiting
• MAC address blocking
• Flow control
• 802.1X control
• Jumbo frames
• Proprietary loop protection
• DHCP snooping / guarding
• Egress rate limit
• LLDP-MED
• Port restricted by MAC
• Device isolation with ACLs

L3 features:

• DHCP for locally-managed networks
• DHCP relay
• Inter-VLAN routing between networks on same switch
• Static routing between local networks
• Network isolation with ACLs

Other functions:
Chassis type: Rack
Fan : No
Power supply : External
Power consumption: 25 Watt
Environment requirements:
Certificates:

• CE
• FCC
• IC

Accessories included:
Power supply:

5V, 25W (included)

Dimensions:

325.1 x 160 x 43.7 mm

Weight: 1.95 kilogram
