TP-LINK Verwalteter Switch SX3016F 16xSFP+

TP-LINK Verwalteter Switch SX3016F 16xSFP+

Description:

JetStream L2+ Managed Switch, 16 SFP+ 10 GE Slots

• 16 10GE SFP+ Slots: Ultra-fast, fully 10Gbps SFP+ slots provide high-bandwidth connections and device switching capabilities up to 320Gbps.
• Reliable L2 and L2+ Features: Support for a complete line of L2 and L2+ features including Static Router, industry-class QoS, IGMP Snooping and more.
• Strong security strategies: Provides LAN security based on IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication and more.

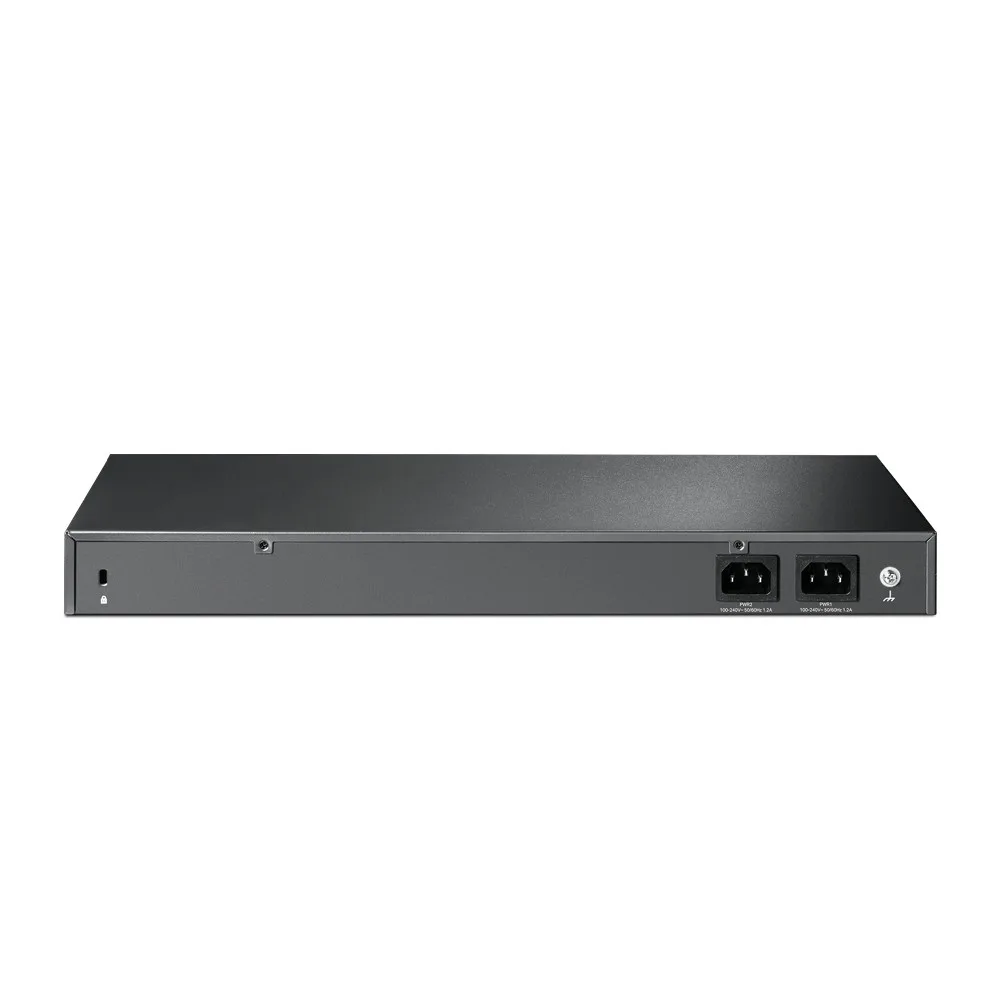

• Dual Redundant Power Supplies: Two power supplies supporting each other is an ideal choice for a stable network architecture.
• Centralized Cloud Management: Integration with Omada SND enables cloud-based access and remote management.
• Self-management: Web site, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management capabilities.

Switch class: Managed
Application: Home and small office
Switch layer: L2+
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 1
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 16
Number of QSFP+ ports: None
Console port: Yes
Throughput: 320 Gigabajty na sek.
Forwarding rate: 238.08 Mpps
MAC address table size: 32000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:

• VLAN groups: Max 4K VLAN groups
• 802.1Q VLAN Tagging
• VLAN MAC Address: 30 entries
• VLAN Protocol
• Private VLAN
• GVRP
• VLAN VPN (QinQ): Port-based QinQ, Selective QinQ
• Voice VLAN

Supported protocols and standards:

Spanning Tree Protocol (STP):

• STP 802.1d
• RSTP 802.1w
• MSTP 802.1s

QoS:
Security:

IP, MAC, and port binding:

• 512 entries
• DHCP Snooping
• ARP inspection
• IPv4 source address protection: 100 entries

IPv6 address, MAC, and port binding:

• 512 entries
• DHCPv6 Snooping
• ND Detection
• IPv6 source address protection: 100 entries
• Protection against DoS attacks
• Port protection through static/dynamic port configuration
• Up to 64 MAC addresses per port
• Storm Control Broadcast/Multicast/Unicast: control mode (kbps/indicator)

802.1X Authentication:

• Port-based authentication
• MAC address-based authentication
• VLAN allocation
• MAB
• Guest VLAN
• Radius Authentication and Authorization
• AAA (including TACACS+)
• Port isolation
• Secure web-based management via HTTPS with SSLv3/TLS 1.2 encryption
• Secure CLI management with SSHv1/SSHv2 encryption
• Access control based on IP/port/MAC

Management, monitoring, configuration:

• GUI graphical interface
• Command line interface CLI via console port, Telnet

SNMP v1/v2c/v3:

• Trap/Inform
• RMON (groups 1,2,3,9)
• SDM template
• DHCP/BOOTP client
• LLDP/LLDP-MED 802.1ab
• Automatic DHCP installation
• Dual Image, Dual Configuration
• CPU usage monitoring
• Cable diagnostics
• EEE
• Password recovery
• SNTP
• System logs

L2 features:

IGMP Snooping

• IGMP v1/v2/v3 Snooping
• Fast Leave
• IGMP Snooping Querier
• IGMP Authentication
• IGMP Authentication
• MVR

MLD Snooping:

• MLD v1/v2 Snooping
• Fast Leave
• MLD Snooping Querier
• Static group configuration
• Restricted IP Multicast Forwarding
• Multicast Filtering: 256 profiles and 16 entries per profile

L3 features:

• 16 IPv4/IPv6 interfaces
• Static routing: 48 static routes
• Static ARP entries: 128 static entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server

DHCP Relay:

• DHCP Interface Relay
• DHCP VLAN Relay
• DHCP L2 Relay

Other functions:
Chassis type: Rack
Accessories included:

• TL-SX3016F Switch
• 2 Power Cords
• Quick Installation Guide
• Rack Mounting Kit
• Rubber feet

Power supply:

100-240 V AC~50/60 Hz

Dimensions:

440 × 220 × 44 mm
