TP-LINK TP-Link SG2210XMP-M2 sw itch 8×2.5GE PoE+ 2SFP+

TP-LINK TP-Link SG2210XMP-M2 sw itch 8×2.5GE PoE+ 2SFP+

Description:

SG2210XMP-M2

Omada Smart Switch, 2 x 10GE SFP+, 8 x 2.5GBASE-T PoE+ ports

• 8 x 2.5Gbps PoE+ 802.3at/af compliant ports
• 2 x 10Gbps SFP+ slots
• 160W total PoE power and up to 30W PoE power per port*
• Centralized Cloud Management via Omada App or Web
• Supports standalone management
• Static routing
• Fanless design for quiet operation

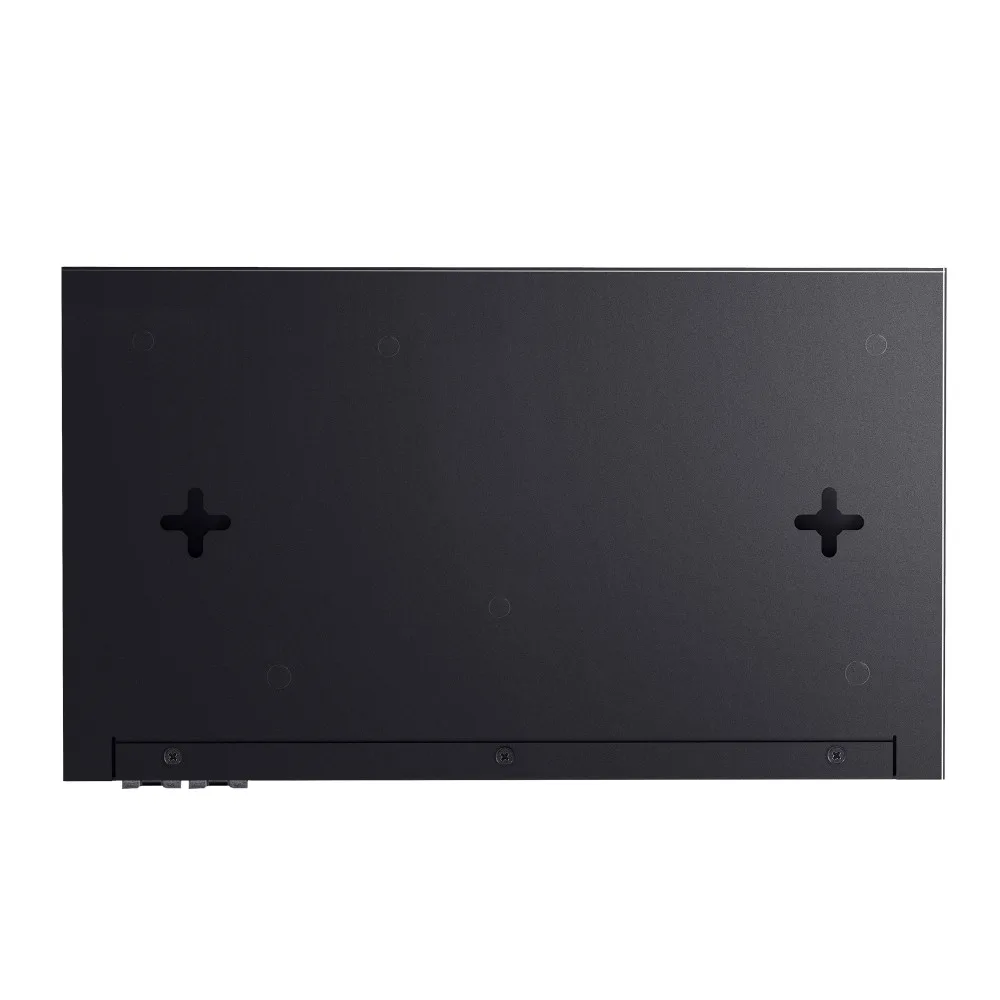

• Can be mounted on a tabletop or wall

Switch class: SMART
Application: Home and small office
Switch layer: L2
Switch layer: L2+
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: None
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 8
Number of PoE++ ports: 1
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 2
SFP28 ports: 1
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 80 Gigabajty na sek.
Forwarding rate: 59.52 Mpps
Packet buffer: 12 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
Stackability: No
VLAN:

• VLAN Groups
• Maximum 4K VLAN Groups
• 802.1Q VLAN Tagging
• MAC VLAN Address: 12 Entries
• VLAN Protocol
• GVRP
• Voice VLAN

Supported protocols and standards:
QoS:

• 802.1p CoS/DSCP Prioritization Support
• 8 Priority Queues
• Priority Schedule Mode:
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• Queue Weight Configuration
• Bandwidth Control
• Port/Flow-Based Rate Limiting
• Smoother Operation
• Storm Control
• Multiple Control Modes (kbps/rate)
• Broadcast/Multicast/Unknown-Unicast Transmission Control

Security:

IP-MAC-Port Binding

AAA

802.1X Authentication

• Port-Based Authentication
• MAC Address (Host)-Based Authentication
• Available Authentication Methods: PAP/EAP-MD5
• MAB
• Guest VLAN
• Radius Authentication and Authorization

IP/IPv6 and MAC Address Binding

• 512 Possible Entries
• DHCP Snooping
• DHCPv6 Snooping
• ARP Inspection
• ND Attack Detection
• ND Snooping

Source IP Protection

• 253 Possible Entries
• Source IP + Source MAC

Source IPv6 Protection

• 183 Possible Entries
• Source IPv6 + Source MAC

DoS Protection

• DHCP Filter

Protection of ports by their static/dynamic/fixed configuration

• Up to 64 MAC addresses per port

Storm Control Broadcast/Multicast/Unicast

• Port Isolation
• Secure Web Management via HTTPS with SSLv3/TLS 1.2 encryption
• Secure CLI Management with SSHv1/SSHv2 encryption
• Access Control based on IP/Port/MAC

Management, monitoring, configuration:
L2 features:

• 32 IP Interfaces: IPv4/IPv6 Interface Support
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
• DHCP Interface Relay
• DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

L3 features:
Other functions:

Advanced Features:

• Automatic Device Discovery
• Batch Configuration
• Batch Software Update
• Intelligent Network Monitoring
• Anomalous Event Alerts
• Unified Configuration
• Reboot Scheduler

Chassis type: Rack
Fan : No
Power supply : External
Power consumption: 71.5 Watt
Environment requirements:

• Permissible operating temperature: 0~40 (32~104),
• Permissible storage temperature: -40~70 (-40~158),
• Permissible air humidity: 10%~90%, non-condensing
• Permissible storage humidity: 5%~90%, non-condensing

Certificates:

CE, FCC, RoHS

Accessories included:

• SG2210XHP-M2
• Power Supply
• Quick Installation Guide
• Rubber Feet

Power supply:

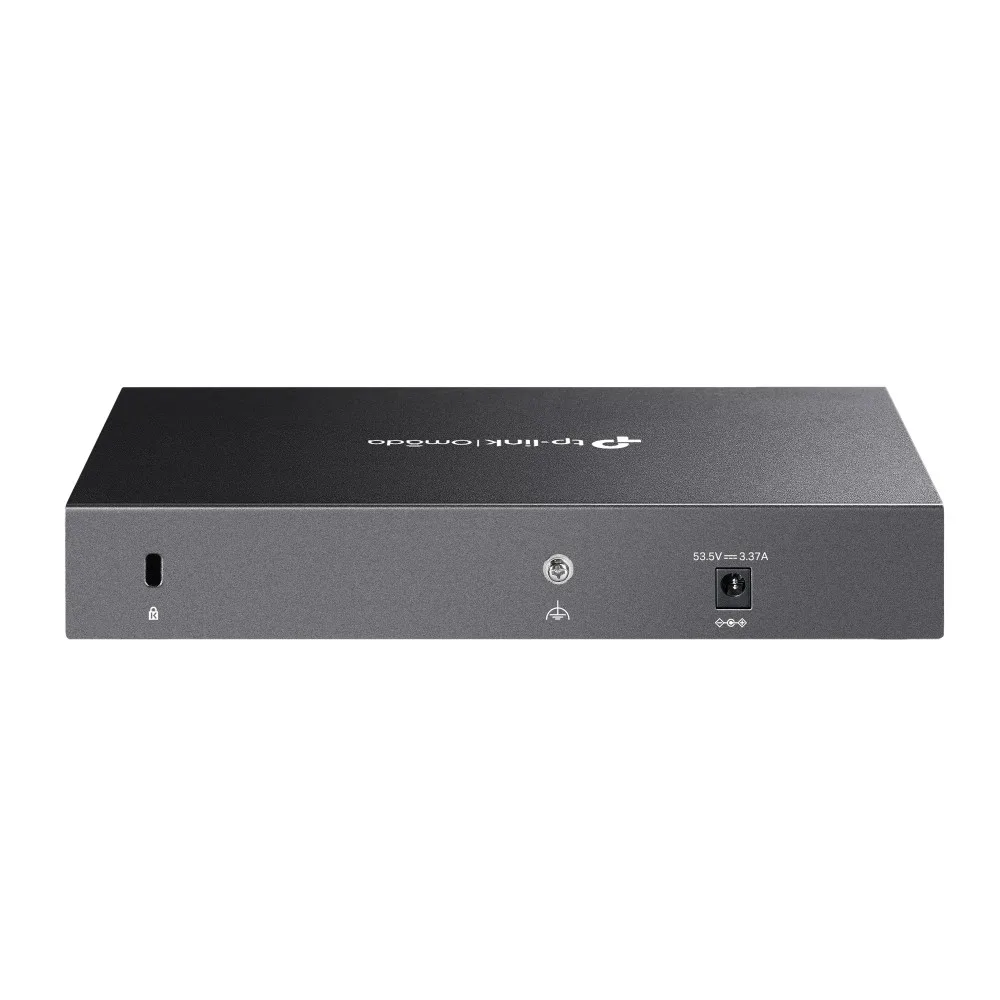

Power supply 53.5V DC / 3.37A

Dimensions:

226 × 131 × 35 mm

Other features:
Designation:
