TP-LINK TP-Link EAP211-Bridge K IT 867 Mbps In/Outdoor

TP-LINK TP-Link EAP211-Bridge K IT 867 Mbps In/Outdoor

Description:

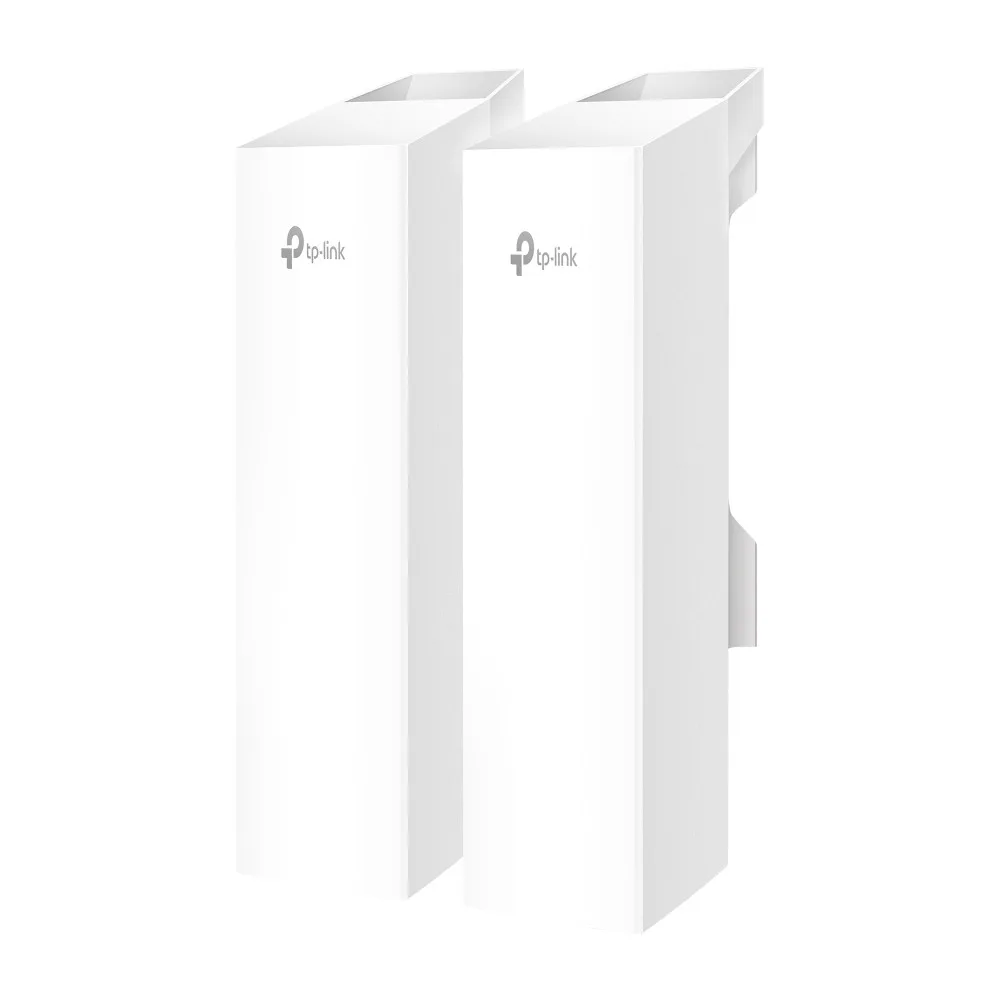

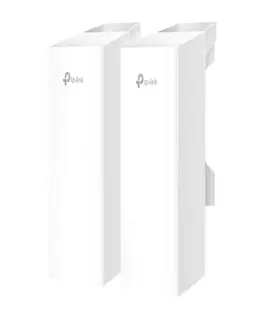

EAP211-Bridge KIT

Omada 867Mbps Indoor/Outdoor 5GHz Wireless Bridge

• 802.11ac Wi-Fi with speeds up to 867Mbps on the 5GHz band*1
• Ideal for wireless data transmission up to 1km*2
• Automatic pairing and LEDs for easy deployment

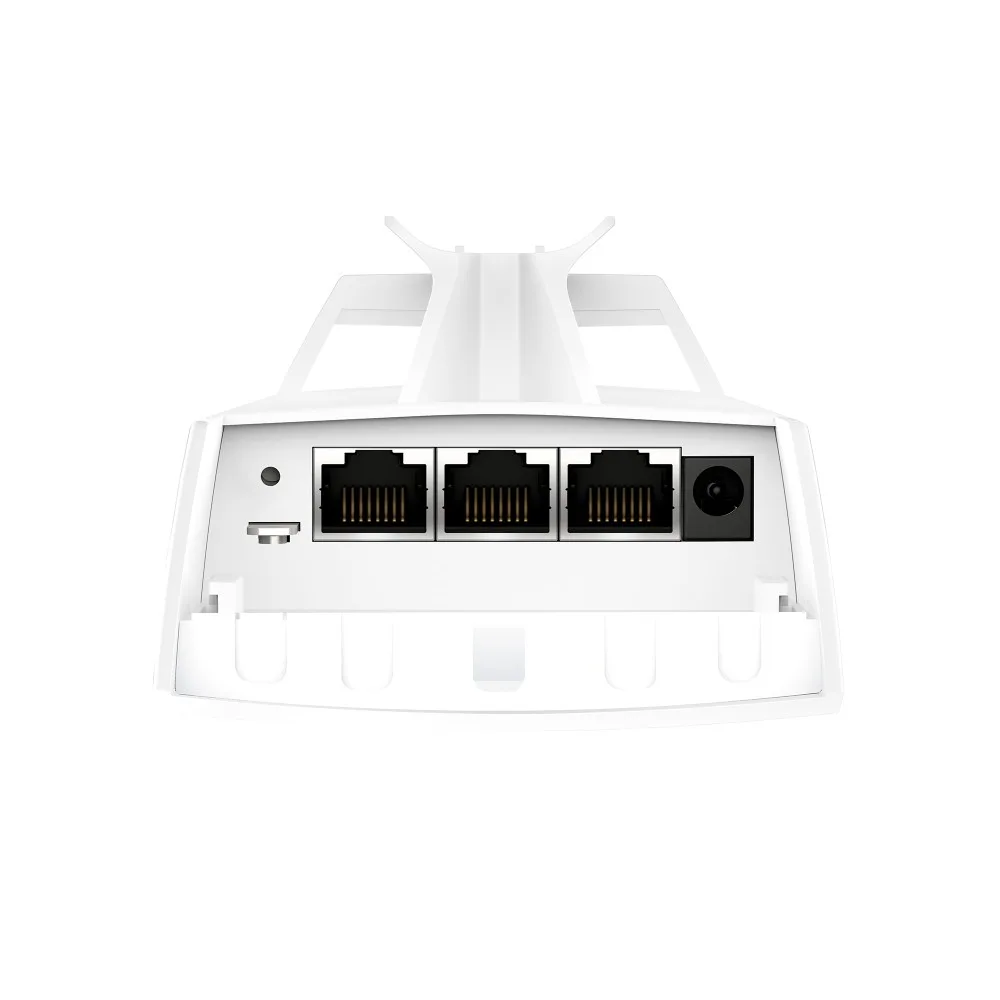

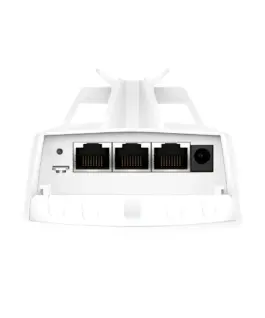

• 3 Gigabit Ethernet ports provide fast connections for IP cameras
• Centralized and remote management with Omada SDN integration
• IP65-rated housing and 6kV lightning protection enable all-weather operation*3
• Flexible deployment with Passive PoE support (adapter included)

Network architecture: GigabitEthernet
I/O ports: 3 x 10/100/1000 Mbit/s
Operating frequency: 5 GHz
Standards: 802.11a
Standards: 802.11ac
Standards: 802.11n
Standards: 802.11g
Standards: 802.11b
Number of antennas: 2
Antenna: Built-in
Antenna gain: 7 dBi
Security:

• VLAN
• Access Control
• Rogue AP Detection
• Captive Page Authentication*4
• Maximum MAC Filtering: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise Encryption

Management, monitoring, configuration:

• Omada App
• Backup and Restore
• Website Firmware Upgrade
• NTP
• Cloud Access: Yes. Requires OC300 Controller, OC200 Controller, Omada Cloud-based Controller, or Omada Software Controller.
• LED Off
• MAC Access Control
• SNMP v1, v2c, v3
• SSH
• Website Management

Central Management:

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-based Controller

Special functions:
Power supply:

12V DC / 24V Passive PoE (Passive PoE adapter included)

Software:
System Requirements:
Environment requirements:

• Weatherproof housing: IP65
• Permissible operating temperature: -4070
• Permissible storage temperature: -4070
• Permissible air humidity: 10%90%, non-condensing
• Permissible storage humidity: 5%90%, non-condensing

Certificates:

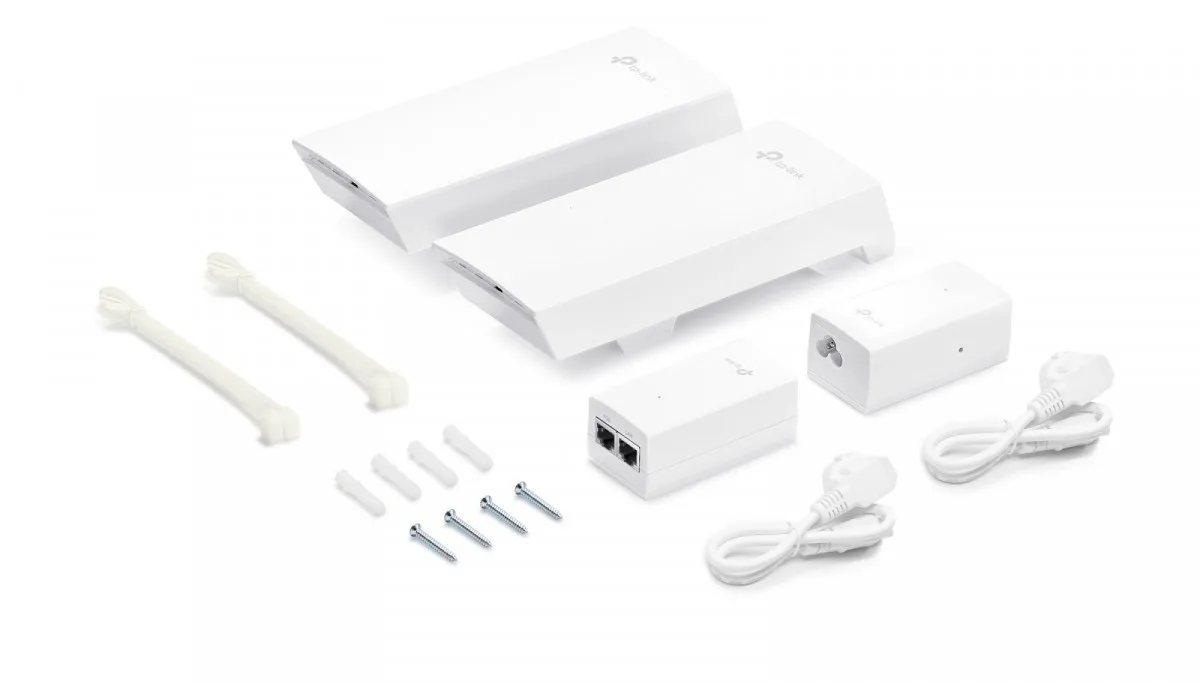

Accessories included:

• EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit

Color: White
Dimensions:

224 × 79 × 60 mm

Other features:
Designation:
