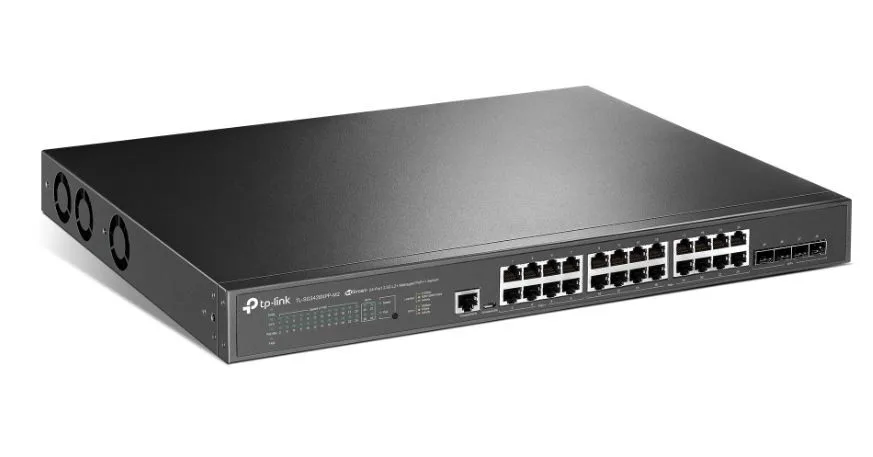

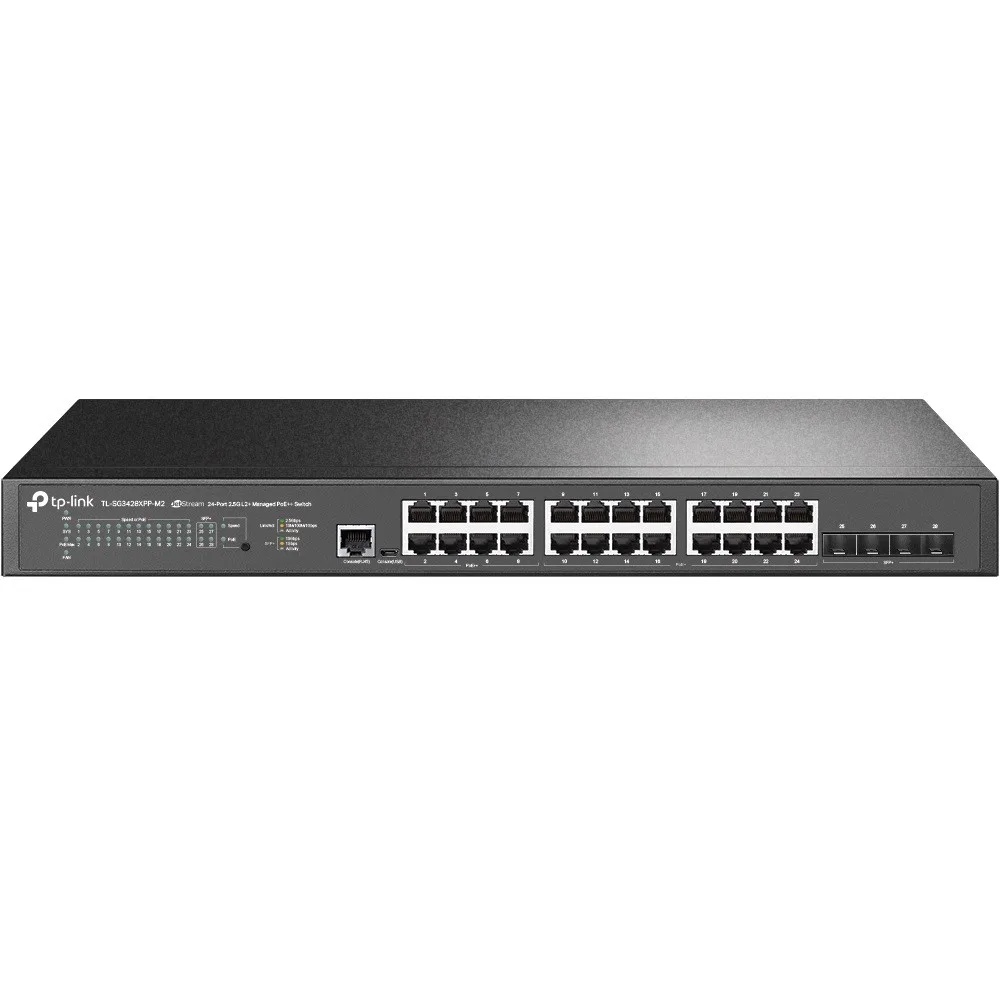

TP-LINK Switch SG3428XPP-M2 24×2.5GE PoE+ 4SFP+

TP-LINK Switch SG3428XPP-M2 24×2.5GE PoE+ 4SFP+

Description:

• 24× 2.5Gbps ports break through the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.

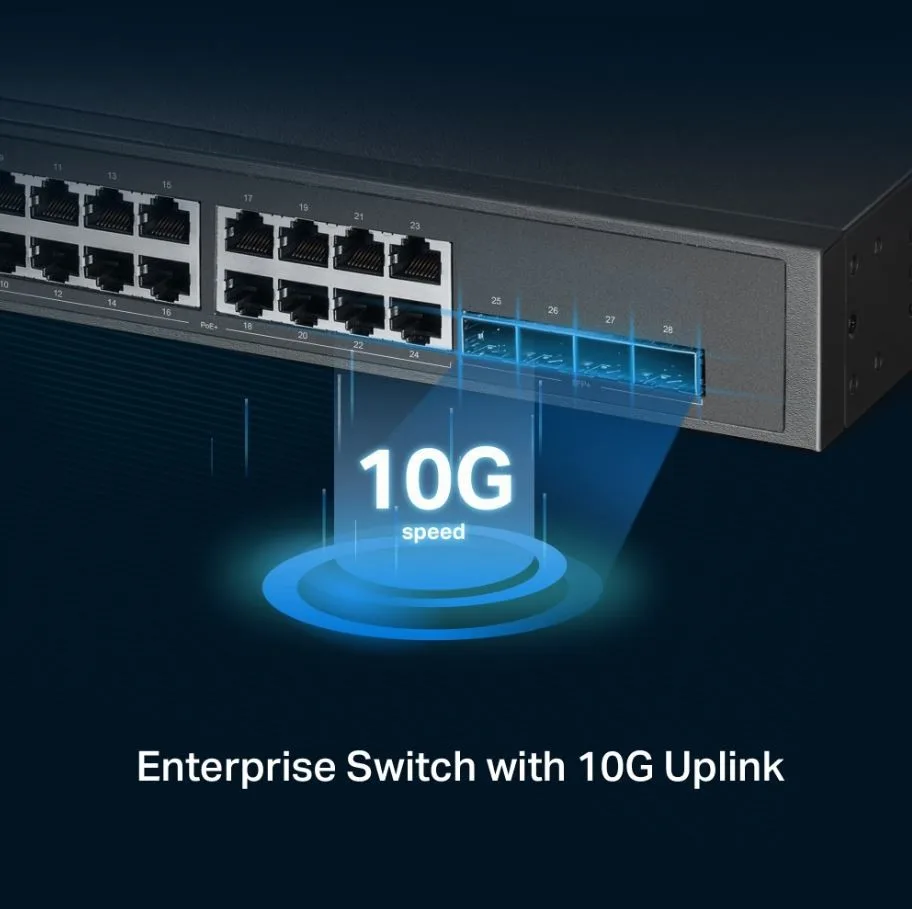

• 4× 10Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching.
• 8× 802.3bt/at/af-compliant PoE++ ports and 16× 802.3at/af-compliant PoE+ ports, with a combined 500W of available power.
• Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring.
• Access to the Omada cloud and app for ultimate convenience and easy management.
• Helps direct internal traffic for more efficient use of network resources.
• L2/L3/L4 Quality of Service (QoS) and IGMP snooping.

Switch class: Managed
Application: Medium and large companies
Switch layer: L2
Switch layer: L2+
Switch layer: L3
Switch layer: L4
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: None
10/100/1000/2500 Mbps ports: 24
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 4
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: Yes
Throughput: 200 Gigabity na sek.
Forwarding rate: 148.8 Mpps
MAC address table size: 32000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:

• VLAN Group, Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 256 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ
• Voice VLAN

Supported protocols and standards:
QoS:

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
• Bandwidth Control: Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark

Security:

• IP-MAC-Port Binding: 512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding: 512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security: Up to 64 MAC addresses per port
• 802.1X: Port base authentication, Mac base authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication andaccountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

Management, monitoring, configuration:
L2 features:
L3 features:

• 32 IPv4/IPv6 Interfaces
• Static Routing: 48 static routes
• Static ARP: 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay

Other functions:
Chassis type: Rack
Fan : Yes
Power supply : External
Power consumption: 629.1 Watt
Environment requirements:

• Operating Temperature: 0-40 degrees Celsius,
• Storage Temperature: -40-70 degrees Celsius,
• Operating Humidity: 10-90% RH, non-condensing
• Storage Humidity: 5-90% RH, non-condensing

Certificates:

CE, FCC, RoHS

Accessories included:

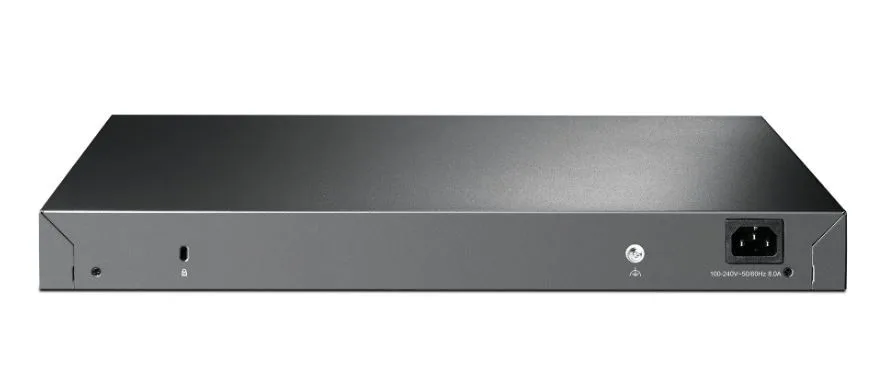

Power supply:

100-240 V AC~50/60 Hz

Dimensions:

440 × 330 × 44 mm

Other features:

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.

Designation:
