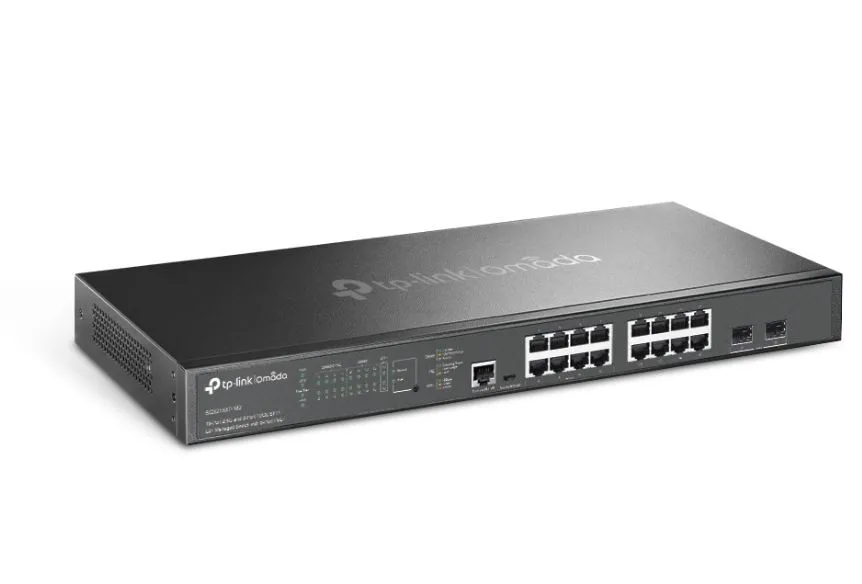

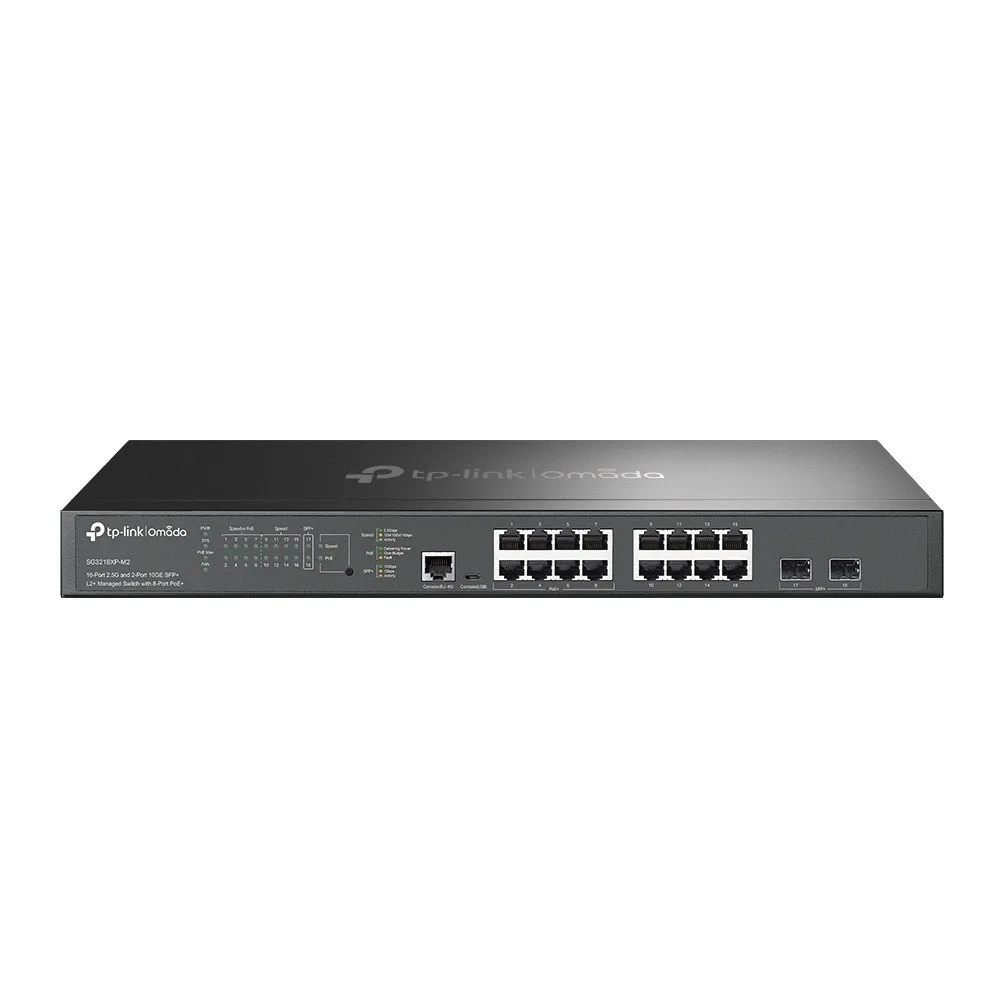

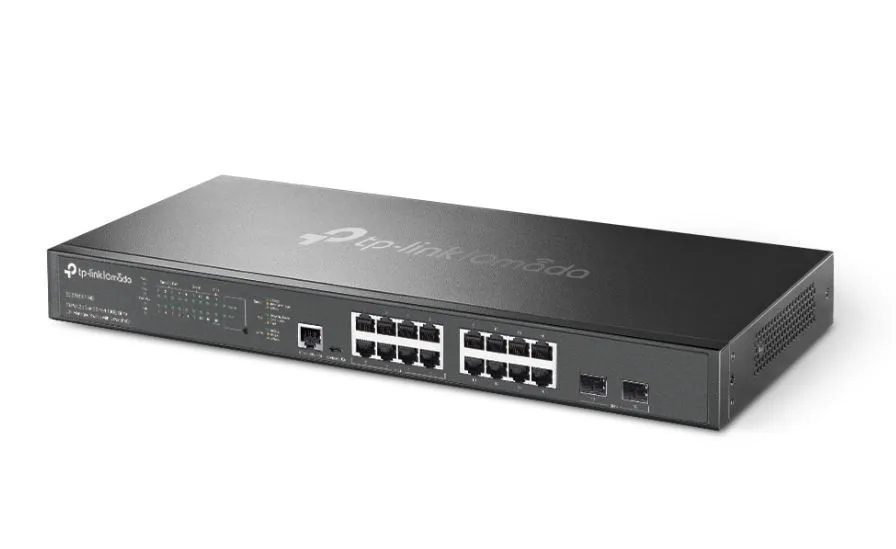

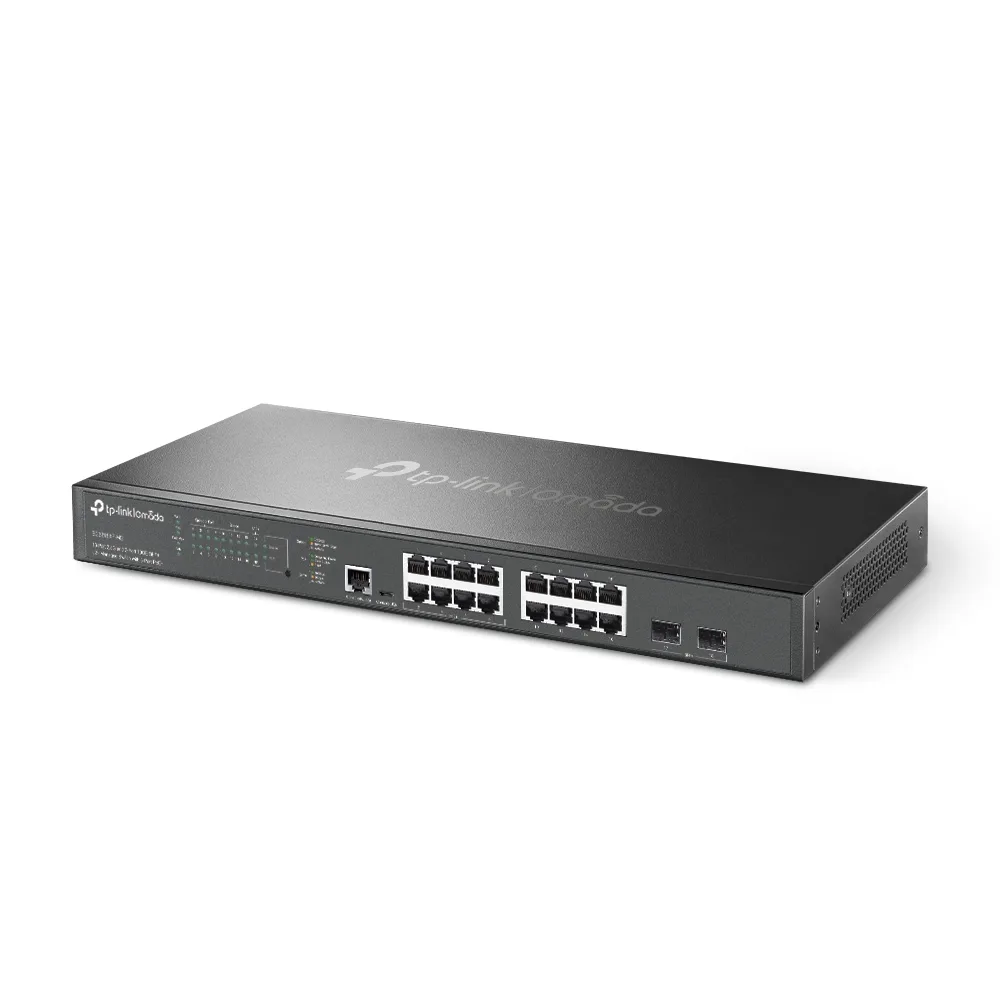

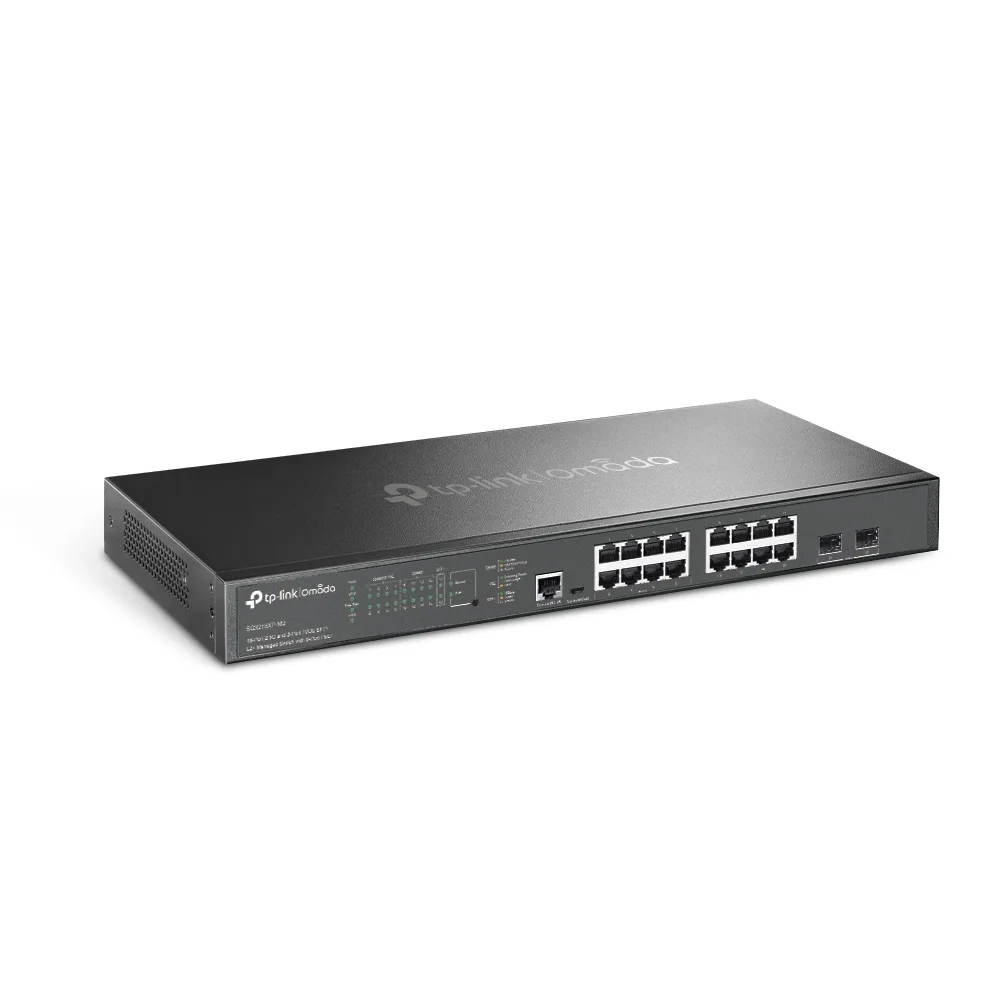

TP-LINK Switch SG3218XP-M2 16×2.5GE PoE+ 2SFP+

TP-LINK Switch SG3218XP-M2 16×2.5GE PoE+ 2SFP+

Description:

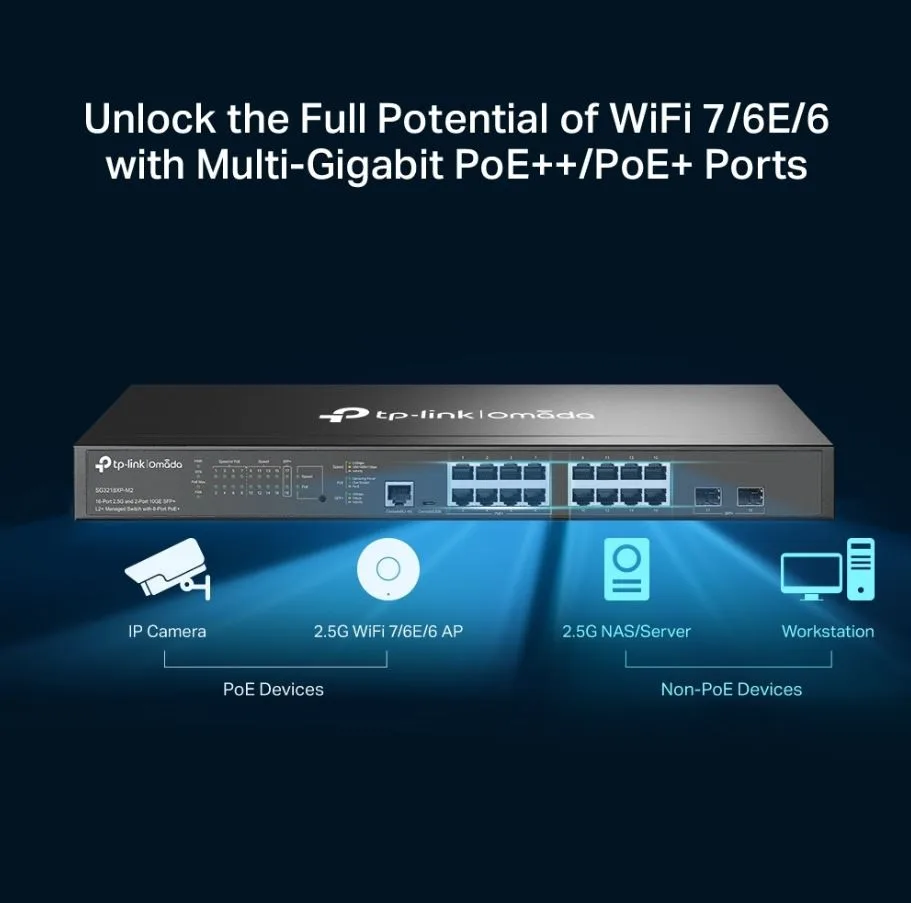

• 8× 2.5Gbps PoE+ ports and 8× 2.5Gbps Non-PoE ports break the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.
• 2× 10Gbps SFP+ slots enable high-throughput connections.
• 8× 802.3at/af-compliant PoE+ ports with a combined power supply of 240W.
• Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring.
• Access to the Omada cloud and app for ultimate convenience and easy management.
• Helps direct internal traffic for more efficient use of network resources.
• IP-MAC-Port Bindings, ACLs, port security, DoS defense, DHCP Snooping, 802.1X, Radius authentication, and more.
• L2/L3/L4 Quality of Service (QoS) and IGMP snooping.

Switch class: Managed
Application: Home and small office
Switch layer: L2
Switch layer: L2+
Switch layer: L3
Switch layer: L4
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: None
10/100/1000/2500 Mbps ports: 16
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 8
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 2
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: Yes
Throughput: 120 Gigabity na sek.
Forwarding rate: 89.28 Mpps
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
Stackability: No
VLAN:

• VLAN Group: Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 256 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ
• Voice VLAN

Supported protocols and standards:
QoS:

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
• Bandwidth Control: Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark

Security:

• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

Management, monitoring, configuration:
L2 features:

• IGMP Snooping
• IGMP v1/v2/v3 Snooping: Fast Leave, IGMP Snooping Querier, IGMP Authentication
• IGMP Authentication
• MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile

L3 features:
Other functions:
Chassis type: Rack
Fan : Yes
Power supply : External
Power consumption: 299.4 Watt
Environment requirements:

• Operating Temperature: 0-50 degrees Celsius
• Storage Temperature: -40-70 degrees Celsius
• Operating Humidity: 10-90% RH, non-condensing
• Storage Humidity: 5-90% RH, non-condensing

Certificates:

CE, FCC, RoHS

Accessories included:
Power supply:

100-240 V AC~50/60 Hz

Dimensions:

440 × 180 × 44 mm

Other features:
Designation:
