TP-LINK Switch SG2005P-PD 5xGE (1xPoE++ 4xPoE+)

TP-LINK Switch SG2005P-PD 5xGE (1xPoE++ 4xPoE+)

Description:

SG2005P-PD Omada Smart Switch, 5 gigabit ports, including 1 PoE++ IN port and 4 PoE+ OUT ports

• Up to 200 m of PoE transmission: The PoE Passthrough standard allows you to increase the PoE transmission range (source to device) from 100 m to a maximum of 200 m (up to 100 m to the switch + up to 100 meters from the switch), without losing gigabit speeds. This is ideal for remote surveillance cameras and access points.
• 1 Gigabit PoE++ IN port and 4 PoE+ OUT ports: Supports up to 64 W / 44 W / 19 W / 6 W of PoE output during power supply – according to the 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W) standard respectively , 802.3at and 802.3af PoE
• Weather resistance: IP55 tightness class and UV-resistant housing. Permissible temperature ranging from -40 to 60 °C and 4kV lightning protection ensures stable operation even in difficult conditions outside the building.
• Easy installation: Placing the device on a wall or pole is hassle-free thanks to the included mounting kit.
• Centralized Cloud Management: Integration with Omada SDN enables cloud access, remote management, and multi-site management.
• Features that add value and capabilities: Static Routing, Access Control List (ACL), QoS and VLAN.

PoE powered PoE switch:

• Simple network deployment outside the building
• Omada Smart gigabit switch
• 1 PoE++ IN port
• 4 PoE+ OUT ports
• Power supply via PoE++/PoE+/PoE
• Total PoE power supply 64 W on 4 PoE+ output ports
• Doubling the PoE range to 200m without losing gigabit speeds
• Gigabit ports
• Easy installation – Pole/wall mounting
• Water and UV radiation resistant housing
• Centralized management of multiple sites
• Static routing

The PoE Passthrough standard allows you to increase the PoE transmission range to a maximum of 200m, without losing gigabit speeds.

Eliminate network restrictions and transmit data and power over a single cable, simplifying installation and reducing implementation costs. Increase the PoE transmission range (source to device) from 100m to a maximum of 200m without losing gigabit speeds. This is an ideal solution for remote surveillance cameras and access points.

1 Gigabit PoE++ IN port

4 Gigabit PoE+ OUT ports

Supports up to 64W / 44W / 19W / 6W PoE output when powered – 802.3bt Type 4 (90W), 802.3bt Type 3 (60W), 802.3at and 802.3af PoE respectively. The PoE-PD switch automatically detects the required PoE power of your devices and protects non-PoE devices from damage.

Weather-resistant housing designed for outdoor use

The IP55 enclosure rating, assessed through penetration testing, ensures that the rugged and weather-resistant enclosure will protect the switch from harsh outdoor environments.

Easy assembly, tailored to your needs

The compact design of the switch allows for easy and flexible installation, for example on an external junction box.

The set includes elements for mounting on a wall or pole.

Additional features that add value and capabilities

• Static Routing – Helps direct internal traffic for more efficient use of network resources.
• Access Control List (ACL) – ACL acts as a virtual administrator, allowing all connected devices to obtain data according to user-defined network rules and helps you create the network regulations you need.
• QoS – Prioritize traffic based on QoS, ensuring smooth operation of latency-sensitive applications such as voice and video calls.
• VLAN Secure and flexible management – VLAN allows you to logically group the management of devices on different physical LANs, increasing data security and reducing data traffic congestion.

Software control of network infrastructure (SDN) with access from the cloud

Omada’s software-defined network (SDN) platform integrates the operation of network devices, including access points, switches and gateways, providing comprehensive central management from the cloud. Omada enables you to create a highly scalable network – fully controlled via a single interface.

Switch class: SMART
Application: Home and small office
Switch layer: L2
Switch layer: L2+
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 5
Number of PoE+ ports: 4
Number of PoE++ ports: 1
Console port: No
Forwarding mode: Store-and-forward
Throughput: 10 Gigabity na sek.
Forwarding rate: 7.44 Mpps
Packet buffer: 4.1 MegaBajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
Stackability: No
Number of VLAN groups: 4000
VLAN:

• VLAN Groups – Max. 4K VLAN groups
• 802.1Q VLAN tagging
• VLAN MAC Address: 12 entries
• VLAN protocol
• GVRP
• Voice VLAN

Supported protocols and standards:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3ad
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.3x
• IEEE 802.1d
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1q
• IEEE 802.1p
• IEEE 802.1x



QoS:

• Supports 802.1p CoS/DSCP prioritization
• 8 priority rounds
• Queue weight configuration
• Smoother operation
• Bandwidth Control – Limiting transfer speeds based on port/data flow

Priority Schedule Mode:

• SP (Strict Priority)
• WRR (Weighted Round Robin)

Storm Control:

• Multiple control modes (kbps/rate)
• Broadcast/Multicast/Unknown-Unicast transmission control

Security:

• AAA
• Protection against DoS attacks
• Port protection through their static/dynamic/permanent configuration – Up to 64 MAC addresses per port
• Storm Control Broadcast/Multicast/Unicast – Control mode (kbps/indicator)
• Port isolation
• Secure web-based management via HTTPS with SSLv3/TLS1.2 encryption
• Secure CLI management with SSHv1/SSHv2 encryption
• Access control based on IP/Port/MAC

802.1X authentication:

• Port-based authentication
• Authentication based on MAC address (Host)
• Authentication methods available: PAP/EAP-MD5
• MAB
• Guest VLAN
• Authentication and authorisation via Radius

IP/IPv6 and MAC address binding:

• 512 possible entries
• DHCP Snooping
• DHCPv6 Snooping
• ARP inspection
• ND attack detection

Source IP address protection:

• 253 possible entries
• Source IP address + source MAC address

IPv6 source address protection:

• 183 possible entries
• Source IPv6 address + source MAC address

Management, monitoring, configuration:

• Omada app
• Central management
• Cloud access
• Maintenance-free ZTP configuration

Management panel features:

• GUI graphical interface
• CLI command line interface
• SNMP v1/v2c/v3
• SNMPTrap/Inform
• RMON (groups 1, 2, 3, 9)
• SDM template
• DHCP/BOOTP client
• Dual Image, Dual Configuration
• CPU usage monitoring
• Cable diagnostics
• EEE
• SNTP
• System log

L2 features:

• 16 IP interfaces – Support IPv4/IPv6 interface
• Static routing – 32 IPv4/IPv6 static routes
• DHCP server
• DHCP L2 Relay
• Static ARP entries
• Proxy ARP
• Gratuitous ARP
• Loopback detection
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
• Flow Control – 802.3x Flow Control

DHCP Relay:

• DHCP Interface Relay
• DHCP VLAN Relay

Link Aggregation:

• Static link aggregation
• Up to 8 aggregation groups and up to 8 ports per group
• LACP 802.3ad

Spanning Tree Protocol (STP):

• STP 802.1D
• RSTP 802.1w
• MSTP 802.1s
• STP security: TC protection, BPDU filtering/protection, Root protection

Mirroring:

• Port Mirroring
• CPU mirroring
• One-to-One transfer
• Many-to-One Transfer
• Based on flow
• Ingress/Egress/Both

L3 features:
Other functions:

• Automatic device detection
• Group configurations
• Bulk software updates
• Intelligent network health monitoring
• Warnings about unusual events
• Unified configuration process
• Restart schedule

Chassis type: Desktop
Fan : No
Power consumption: 71.5 Watt
Environment requirements:

• Permissible operating temperature: -40~60°C (-40~140°F),
• Permissible storage temperature: -40~70°C (-40~158°),
• Permissible air humidity: 10%~90%, no condensation
• Permissible storage humidity: 5%~90%, non-condensing

Certificates:

• CE
• FCC
• RoH



Accessories included:

• SG2005P-PD
• Zestaw montażowy
• Instrukcja instalacji

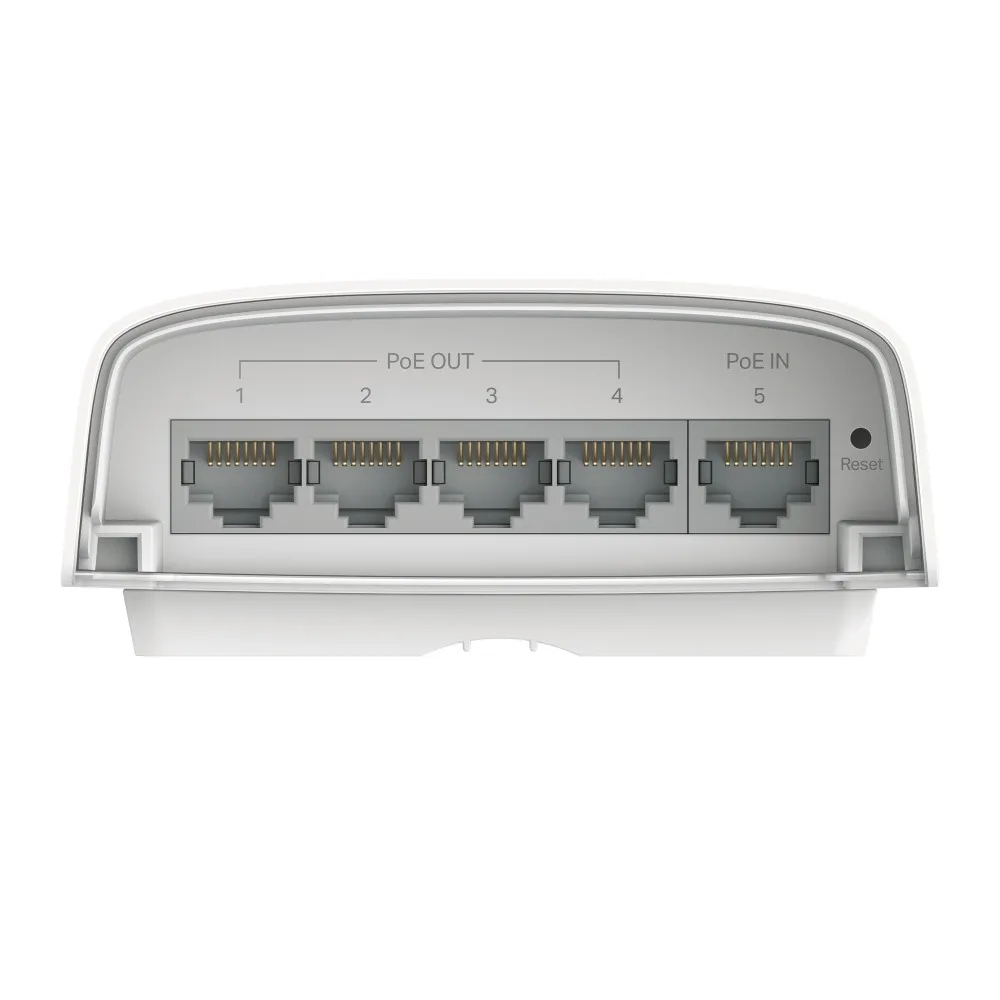

Power supply:

• Obtained from an 802.3af/at/bt PoE power source
• PoE IN port (Port 5) compliant with 802.3af/at/bt
• PoE OUT ports (Ports 1-4) compliant with 802.3af/at PoE

Total PoE power supply:

• 64W when powered by 802.3bt Type 4 (90W)
• 44W when powered by 802.3bt Type 3 (60W)
• 19 W when powered by 802.3at
• 6W when powered by 802.3af

Dimensions:

100 x 38,5 x 170 mm
