TP-LINK Switch SG1005P-PD 5xGE (1xPoE++ 4xPoE+)

TP-LINK Switch SG1005P-PD 5xGE (1xPoE++ 4xPoE+)

Description:

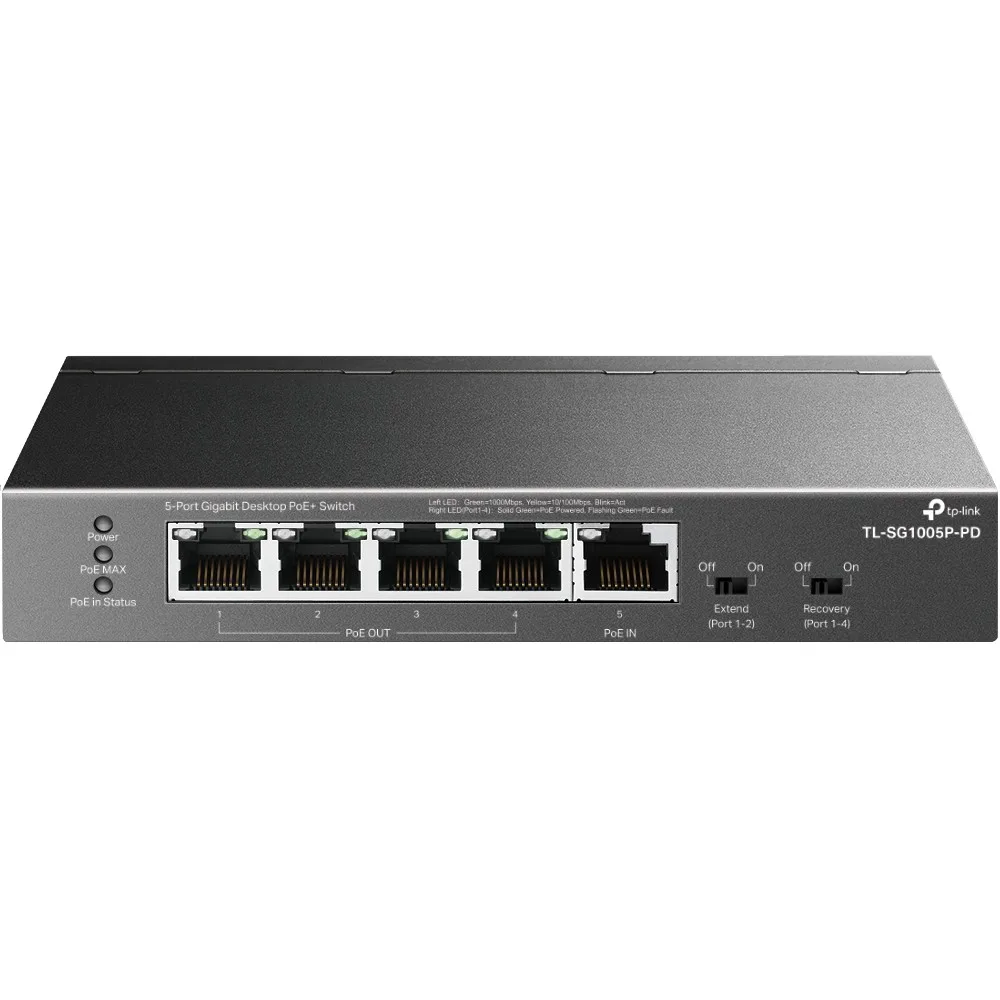

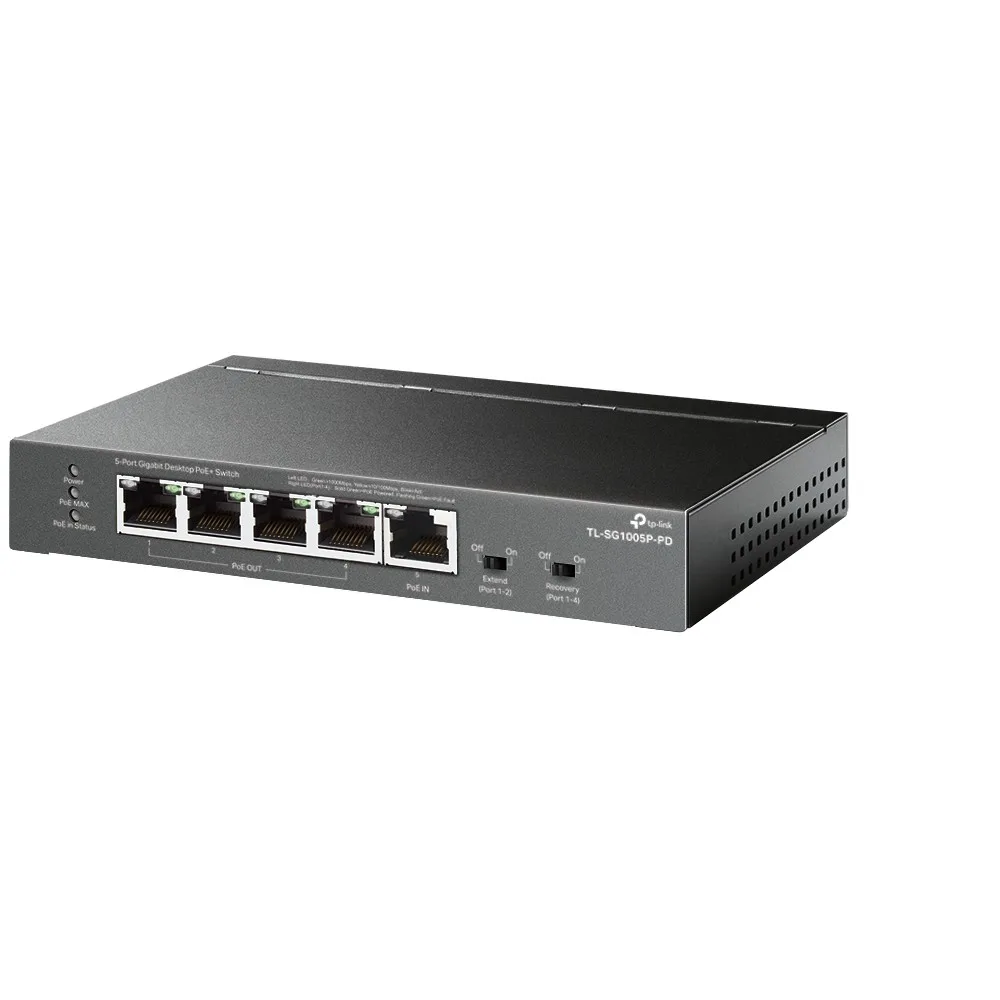

TL-SG1005P-PD Desktop PoE+ Switch, 5 Gigabit ports, including 1 PoE++ IN port and 4 PoE+ OUT ports

• Ports: 5 RJ45 ports 10Mb/s / 100Mb/s / 1Gb/s
• 1 Gigabit PoE++ IN port and 4 PoE+ OUT ports: Supports up to 66 W / 47 W / 21 W / 9 W output PoE power – when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at and 802.3af PoE respectively.
• Long PoE+ range: In Extend Mode, PoE transmission range reaches up to 250m, being ideal for deploying cameras over large areas.
• PoE Auto Recovery: A function that guarantees stable operation of PoE devices by automatically restarting them when they lose connection or stop responding.
• Metal chassis: The robust metal chassis and ability to be mounted on a desk or wall will work well in a wide variety of environments.
• Quiet operation: The fanless design ensures silent operation, suitable for homes and businesses.
• Plug and Play: No configuration or complicated installation required.
• Power: The product can only be powered from a PoE source. AC and DC power supply is not supported.

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 5
Number of PoE+ ports: 4
Number of PoE++ ports: 1
Console port: No
Forwarding mode: Store-and-forward
Throughput: 10 Gigabity na sek.
Forwarding rate: 7.44 Mpps
MAC address table size: 2000
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.3x
• IEEE 802.1p

QoS:
Security:
Management, monitoring, configuration:

• Extend Mode (Ports 1-2, up to 250 m of PoE power and data transmission)
• PoE Auto Recovery (Ports 1-4)
• Automatic learning and blanking of MAC addresses
• IEEE 802.3x flow control
• 802.1p/DSCP QoS
• IGMP Snooping

L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power consumption: 68.59 Watt
Environment requirements:

• Permissible operating temperature: -30~70°C (-22~158°F)
• Permissible storage temperature: -40~70°C (-40~158°F)
• Permissible air humidity: 10% ~ 90%, no condensation
• Permissible storage humidity 5%~90%, no condensation

Certificates:

• CE
• FCC
• RoHS

Accessories included:

• TL-SG1005P-PD
• Installation Guide

Power supply:

• Powered only from a PoE source
• PoE IN port (Port 5) compliant with 802.3af/at/bt Type3/bt Type4
• PoE OUT ports (Ports 1-4) compliant with 802.3af/at

Total PoE power supply:

• 66 W when powered by 802.3bt Type 4 (90 W)
• 47 W when powered by 802.3bt Type 3 (60 W)
• 21W when powered by 802.3at (30W)
• 9W when powered by 802.3af (15.4W)

Dimensions:

158 x 101 x 25 mm

Other features:

• AUTO Negotiation
• AUTO MDI/MDIX

Designation:
