TP-LINK SL1226P Switch 24xFE PoE+ 2x1Gb

TP-LINK SL1226P Switch 24xFE PoE+ 2x1Gb

Description:

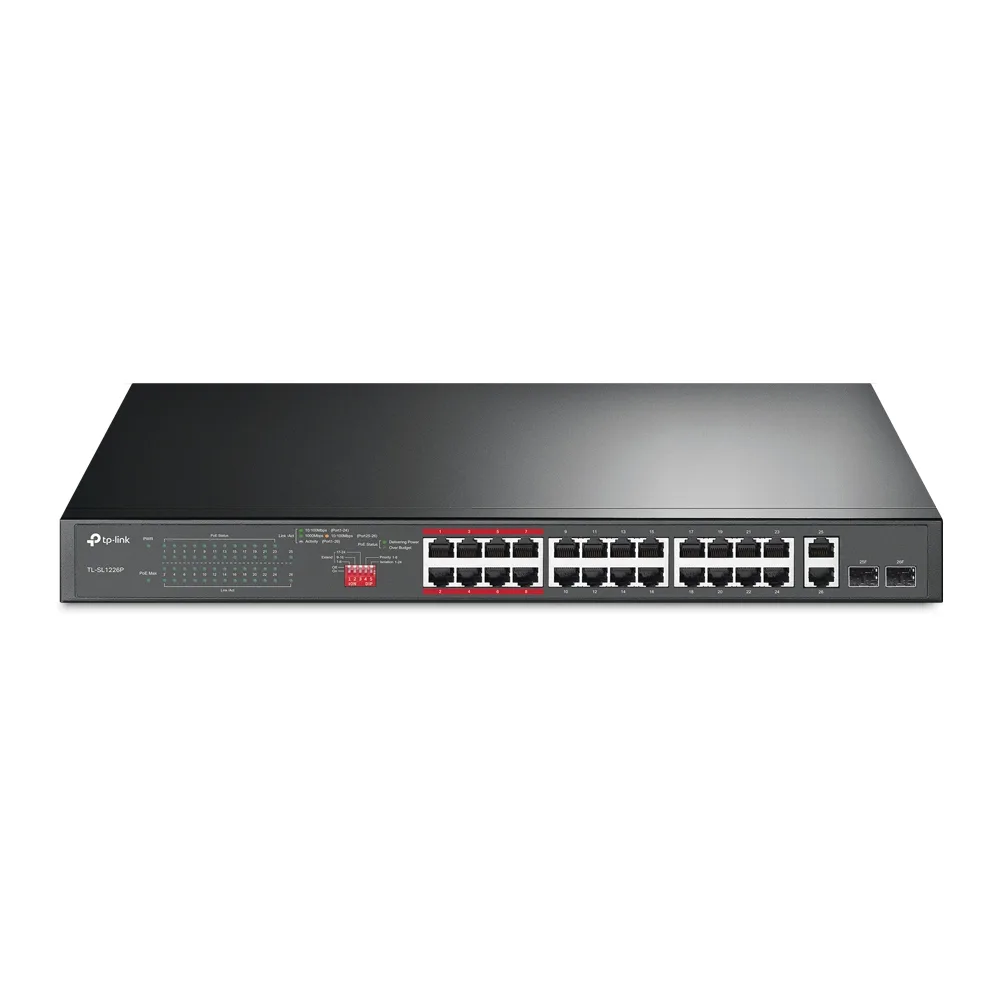

TP-Link SL1226P PoE+ Switch

• 24 RJ45 10/100 Mbps PoE+ ports, 2 gigabit RJ45 ports and 2 gigabit SFP combo slots.

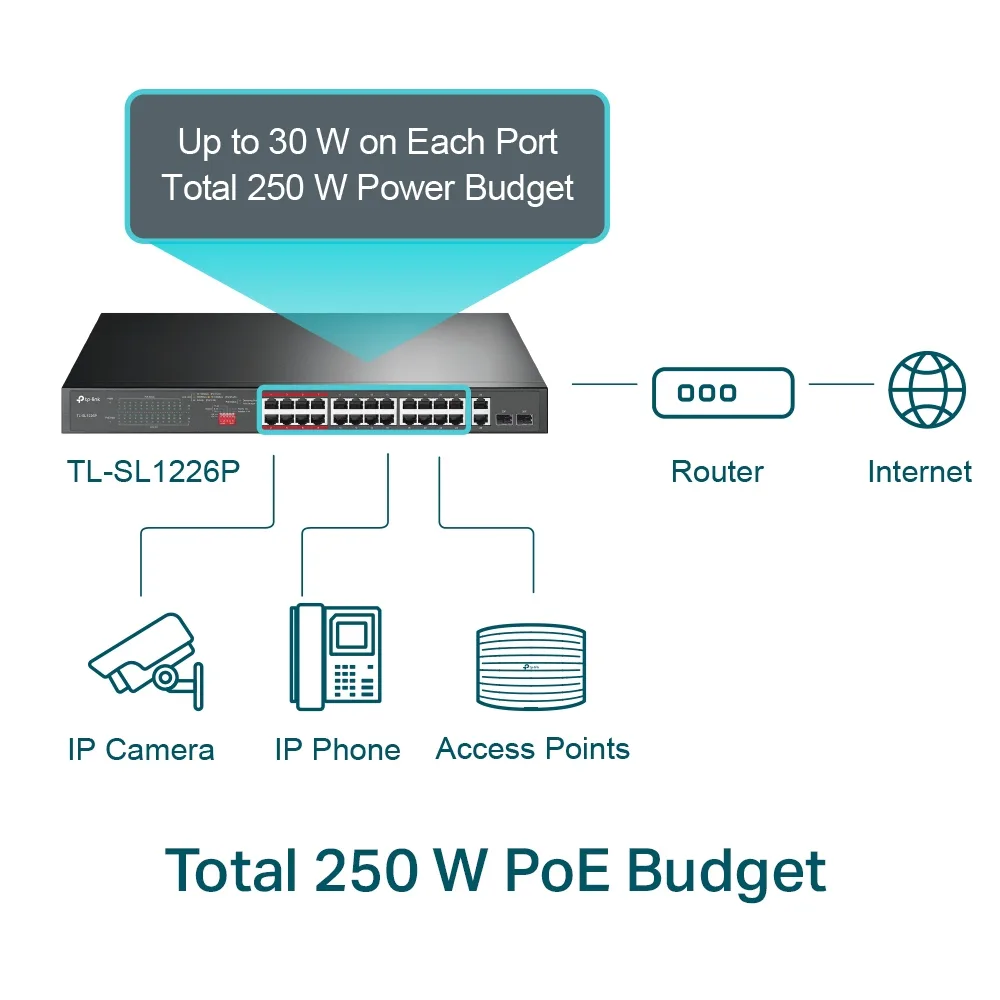

• High total PoE power – up to 30 W per PoE port and 250 watts for all PoE ports.
• Up to 250 m data and power transmission range in Extend mode – ideal for surveillance systems, among others.
• Priority Mode provides high priority to port 18 to maintain high performance in systems susceptible to interference, such as video surveillance.
• Isolation mode allows one-click separation of client-generated traffic for enhanced protection and performance.

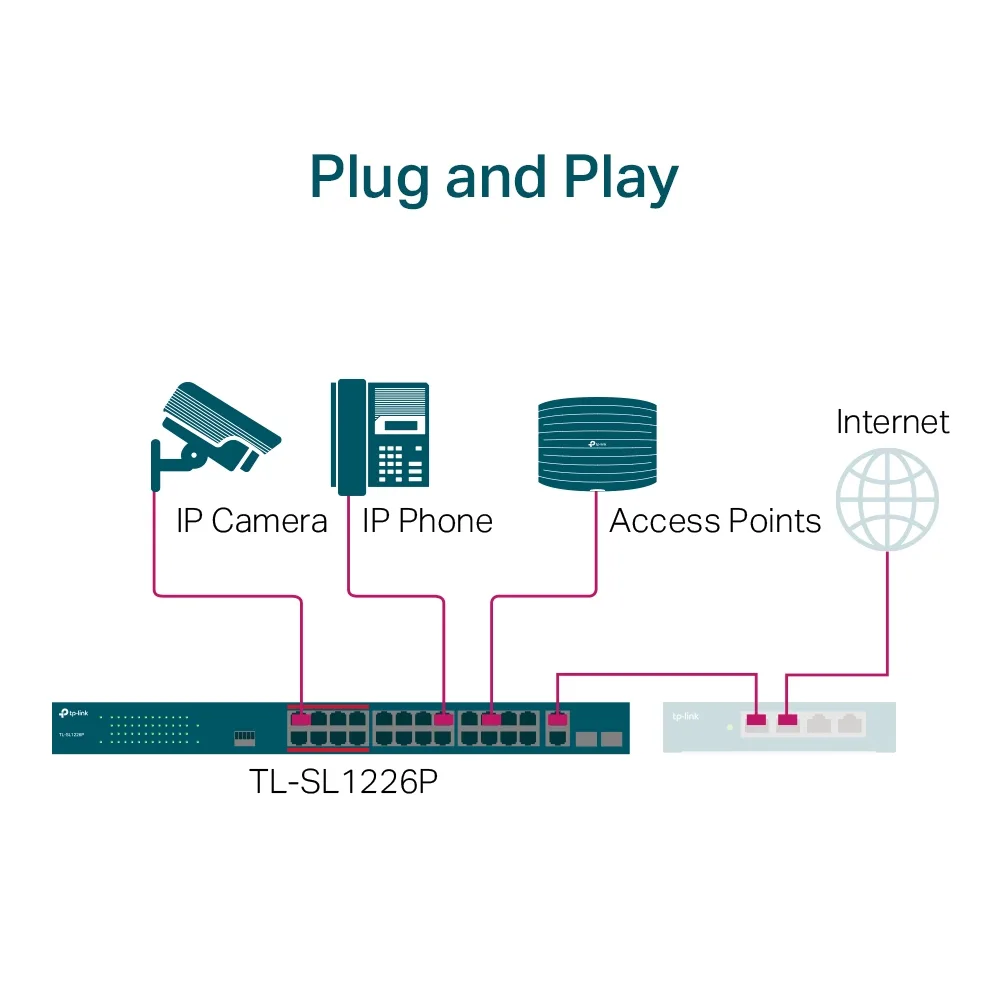

• Plug and play connectivity, no configuration or complex installation required.

Switch class: Unmanaged
Application: Medium and large companies
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: 24
Number of 10/100/1000 Mbps ports: 2
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 24
Number of COMBO ports: 2
Number of SFP ports: 2
Number of SFP+ ports: None
Number of QSFP+ ports: None
Forwarding mode: Store-and-forward
Throughput: 8.8 Gigabity na sek.
MAC address table size: 8000
VLAN:
Supported protocols and standards:
QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:

• PoE + power supply (802.3af/at) with power consumption up to 30 W per port
• Total power supply up to 250 W
• Extend mode (range up to 250 ms with 10 Mbps transmission)
• Priority mode for the first 8 ports
• Isolation mode
• Plug and play
• Jumbo Frame 10 KB support

Chassis type: Desktop
Fan : Yes
Power consumption: 18.32 Watt
Accessories included:

• Power cable
• Installation manual
• Two mounting housings and fasteners

Power supply:

100-240 V AC, 50/60 Hz

Dimensions:

440 × 180 × 44 mm

Other features:
Designation:
