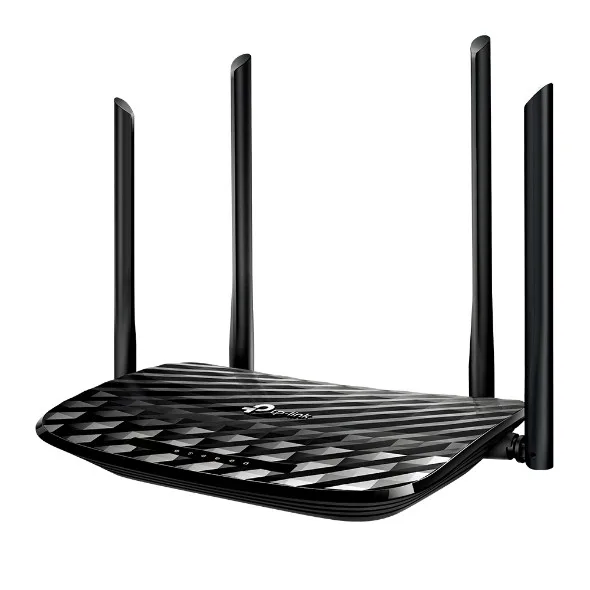

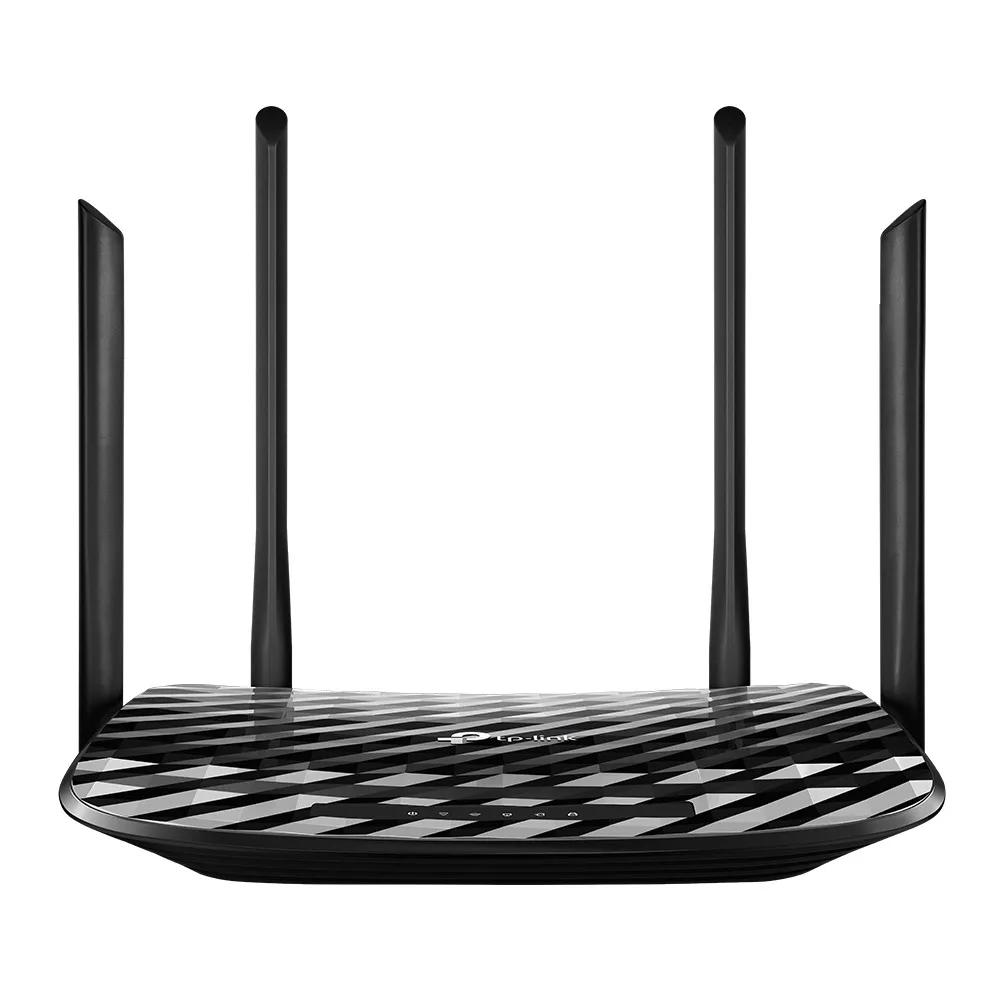

TP-LINK Router EC225-G5 AC1300 3LAN 1WAN

TP-LINK Router EC225-G5 AC1300 3LAN 1WAN

Model:

EC225-G5

Description:
Type: xDSL
Network architecture: GigabitEthernet
I/O ports: 1 x WAN (RJ-45)
I/O ports: 3 x 10/100/1000 Mbit/s
Standards: 802.11n
Standards: 802.11v
Standards: 802.11k
Standards: IPv4
Standards: IPv6
Standards: 802.11ac
Standards: 802.11a
Standards: 802.11b
Standards: 802.11g
Operating frequency: 5 GHz
Operating frequency: 2,4 GHz
Number of antennas: 4
Antenna: Fixed external
Security:

WPA/WPA2/WPA3 encryption

Management, monitoring, configuration:

• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Port Forwarding: Server, DHCP Client List, Address Reservation
• Dynamic DNS: DynDns, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec
• Access Control: Parental Controls, Local Management Control, Host List, White List, Black List
• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
• Management: Local management: WebGUI, Aginet app
• Remote management: TR-069, TR-181, TR-111, TR143, Aginet ACS
• Protocols: IPv4, IPv6
• VPN Server: PPTP, OpenVPN

Special functions:

• Enable/Disable Wireless Radio
• WDS Bridge
• WMM
• Wireless Schedule
• Wireless Statistics
• Access Point mode

захранващ блок:

External захранващ блок 12V/1.0A

Software:
Supported operating systems: Windows 8.1
Supported operating systems: Windows 10
Supported operating systems: Windows 8
Supported operating systems: Novell NetWare
Supported operating systems: Mac OS
Supported operating systems: Windows 98 SE
Supported operating systems: Windows NT
Supported operating systems: Windows 2000
Supported operating systems: Windows XP
Supported operating systems: Windows Vista
Supported operating systems: Windows 7
Supported operating systems: Unix
Supported operating systems: Linux
System Requirements:

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other Java-enabled browser
• Cable or DSL modem (if needed)
• Subscription with an Internet Service Provider (for Internet access)

Accessories included:

• Wi-Fi Router AC1300 MU-MIMO EC225-G5
• Charger
• RJ45 ethernet cable
• Quick Installation Guide

Color: Black
Dimensions:

230 x 144 x 35 mm

Environment requirements:

• Operating temperature: 0 – 40 C
• Storage temperature: -40 – 60 C
• Operating humidity: 10%-90% non-condensing
• Storage humidity: 5%-90% non-condensing

Certificates:

• CE
• RoHS

Other features:

Transmission speed:

• 5 GHz: up to 867 Mbps
• 2.4GHz: up to 400Mbps

Designation:
