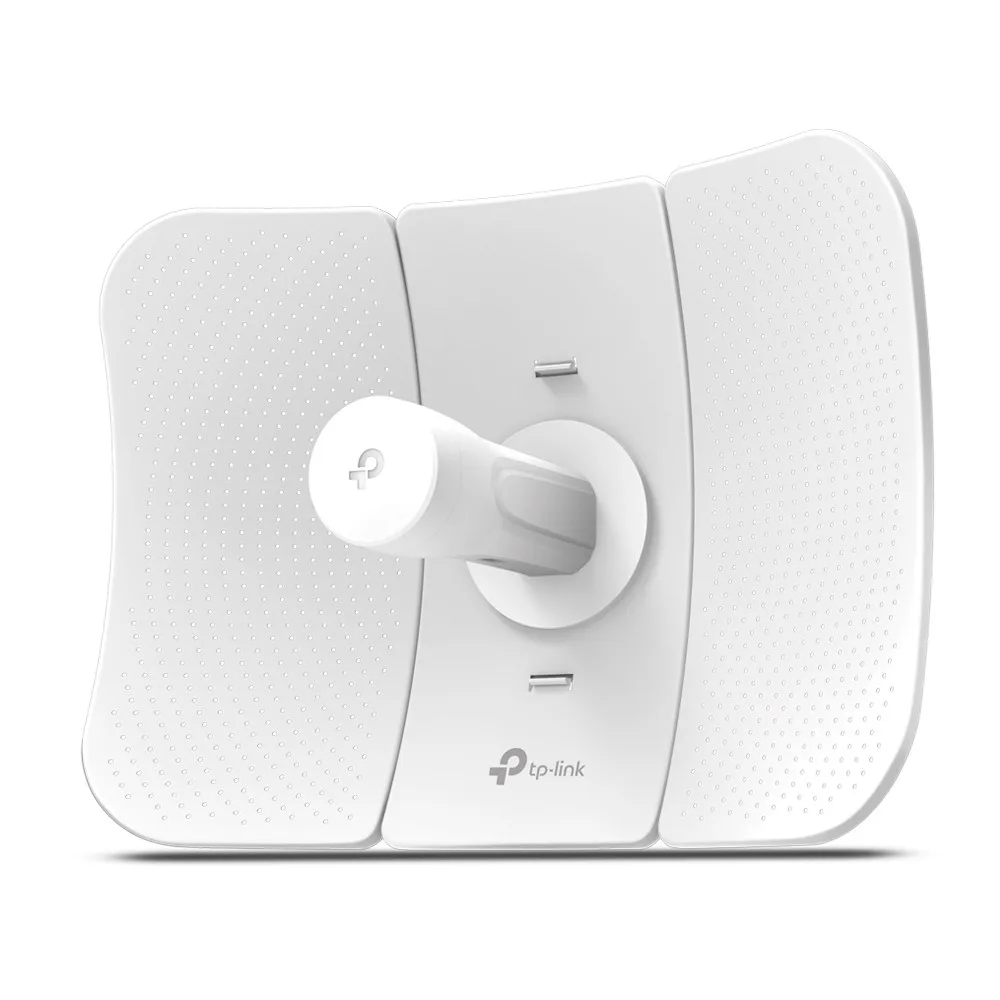

TP-LINK Outdoor CPE605 5GHz N150 23dBi

TP-LINK Outdoor CPE605 5GHz N150 23dBi

Description:

External CPE device 23dBi, 5GHz, 150Mbps

Key features:

• Up to 150Mbps wireless transmission speed in the 5GHz band
• High-gain 23dBi directional antenna with dedicated metal reflector, ideal for transmission over long distances
• Precise beam guidance, greater delay and interference resistance
• Innovative snap elements improve assembly, the strong construction ensures the stability of the device even in strong wind conditions
• Environmental resistant housing with IP65 certification, protection against 15KV electrostatic discharge and 6000V lightning protection
• TP-Link Pharos MAXtream TDMA technology improves transmission efficiency and reduces transmission delays
• Central management system – Pharos Control
• Passive PoE support ensures flexible placement and simple device installation

I/O ports: 1 x 10/100 Mbit/s PoE
Operating frequency: 5 GHz
Standards: 802.11a
Standards: 802.11n
Number of antennas: 1
Antenna: Fixed external
Antenna gain: 23 dBi
Security:
Management, monitoring, configuration:

• Management:
• Device detection and management by Pharos Control
• Web management via HTTP / HTTPS
• System Log
• SNMP agent (v2c)
• Ping Watch Dog
• Dynamic DDNS
• SSH server
• Network Configuration:
• WAN: Staticzny / Dynamiczny / PPPoE / L2TP / PPTP
• LAN: Static / Dynamic / DHCP
• Redirection: ALG / UPnP / Virtual server / Port Trigger
• Security: SPI firewall / Ping packet stopping / DOS protection
• Access Control
• Static Routing
• Bandwidth control
• Binding IP and MAC addresses
• Wireless network configuration:
• Pharos MAXtream TDMA technology
• Channel width: 5/10/20 / 40MHz
• Automatic channel selection
• Transmission force control
• Dynamic frequency selection (DFS)
• Enable / Disable WDS
• Security: WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP),
• 64/128/152-bit WEP encryption
• Enable / Disable SSID Broadcast
• Multi-SSID with VLAN tagging (only in AP mode)
• Distance / ACK Timeout settings
• Filtering by MAC addresses
• Advanced Wi-Fi settings:
• Interwał Beacon / Próg RTS / Próg fragmentacji / Interwał DTIM / Izolacja AP / Short GI / Multimedia Wi-Fi
• Long range PtP

Special functions:

• Wireless signal quality indicators:
• Signal strength / Szum / CCQ transmit / Processor / Memory
• Monitors: Throughput / Stations / Interfaces / ARP / Trasy / WAN / DHCP
• Spectrum analysis
• Speed test
• Ping
• Traceroute

Power supply:

• Passive PoE via LAN (+ 4.5 pins, -7.8 pins)
• Voltage: 16-27VDC

Software:
System Requirements:

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7,
• MAC OS,
• NetWare
• UNIX or Linux.
• Note: We recommend using the following browsers: Google Chrome, Safari and Firefox. We do not recommend using IE browsers.

Accessories included:

• 24V 0.25A passive PoE adapter
• Mounting straps
• Power cord
• Quick Installation Guide

Color: White
Dimensions:

350 x 255 x 207 mm

Other features:

• Memory:
• 64MB DDR2 RAM,
• 8MB Flash,
• Antenna beam width:
• 7 ° (azimuth)
• 10 ° (elevation)
• Lightning protection:
• Electrostatic: 15KV
• Atmospheric: 6000V
• Permissible operating temperature: -40 ~ 70 ° C
• Permissible storage temperature: -40 ~ 70 ° C
• Permissible air humidity: 10% ~ 90%, non-condensing
• Permissible storage humidity: 5% ~ 95%, non-condensing
