TP-LINK Network Camera VIGI C330(6mm) 3MP Bullet

TP-LINK Network Camera VIGI C330(6mm) 3MP Bullet

Description:

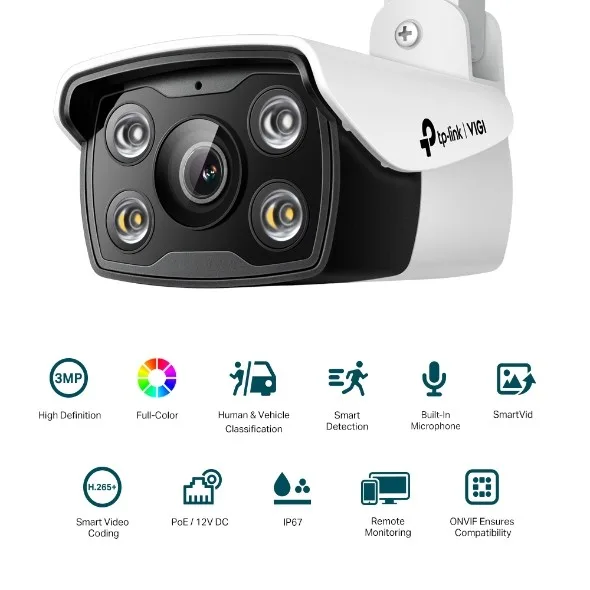

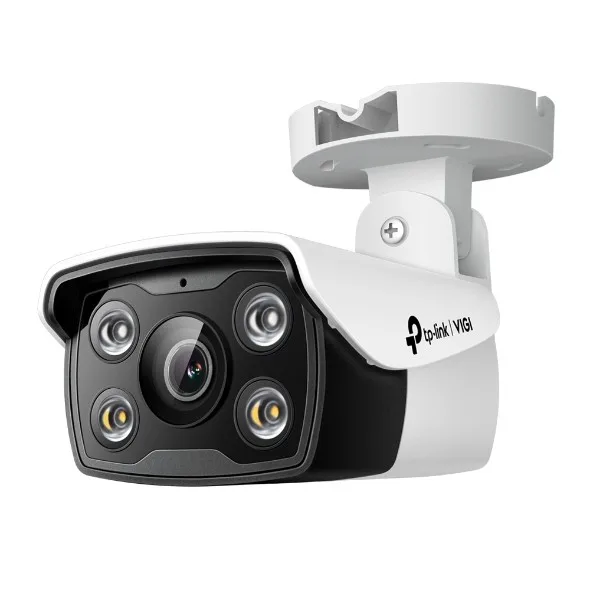

VIGI C330 Outdoor VIGI Full Color 3MP Bullet Network Camera



• High Quality 3MP: The camera is equipped with a 3MP sensor that is able to capture even the smallest details.
• Full color for 24 hours: Full color details are available all day long, even in total darkness. This is possible thanks to a sensitive sensor and built-in LED spot light.
• People and Vehicle Classification: Distinguishes people and vehicles from other objects, so you get more accurate event notifications.
• Smart Detection: Receive notifications and check channels when someone crosses the border, enters the area you set, locks the camera or removes/abandons objects.
• Built-in Mic: It has a built-in microphone to record everything that happens within 4.5 meters of the camera.
• IP67 Waterproof: Reliable IP67 rating ensures stable outdoor operation.
• H.265+: Without using extra bandwidth, your cameras can transmit compressed and crystal-clear video while conserving disk space, reducing network load and lowering surveillance costs without sacrificing image quality.
• Smart Video Enhancement: VIGI’s professional technologies including Smart IR, WDR, 3D DNR and Night Vision process video to greatly enhance video quality which is essential for monitoring.
• PoE/12V DC: Two power supply methods make camera wiring much easier.
• Flexible management: Take full control of your security with four management methods: web interface, NVR interface, VIGI App and VIGI Security Manger.
• Full of color all the time
• VIGI Outdoor Full Color 3MP Bullet Network Camera.

Transparency and colors, all in one

Monitor the area for 24 hours in clear and colorful detail, even during the dark night. VIGI’s full color camera provides a maximum resolution of 4MP and guarantees color monitoring thanks to its large lens size, high sensitivity sensor and built-in auxiliary lighting.

Classification of people and vehicles

Integrated AI chips support advanced algorithms that distinguish people and vehicles from other objects. You can flexibly customize alarm rules to suit your monitoring needs and receive more accurate event notifications.

We keep an eye on your business. Intelligent detection.

Powered by AI algorithms, the VIGI camera offers more intelligent detection. You will receive notifications when someone crosses the border, enters the zone you set, covers the camera or removes / abandons objects.

No more silent surveillance. Built-in microphone.

The VIGI camera has a built-in microphone to record everything that happens within 4.5 meters of the camera. This provides more detailed monitoring for greater peace of mind.

Don’t miss any detail. SmartVid – Intelligent video correction.

VIGI’s professional technologies including Smart IR, WDR, 3D DNR and Night Vision process the video to significantly improve its quality, which is essential for monitoring.

More compression. More savings. Same quality.

Without using extra bandwidth, your cameras can transmit compressed and crystal-clear images, while saving disk space, reducing network load and lowering surveillance costs without sacrificing image quality.

PoE connection outside. Easy implementation.

Connect your camera with RJ45 cable, then supply power and data transmission will be established. Sealing elements are used to maintain stable performance in outdoor applications.

Flexible management

Take full control of your security with four management methods: Web Interface, VIGI NVR, VIGI App and Security Manager.

Flexible installation

Find a suitable vantage point (e.g. ceiling, wall or pole) and attach the camera to it.

One system. Full security. Run your business with peace of mind.

The professional TP-Link monitoring system will allow you to protect your company – regardless of the place and time. Unique features, trustworthy quality, simple installation and convenient management are a combination that will ensure the security of your company.

type: Fixed bullet type camera
Resolution: 2304 x 1296
Frames per second: 30
Sensor:

1/2.8″ Progressive Scan CMOS

Lens:

• Focal length: 6mm
• Aperture: F1.6
• Lens mount: M12

Viewing angle, vertical: 30 Degrees
Viewing angle, horizontal: 55 Degrees
Microphone: Yes
Speakers built-in : No
Two-way transmission: No
Night mode: Yes
Motion detection: Yes
Min. illuminance: 0 Lux
Security:

• Password protection
• HTTPS encryption
• IP address filter
• Digest authorization

Management, monitoring, configuration:

• API: ONVIF
• Simultaneous Live View: 3 Main Streams & 3 Sub Streams
• Client: VIGI Application, VIGI Security Manager, VIGI NVR, web interface

Network protocols:

• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP
• DNS
• RTSP
• NTP
• UPnP UDP
• SSL/TLS

Standards: 802.3af
Standards: 802.3at
Special functions:

• Two streams
• Mirror reflection
• Privacy masks
• Password reset via email
• HTTP listening

Intelligent Event Detection:

• Classification of people and vehicles
• Intrusion detection
• Line crossing detection
• Human detection
• Vehicle detection
• Zone entrance detection
• Zone exit detection
• Object abandonment detection
• Object removal detection

Notifications and Alerts:

• Motion detection
• Camera tampering detection
• Exception (invalid login)

Memory card reader: No
Memory standard: Not applicable
Wireless communication: No
Connectors: RJ-45
Protection class: IP67
Power supply:

• 12V DC 5%, 5.5mm coaxial power plug
• PoE (802.3af/at, class 0)

System Requirements:
Accessories included:

• VIGI C330 camera
• Quick Installation Guide
• Sealing elements for the cable
• Mounting accessories (Screws, Wall anchors, Allen key)

Color: White
Dimensions:

174 x 78 x 70 mm

Environment requirements:

Permissible operating temperature: -30 – 60 °C

Certificates:

• CE
• BSMI
• VCCI
• ONVIF

Other features:

• Range of IR diodes: 30m
• Digital Noise Reduction: 3D DNR
• WDR: DWDR

Video Compression:

• Main stream: H.265+/H.265/H.264+/H.264
• Substream: H.265/H.264
