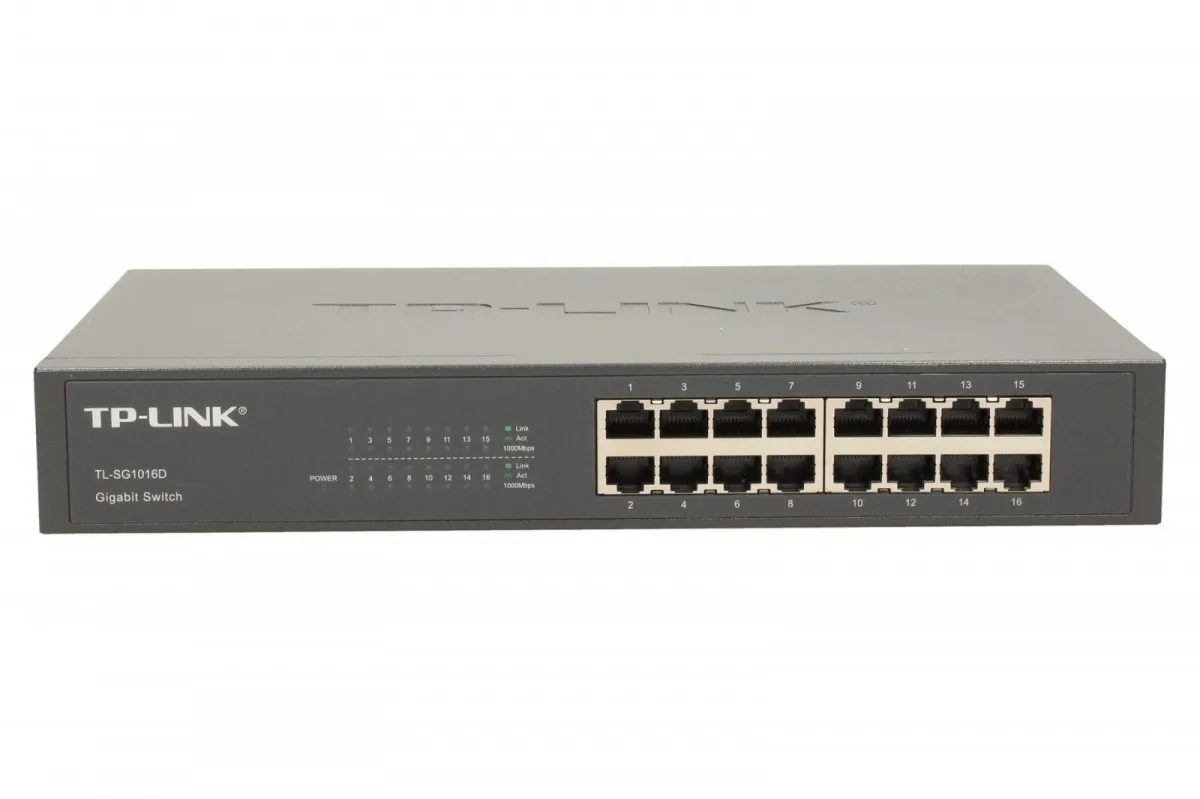

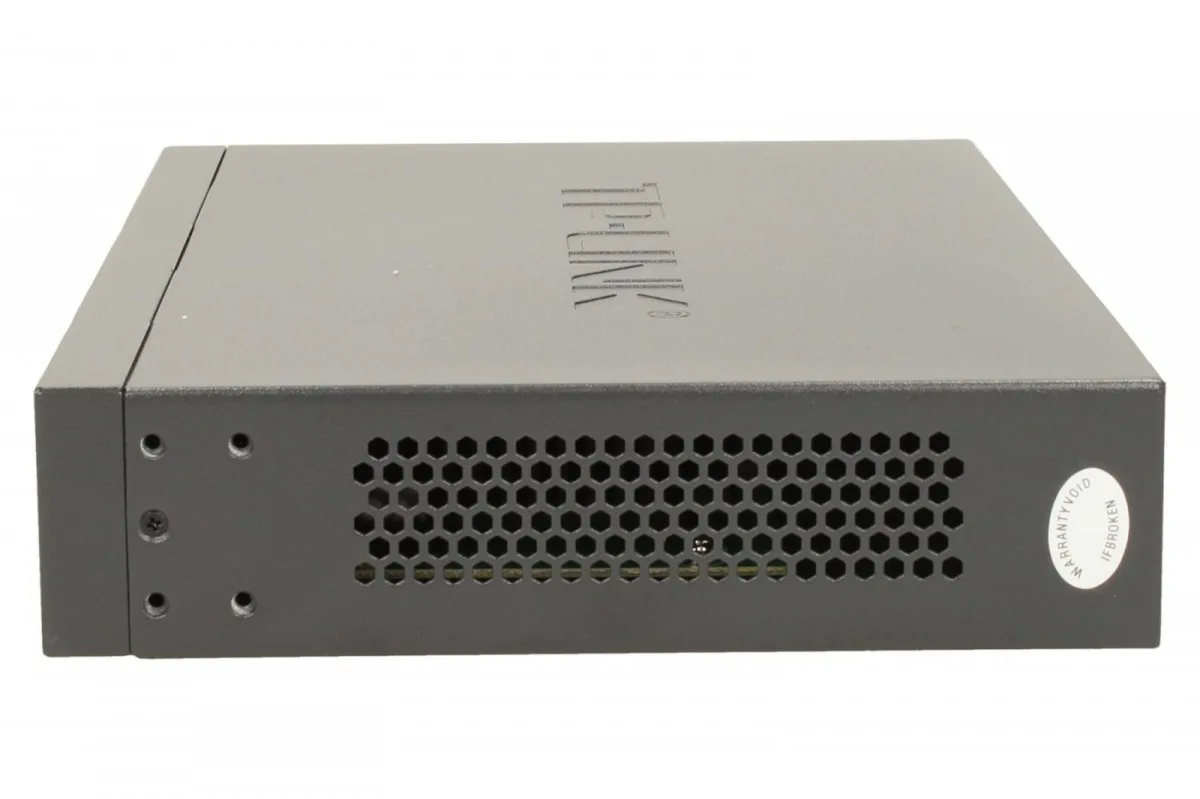

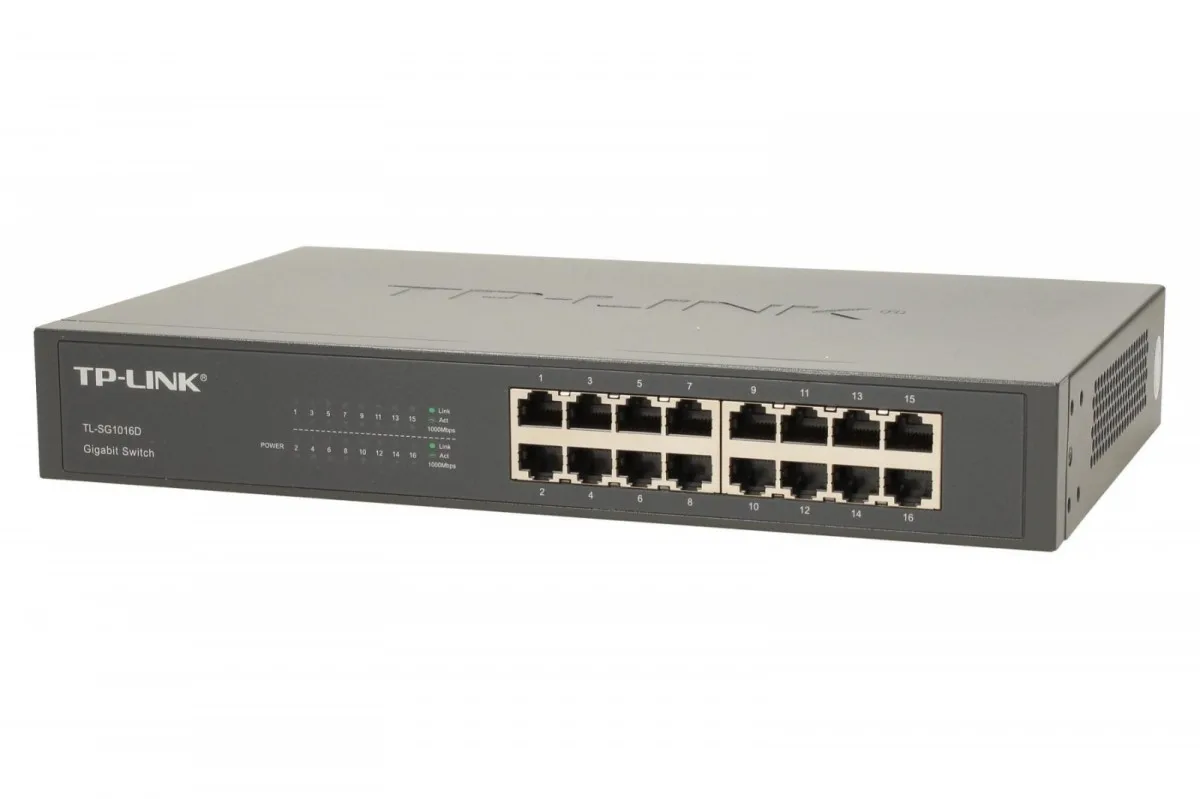

TP-LINK 16-Port Gigabit Desktop/Rackmount Switch

TP-LINK 16-Port Gigabit Desktop/Rackmount Switch

Description:

The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

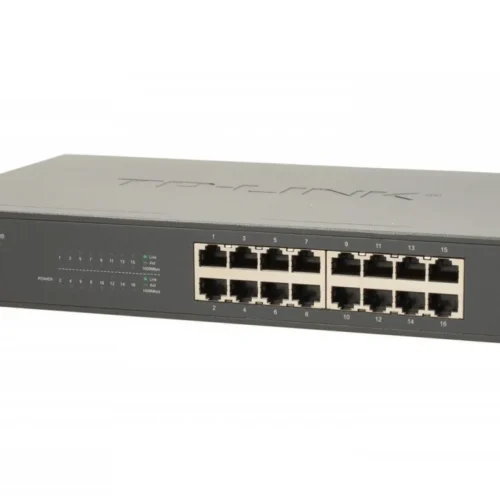

Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 328.1feet)
EIA/TIA-568 100&#217, STP (maximum 328.1feet)
100Base-Tx: UTP category 5, 5e cable (maximum 328.1feet)
EIA/TIA-568 100&#217, STP (maximum 328.1feet)
1000Base-T: UTP category 5, 5e cable (maximum 328.1feet)

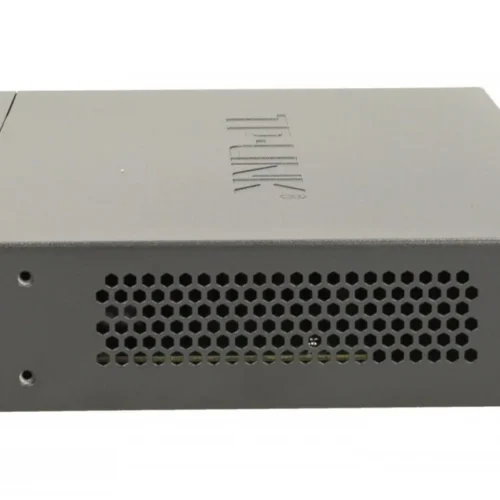

Fan Quantity Fanless
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)

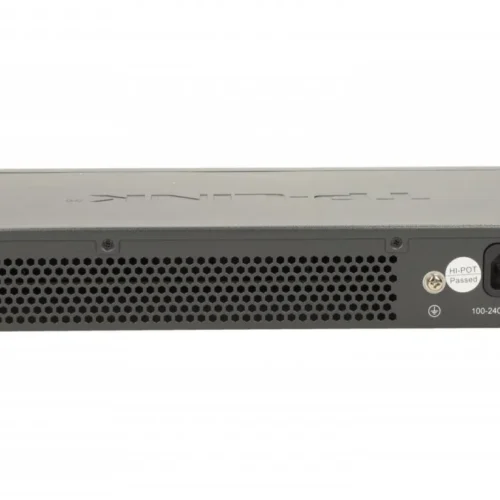

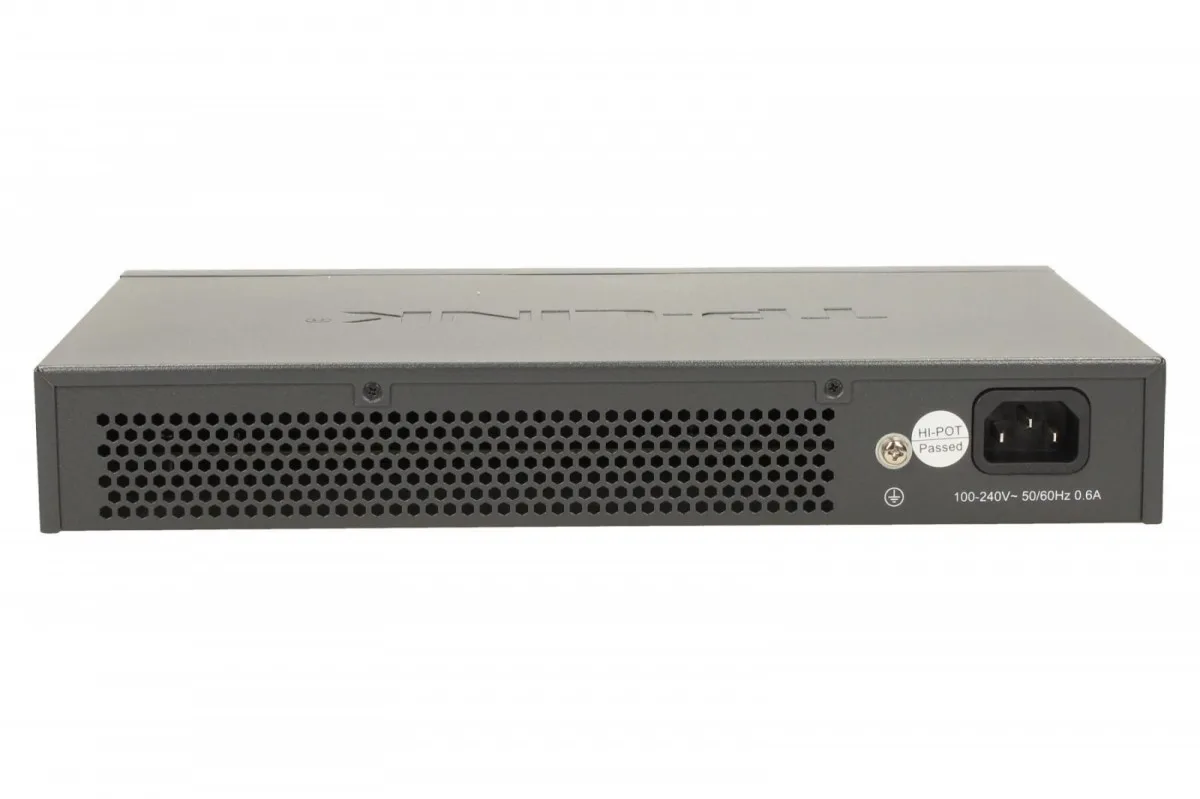

Power Supply 100-240VAC, 50/60Hz

PERFORMANCE

Switching Capacity 32Gbps
MAC Address Table 8K
Packet Forwarding Rate 23.8Mpps
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 40%
Transfer Method Store-and-Forward

OTHERS

Certification FCC, CE, RoHs
Package Contents 16-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft&#174, Windows&#174, 98SE, NT, 2000, XP, Vista&#8482,, Windows 7 or Windows 8, MAC&#174, OS, NetWare&#174,, UNIX&#174, or Linux.
Environment Operating Temperature: 0&#8451,&#126,40&#8451, (32&#8457,&#126,104&#8457,),
Storage Temperature: -40&#8451,&#126,70&#8451, (-40&#8457,&#126,158&#8457,),
Operating Humidity: 10%&#126,90% non-condensing,
Storage Humidity: 5%&#126,90% non-condensing
