TELTONIKA Teltonika TSW101 Switch 5xGbE Ethernet 4xPoE+

TELTONIKA Teltonika TSW101 Switch 5xGbE Ethernet 4xPoE+

Description:

TSW101 switch

• TSW101 is the first unmanaged switch from Teltonika Networks dedicated to the automotive industry.

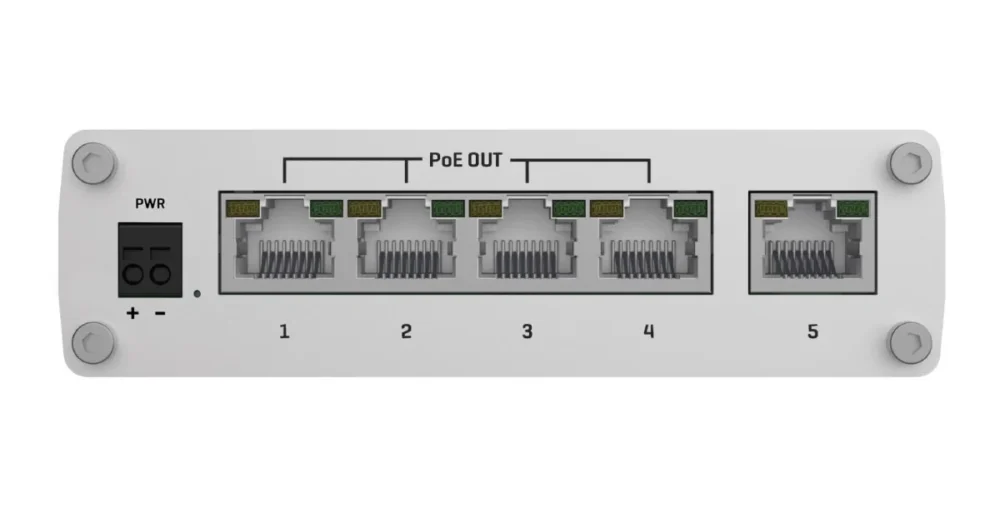

• Equipped with five Gigabit Ethernet ports, four of which support the IEEE802.3af and IEEE802.3at PoE+ standards.
• A wide range of supported supply voltages (9-30 VDC) and small size allow it to be adapted to many automotive applications.
• Classified as Power Supply Equipment (PSE), the device allows you to centralize power – providing up to 30 watts to a single port and a maximum output power of 60 watts.
• 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.
• The ideal solution for simultaneous provision of vehicle power and Ethernet data connection.

Switch class: Unmanaged
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 5
Number of PoE ports (PoE & PoE+): 4
Console port: No
Throughput: 10 Gigabity na sek.
Packet buffer: 128 Kilobajt
MAC address table size: 2000
Support for Jumbo frames: Yes
Jumbo frame size: 9.216 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3az
• IEEE 802.3af
• IEEE 802.3at

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Rack
Chassis type: Desktop
Fan : No
Power consumption: 112.58 Watt
Environment requirements:

• Operating temperature: -40°C to 75°C
• Humidity during operation: 10% to 90% non-condensing

Certificates:

• CE
• REACH
• RoHS
• WEEE
• TSW101 CE
• TSW101 UKCA
• TSW101 FCC
• TSW101 IC
• TSW101 CB
• TSW101 RCM
• E-Mark
• EN IEC 62368-1:2020+A11:2020

Accessories included:

• TSW101
• Quick start guide

Power supply:

2-pin socket, 9-30 VDC

Dimensions:

115 x 32 x 95 mm

Weight: 354 gram
Other features:

IP30 protection

Designation:
