Description:

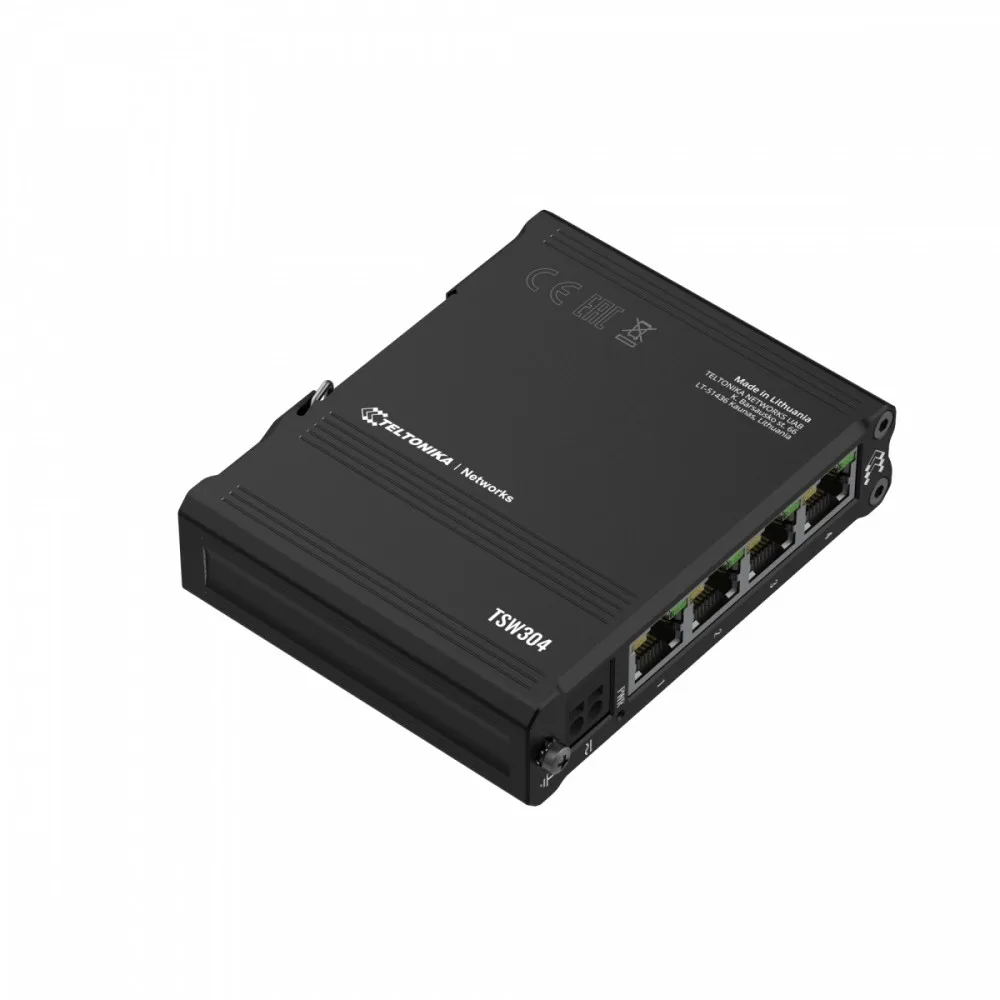

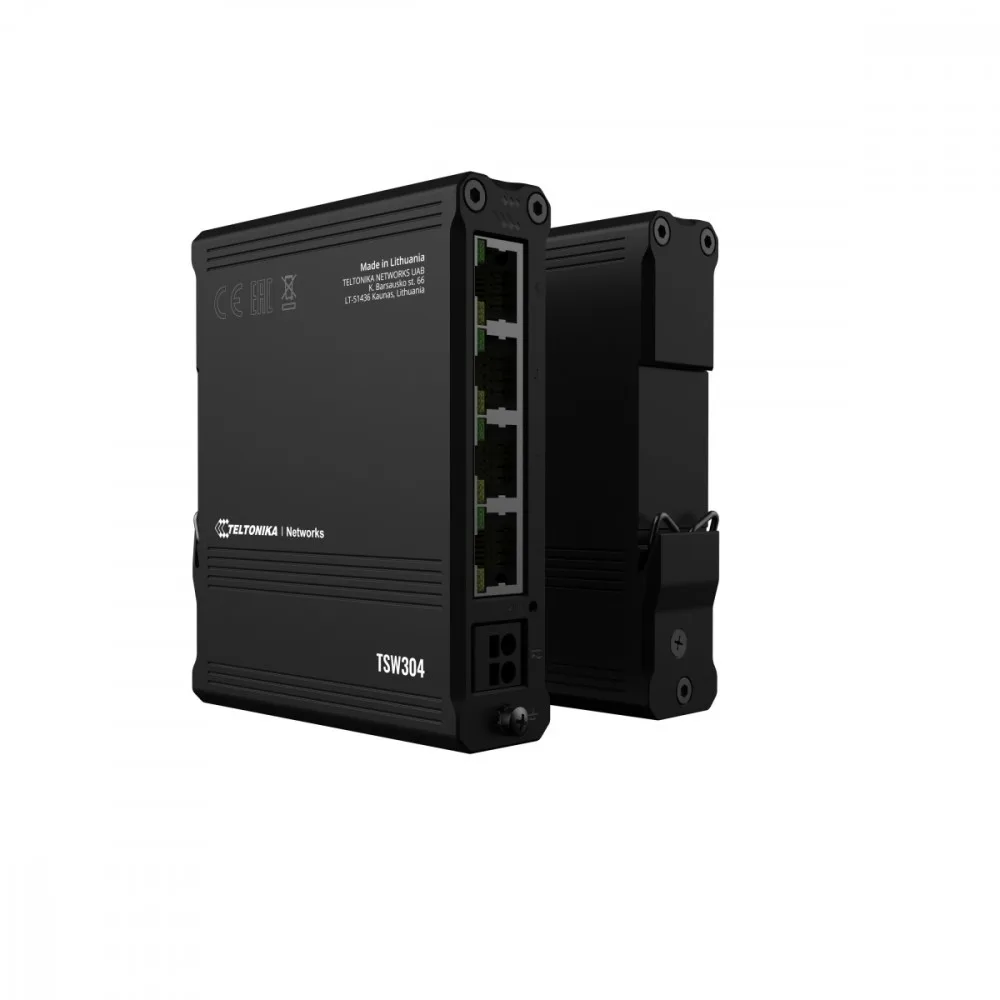

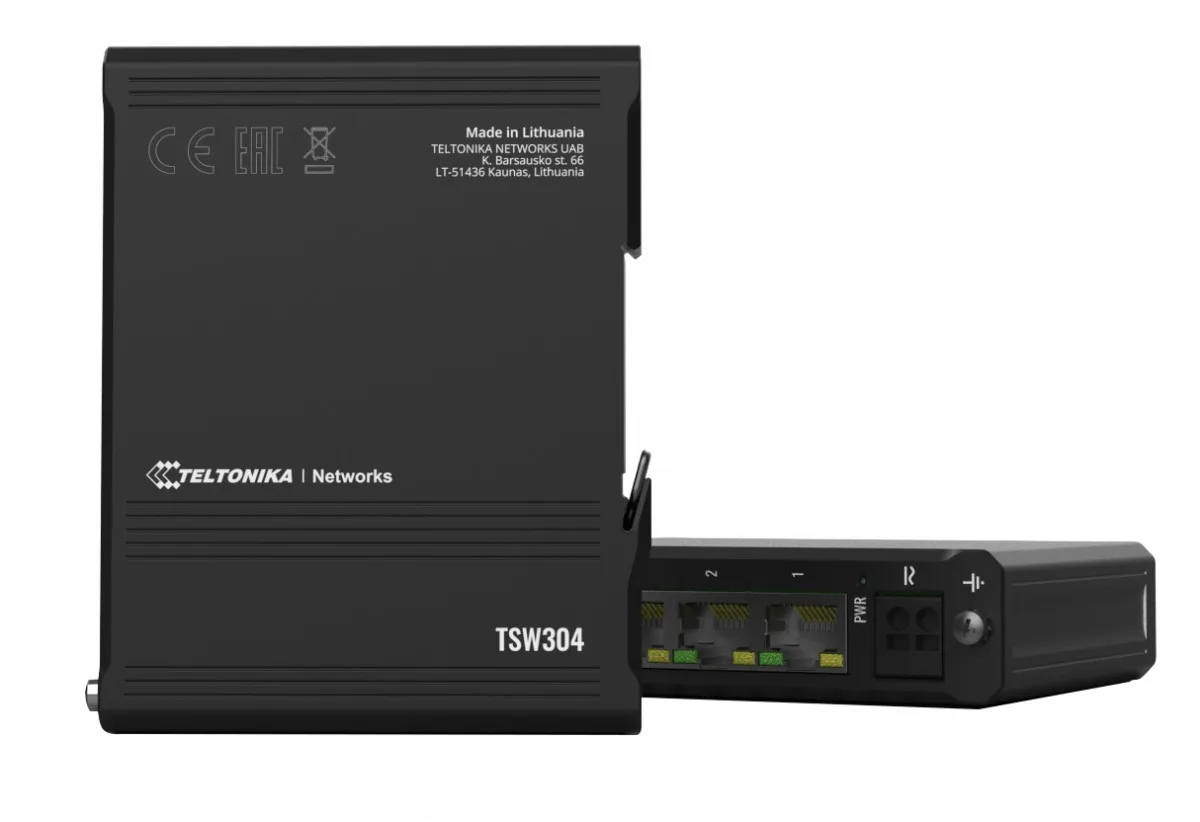

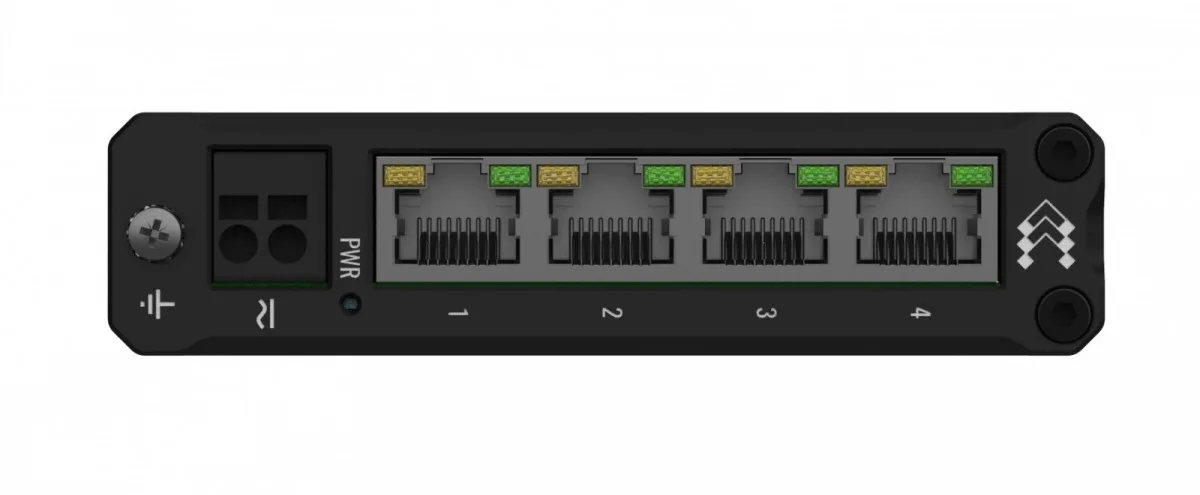

TSW304 switch

TSW304 is the smallest switch in the Teltonika Networks offer, designed for industrial applications. This very small device is equipped with an integrated DIN rail mounting option and will easily find its place in any server rack. The rugged design and shock-resistant housing make it ideal for even the most demanding industrial environments. It is equipped with 4 x Gigabit Ethernet (up to 1000 Mbps) and a wide range of supply voltages 9-57 V.

Switch class: Unmanaged
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 4
Console port: No
Throughput: 8 Gigabity na sek.
Packet buffer: 128 Kilobajt
MAC address table size: 2000
Support for Jumbo frames: Yes
Jumbo frame size: 9.216 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3az

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Rack
Chassis type: Desktop
Fan : No
Power consumption: 1.44 Watt
Environment requirements:

• Operating temperature: -40°C to 75°C
• Humidity during operation: 10% to 90% non-condensing

Certificates:

• CE
• REACH
• RoHS
• WEEE
• UKCA
• FCC
• IC
• CB
• RCM
• EN IEC 62368-1:2020+A11:2020

Accessories included:

• TSW304
• Quick start guide

Power supply:

2-pin socket, 7 – 57 VDC / 9 – 40 VAC

Dimensions:

102 x 25 x 81.5 mm

Weight: 210 gram
Other features:

Protection: IP30

Designation:
