TELTONIKA Switch TSW210 2xSFP 8xGbE

TELTONIKA Switch TSW210 2xSFP 8xGbE

Description:

TSW210 switch

• The TSW210 is an unmanaged industrial switch.

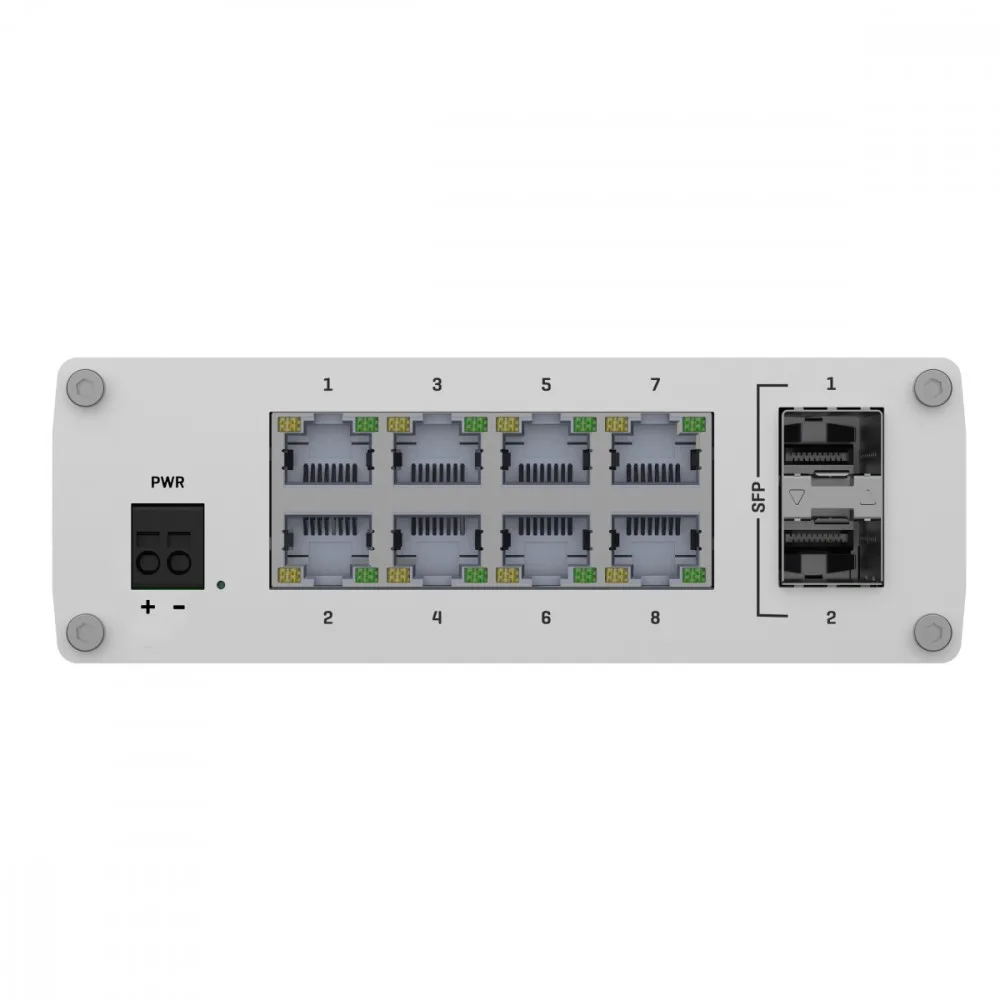

• Equipped with 2 SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports with download/upload speeds up to 1000 Mb/s.
• A durable, rugged aluminum housing with DIN rail and surface mount options make the TSW210 ideal for industrial environments.
• 2-pin industrial DC power socket with an input voltage range of 7-57 VDC.

Switch class: Unmanaged
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 8
Number of SFP ports: 2
Console port: No
Throughput: 20 Gigabity na sek.
Packet buffer: 128 Kilobajt
MAC address table size: 2000
Support for Jumbo frames: Yes
Jumbo frame size: 9.216 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3
• IEEE 802.3u
• 802.3az

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Chassis type: Rack
Fan : No
Power consumption: 3.71 Watt
Environment requirements:

• Operating temperature: -40°C to 75°C
• Humidity during operation: 10% to 90% non-condensing

Certificates:
Accessories included:

• TSW210
• Quick start guide

Power supply:

2-pin socket 7-57 VDC

Dimensions:

132 x 44.2 x 95.1 mm

Weight: 500 gram
Other features:

IP30 protection
