TELTONIKA Switch TSW110 5xGigabit Ethernet

TELTONIKA Switch TSW110 5xGigabit Ethernet

Description:

TSW110 switch

The TSW110 is an unmanaged Layer 2 switch that is a simplified version of our previous product, the TSW100.

• Possibility of power supply via the first LAN port.

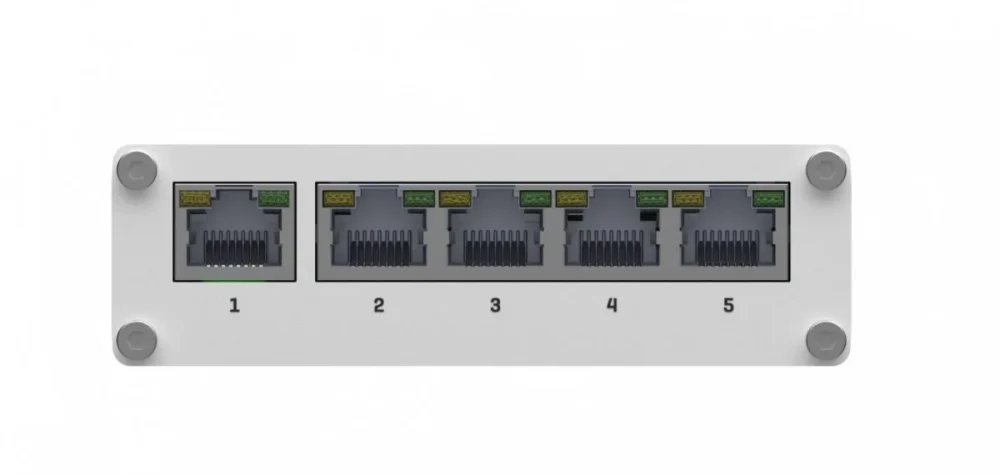

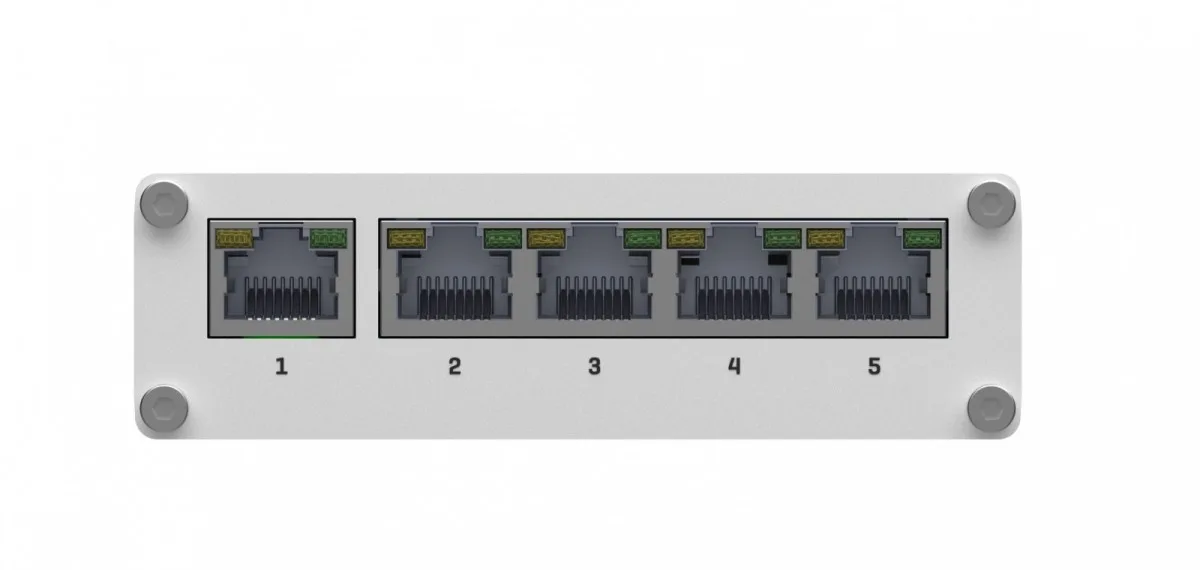

• It has five 10/100/1000 Mbps Ethernet ports for a cost-effective, high-bandwidth solution.
• It offers a wide range of supported supply voltages (9-30 V).
• Perfect for high-bandwidth professional applications, ensuring a reliable data connection.

Switch class: Unmanaged
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 5
Console port: No
Throughput: 10 Gigabity na sek.
Packet buffer: 128 Kilobajt
MAC address table size: 2000
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3az

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Rack
Chassis type: Desktop
Fan : No
Power supply : External
Power consumption: 1.8 Watt
Environment requirements:

• Operating temperature: -40°C to 75°C
• Humidity during operation: 10% to 90% non-condensing

Certificates:
Accessories included:

• TSW110
• 9W power supply
• QSG short user manual

Power supply:

4-pin socket, 9-30 VDC

Dimensions:

100 x 30 x 85 mm

Weight: 227 gram
Other features:
Designation:
