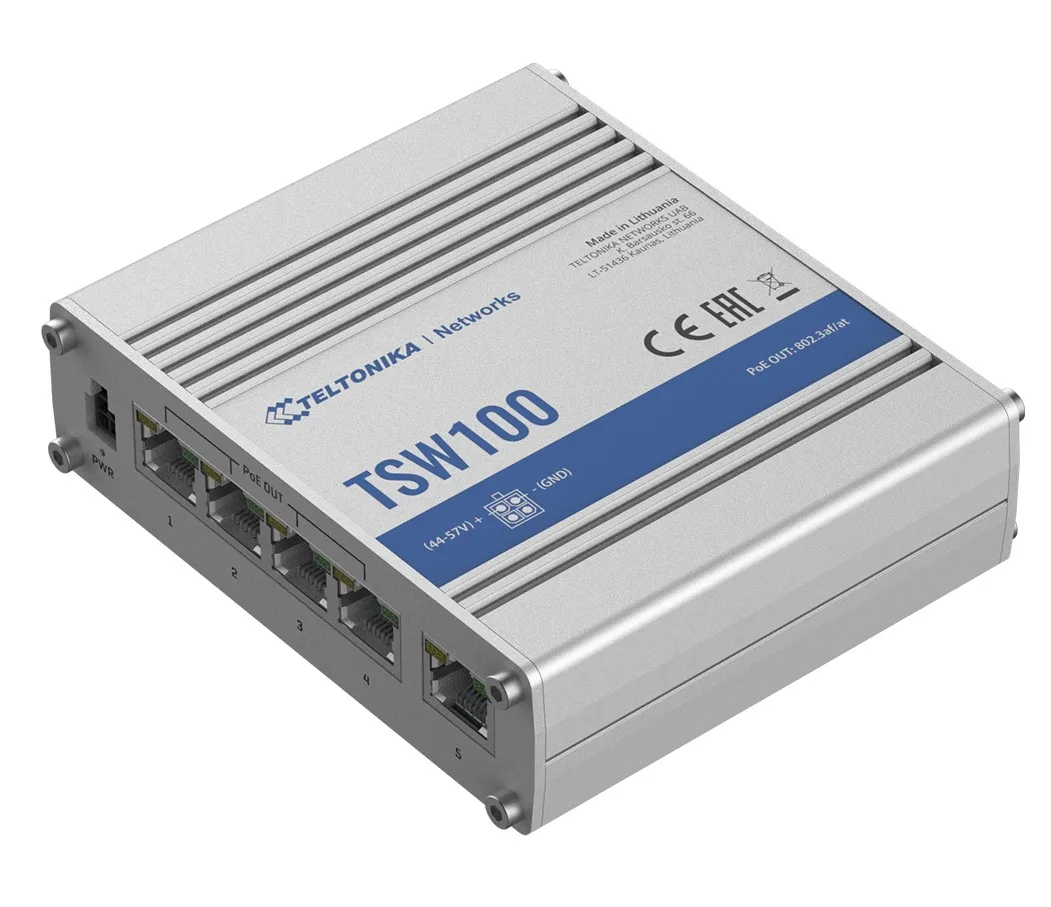

TELTONIKA Switch TSW100 4xPoE+, 5xGigabit Ethernet

TELTONIKA Switch TSW100 4xPoE+, 5xGigabit Ethernet

Description:

TSW 100

TSW100 is a very popular, first industrial, unmanaged switch from Teltonika Networks. It is equipped with five Gigabit Ethernet ports, four of which support the IEEE802.3af and IEEE802.3at Power-over-Ethernet (PoE) standards. Enables power centralization, providing up to 30 watts per port, reducing power installation effort.

Perfect for high-bandwidth professional applications to ensure both a reliable data connection and power supply.

Switch class: Unmanaged
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 5
Number of PoE ports (PoE & PoE+): 4
Console port: No
Throughput: 10 Gigabity na sek.
Packet buffer: 128 Kilobajt
MAC address table size: 2000
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:
QoS:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3az
• IEEE 802.3af
• IEEE 802.3at

Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Rack
Chassis type: Desktop
Fan : No
Power supply : External
Power consumption: 129 Watt
Environment requirements:

• Operating temperature: -40°C to +75°C
• Humidity during operation: 10% to 90% non-condensing

Certificates:
Accessories included:

• TSW100
• 62W power supply
• QSG short user manual

Power supply:

4-pin socket, 7-58 VDC

Dimensions:

115 x 32 x 95 mm

Weight: 340 gram
Other features:

Total PoE budget: 120W

Designation:
