TELTONIKA Router TRB256 LTE(CatM1/NB2),eGPRS,2xSIM,Ethernet,RS232/485

TELTONIKA Router TRB256 LTE(CatM1/NB2),eGPRS,2xSIM,Ethernet,RS232/485

Model:

TRB256

Description:

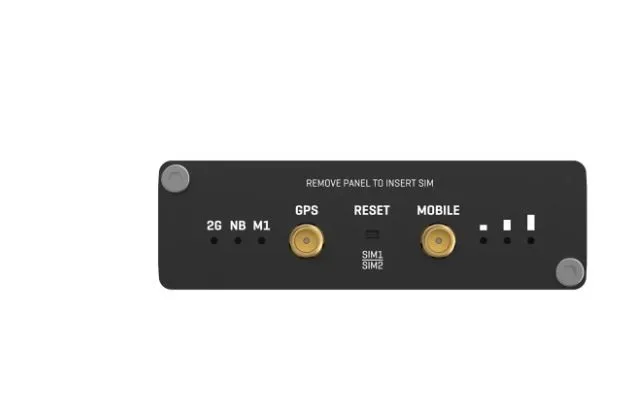

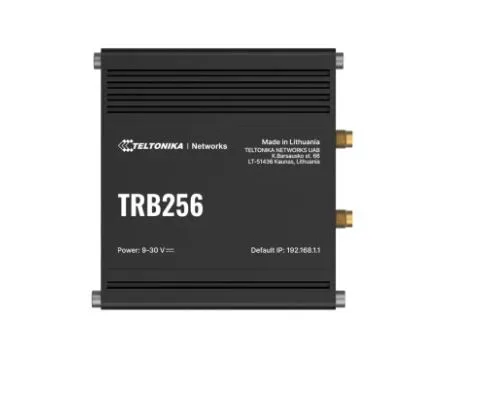

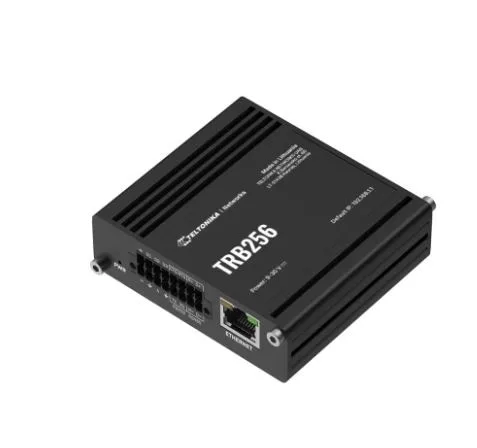

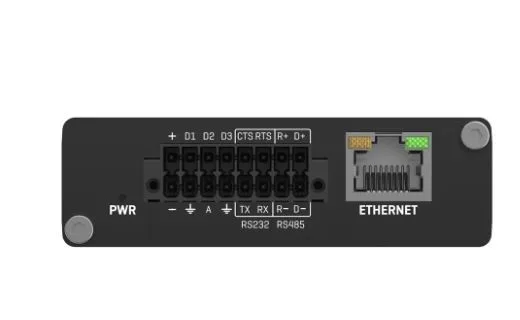

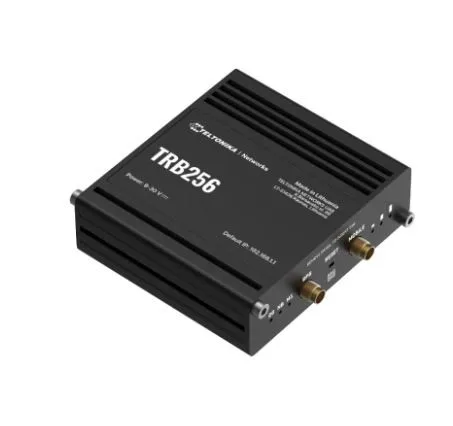

TRB256 is an industrial 4G LTE NB-IoT router designed for a wide range of IoT solutions. The device is equipped with multiple WAN interfaces, such as input/output (I/O), RS232, RS485, and Ethernet port, in addition to offering dual-SIM functionality for continuous connection. This industrial-grade gateway also supports the 450MHz frequency band, which provides better LTE signal penetration compared to standard frequencies, making it an optimal choice for various M2M applications.

Type: GSM 3G/4G
Data transmission: LTE
LTE network: 1900 MHz
LTE network: 700 MHz
LTE network: 850 MHz
LTE network: 1700 MHz
LTE network: 1800 MHz
LTE network: 900 MHz
LTE network: 2100 MHz
Aero2 support: No
Standards: 802.3
Standards: IPv6
Standards: 802.3az
Standards: 802.3u
Standards: IPv4
Number of antennas: Two connectors
Antenna: Detachable external
Security:

Authentication

• Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

Firewall

• Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T

Attack prevention

• DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN

• Tag-based VLAN separation

Mobile quota control

• Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter

• Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control

• Flexible access control of SSH, Web interface, CLI and Telnet

Management, monitoring, configuration:
Special functions:
Card reader: None
I/O ports: 1 x 10/100 Mbit/s
SIM card: Mini
Power supply:

Input voltage range: 9-30 VDC, reverse polarity protection

Software:
Certificates:

• CE,
• UKCA,
• EAC,
• CB

System Requirements:
Environment requirements:

• Operating temperature: -40°C to 75°C
• Operating humidity: 10% to 90% non-condensing
• Ingress protection: IP30

Accessories included:
Color: Black
Weight: 165 gram
Dimensions:

83 x 25 x 74.2 mm

Other features:
Designation:
