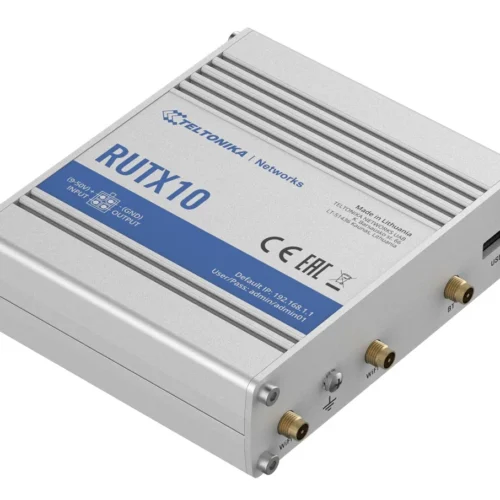

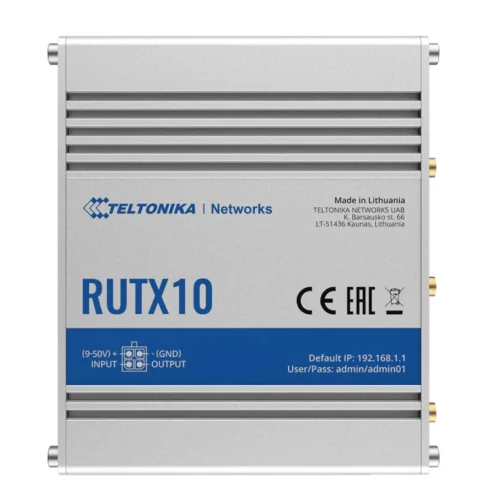

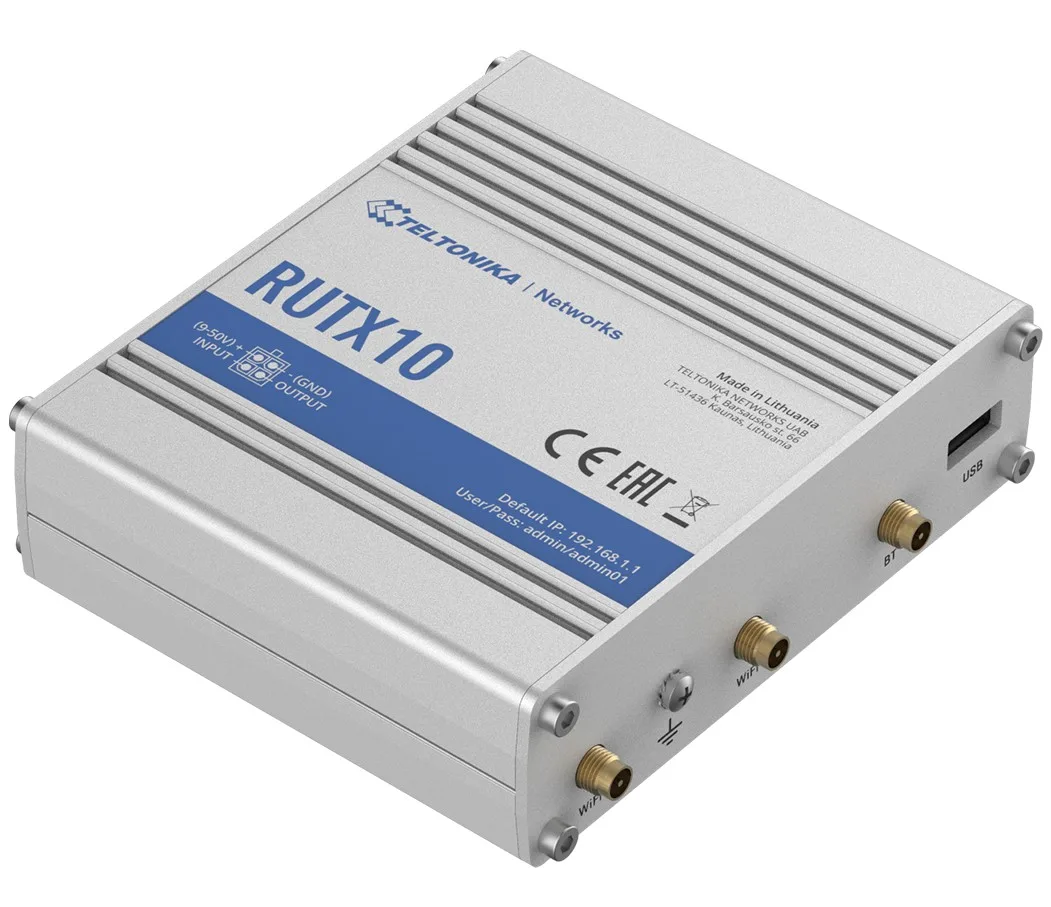

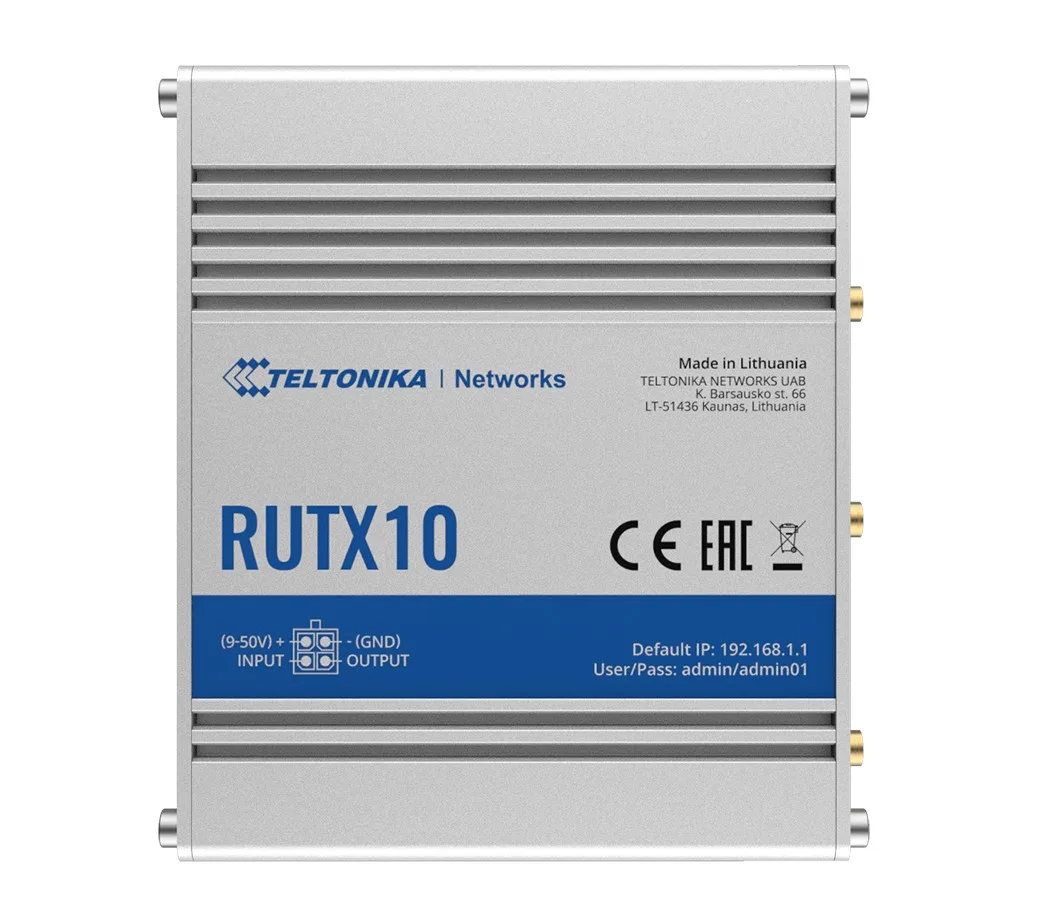

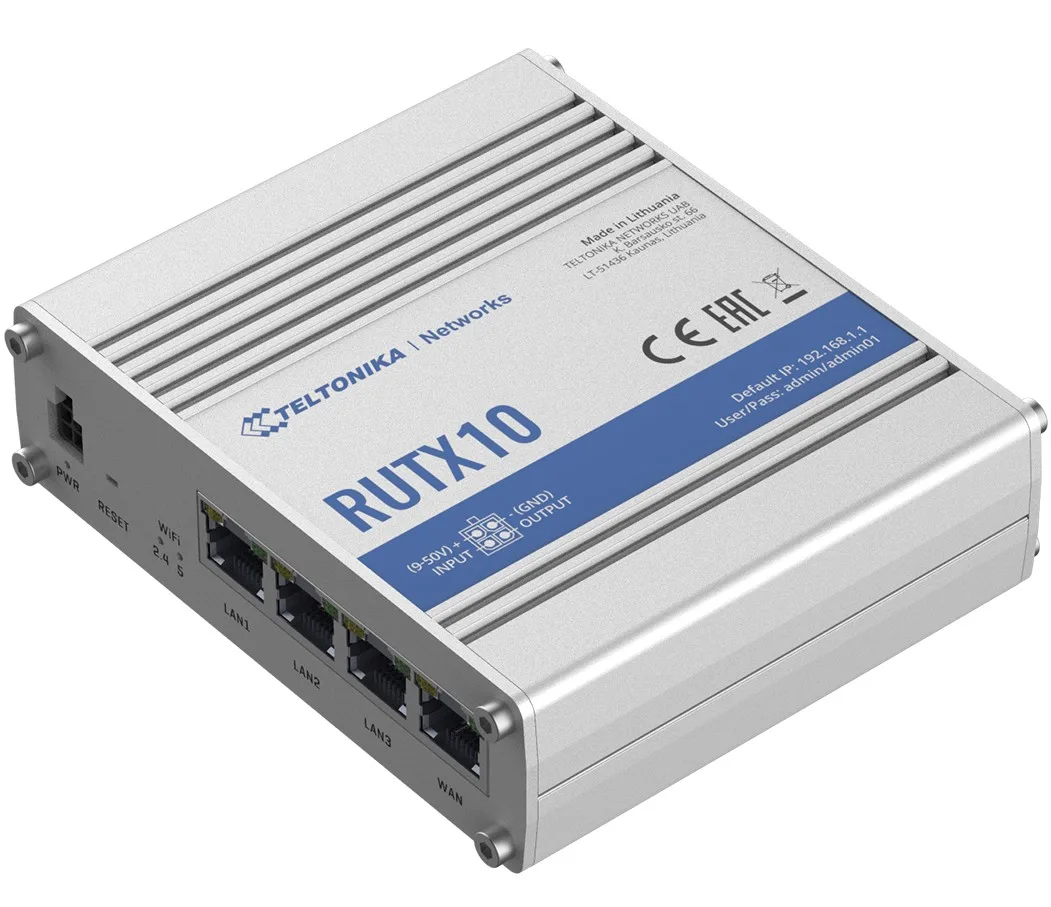

TELTONIKA Router RUTX10 3xLAN, 1xWAN, BLE, WI-FI

TELTONIKA Router RUTX10 3xLAN, 1xWAN, BLE, WI-FI

Model:

RUTX10

Description:

RUTX10 router

This professional router combines the best of wired and wireless routing with Gigabit Ethernet, Bluetooth LE and Wi-Fi AC. Advanced remote management capabilities, along with numerous supported security and networking protocols, make the RUTX10 an ideal choice for professional applications.

Type: xDSL
Network architecture: GigabitEthernet
I/O ports: 4 x 10/100/1000 Mbit/s
I/O ports: 1 x USB 2.0
Standards: 802.11a
Standards: 802.11n
Standards: 802.11b
Standards: 802.11g
Standards: 802.11ac
Operating frequency: 5 GHz
Operating frequency: 2,4 GHz
Number of antennas:
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration:

• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Monitoring and management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• Supported Hotspot Platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet

Special functions:
Power supply:

4-pin socket, 9-50 VDC

Software:

RutOS (OpenWrt based Linux OS)

System Requirements:
Environment requirements:

• Operating temperature: -40 C to 75 C
• Humidity during operation: 10% to 90% non-condensing

Certificates:
Accessories included:

• RUTX10 router
• 18W power supply
• 2 x WiFi antenna (rotatable, male RP-SMA)
• Bluetooth antenna (magnetic mounting, RP-SMA plug, 1.5 m cable)
• Ethernet cable (1.5 m)
• Quick start guide
• RMS leaflet

Color: Aluminium
Weight: 355 gram
Dimensions:

115 x 32.2 x 95.2 mm

Other features:

• Processor: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Flash memory: 256 MB
• RAM: 256 MB
• Bluetooth: 4.0 (Low energy)

Designation:
