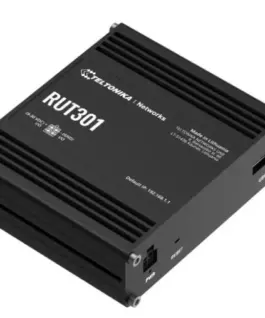

TELTONIKA Router RUT301 4xLAN, 1xWAN, USB 2.0, 2xDI, 2xDO

TELTONIKA Router RUT301 4xLAN, 1xWAN, USB 2.0, 2xDI, 2xDO

Model:

RUT301

Description:

The RUT301 is one of the most cost-effective industrial Ethernet routers on the IoT market, providing a solid network connection with advanced security features. This Ethernet router features five Ethernet ports, two configurable digital inputs/outputs, and a USB 2.0 port, making it easy to connect to industrial machines, business equipment, or retail. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.

Type: xDSL
Network architecture: FastEthernet
I/O ports: 4 x 10/100 Mbit/s
I/O ports: 1 x WAN (RJ-45)
I/O ports: 1 x USB 2.0
Standards: IPv4
Standards: IPv6
Standards: 802.3u
Standards: 802.3
Standards: 802.3az
Security:

Authentication

• Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

Firewall

• Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T

Attack prevention

• DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN

• Port and tag-based VLAN separation

WEB filter

• Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control

• Flexible access control of SSH, Web interface, CLI and Telnet

Management, monitoring, configuration:

WEB UI

• HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA

• Firmware update from server, automatic notification

SSH

• SSH (v1, v2)

TR-069

• OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT

• MQTT Broker, MQTT publisher

SNMP

• SNMP (v1, v2, v3), SNMP Trap

JSON-RPC

• Management API over HTTP/HTTPS

RMS

• Teltonika Remote Management System (RMS)

Special functions:
Power supply:

Input voltage range: 930 VDC, reverse polarity protection

Software:
System Requirements:
Environment requirements:

• Operating temperature: -40°C to 75°C
• Operating humidity: 10% to 90% non-condensing
• Ingress protection: IP30

Certificates:

CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF, WEEE

Accessories included:
Color: Black
Weight: 233 gram
Dimensions:

100 x 30 x 85 mm

Other features:
Designation:
