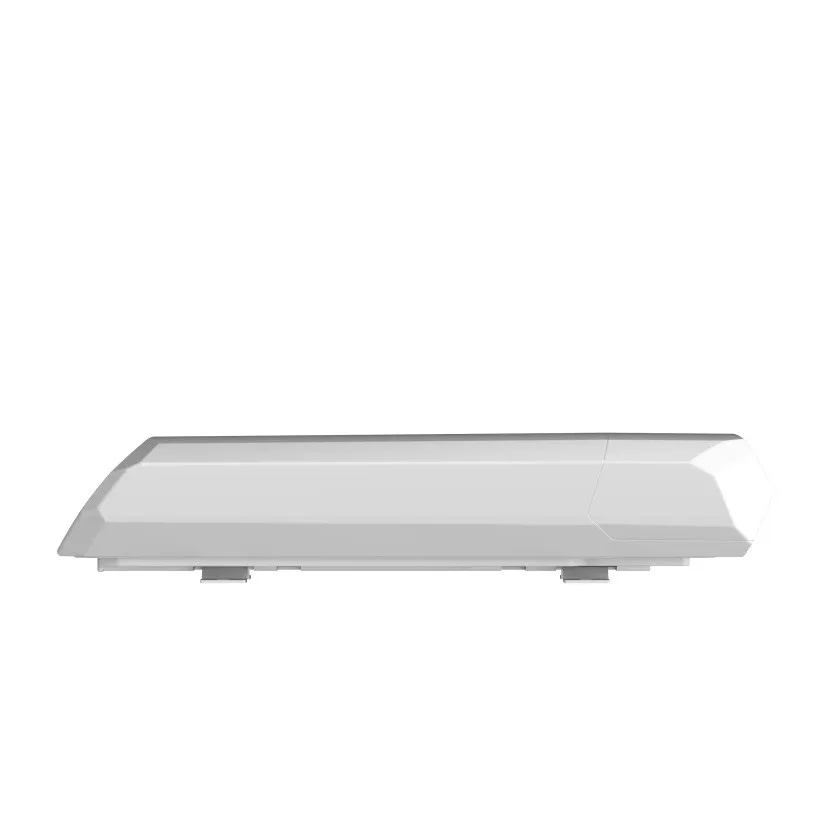

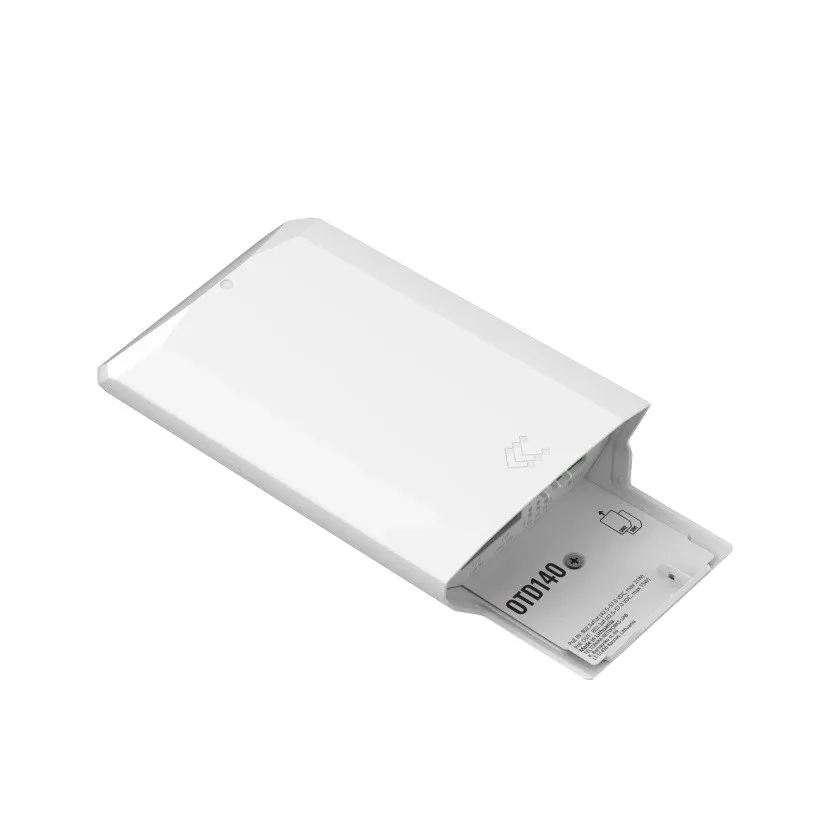

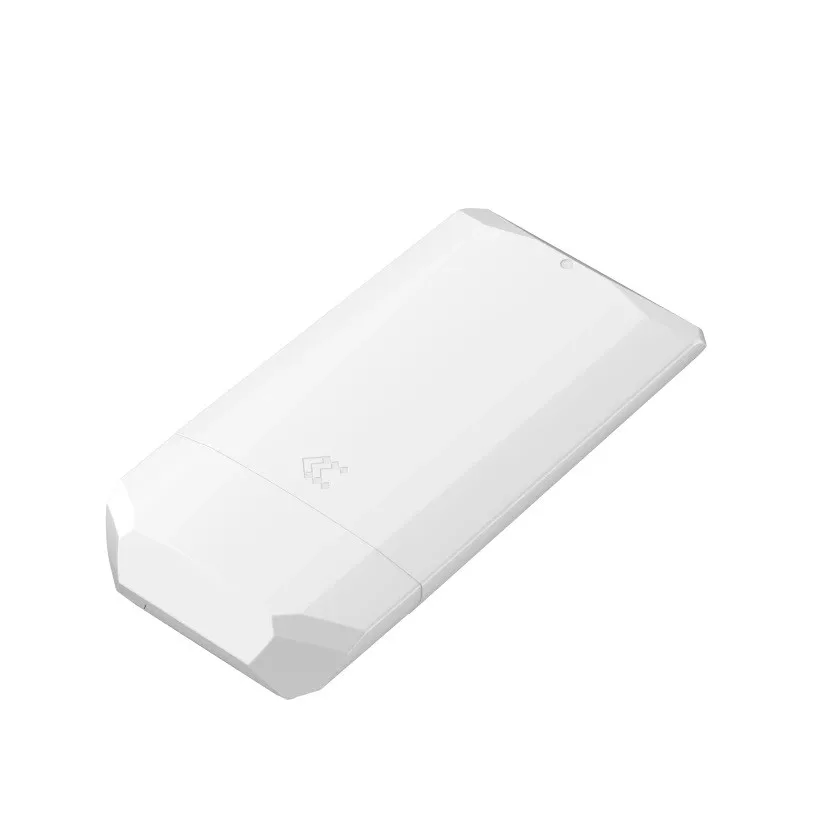

TELTONIKA Router Outdoor ODT140 4G (Cat 4), 3G, 2G IP55 Dual SIM PoE

TELTONIKA Router Outdoor ODT140 4G (Cat 4), 3G, 2G IP55 Dual SIM PoE

Model:

OTD140

Description:

Teltonika Networks’ first-ever outdoor router, the OTD140, is designed to provide seamless and uninterrupted connectivity to your outdoor network solutions – no matter the weather.

The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and able to withstand outdoor conditions. Additionally, this outdoor router comes with LTE Cat 4 connectivity, RMS compatibility for remote management, and dual Ethernet PoE I/O.

Type: GSM 3G/4G
Data transmission: LTE
Aero2 support: No
Standards: 802.3af
Standards: 802.3at
Number of antennas: 2
Antenna: Built-in
Antenna gain: 4.5 dBi
Management, monitoring, configuration:

• WEB UI: HTTP/HTTPS, status, configuration, firewall software (FW) update, command line interface (CLI), troubleshooting, event log, system log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, sending/reading SMS via HTTP POST/GET
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• RMS: Teltonika Remote Management System (RMS)
• MODBUS: MODBUS TCP status/control
• JSON-RPC: Management API over HTTP/HTTPS

Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS, IP and login attempt blocking
• Protection against DDoS attacks (protection against SYN flood attack, preventing SSH attacks, preventing HTTP/HTTPS attacks), preventing port scanning (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks).

Special functions:
I/O ports: 2 x 10/100 Mbit/s PoE
SIM card: Standard
Power supply:

Input voltage range for PoE: 42,557.0 VDC, reverse polarity protection, overvoltage/surge protection.

Software:
Certificates:

CE, UKCA, EAC, UCRF, RCM

System Requirements:
Environment requirements:

• Operating temperature: -40 to 75 degrees Celsius
• Operating humidity: 10% to 90%, non-condensing
• Degree of protection: IP55

Accessories included:
Color: White
Weight: 855 gram
Dimensions:

110 x 49.30 x 235 mm

Other features:

• Housing material: Plastic (PC+ASA)
• Processor: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128MB
• FLASH memory: 16 MB

Designation:
